TabLayout+Viewpager加载动态多个fragment

• 废话不多说，直接上图

代码展示

1. 布局

   <?xml version="1.0" encoding="utf-8"?>
   <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       xmlns:app="http://schemas.android.com/apk/res-auto"
       android:orientation="vertical">

       <LinearLayout
           android:layout_width="match_parent"
           android:layout_height="wrap_content"
           android:orientation="horizontal"
           android:paddingStart="16dp"
           android:paddingEnd="16dp">

           <Button
               android:layout_width="wrap_content"
               android:layout_height="wrap_content"
               android:layout_gravity="center_horizontal"
               android:text="点击添加"
               android:onClick="addPage"/>

           <Space
               android:layout_width="0dp"
               android:layout_height="wrap_content"
               android:layout_weight="1"/>
           <Button
               android:layout_width="wrap_content"
               android:layout_height="wrap_content"
               android:layout_gravity="center_horizontal"
               android:text="点击删除"
               android:onClick="removePage"/>

       </LinearLayout>


       <android.support.design.widget.TabLayout
           android:id="@+id/tab_titles"
           android:layout_width="match_parent"
           android:layout_height="50dp"
           app:tabSelectedTextColor="#FFF"
           app:tabTextColor="#3f9"
           android:background="@color/design_default_color_primary"
           app:tabIndicatorHeight="10dp"
           app:tabTextAppearance="@style/TabTextAppearance"/>


       <android.support.v4.view.ViewPager
           android:id="@+id/viewpagers_mypager"
           android:layout_width="match_parent"
           android:layout_height="match_parent" />
   </LinearLayout>


   Tab的字体大小和样式需要使用属性app:tabTextAppearance设置
   fragment的布局就不贴出来了

2. Activity

   	public class ActivityViewPagers extends FragmentActivity {

       private TabLayout mTab;
       private ViewPager mViewPager;
       private ViewPagerFragAdapter mPagerAdapter;
       String[] array = {"Damian", "Madison", "Henry", "Jamey", "Farrell", "Pandora"};

       @Override
       protected void onCreate(Bundle savedInstanceState) {
           super.onCreate(savedInstanceState);
           setContentView(R.layout.activity_viewpagers);

           mTab = findViewById(R.id.tab_titles);
           mViewPager = findViewById(R.id.viewpagers_mypager);
           /**关键方法，使Tab与ViewPager绑定，tab个数同步*/
           mTab.setupWithViewPager(mViewPager);

           mPagerAdapter = new ViewPagerFragAdapter(getSupportFragmentManager());
           mViewPager.setAdapter(mPagerAdapter);
       }

       public void addPage(View view) {
           mPagerAdapter.addTitle(array[(int) (Math.random()*array.length)]);
           int count = mPagerAdapter.getCount();
           if (count > 3){
               mTab.setTabMode(TabLayout.MODE_SCROLLABLE);
           }
       }

       public void removePage(View view) {
           mPagerAdapter.removeTitle();
           int count = mPagerAdapter.getCount();
           if (count <= 3){
               mTab.setTabMode(TabLayout.MODE_FIXED);
           }
       }
   }


   Activity必须是FragmentActivity才能调用getSupportFragmentManager()

3. Adapter

   public class ViewPagerFragAdapter extends FragmentPagerAdapter {

       private ArrayList<String> mData = new ArrayList<>();

       public ViewPagerFragAdapter(FragmentManager fm) {
           super(fm);
       }

       @Override
       public Fragment getItem(int position) {
           String title = mData.get(position);
           FragmentCommon fragment = FragmentCommon.newInstance(title);
           return fragment;
       }

       @Override
       public int getCount() {
           return mData.size();
       }

       @Nullable
       @Override
       public CharSequence getPageTitle(int position) {
       	//使用首字母作为title
           return String.valueOf(mData.get(position).charAt(0));
       }

       public void setTitleList(ArrayList<String> strings) {
           this.mData.clear();
           this.mData.addAll(strings);
           notifyDataSetChanged();
       }

       public void addTitle(String str){
           this.mData.add(str);
           notifyDataSetChanged();
       }

       public void removeTitle() {
           if (mData.size() <= 0){
               return;
           }
           this.mData.remove(mData.size() -1);
           notifyDataSetChanged();
       }
   }


   跟BaseAdapter的思路一样，先数据处理，然后notifyDataSetChanged()通知适配器更新
   关键方法getPageTitle(int position)， 与Tab有关，tab从这里获取标题的内容，不重写就是空标题了；

说明：

• TabLayout需要的gradle依赖： implementation 'com.android.support:design:28.0.0'

源码分析

TabLayout 的 setupWithViewPager方法内部实现：

private void setupWithViewPager(@Nullable ViewPager viewPager, boolean autoRefresh, boolean implicitSetup) {
        //去除老的监听器
        if (this.viewPager != null) {
            if (this.pageChangeListener != null) {
                this.viewPager.removeOnPageChangeListener(this.pageChangeListener);
            }

            if (this.adapterChangeListener != null) {
                this.viewPager.removeOnAdapterChangeListener(this.adapterChangeListener);
            }
        }

        if (this.currentVpSelectedListener != null) {
            this.removeOnTabSelectedListener(this.currentVpSelectedListener);
            this.currentVpSelectedListener = null;
        }

		//更换新的监听器
        if (viewPager != null) {
            this.viewPager = viewPager;
            if (this.pageChangeListener == null) {
                this.pageChangeListener = new TabLayout.TabLayoutOnPageChangeListener(this);
            }

            this.pageChangeListener.reset();
            //设置PageChangeListener，监听页面滑动、选中状态，来同步滑动Tab标题
            viewPager.addOnPageChangeListener(this.pageChangeListener);
            this.currentVpSelectedListener = new TabLayout.ViewPagerOnTabSelectedListener(viewPager);
            this.addOnTabSelectedListener(this.currentVpSelectedListener);
            PagerAdapter adapter = viewPager.getAdapter();
            if (adapter != null) {
                this.setPagerAdapter(adapter, autoRefresh);
            }

            if (this.adapterChangeListener == null) {
                this.adapterChangeListener = new TabLayout.AdapterChangeListener();
            }

            this.adapterChangeListener.setAutoRefresh(autoRefresh);
            //监听ViewPager的适配器变化
            viewPager.addOnAdapterChangeListener(this.adapterChangeListener);
            this.setScrollPosition(viewPager.getCurrentItem(), 0.0F, true);
        } else {
            this.viewPager = null;
            this.setPagerAdapter((PagerAdapter)null, false);
        }

        this.setupViewPagerImplicitly = implicitSetup;
    }

这里对Viewpager的多个参数做监听，这样的话ViewPager就实实在在的与Tab绑定而同步刷新和选中、滑动

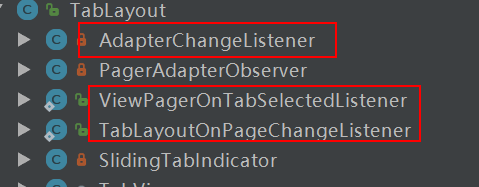

TabLayout内部定义了多种监听器：监听Adapter变化、Pager状态、Tab状态等

总结：

1. 关键方法：mTab.setupWithViewPager(mViewPager);这句代码让Tab与Viewpager绑定。如果Viewpager页数变化，相应的tab的个数和标题也会变化。TabLayout在addTab时就会调用getPageTitle(int position)获取标题内容；
2. viewpager数据变化 —> viewpager adapter 更新 —>Tab更新
3. 如果remove当前页面，有可能导致后续的页面内容错乱；可能是ViewPager缓存导致的。可能需要换用适配器FragmentStatePagerAdapter
