集群化部署方案全解析：构建企业级AI生成平台

一、集群架构设计原则

1.1 核心设计目标

• 水平扩展能力：支持动态添加/移除计算节点

• 故障域隔离：实现计算/存储/网络三层容错

• 资源利用率优化：基于优先级的多级任务调度

• 统一入口管理：API Gateway + 负载均衡架构

1.2 典型拓扑方案对比

架构类型	节点规模	适用场景	优缺点
单控制节点	<20节点	实验环境	部署简单/存在单点故障
多可用区部署	50-200节点	生产环境	高可用性/网络延迟敏感
混合云架构	200+节点	全球化服务	成本最优/管理复杂度高

二、基础环境搭建

2.1 硬件资源规划

计算节点分层配置：

# cluster_config.yaml
node_profiles:
  - type: gpu_heavy
    specs:
      gpu: 4x A100 80GB
      cpu: 64 vCPU
      mem: 512GB
      storage: 10TB NVMe
    count: 8

  - type: cpu_preprocess
    specs:
      gpu: none
      cpu: 32 vCPU
      mem: 256GB
      storage: 5TB SSD
    count: 12

  - type: storage_node
    specs:
      network: 100GbE
      storage: 1PB Ceph
    count: 3

2.2 网络架构配置

# 使用Calico构建BGP网络
kubectl apply -f https://docs.projectcalico.org/manifests/calico.yaml

# 配置多网卡绑定（示例）
nmcli con add type bond con-name bond0 ifname bond0 mode 802.3ad
nmcli con add type ethernet ifname eth1 master bond0
nmcli con add type ethernet ifname eth2 master bond0
nmcli con mod bond0 ipv4.addresses 10.200.1.10/24
nmcli con up bond0

三、Kubernetes集群部署

3.1 使用Kubeadm构建集群

# 控制平面初始化
kubeadm init --pod-network-cidr=192.168.0.0/16 \
  --apiserver-advertise-address=10.200.1.10 \
  --image-repository registry.aliyuncs.com/google_containers

# 工作节点加入
kubeadm join 10.200.1.10:6443 --token xxxx \
  --discovery-token-ca-cert-hash sha256:xxxx

3.2 GPU节点专项配置

# Dockerfile.gpu
FROM nvidia/cuda:12.2.0-devel-ubuntu22.04
RUN apt-get update && apt-get install -y \
    nvidia-container-toolkit \
    nvidia-cuda-toolkit

# 部署GPU插件
kubectl apply -f https://raw.githubusercontent.com/NVIDIA/k8s-device-plugin/v0.14.1/nvidia-device-plugin.yml

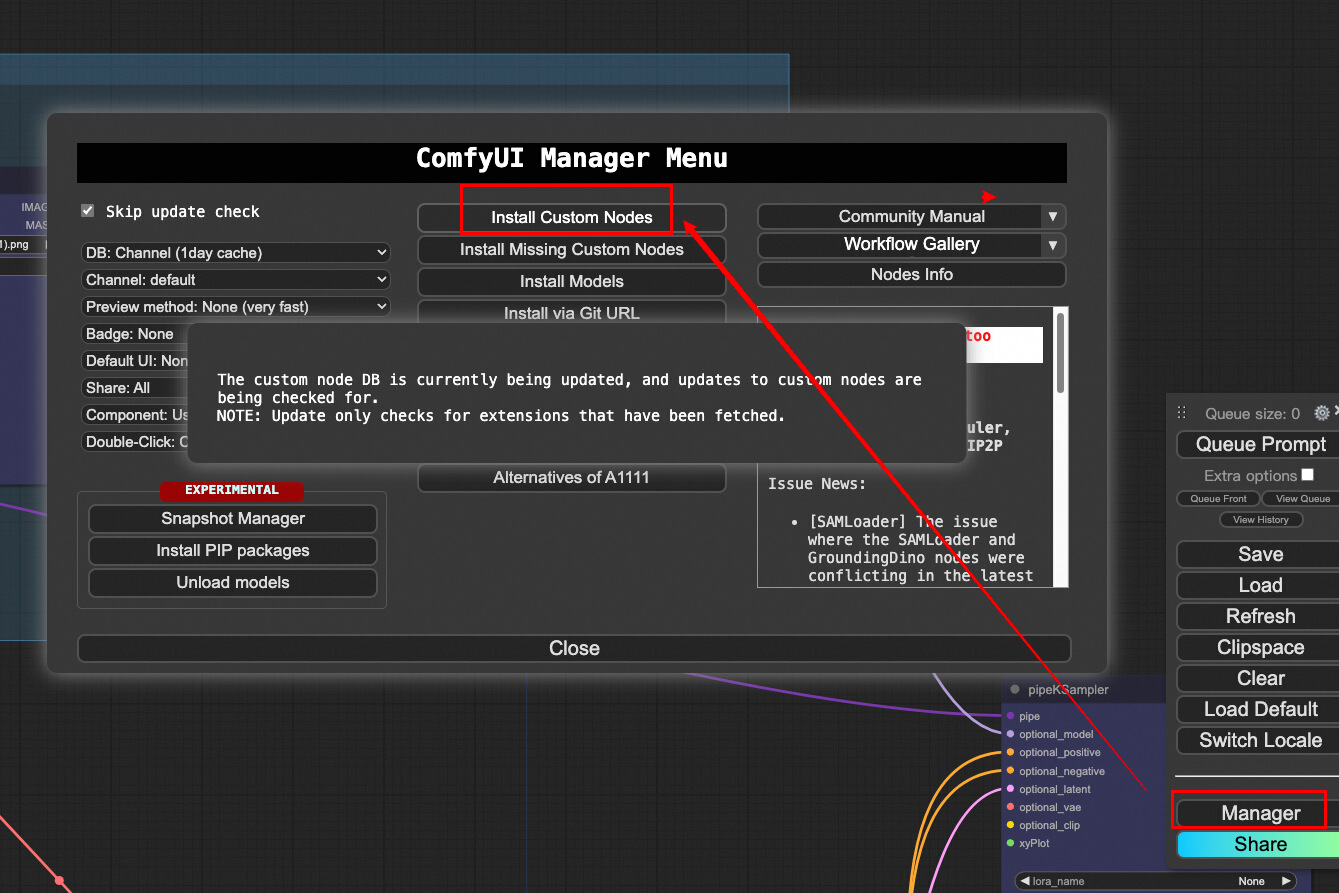

四、ComfyUI容器化改造

4.1 构建生产级Docker镜像

# 多阶段构建优化
FROM pytorch/pytorch:2.1.0-cuda12.1-cudnn8-runtime AS builder

WORKDIR /app
COPY . .
RUN pip install -r requirements.txt \
    && python -m compileall .

FROM nvidia/cuda:12.1.0-base
COPY --from=builder /app /app
COPY --from=builder /usr/local/lib/python3.10/site-packages /usr/local/lib/python3.10/site-packages

EXPOSE 8188
CMD ["python", "main.py", "--listen", "--port", "8188"]

4.2 Helm Chart编排配置

# values.yaml
replicaCount: 8
resources:
  limits:
    nvidia.com/gpu: 2
    memory: 48Gi
  requests:
    cpu: 8
    memory: 32Gi

autoscaling:
  enabled: true
  minReplicas: 4
  maxReplicas: 32
  targetCPUUtilizationPercentage: 70
  targetMemoryUtilizationPercentage: 85

nodeSelector:
  node-type: gpu_heavy

tolerations:
- key: "gpu"
  operator: "Exists"
  effect: "NoSchedule"

五、分布式任务调度系统

5.1 Celery-RabbitMQ架构

# tasks.py
from celery import Celery
from comfy_api import execute_workflow

app = Celery('tasks',
             broker='pyamqp://user:pass@rabbitmq:5672//',
             backend='redis://redis:6379/0')

@app.task(bind=True, max_retries=3)
def execute_workflow_task(self, workflow_json):
    try:
        return execute_workflow(workflow_json)
    except Exception as exc:
        raise self.retry(exc=exc)

5.2 优先级队列配置

# 定义不同优先级的消息队列
task_routes = {
    'tasks.high_priority': {'queue': 'urgent'},
    'tasks.normal_priority': {'queue': 'default'},
    'tasks.low_priority': {'queue': 'batch'}
}

# RabbitMQ策略配置
rabbitmqctl set_policy prioritization \
    "^(urgent|default|batch)$" \
    '{"priority": {"maximum": 10}, "max-length": 10000}' \
    --apply-to queues

六、存储系统优化

6.1 分布式模型存储方案

# 部署MinIO集群
helm install minio minio/minio \
  --set mode=distributed \
  --set persistence.size=100Ti \
  --set resources.requests.memory=16Gi \
  --set accessKey=comfyadmin \
  --set secretKey=comfysecret123

# 模型同步策略
mc mirror --watch /models/local s3/comfy-models/

6.2 缓存加速方案

# 使用Redis进行热点模型缓存
import redis
from functools import lru_cache

r = redis.Redis(host='redis-master', port=6379)

class ModelCache:
    @lru_cache(maxsize=32)
    def get_model(self, ckpt_name):
        model_data = r.get(f"model:{ckpt_name}")
        if not model_data:
            model_data = self._load_from_storage(ckpt_name)
            r.setex(f"model:{ckpt_name}", 3600, model_data)
        return torch.load(io.BytesIO(model_data))

七、监控与日志系统

7.1 Prometheus+Grafana监控栈

# prometheus-rules.yaml
groups:
- name: comfy-alerts
  rules:
  - alert: HighGPUUtilization
    expr: avg(rate(nvidia_gpu_utilization[5m])) by (instance) > 0.9
    for: 10m
    labels:
      severity: critical
    annotations:
      summary: "GPU利用率持续高位 ({{ $value }}%)"

  - alert: WorkflowTimeout
    expr: comfy_workflow_duration_seconds > 300
    labels:
      severity: warning
    annotations:
      description: "工作流执行超时 {{ $value }} 秒"

7.2 业务日志分析

# 结构化日志输出
import structlog
logger = structlog.get_logger()

def execute_workflow(workflow):
    try:
        start_time = time.monotonic()
        logger.info("workflow_started",
                   workflow_id=workflow.id,
                   user=workflow.user)

        # ...执行逻辑...

        logger.info("workflow_completed",
                   duration=time.monotonic()-start_time,
                   output_size=len(results))
    except Exception as e:
        logger.error("workflow_failed",
                    exception=str(e),
                    stack_info=True)

八、安全防护体系

8.1 零信任安全架构

# istio授权策略示例
apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: comfy-api-policy
spec:
  selector:
    matchLabels:
      app: comfy-api
  rules:
  - from:
    - source:
        principals: ["cluster.local/ns/auth-system/sa/jwt-validator"]
    to:
    - operation:
        methods: ["POST"]
        paths: ["/api/v1/execute"]
    when:
    - key: request.auth.claims[group]
      values: ["ai-developer"]

8.2 数据加密方案

# 启用存储加密
kubectl create secret generic minio-key \
  --from-literal=MINIO_KMS_SECRET_KEY=32byteslongsupersecretkey

# TLS证书管理
certbot certonly --dns-cloudflare \
  --dns-cloudflare-credentials ./cloudflare.ini \
  -d comfy.example.com

九、灾备与恢复方案

9.1 跨区域同步

# Velero备份配置
velero install \
  --provider aws \
  --plugins velero/velero-plugin-for-aws:v1.7.0 \
  --bucket comfy-backup \
  --secret-file ./credentials \
  --use-volume-snapshots=false \
  --backup-location-config region=us-west-2

# 创建定时备份
velero schedule create daily-backup \
  --schedule="@every 24h" \
  --include-namespaces comfy-prod

9.2 故障转移演练

# 混沌工程测试用例
def test_gpu_node_failure():
    # 随机选择GPU节点
    node = random.choice(get_gpu_nodes())

    # 模拟节点故障
    node.power_off()

    # 验证任务自动迁移
    assert check_task_redistribution(node), "任务未正确迁移"

    # 恢复节点并验证数据一致性
    node.power_on()
    assert check_data_integrity(), "数据一致性校验失败"

---

---

本章配套工具包：

第一章：Kubernetes部署检查清单

1.1 部署前检查

- [ ] 所有节点时间同步 (chrony status)
- [ ] 节点间DNS解析正常 (nslookup <node-name>)
- [ ] 防火墙开放端口：
  - 6443 (API Server)
  - 2379-2380 (etcd)
  - 10250-10259 (Kube组件)
- [ ] SWAP已禁用 (swapoff -a)
- [ ] 内核参数调整：
  - net.ipv4.ip_forward=1
  - vm.swappiness=0

1.2 安装验证清单

# 集群状态检查
kubectl get componentstatus
kubectl get nodes -o wide

# 网络连通性测试
kubectl run test-pod --image=busybox --rm -it -- ping <service-ip>

# 存储卷验证
kubectl apply -f - <<EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: test-pvc
spec:
  accessModes: [ReadWriteOnce]
  resources:
    requests:
      storage: 1Gi
EOF

---

第二章：混沌工程测试脚本集

2.1 节点故障模拟

#!/bin/bash
# chaos_node_failure.sh
NODE=${1:-worker01}

echo "🔄 隔离节点 $NODE"
kubectl cordon $NODE

echo "💥 终止节点上的Pod"
kubectl drain $NODE --delete-epoch=5 --ignore-daemonsets

echo "🔌 模拟网络中断 (持续60秒)"
ssh $NODE "sudo iptables -A INPUT -j DROP && sleep 60 && sudo iptables -D INPUT -j DROP" &

echo "✅ 故障注入完成，60秒后自动恢复"

2.2 资源耗尽测试

# chaos_resource_stress.py
import chaosmesh.k8s as chaos
import time

def cpu_stress(namespace="comfy", duration=300):
    experiment = chaos.StressChaos(
        name="cpu-burn",
        mode="one",
        selector={"namespaces": [namespace]},
        stressors={
            "cpu": {
                "workers": 4,
                "load": 95,
                "duration": f"{duration}s"
            }
        }
    )
    experiment.create()
    time.sleep(duration)
    experiment.delete()

def memory_stress(size="2GB", duration=180):
    # 类似CPU压力测试配置
    ...

---

第三章：安全基线配置模板

3.1 Kubernetes加固配置

# security_baseline.yaml
apiVersion: audit.k8s.io/v1
kind: Policy
rules:
- level: Metadata
  resources: [{"group": "*"}]
  omitStages: ["RequestReceived"]

---
apiVersion: apiserver.config.k8s.io/v1
kind: EncryptionConfiguration
resources:
- resources: [secrets]
  providers:
  - aescbc:
      keys:
      - name: key1
        secret: <base64-encoded-secret>

3.2 Pod安全策略

# pod_security_policy.yaml
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: comfy-restricted
spec:
  privileged: false
  allowPrivilegeEscalation: false
  requiredDropCapabilities:
    - ALL
  volumes:
    - 'configMap'
    - 'persistentVolumeClaim'
  hostNetwork: false
  hostIPC: false
  hostPID: false
  runAsUser:
    rule: 'MustRunAsNonRoot'
  seLinux:
    rule: 'RunAsAny'
  supplementalGroups:
    rule: 'MustRunAs'
    ranges: [{min: 1, max: 65535}]

---

第四章：性能基准测试数据集

4.1 压力测试配置

# loadtest-config.yaml
workloads:
  - name: image-generation
    concurrency: 100
    duration: 5m
    parameters:
      resolution: 1024x1024
      steps: 50
      batch_size: 4

  - name: model-inference
    concurrency: 50
    duration: 10m
    parameters:
      model: sd-xl-v1.0
      precision: fp16

metrics:
  - name: gpu_util
    query: avg(rate(container_gpu_utilization[1m])) * 100
  - name: p95_latency
    query: histogram_quantile(0.95, sum(rate(http_request_duration_seconds_bucket[1m])) by (le))

4.2 测试数据生成工具

# generate_benchmark_data.py
import numpy as np
from faker import Faker

def generate_image_requests(num=1000):
    fake = Faker()
    return [{
        "request_id": f"req_{i:04d}",
        "prompt": fake.sentence(),
        "seed": np.random.randint(0, 2**32),
        "steps": np.random.choice([20, 30, 50]),
        "width": np.random.choice([512, 768, 1024]),
        "height": np.random.choice([512, 768, 1024])
    } for i in range(num)]

if __name__ == "__main__":
    import json
    data = generate_image_requests(5000)
    with open("workload.json", "w") as f:
        json.dump(data, f, indent=2)

---

工具包获取方式：

1. Kubernetes检查清单

   wget https://comfyops.cc/k8s-checklist.zip && unzip k8s-checklist.zip

2. 混沌工程脚本集

   pip install chaos-mesh && git clone https://github.com/comfyops/chaos-scripts

3. 安全配置模板

   kubectl apply -f https://comfyops.cc/security-baseline.yaml

4. 性能测试数据集

   aws s3 cp s3://comfyops-benchmark/datasets/v2.1.3.tar.gz .
   tar xzf v2.1.3.tar.gz -C ./benchmark-data

---

实施路线图：

1. 环境准备
   执行Kubernetes检查清单，确保基础环境合规

2. 安全加固
   应用安全基线配置模板，完成漏洞扫描

3. 性能基准
   运行基准测试数据集，记录初始性能指标

4. 混沌测试
   按计划执行故障注入，验证系统健壮性

5. 优化迭代
   根据测试结果调整资源配置和部署策略

---

可视化看板示例：

// grafana-dashboard.json
{
  "title": "Comfy集群监控",
  "panels": [
    {
      "type": "graph",
      "title": "GPU利用率",
      "targets": [{
        "expr": "avg(rate(nvidia_gpu_utilization[1m])) by (instance)",
        "legendFormat": "{{instance}}"
      }]
    },
    {
      "type": "heatmap",
      "title": "请求延迟分布",
      "targets": [{
        "expr": "histogram_quantile(0.95, sum(rate(http_request_duration_seconds_bucket[1m])) by (le))"
      }]
    }
  ]
}
