自学python的数据分析，爬虫后，花了几天时间看视频学习Flask做了一个简单的股票查询网页。本来还想着加入一些其他功能，比如财务指标分析，舆情分析，最完美的想法是做成一个股票评分系统，输入股票代码可以自动输出分析结果和最终评分以及排名。但是限于没有服务器（不想花钱买）于是先到此为止，后面计划先实现股票评分的本地系统化，然后有机会再部署到网站上。有类似想法的欢迎交流~

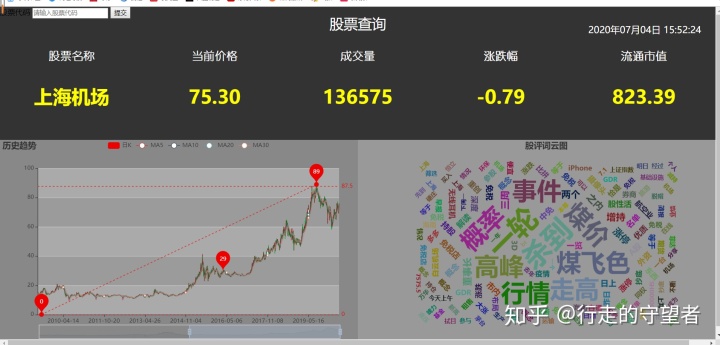

先放一张最终效果图。网页左上角输入股票代码，可以在下方显示实时行情、历史走势、股评词云等信息。这是本菜鸡第一次开发网页，所以是非常简单的版本。后面想要继续实现本地化的打分系统，因为虽然同花顺等炒股软件包含智能筛选功能，但是缺少一些个性化的分析指标，不知道我的这个想法是否可行？有没有价值去做？求建议！
前端页面输入股票代码传到后端，即可从网易财经、腾讯财经提供的数据接口api爬取相关股票的数据，然后利用ajax和exharts呈现到网页上。右下方的词云图是从东方财富爬取的股评信息后制作的。

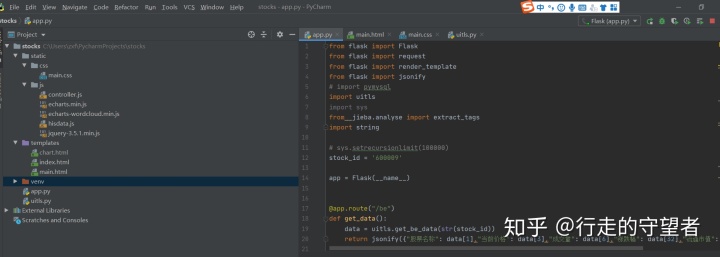

具体实现过程一共花了不到一周时间，下面是全部文档信息。主要文件有四个，app.py为flask写的后端，main.html和main.css写前端，utils.py写了一些爬虫和数据处理的函数。
下面分别贴出4个文档的代码，可能包括一些冗余信息（连接mysql的一些操作,之前想做财务指标呈现是用到的)。
1 app.py
flask写的后端，模式比较固定，难点在于前后台数据的交互（用到ajax)。
from flask import Flask
from flask import request
from flask import render_template
from flask import jsonify
# import pymysql
import uitls
import sys
from jieba.analyse import extract_tags
import string
# sys.setrecursionlimit(100000)
stock_id = '600009'
app = Flask(__name__)
@app.route("/be")
def get_data():
data = uitls.get_be_data(str(stock_id))
return jsonify({"股票名称": data[1],"当前价格": data[3],"成交量": data[6],"涨跌幅": data[32],"流通市值": data[44]})
@app.route("/his", methods=["get", "post"])
def get_history_data():
msg = uitls.get_history_data(str(stock_id))
print(msg)
print(type(msg))
return jsonify({"日期":msg['日期'],"开盘价":msg['开盘价'],"收盘价":msg['收盘价'],"最低价":msg['最低价'],"最高价":msg['最高价']})
# jsonify({"日期": msg['日期'][0],"开盘价":msg['开盘价'][0]})
@app.route("/gp", methods=["get", "post"])
def get_guping():
data = uitls.get_guping(stock_id)
d = []
for i in data:
k = i.rstrip(string.digits)
v = i[len(k):]
ks = extract_tags(k)
# print(v)
for j in ks:
if not j.isdigit():
d.append({'name': j, 'value': v})
return jsonify({'kws':d})
@app.route("/time", methods=["get", "post"])
def get_time():
return uitls.get_time()
@app.route("/", methods=["get", "post"])
def input_id():
return render_template("main.html")
@app.route("/ind", methods=["get", "post"])
def get_id():
global stock_id
stock_id = request.values.get("股票代码")
print(stock_id)
return render_template("main.html")
if __name__ == '__main__':
app.run()2.main.html
这里包含了echarts中的K线图和词云图模板，所以看起来比较长。
<!DOCTYPE html>
<html>
<head link rel="shortcut icon" href="#" />
<meta charset="utf-8">
<title>股票数据</title>
<script src="../static/js/jquery-3.5.1.min.js"></script>
<script src="../static/js/echarts.min.js"></script>
<script src="../static/js/echarts-wordcloud.min.js"></script>
<link href = "../static/css/main.css" rel = "stylesheet"/>
</head>
<body>
<div id = "title">股票查询</div>
<form action="/ind">
股票代码 <input name = "股票代码" placeholder="请输入股票代码">
<button>提交</button>
</form>
<div id = "tim">我是时间</div>
<div id = "be">
<div class ="tex"><h2>股票名称</h2></div>
<div class ="tex"><h2>当前价格</h2></div>
<div class ="tex"><h2>成交量</h2></div>
<div class ="tex"><h2>涨跌幅</h2></div>
<div class ="tex"><h2>流通市值</h2></div>
<div class ="num"><h1>123</h1></div>
<div class ="num"><h1>123</h1></div>
<div class ="num"><h1>123</h1></div>
<div class ="num"><h1>123</h1></div>
<div class ="num"><h1>123</h1></div>
</div>
<div id="bl" style="width: 800px;height:435px;">我是瞎做</div>
<script>
var hisdata = echarts.init(document.getElementById('bl'));
var upColor = '#ec0000';
var upBorderColor = '#8A0000';
var downColor = '#00da3c';
var downBorderColor = '#008F28';
hisdata_option = {
title: {
text: '历史趋势',
left: 0
},
tooltip: {
trigger: 'axis',
axisPointer: {
type: 'cross'
}
},
legend: {
data: ['日K', 'MA5', 'MA10', 'MA20', 'MA30']
},
grid: {
left: '10%',
right: '10%',
bottom: '15%'
},
xAxis: {
type: 'category',
data: [],
scale: true,
boundaryGap: false,
axisLine: {onZero: false},
splitLine: {show: false},
splitNumber: 20,
min: 'dataMin',
max: 'dataMax'
},
yAxis: {
scale: true,
splitArea: {
show: true
}
},
dataZoom: [
{
type: 'inside',
start: 50,
end: 100
},
{
show: true,
type: 'slider',
top: '90%',
start: 50,
end: 100
}
],
series: [
{
name: '日K',
type: 'candlestick',
data: [],
itemStyle: {
color: upColor,
color0: downColor,
borderColor: upBorderColor,
borderColor0: downBorderColor
},
markPoint: {
label: {
normal: {
formatter: function (param) {
return param != null ? Math.round(param.value) : '';
}
}
},
data: [
{
name: 'XX标点',
coord: ['2013/5/31', 2300],
value: 2300,
itemStyle: {
color: 'rgb(41,60,85)'
}
},
{
name: 'highest value',
type: 'max',
valueDim: 'highest'
},
{
name: 'lowest value',
type: 'min',
valueDim: 'lowest'
},
{
name: 'average value on close',
type: 'average',
valueDim: 'close'
}
],
tooltip: {
formatter: function (param) {
return param.name + '<br>' + (param.data.coord || '');
}
}
},
markLine: {
symbol: ['none', 'none'],
data: [
[
{
name: 'from lowest to highest',
type: 'min',
valueDim: 'lowest',
symbol: 'circle',
symbolSize: 10,
label: {
show: false
},
emphasis: {
label: {
show: false
}
}
},
{
type: 'max',
valueDim: 'highest',
symbol: 'circle',
symbolSize: 10,
label: {
show: false
},
emphasis: {
label: {
show: false
}
}
}
],
{
name: 'min line on close',
type: 'min',
valueDim: 'close'
},
{
name: 'max line on close',
type: 'max',
valueDim: 'close'
}
]
}
},
{
name: 'MA5',
type: 'line',
data: '',
smooth: true,
lineStyle: {
opacity: 0.5
}
},
{
name: 'MA10',
type: 'line',
data: '',
smooth: true,
lineStyle: {
opacity: 0.5
}
},
{
name: 'MA20',
type: 'line',
data: '',
smooth: true,
lineStyle: {
opacity: 0.5
}
},
{
name: 'MA30',
type: 'line',
data: '',
smooth: true,
lineStyle: {
opacity: 0.5
}
},
]
};
</script>
<div id="br" style="width: 800px;height:435px;">我是下游</div>
<script>
var gp = echarts.init(document.getElementById('br'));
var ddd = [{
name: 'Farrah Abraham',
value: 366,
// Style of single text
}];
var maskResource = new Image()
maskResource.src=image1;
gp_option = {
title:{
text: '股评词云图',
left:'center',
},
//数据可以点击
tooltip:{
show:false
},
series: [{
type: 'wordCloud',
// The shape of the "cloud" to draw. Can be any polar equation represented as a
// callback function, or a keyword present. Available presents are circle (default),
// cardioid (apple or heart shape curve, the most known polar equation), diamond (
// alias of square), triangle-forward, triangle, (alias of triangle-upright, pentagon, and star.
shape: 'circle',
// A silhouette image which the white area will be excluded from drawing texts.
// The shape option will continue to apply as the shape of the cloud to grow.
// maskImage: maskResource,
// // Folllowing left/top/width/height/right/bottom are used for positioning the word cloud
// // Default to be put in the center and has 75% x 80% size.
left: 'center',
top: 'center',
width: '70%',
height: '80%',
right: null,
bottom: null,
// Text size range which the value in data will be mapped to.
// Default to have minimum 12px and maximum 60px size.
sizeRange: [12, 60],
// Text rotation range and step in degree. Text will be rotated randomly in range [-90, 90] by rotationStep 45
rotationRange: [-90, 90],
rotationStep: 45,
// size of the grid in pixels for marking the availability of the canvas
// the larger the grid size, the bigger the gap between words.
gridSize: 8,
// set to true to allow word being draw partly outside of the canvas.
// Allow word bigger than the size of the canvas to be drawn
drawOutOfBound: false,
// Global text style
textStyle: {
normal: {
fontFamily: 'sans-serif',
fontWeight: 'bold',
// Color can be a callback function or a color string
color: function () {
// Random color
return 'rgb(' + [
Math.round(Math.random() * 160),
Math.round(Math.random() * 160),
Math.round(Math.random() * 160)
].join(',') + ')';
}
},
emphasis: {
shadowBlur: 10,
shadowColor: '#333'
}
},
// Data is an array. Each array item must have name and value property.
data: [{
name: 'Farrah Abraham',
value: 366,
// Style of single text
}]
}]
}
</script>
<script >
function getatime(){
$.ajax({
url:"/time",
success:function(d){
$("#tim").html(d)
},
error:function(jqXHR, textStatus, errorThrown){
console.log(jqXHR.responseText);
}
})
}
function get_be_data(){
$.ajax({
url:"/be",
success:function(data){
$(".num h1").eq(0).text(data['股票名称'])
$(".num h1").eq(1).text(data['当前价格'])
$(".num h1").eq(2).text(data['成交量'])
$(".num h1").eq(3).text(data['涨跌幅'])
$(".num h1").eq(4).text(data['流通市值'])
},
error:function(jqXHR, textStatus, errorThrown){
console.log(jqXHR.responseText);
}
})
}
function get_guping(){
$.ajax({
url:"/gp",
success:function(data){
gp_option.series[0].data = data.kws;
gp.setOption(gp_option);
},
error:function(jqXHR, textStatus, errorThrown){
console.log(jqXHR.responseText);
}
})
}
function get_his_data(){
$.ajax({
url:"/his",
success:function(msg){
var datalen = msg['日期'].length
k_time =[]
k_value = []
for (var i = 0; i < datalen; i++) {
k_time.push(msg['日期'][i]);
k_value.push([msg['开盘价'][i],
msg['收盘价'][i],
msg['最低价'][i],
msg['最高价'][i]])
}
console.log(k_time)
console.log(k_value)
function calculateMA(dayCount) {
var result = [];
for (var i = 0, len = k_value.length; i < len; i++) {
if (i < dayCount) {
result.push('-');
continue;
}
var sum = 0;
for (var j = 0; j < dayCount; j++) {
sum += k_value[i - j][1];
}
result.push(sum / dayCount);
}
return result;
}
hisdata_option.xAxis.data = k_time;
hisdata_option.series[0].data = k_value;
hisdata_option.series[1].data = calculateMA(5);
hisdata_option.series[2].data = calculateMA(10);
hisdata_option.series[3].data = calculateMA(20);
hisdata_option.series[4].data = calculateMA(30);
hisdata.setOption(hisdata_option);
},
error:function(){
console.log("获取失败");
}
})
}
setInterval(getatime,1000)
setInterval(get_be_data,1000)
get_his_data()
get_guping()
</script>
</body>
</html>3 .main.css
用于网页整体布局。
body{
margin: 0;
background: #333;
}
#title{
position: absolute;
width: 40%;
height: 10%;
top: 0;
left: 30%;
/* background-color: #666666; */
color: white;
font-size: 30px;
display: flex;
align-items: center;
justify-content: center;
}
#ins{
position: absolute;
width: 40%;
height: 20%;
top: 10%;
left: 0;
background-color: grey;
}
#tim{
position: absolute;
/* width: 30%; */
height: 10%;
top: 5%;
right: 2%;
color: #FFFFFF;
font-size: 20px;
/* background-color: green; */
}
#be{
position: absolute;
width: 100%;
height: 30%;
top: 10%;
left: 0;
color: white;
/* background-color: #777777; */
}
#bl{
position: absolute;
width: 50%;
height: 60%;
top: 40%;
left: 0;
background-color: #888888;
}
#br{
position: absolute;
width: 50%;
height: 60%;
top: 40%;
left: 50%;
background-color: #999999;
}
.num{
width: 20%;
float: left;
display: flex;
align-items: center;
justify-content: center;
color:yellow;
font-size: 20px;
}
.tex{
width: 20%;
float: left;
font-family: "幼圆";
display: flex;
align-items: center;
justify-content: center;4.utils.py
写了一些用于爬取数据和处理数据的函数。
import time
import pymysql
import urllib.request
import pandas as pd
import requests
import re
from bs4 import BeautifulSoup
def get_time():
time_str = time.strftime("%Y{}%m{}%d{} %X")
return time_str.format("年", "月", "日")
def get_conn():
conn = pymysql.connect(host='127.0.0.1', user='root', password='', db='stock', charset='utf8')
cursor = conn.cursor()
return conn,cursor
def close_conn(conn,cursor):
cursor.close()
conn.close()
def query(sql,*args):
conn,cursor = get_conn()
cursor.execute(sql,args)
res = cursor.fetchall()
close_conn(conn,cursor)
return res
# def get_be_data(*args):
# sql = "SELECT * FROM hangqing where stockid = %s"
# res = query(sql, args)
# print(res)
# return res[0]
def get_be_data(code):
url = 'http://qt.gtimg.cn/q=sh' + str(code)
content = urllib.request.urlopen(url, timeout=2).read()
content = content.decode("gbk").encode("utf-8").decode("utf8", "ignore")
content = content.split('~')
return content
def get_history_data(code):
url = 'http://quotes.money.163.com/service/chddata.html?code=0'+str(code)
try:
content = urllib.request.urlopen(url).read()
content = content.decode("gbk").encode("utf-8")
with open('E:/hisdata.csv', 'wb')as f:
f.write(content)
data = pd.read_csv('E:/hisdata.csv')
# data = data.to_dict('record')
data = data[["日期","开盘价","收盘价","最低价","最高价"]]
# print(data)
data = data.to_dict()
data['日期'] = list(data['日期'].values())
data['开盘价'] = list(data['开盘价'].values())
data['收盘价'] = list(data['收盘价'].values())
data['最低价'] = list(data['最低价'].values())
data['最高价'] = list(data['最高价'].values())
data['日期'] = data['日期'][::-1]
data['开盘价'] = data['开盘价'][::-1]
data['收盘价'] = data['收盘价'][::-1]
data['最低价'] = data['最低价'][::-1]
data['最高价'] = data['最高价'][::-1]
except Exception as e:
print(e)
return data
def get_guping(id):
max_page = 2 # input('请输入爬取页数')
b = []
# head = {'User-Agent':' Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/83.0.4103.116 Safari/537.36'}
for page in range(1, int(max_page) + 1):
url = 'http://guba.eastmoney.com/list,{}_{}.html'.format(id, page)
res = requests.get(url)
soup = BeautifulSoup(res.text, 'html.parser')
urllist = soup.find_all('div', {'class': 'articleh'})
for i in urllist:
if i.find('a') != None:
try:
title = i.find('a').get_text()
yuedu = i.find('span',{'class':'l1 a1'}).get_text()
# time = i.find('span', {'class': 'l5 a5'}).get_text()
# a = [title + yuedu]
b.append(title + yuedu)
except Exception as e:
print(e)
pass
return b[7:]
if __name__ == '__main__':
msg = get_guping(600002)
print(msg)后面想要继续实现本地化的打分系统，因为虽然同花顺等炒股软件包含智能筛选功能，但是缺少一些个性化的分析指标，不知道我的这个想法是否可行？有没有价值去做？求建议！
扫一扫
3829
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
