android代码混淆总结,Android 代码混淆配置总结

一、前言

为何需要混淆呢？简单的说，就是将原本正常的项目文件，对其类，方法，字段，重新命名,a,b,c,d,e,f…之类的字母，达到混淆代码的目的，这样反编译出来，结构乱糟糟的，看了也头大。

另外说明一下，本文的混淆总结基于Android Studio的IDE开发环境。

二、官方默认的混淆配置

其实在android Studio中做混淆，基本就是对Proguard-rules.pro文件的操作。混淆的过程也是有规律可循的。先看看官方的proguard-android.txt文件，位于/tools/proguard目录下，不知道怎么写，可以当成模板，复制一份出来到自己的工程，改成自己项目所需的混淆配置。内容如下：

# This is a configuration file for ProGuard.

# http://proguard.sourceforge.net/index.html#manual/usage.html

-dontusemixedcaseclassnames

-dontskipnonpubliclibraryclasses

-verbose

# Optimization is turned off by default. Dex does not like code run

# through the ProGuard optimize and preverify steps (and performs some

# of these optimizations on its own).

-dontoptimize

-dontpreverify

# Note that if you want to enable optimization, you cannot just

# include optimization flags in your own project configuration file;

# instead you will need to point to the

# "proguard-android-optimize.txt" file instead of this one from your

# project.properties file.

-keepattributes *Annotation*

-keep public class com.google.vending.licensing.ILicensingService

-keep public class com.android.vending.licensing.ILicensingService

# For native methods, see http://proguard.sourceforge.net/manual/examples.html#native

-keepclasseswithmembernames class * {

native;

}

# keep setters in Views so that animations can still work.

# see http://proguard.sourceforge.net/manual/examples.html#beans

-keepclassmembers public class * extends android.view.View {

void set*(***);

*** get*();

}

# We want to keep methods in Activity that could be used in the XML attribute onClick

-keepclassmembers class * extends android.app.Activity {

public void *(android.view.View);

}

# For enumeration classes, see http://proguard.sourceforge.net/manual/examples.html#enumerations

-keepclassmembers enum * {

public static **[] values();

public static ** valueOf(java.lang.String);

}

-keepclassmembers class * implements android.os.Parcelable {

public static final android.os.Parcelable$Creator CREATOR;

}

-keepclassmembers class **.R$* {

public static;

}

# The support library contains references to newer platform versions.

# Don't warn about those in case this app is linking against an older

# platform version. We know about them, and they are safe.

-dontwarn android.support.**

# Understand the @Keep support annotation.

-keep class android.support.annotation.Keep

-keep @android.support.annotation.Keep class * {*;}

-keepclasseswithmembers class * {

@android.support.annotation.Keep;

}

-keepclasseswithmembers class * {

@android.support.annotation.Keep;

}

-keepclasseswithmembers class * {

@android.support.annotation.Keep(...);

}

这个混淆默认采取一些通用的规则，view，activity，Parcelable，注解，R文件，枚举这类的东西都不会混淆，我们也不能混淆这些，否则release版本会报错。

三、Android Studio开启混淆配置

很简单，只要设置minifyEnabled为true即可。

buildTypes {

release {

minifyEnabled true//true开启混淆配置，false关闭

proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'

signingConfig signingConfigs.duqian_android_keystore

}

debug{//省略}

}

四、Android混淆的通用规则

1. 系统混淆配置

-dontusemixedcaseclassnames #混淆时不使用大小写混合类名

-dontskipnonpubliclibraryclasses #不跳过library中的非public的类

-verbose #打印混淆的详细信息

-dontoptimize #不进行优化，建议使用此选项，

-dontpreverify #不进行预校验,Android不需要,可加快混淆速度。

-ignorewarnings #忽略警告

#-optimizationpasses 5 #指定代码的压缩级别

2. 常用的一些混淆配置

-keepattributes Signature #范型

#native方法不混淆

-keepclasseswithmembernames class * {

native;

}

#v4包不混淆

-keep class android.support.v4.app.** { *; }

-keep interface android.support.v4.app.** { *; }

#Gson混淆配置

-keep class sun.misc.Unsafe { *; }

-keep class com.idea.fifaalarmclock.entity.***

-keep class com.google.gson.** { *; }

#JavaBean

-keepclassmembers public class cn.net.duqian.bean.** {

void set*(***);

*** get*();

}

-keep class com.xx.duqian_cloud.JavaScriptInterface { *; }#webview js

#忽略 libiary 混淆

-keep class io.vov.vitamio.** { *; }

#butterknife不混淆

-keep class butterknife.** { *; }

-dontwarn butterknife.internal.**

-keep class **$$ViewBinder { *; }

-keepclasseswithmembernames class * {

@butterknife.*;

}

-keepclasseswithmembernames class * {

@butterknife.*;

}

3. 第三方框架一般不混淆(但也要看具体情况)

-keepclassmembers class * {

public(org.json.JSONObject);

}

#okhttp

-dontwarn okhttp3.**

-keep class okhttp3.**{*;}

-keep interface okhttp3.**{*;}

#okio

-dontwarn okio.**

-keep class okio.**{*;}

-keep interface okio.**{*;}

-dontwarn retrofit2.**

-keep class retrofit2.** { *; }

-keepattributes Signature

-keepattributes Exceptions

-dontwarn rx.**

-keep class rx.**{*;}

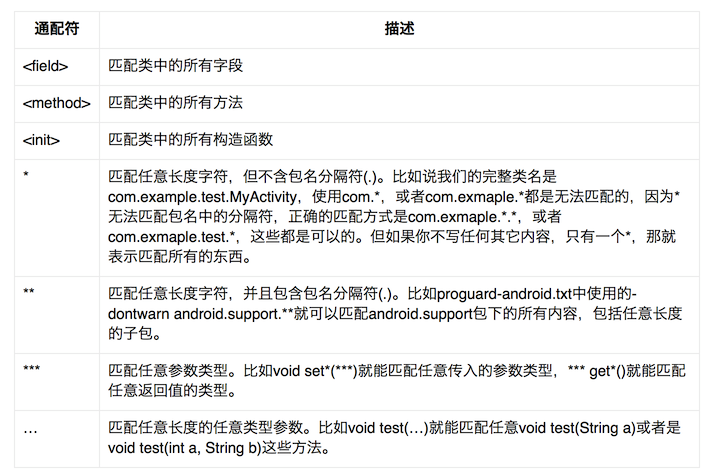

四、Android混淆的方法和通配符对照表

五、不能混淆的情况总结

Java的反射，为什么不能混淆呢？因为代码混淆，类名、方法名、属性名都改变了，而反射它还是按照原来的名字去反射，结果只射出一个程序崩溃

注解用了反射，所以不能混淆。 不混淆任何包含native方法的类的类名以及native方法名，否则找不到本地方法。

Activity不能混淆，因为AndroidManifest.xml文件中是完整的名字

自定义view也是带了包名写在xml布局中，不能混淆

六、混淆后使用时常见问题

当项目中出现so的native代码找不到Java的方法的时候，可以尝试将

-keepclasseswithmembernames class * {

native;

}

更改为：

-keep class * {

native;

}
