Add extra columns to Active Directory Users and Computers

display

by PberJune

21, 2009 11:47

By default Active Directory Users and Computers only allows you

to display specific columns for any given object within Active

Directory. A popular request is to be able to see

the Employee Number, but it isn't available by

default. As you can see from the screenshot

below, it can be available, but some modifications need to be

done.

So how is this done? First

let's discuss how the AD users and computer MMC

works. When the MMC displays the objects for any

give container, it has a set of default columns it can

display. You can add/remove what is displayed,

but many attributes are missing. The columns that

are allowed to be displayed are stored in an attribute in AD called

extraColumns. Each object

type can be customized to allow virtually any

attribute available to that object to be allowed in the Add/Remove

columns pick list. When the

extraColumns attribute is blank or

Set> for any given object type, the default-Display

object's extraColumns attribute is used.

All of this is done using the ADSIEDIT

tool.

A note of caution:Be very careful using

ADSIEDIT and modifying attributes as you can seriously affect

AD.

Load ADSIEDIT

Connect to the Configuration naming context.

Navigate to CN=DisplaySpecifiers

Navigate to CN=409 (This setting changes as per your locale

setting. 409 is for

english)

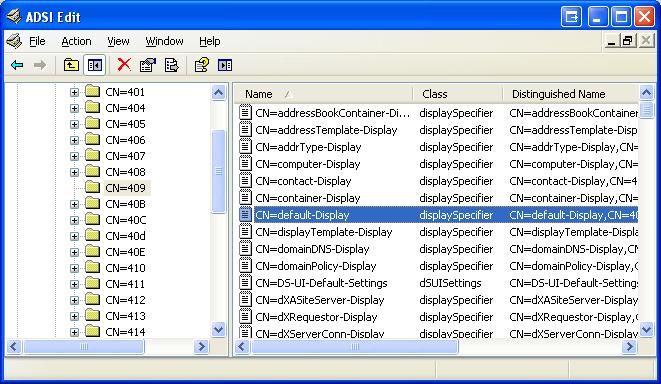

You will now see a list of objects with the class of

displaySpecifier. As mentioned earlier by default

most of the Add/Remove columns will load the extraColumns from the

CN=default-Display object unless a specific object

type contains a values in the extraColumns

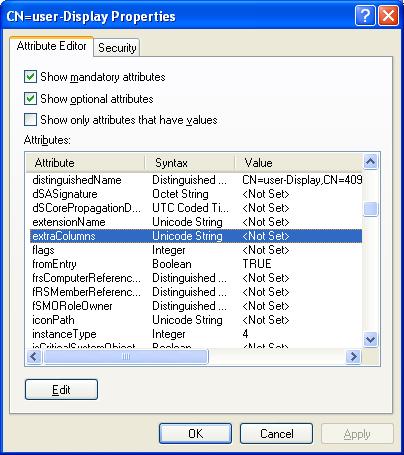

attribute. For instance the display specifier for

user objects is user-Display and the extraColumns is

blank. Thus the value for extraColumns in the

default-Display class is used.

Going back to our previous example, if we wanted to add the

Employee Number to the list of Add/Remove columns we would need to

navigate to default-Display and add an entry to the extraColumns

attribute. The format for the adding to the list

is:

Attribute>,

Name>,

Visibility> ,

width>,

Default Visibility can be either:

0 (hidden) or 1

(visible). Hidden means you must add it with Add

Remove Columns.

Column Width can be -1 (Auto

Width), or the column width (i.e. 100)

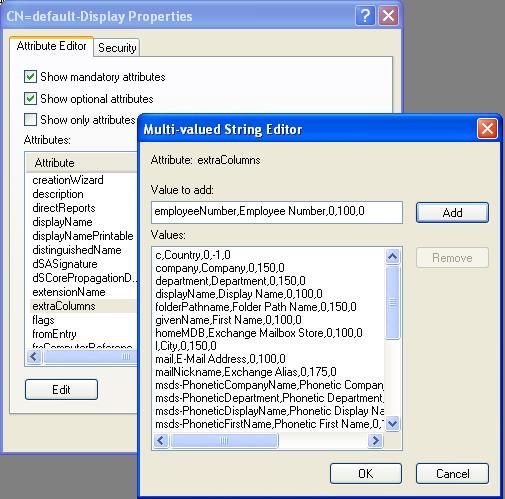

So adding the following line to extraColumns would do the

trick:

employeeNumber,Employee Number,0,100,0

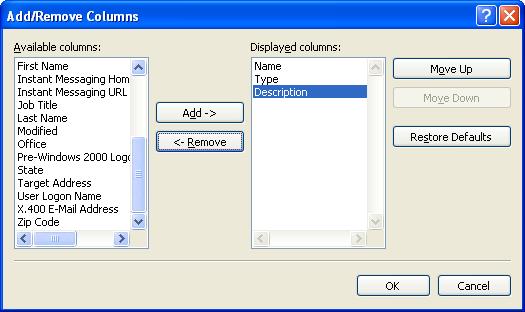

Once you save the value, just re-open the Active Directory Users

and Computers MMC and you will be able to select the Employee

Number to be displayed from the pick list.

A few things to note:

Only one extraColumns attribute is used to display the list of

Add/Remove columns, they are not cumulative. So

if you specify something in extraColumns in the user-Display

object, it will only show those columns.

Editing the default-Display extraColumns attribute as per the

above example, would allow for an Employee Number column to be

potentially displayed for all objects types that don't have a

extraColumns set for its object type (i.e. Groups, OUs, etc).

The extraColumns in the default-Display objects only

works for default containers. It won't

show added columns for an OU. You need to copy all the extraColumns entries plus your

modifications to the organizationalUnit-Display display specifier

object for it to work. If you want only users to

show the Employee Number, you would have to copy all values from

the extraColumns attribute of default-Display and then add the

employeeNumber as per the example.

Hope this helps... feel free to add other

attribute as needed. The ability

to edit these extra attribute can be added as well either by

programming property page extensions or by linking scripts to the

MMC. I may discuss those in future posts.
