除了文本文件之外，其他需要按照一定的格式定义读写的文件都称为二进制文件，每种格式的二进制文件都有自己的格式定义，写入数据时按照一定的顺序写入，读出时也按照相应的顺序读出

Qt使用QFile和QDataStream进行二进制数据文件的读写，QFile负责文件的IO设备接口，即与文件的物理交互，QDataStream以数据流的方式读取文件内容或写入文件内容

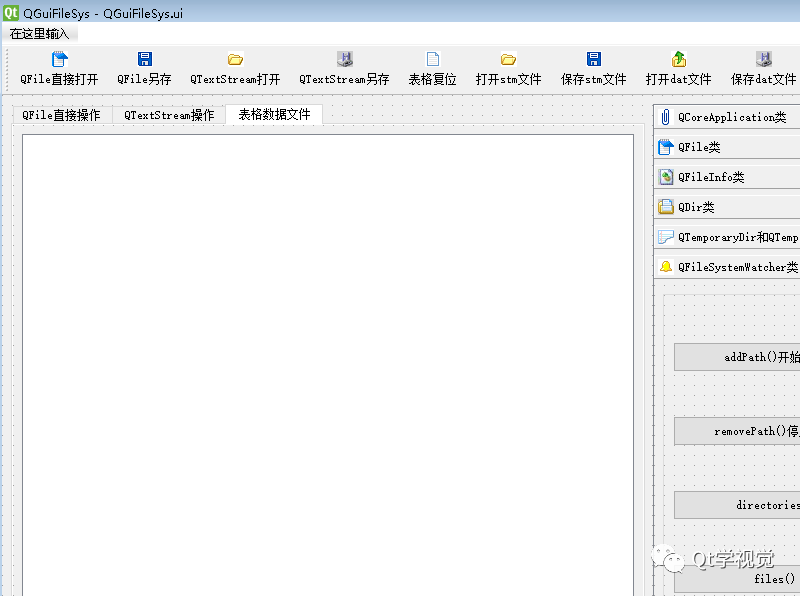

紧接着上一节的界面往上加这节的界面

头文件

#pragma once#include #include "ui_QGuiFileSys.h"#include "QComboBoxDelegate.h"#include "QFloatSpinDelegate.h"#include "QIntSpinDelegate.h"#include #include #include #include #define     FixedColumnCount    6       //文件固定6行class QGuiFileSys : public QMainWindow{
           Q_OBJECTpublic:       QGuiFileSys(QWidget *parent = Q_NULLPTR);       ~QGuiFileSys();private:       Ui::QGuiFileSys ui;private:       bool openTextByIODevice(const QString& aFileName);       bool saveTextByIODevice(const QString& aFileName);       bool openTextByStream(const QString& aFileName);       bool saveTextByStream(const QString& aFileName);private slots:       void actOpenIODevice_triggered();       void actSaveIODevice_triggered();       void actOpenTextStream_triggered();       void actSaveTextStream_triggered();private:       //用于状态栏的信息显示       QLabel* LabCellPos;    //当前单元格行列号       QLabel* LabCellText;   //当前单元格内容       QIntSpinDelegate    intSpinDelegate; //整型数       QFloatSpinDelegate  floatSpinDelegate; //浮点数       QComboBoxDelegate   comboBoxDelegate; //列表选择       QStandardItemModel* theModel;//数据模型       QItemSelectionModel* theSelection;//Item选择模型       void resetTable(int aRowCount);  //表格复位，设定行数       bool saveDataAsStream(QString& aFileName);//将数据保存为数据流文件       bool openDataAsStream(QString& aFileName);//读取数据流文件       bool saveBinaryFile(QString& aFileName);//保存为二进制文件       bool openBinaryFile(QString& aFileName);//打开二进制文件private slots:       void theSelection_currentChanged(const QModelIndex& current, const  QModelIndex& previous);       void actTabReset_triggered();       void actOpenStm_triggered();       void actSaveStm_triggered();       void actOpenBin_triggered();       void actSaveBin_triggered();       void actAppend_triggered();       void actInsert_triggered();       void actDelete_triggered();       void actAlignLeft_triggered();       void actAlignCenter_triggered();       void actAlignRight_triggered();       void actFontBold_triggered(bool checked);}

源文件

#include "QGuiFileSys.h"#include #include #include #include #include #include #include #include #include #include #pragma execution_character_set("utf-8")QGuiFileSys::QGuiFileSys(QWidget *parent)    : QMainWindow(parent){
        ui.setupUi(this);    connect(ui.actOpenIODevice, SIGNAL(triggered()), this, SLOT(actOpenIODevice_triggered()));    connect(ui.actSaveIODevice, SIGNAL(triggered()), this, SLOT(actSaveIODevice_triggered()));    connect(ui.actOpenTextStream, SIGNAL(triggered()), this, SLOT(actOpenTextStream_triggered()));    connect(ui.actSaveTextStream, SIGNAL(triggered()), this, SLOT(actSaveTextStream_triggered()));    connect(ui.actTabReset, SIGNAL(triggered()), this, SLOT(actTabReset_triggered()));    connect(ui.actOpenStm, SIGNAL(triggered()), this, SLOT(actOpenStm_triggered()));    connect(ui.actSaveStm, SIGNAL(triggered()), this, SLOT(actSaveStm_triggered()));    connect(ui.actOpenBin, SIGNAL(triggered()), this, SLOT(actOpenBin_triggered()));    connect(ui.actSaveBin, SIGNAL(triggered()), this, SLOT(actSaveBin_triggered()));    connect(ui.actAppend, SIGNAL(triggered()), this, SLOT(actAppend_triggered()));    connect(ui.actInsert, SIGNAL(triggered()), this, SLOT(actInsert_triggered()));    connect(ui.actDelete, SIGNAL(triggered()), this, SLOT(actDelete_triggered()));    connect(ui.actAlignLeft, SIGNAL(triggered()), this, SLOT(actAlignLeft_triggered()));    connect(ui.actAlignCenter, SIGNAL(triggered()), this, SLOT(actAlignCenter_triggered()));    connect(ui.actAlignRight, SIGNAL(triggered()), this, SLOT(actAlignRight_triggered()));    connect(ui.actFontBold, SIGNAL(triggered(bool)), this, SLOT(actFontBold_triggered(bool)));    theModel = new QStandardItemModel(5, FixedColumnCount, this); //创建数据模型    QStringList     headerList;    headerList << "Depth" << "Measured Depth" << "Direction" << "Offset" << "Quality" << "Sampled";    theModel->setHorizontalHeaderLabels(headerList); //设置表头文字    theSelection = new QItemSelectionModel(theModel);//Item选择模型    connect(theSelection, SIGNAL(currentChanged(const QModelIndex&, const QModelIndex&)),        this, SLOT(theSelection_currentChanged(const QModelIndex&, const QModelIndex&)));    //为tableView设置数据模型    ui.tableView->setModel(theModel); //设置数据模型    ui.tableView->setSelectionModel(theSelection);//设置选择模型    //为各列设置自定义代理组件    ui.tableView->setItemDelegateForColumn(0, &intSpinDelegate);  //测深，整数    ui.tableView->setItemDelegateForColumn(1, &floatSpinDelegate);  //浮点数    ui.tableView->setItemDelegateForColumn(2, &floatSpinDelegate); //浮点数
