Simple Peripheral UI

This utility exposes the GPIO of an Android Things device as switch widgets in

a graphical UI. You review the state of inputs, and click the switches to control

the state of outputs.

Note: The Android Things Console will be turned down for non-commercial

use on January 5, 2022. For more details, see the

FAQ page.

Introduction

This utility shows on the attached display Android Switch widgets for each GPIO pin exported by the board.

When you click or tap on the switch, the GPIO active status switch from HIGH to LOW according to the widget state.

You can attach LEDs or other digital output peripheral to your GPIO pins and toggle them on and off without changing a single line of code

(if you connect LEDs: make sure you add 470 ohms current-limiting resistors in series to avoid damaging them).

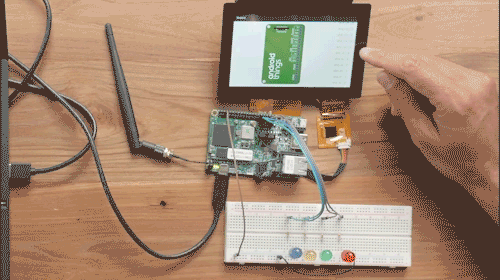

Screenshots

Pre-requisites

Android Things compatible board

Display with touch input or external pointing device

Android Studio 2.2+

LEDs

resistors

Breadboard

Build and install

On Android Studio, click on the "Run" button.

If you prefer to run on the command line, type

./gradlew installDebug

adb shell am start com.example.androidthings.simpleui/.SimpleUiActivity
