* G-TcpClient：基于完成端口的Tcp客户端通讯模块（IOCP TcpClient） *
* *
* Copyright © 2009-2010 GuestCode 代码客（卢益贵） *
* 版权所有 侵权必究 *
* *
* QQ:48092788 E-Mail:48092788@qq.com 源码博客：http://blog.csdn.net/guestcode *
* *
* GSN:34674B4D-1F63-11D3-B64C-11C04F79498E *
* *
********************************************************************************/
#pragma once
extern "C" {
//>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 类型定义 >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
#ifndef _GTYPE
#define _GTYPE
typedef unsigned char* PGBUF;
typedef void(__stdcall *PGFN_ON_CONNECTED)(unsigned int unPerHandle, unsigned char* pBuf, unsigned int unLen);
typedef void(__stdcall *PGFN_ON_RECEIVED)(unsigned int unPerHandle, unsigned char* pBuf, unsigned int unLen);
typedef void(__stdcall *PGFN_ON_SENDED)(unsigned int unPerHandle, unsigned int unSendID, unsigned int unLen);
typedef void(__stdcall *PGFN_ON_DISCONNECTED)(unsigned int unPerHandle, unsigned int unFlag);
typedef void(__stdcall *PGFN_ON_THREAD)(unsigned int unThreadContext, unsigned int unThreadHandle, unsigned int unThreadID, BOOL bIsBegin, unsigned int unFlag);
/*
typedef struct _CONNECTION
{
unsigned int unPerHandle;
}CONNECTION, *PCONNECTION;
typedef void(__stdcall *PGFN_ON_CONNECTED)(unsigned int unPerHandle, unsigned char* pBuf, unsigned int unLen);
typedef void(__stdcall *PGFN_ON_RECEIVED)(PCONNECTION pConnection, unsigned char* pBuf, unsigned int unLen);
typedef void(__stdcall *PGFN_ON_SENDED)(PCONNECTION pConnection, unsigned int unSendID, unsigned int unLen);
typedef void(__stdcall *PGFN_ON_DISCONNECTED)(PCONNECTION pConnection, unsigned int unFlag);
void __stdcall GTcpClt_OnThread(unsigned int unThreadContext, unsigned int unThreadHandle, unsigned int unThreadID, BOOL bIsBegin, unsigned int unFlag)
{
}
void __stdcall GTcpClt_OnConnected(unsigned int unPerHandle, void* _NULL, unsigned int unNULL)
{
}
void __stdcall GTcpClt_OnReceived(PCONNECTION pConnection, unsigned char* pBuf, unsigned int unLen)
{
}
void __stdcall GTcpClt_OnSended(PCONNECTION pConnection, unsigned int unSendID, unsigned int unLen)
{
}
void __stdcall GTcpClt_OnDisconnected(PCONNECTION pConnection, unsigned int unFlag)
{
}
*/
#define _USE_UNICODE 1
#ifndef _DLL
//#define _DLL
#endif
#ifdef _DLL
#define DllExport _declspec(dllexport)
#else
#define DllExport
#endif
#define VER_FLAG_WIDE_CHAR 0x01
#define VER_FLAG_BETA 0x02
#define VER_FLAG_ZERO_READ 0x04
#define VER_FLAG_TRIAL 0x08
#define VER_FLAG_DEBUG 0x10
#define HNDS_CONNECT 1
#define HNDS_CONNECTED 2
#define HNDS_DISCONNECT 3
#endif
//<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< 类型定义 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 版本信息 >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
#if(_USE_UNICODE)
DllExport wchar_t* __stdcall GTcpClt_GetVersionName(void);
#else
DllExport char* __stdcall GTcpClt_GetVersionName(void);
#endif
DllExport float __stdcall GTcpClt_GetVersionNumber(void);
DllExport unsigned int __stdcall GTcpClt_GetVersionFlag(void);
//<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< 版本信息 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 功能函数 >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
DllExport DWORDLONG __stdcall GTcpClt_GetPhyMemInfo(DWORDLONG* pdwTotal);
#if(_USE_UNICODE)
DllExport void __stdcall GTcpClt_WriteLog(wchar_t* pstrLog, unsigned int unCode = 0);
DllExport void __stdcall GTcpClt_GetHostIP(wchar_t* pstrIP, unsigned int unLen, BOOL bIsInternetIP = FALSE);
#else
DllExport void __stdcall GTcpClt_WriteLog(char* pstrLog, unsigned int unCode = 0);
DllExport void __stdcall GTcpClt_GetHostIP(char* pstrIP, unsigned int unLen, BOOL bIsInternetIP = FALSE);
#endif
//<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< 功能函数 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>>>>>> PerIoData函数 >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
DllExport unsigned int __stdcall GTcpClt_GetGBufSize(void);
DllExport unsigned int __stdcall GTcpClt_GetIoDataSize(void);
DllExport unsigned int __stdcall GTcpClt_GetIoDataUse(void);
DllExport unsigned int __stdcall GTcpClt_GetIoDataTotal(void);
DllExport float __stdcall GTcpClt_GetIoDataUseRate(void);
DllExport unsigned int __stdcall GTcpClt_GetIoDataUseMem(void);
//<<<<<<<<<<<<<<<<<<<<<<<<<<<< PerIoData函数 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>>>>>> PerHndData函数 >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
DllExport unsigned int __stdcall GTcpClt_GetHndDataUse(void);
DllExport unsigned int __stdcall GTcpClt_GetHndDataTotal(void);
DllExport unsigned int __stdcall GTcpClt_GetHndDataSize(void);
DllExport float __stdcall GTcpClt_GetHndDataUseRate(void);
DllExport unsigned int __stdcall GTcpClt_GetHndDataUseMem(void);
//<<<<<<<<<<<<<<<<<<<<<<<<<<<< PerHndData函数 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 信息函数 >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
DllExport unsigned int __stdcall GTcpClt_GetThreadNumber(void);
DllExport unsigned int __stdcall GTcpClt_GetPageSize(void);
DllExport unsigned int __stdcall GTcpClt_GetBlockSize(void);
DllExport unsigned int __stdcall GTcpClt_GetConnectCount(void);
DllExport unsigned int __stdcall GTcpClt_GetThreadRunCount(unsigned int unThreadContext);
DllExport unsigned int GTcpClt_GetState(unsigned int unPerHandle);
#if(_USE_UNICODE)
DllExport wchar_t* __stdcall GTcpClt_GetThreadName(unsigned int unThreadContext);
DllExport BOOL __stdcall GTcpSock_GetPerHandleInfo(unsigned int unPerHandle, wchar_t* pstrIP, unsigned int unIPLen, wchar_t* pstrPort, unsigned int unPortLen);
DllExport BOOL __stdcall GTcpSock_GetPerHandleName(unsigned int unPerHandle, wchar_t* pstrName, unsigned int unLen);
#else
DllExport char* __stdcall GTcpClt_GetThreadName(unsigned int unThreadContext);
DllExport BOOL __stdcall GTcpSock_GetPerHandleInfo(unsigned int unPerHandle, char* pstrIP, unsigned int unIPLen, char* pstrPort, unsigned int unPortLen);
DllExport BOOL __stdcall GTcpSock_GetPerHandleName(unsigned int unPerHandle, char* pstrName, unsigned int unLen);
#endif
DllExport unsigned int __stdcall GTcpClt_GetProcesserNumber(void);
DllExport BOOL __stdcall GTcpClt_IsActive();
DllExport unsigned int __stdcall GTcpClt_GetUseMem(void);
//<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< 信息函数 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 操作函数 >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
DllExport void* __stdcall GTcpClt_GetPerHandleOwner(unsigned int unPerHandle);
DllExport BOOL __stdcall GTcpClt_SetPerHandleOwner(unsigned int unPerHandle, void* pOwner);
DllExport PGBUF __stdcall GTcpClt_AllocGBuf(void);
DllExport BOOL __stdcall GTcpClt_FreeGBuf(PGBUF pGBuf);
DllExport unsigned int __stdcall GTcpClt_PostSendGBuf(unsigned int unPerHandle, PGBUF pGBuf, unsigned int unLen);
DllExport unsigned int __stdcall GTcpClt_PostSendBuf(unsigned int unPerHandle, unsigned char* pBuf, unsigned int unLen);
DllExport void __stdcall GTcpClt_PostBroadcast(unsigned char* pBuf, unsigned int unLen);
//<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< 操作函数 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 主要函数
DllExport BOOL __stdcall GTcpClt_CloseConnect(unsigned int unPerHandle);
#if(_USE_UNICODE)
DllExport unsigned int __stdcall GTcpClt_OpenConnect( wchar_t* pstrRemoteIP,
wchar_t* pstrRemotePort,
wchar_t* pstrLocalIP,
PGFN_ON_CONNECTED pfnOnConnected,
PGFN_ON_RECEIVED pfnOnReceived,
PGFN_ON_SENDED pfnOnSended,
PGFN_ON_DISCONNECTED pfnOnDisconnected,
void* pOwner = NULL);
#else
DllExport unsigned int __stdcall GTcpClt_OpenConnect( char* pstrRemoteIP,
char* pstrRemotePort,
char* pstrLocalIP,
PGFN_ON_CONNECTED pfnOnConnected,
PGFN_ON_RECEIVED pfnOnReceived,
PGFN_ON_SENDED pfnOnSended,
PGFN_ON_DISCONNECTED pfnOnDisconnected,
void* pOwner = NULL);
#endif
DllExport BOOL __stdcall GTcpClt_Start(unsigned int unHeartbeatTime = 60,
unsigned int unMaxNetDelayTime = 5,
unsigned int unGuardThreadSleepTime = 2,
PGFN_ON_THREAD pfnOnThread = NULL,
unsigned int unHndDataInitNumber = 1000,
unsigned int unIoDataInitNumber = 1500,
unsigned int unProcesserThreadNumber = 0,
unsigned int unWorkerThreadNumber = 0);
DllExport void __stdcall GTcpClt_Stop(void);
//<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< 主要函数 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
} /* ... extern "C" */

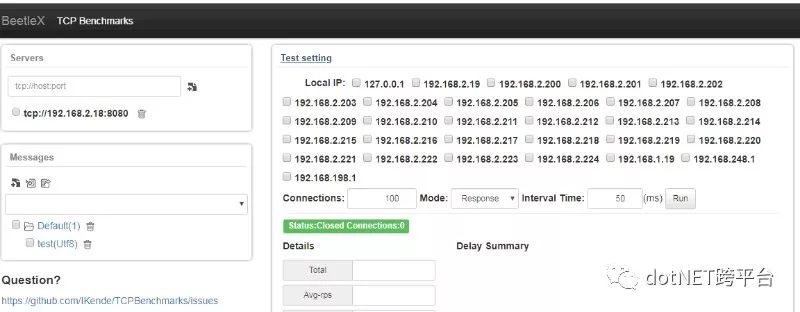

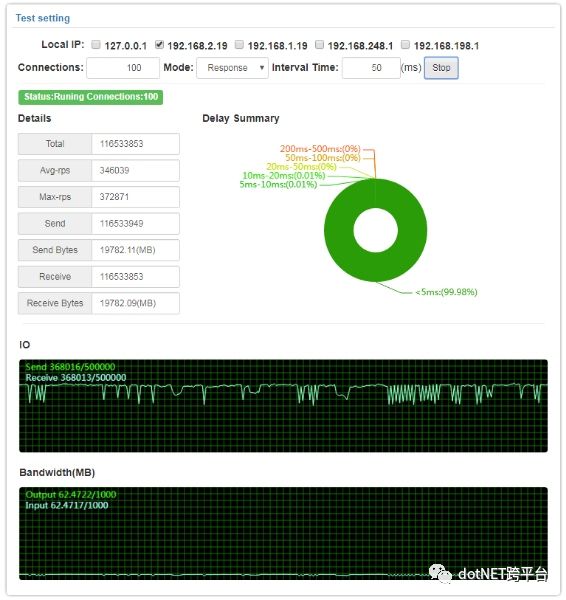

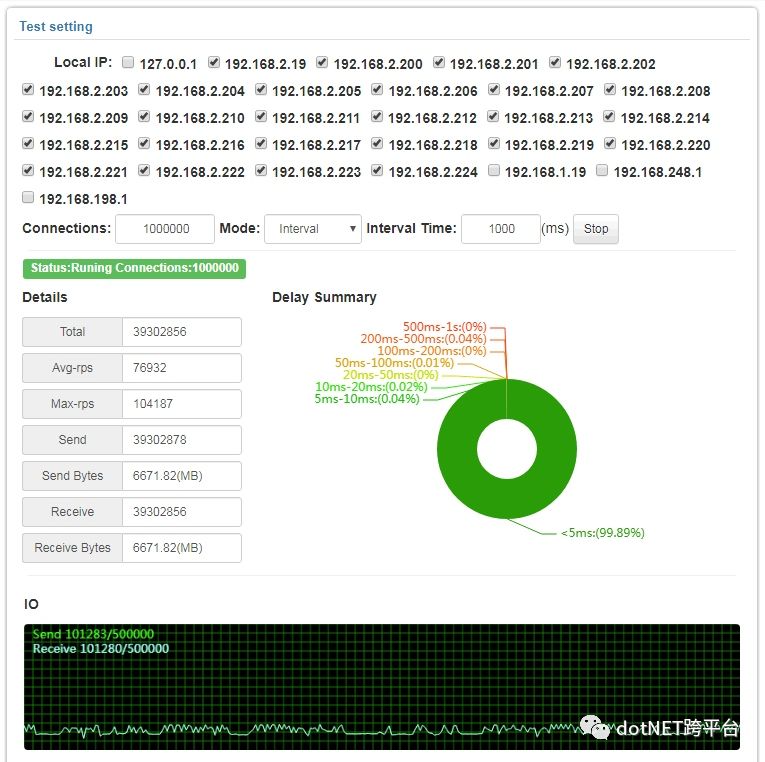

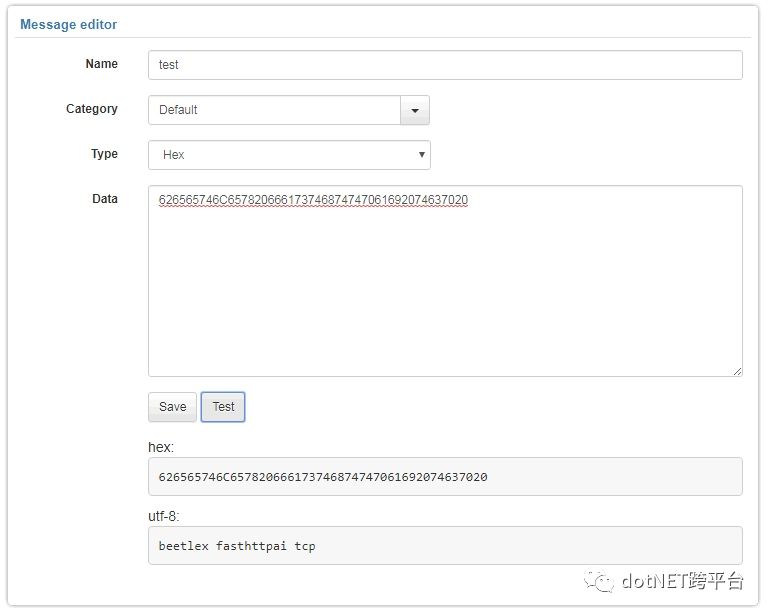

本文介绍了如何使用BeetleX的TcpBenchmark工具进行大规模TCP压测，该工具支持多IP绑定，能模拟上百万设备连接，适用于高并发场景。在部署和使用过程中，详细讲解了下载、部署、访问、添加消息、性能测试及大量连接测试等步骤，适合需要测试TCP服务性能的开发者参考。
