android 简单折线图,一个简单的折线图 LineChartView

LineChartView

LineChartView是一个关于Android折线图的开源图表库。目前仅支持折线图，点击之后的状态变化，可以选择是画一个图片还是一个背景框。

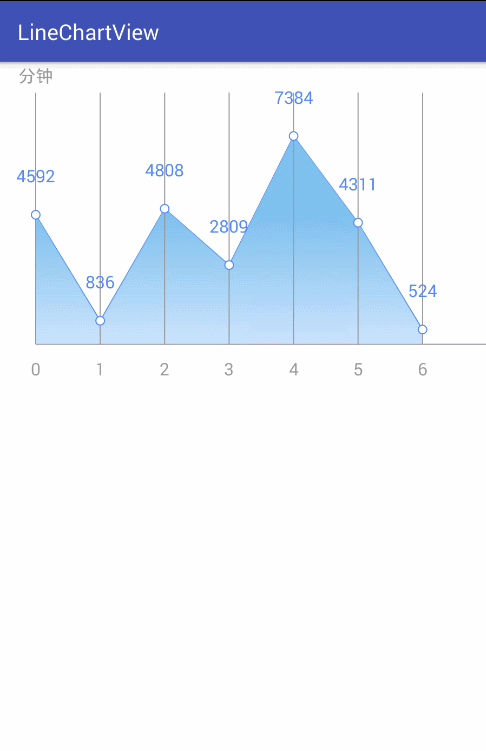

Screens

Usage

Gradle

Step 1. Add LineChartView

dependencies {

compile 'com.veken:linechartview:1.0.1'

}

XML

android:id="@+id/chart_view"

android:layout_width="match_parent"

android:layout_height="300dp"

app:showPicResource="@mipmap/ic_launcher"

app:defaultStrokeWidth="0.5dp"

app:pointClickRadius="3dp"

app:defaultTextSize="16sp"

app:pointDefaultRadius="2dp"

app:isNeedBg="true"

app:clickable="true"

app:startColor="@color/startColor"

app:endColor="@color/endColor" />

Java

LineChartView chartView = findViewById(R.id.chart_view);;

chartView.setDefaultTextSize(24);

chartView.setyLableText("分钟");

chartView.setClickable(true);

chartView.setNeedBg(true);

//画的种类，目前仅支持图片和一个背景框

chartView.setDrawType(DrawType.DrawBackground);

Data

private List mList;

if(mList==null){

mList = new ArrayList<>();

}

Random random = new Random();

for(int i=0;i<7;i++){

LineChartBean lineChartBean = new LineChartBean();

lineChartBean.setValue(String.valueOf(random.nextInt(10000)));

lineChartBean.setDate(String.valueOf(i));

mList.add(lineChartBean);

}
