1..采集图片
以猫、狗分别采集20张为例子
图片下载地址:已上传,审核中

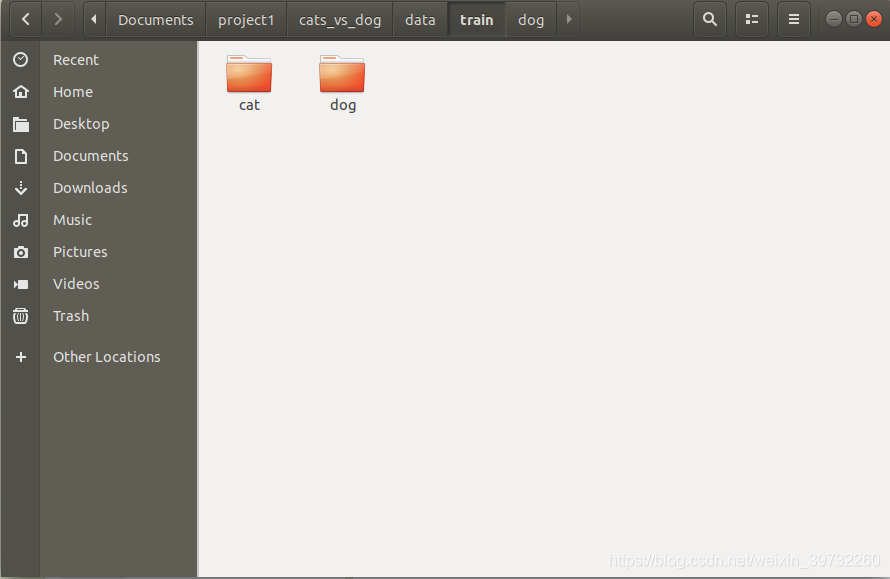

以下为存放的路径:(使用ubuntu自带screenshot进行截图)
2.制作record形式数据集
简易版本
import os
import tensorflow as tf
from PIL import Image
import matplotlib.pyplot as plt
import numpy as np
cwd = '/home/cae_b8/Documents/project1/cats_vs_dog/data/train/'
classes = {'dog', 'cat'} # 人为设定2类
writer = tf.python_io.TFRecordWriter("dog_vs_cat_train.tfrecords") # 要生成的文件
for index, name in enumerate(classes):
class_path = cwd + name + '/'
#print(class_path)
for img_name in os.listdir(class_path):
img_path = class_path + img_name # 每一个图片的地址
#print(img_path)
img = Image.open(img_path)
img = img.resize((128, 128))
img_raw = img.tobytes() # 将图片转化为二进制格式
example = tf.train.Example(features=tf.train.Features(feature={
"label": tf.train.Feature(int64_list=tf.train.Int64List(value=[index])),
'img_raw': tf.train.Feature(bytes_list=tf.train.BytesList(value=[img_raw]))
})) # example对象对label和image数据进行封装
writer.write(example.SerializeToString()) # 序列化为字符串
writer.close()
另一版本(生成txt文件)
import os
import numpy as np
import math
import tensorflow as tf
from PIL import Image
import matplotlib.pyplot as plt
file_dir = '/home/cae_b8/Documents/project2/data_set/train/'
txt_path = '/home/cae_b8/Documents/project2/data_set/train/data.txt'
writer = tf.python_io.TFRecordWriter("/home/cae_b8/Documents/project2/data_set/train/train.tfrecords")
dogs = []
label_dogs = []
cats = []
label_cats = []
NUM = 38
fw = open(txt_path,'w')
for file in os.listdir(file_dir):
name = file.split(sep='.')
if 'cat' in name[0]:
cats.append(file_dir + file)
label_cats.append(0)
fw.write(file_dir + file + ' ' + '0\n')
else:
if 'dog' in name[0]:
dogs.append(file_dir + file)
label_dogs.append(1)
fw.write(file_dir + file + ' ' + '1\n')
print('generate txt file successfully')
fw.close()
image_list = np.hstack((cats, dogs))
label_list = np.hstack((label_cats, label_dogs))
print("There are %d dogs\nThere are %d cats\n" % (len(dogs), len(cats)), end="")
temp = np.array([image_list,label_list])
temp = temp.transpose()
np.random.shuffle(temp)
image_list = list(temp[ :, 0 ])
label_list = list(temp[ :, 1 ])
label_list = [int(i) for i in label_list]
j = 0
for j in range(NUM):
image_name = image_list[j]
label_name = label_list[j]
image = Image.open(image_name)
image = image.resize((128,128))
img_raw = image.tobytes()
example = tf.train.Example(features=tf.train.Features(feature={
"label": tf.train.Feature(int64_list=tf.train.Int64List(value=[label_name])),
'img_raw': tf.train.Feature(bytes_list=tf.train.BytesList(value=[img_raw]))
}))
writer.write(example.SerializeToString())
print('Creating train record in ',j+1)
writer.close()
print("Create train_record successful!")

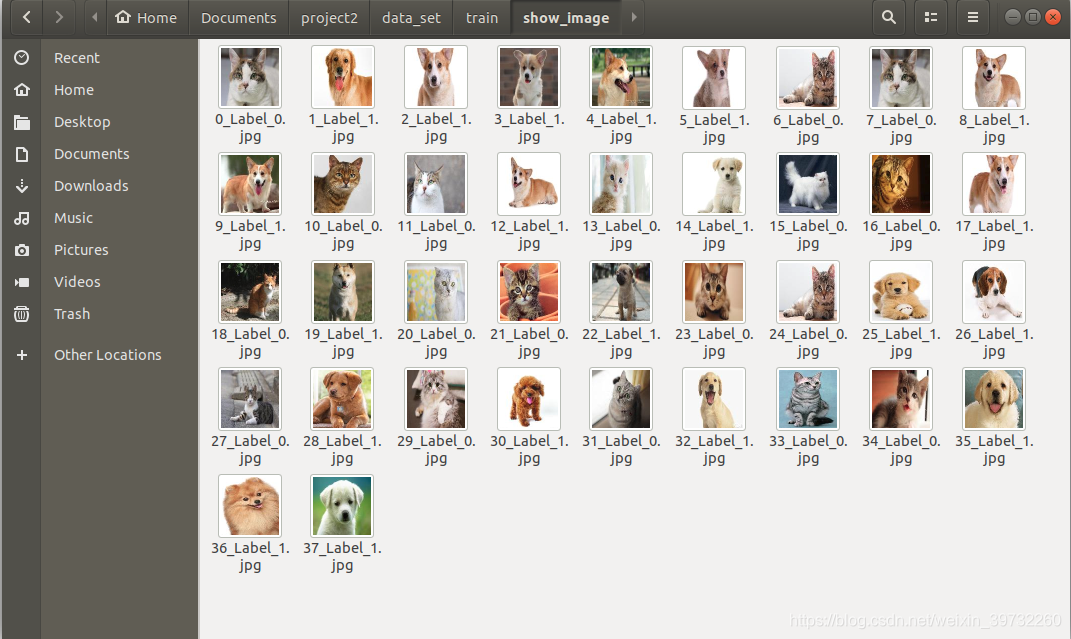

3.将record格式图像显示出来
import os
import tensorflow as tf
import matplotlib.pyplot as plt
from PIL import Image
import numpy as np
show_image = '/home/cae_b8/Documents/project2/data_set/train/show_image/'
file_name = '/home/cae_b8/Documents/project2/data_set/train/train.tfrecords'
filename_queue = tf.train.string_input_producer([file_name]) # 生成一个queue队列
reader = tf.TFRecordReader()
_, serialized_example = reader.read(filename_queue) # 返回文件名和文件
features = tf.parse_single_example(
serialized_example,
features={
'label': tf.FixedLenFeature([], tf.int64),
'img_raw': tf.FixedLenFeature([], tf.string),
}
) # 将image数据和label取出来
image = tf.decode_raw(features['img_raw'], tf.uint8)
image = tf.reshape(image, [128, 128, 3])
# image = tf.cast(image, tf.float32) * (1. / 255) - 0.5
label = tf.cast(features['label'], tf.int32)
with tf.Session() as sess: # 开始一个会话
init_op = tf.initialize_all_variables()
sess.run(init_op)
coord = tf.train.Coordinator() # 创建一个协调器,管理线程
threads = tf.train.start_queue_runners(coord=coord) # 启动QueueRunner, 此时文件名队列已经进队
NUM = 1
for i in range(38):
example, l = sess.run([image, label]) # 在会话中取出image和label
img = Image.fromarray(example, 'RGB') # 这里Image是之前提到的
img.save(show_image + str(i) + '_''Label_' + str(l) + '.jpg') # 存下图片
print('Creating image in ', NUM)
NUM += 1
coord.request_stop()
coord.join(threads)
