看到网友：http://www.jointforce.com/jfperiodical/article/3527?ref=myread 做的仿支付宝支付密码输入框，感觉挺适合初学自定义view的同仁练手的，自己敲了一下，并进行了改进！

1、添加了自定义属性

2、接口回调

这边直接上代码了：

values/attrs.xml文件：

自定义view：

/**

* 固定密码长度输入框

*

* @author 21778 . 2016-11-09 11:34

*/

public class PassWordEditText extends EditText {

private Paint mBoundPaint;//外边框画笔

private Paint mLinePaint;//分割线画笔

private Paint mPsdPointPaint;//密码画笔

private int boundPaintColor;

private int partLineColor;

private int psdPointColor;

private int mPasswordTextLength;//输入密码的长度

private int mWidth;

private int mHeight;

private static final int psdLength = 6;//密码长度

private static final int psdPointR = 16;//小圆点半径

private OnTextEndListener onTextEndListener;

public void setOnTextEndListener(OnTextEndListener onTextEndListener) {

this.onTextEndListener = onTextEndListener;

}

public PassWordEditText(Context context) {

this(context, null);

}

public PassWordEditText(Context context, AttributeSet attrs) {

this(context, attrs, 0);

}

public PassWordEditText(Context context, AttributeSet attrs, int defStyleAttr) {

super(context, attrs, defStyleAttr);

TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.PassWordEditText);

boundPaintColor = typedArray.getColor(R.styleable.PassWordEditText_bound_line_color, Color.WHITE);

partLineColor = typedArray.getColor(R.styleable.PassWordEditText_parting_line_color, Color.GRAY);

psdPointColor = typedArray.getColor(R.styleable.PassWordEditText_point_color, Color.BLACK);

init();

}

private void init() {

//设置获取焦点

setFocusable(true);

setFocusableInTouchMode(true);

//移除自带光标

setCursorVisible(false);

mBoundPaint = new Paint();

mBoundPaint.setStrokeWidth(8);

mBoundPaint.setAntiAlias(true);

mBoundPaint.setColor(boundPaintColor);

//实心矩形为了覆盖编辑框原有的字符串，有兴趣的同仁可以设置为空心矩形试一下

// mBoundPaint.setStyle(Paint.Style.STROKE);

mBoundPaint.setStyle(Paint.Style.FILL);

mLinePaint = new Paint();

mLinePaint.setStrokeWidth(4);

mLinePaint.setAntiAlias(true);

mLinePaint.setColor(partLineColor);

mPsdPointPaint = new Paint();

mPsdPointPaint.setStrokeWidth(12);

mPsdPointPaint.setAntiAlias(true);

mPsdPointPaint.setColor(psdPointColor);

}

@Override

protected void onDraw(Canvas canvas) {

super.onDraw(canvas);

mWidth = getMeasuredWidth();

mHeight = getMeasuredHeight();

drawRoundRect(canvas);

drawPsdLine(canvas);

drawPsdPoints(canvas);

}

/**

* 画圆角边框

*

* @param canvas

*/

@TargetApi(Build.VERSION_CODES.LOLLIPOP)

private void drawRoundRect(Canvas canvas) {

canvas.drawRoundRect(0, 0, mWidth, mHeight, 12, 12, mBoundPaint);

}

/**

* 画密码分割线

*

* @param canvas

*/

private void drawPsdLine(Canvas canvas) {

for (int i = 1; i < psdLength; i++) {

float mX = mWidth * i / psdLength;

canvas.drawLine(mX, 12, mX, mHeight - 12, mLinePaint);

}

}

/**

* 绘画密码点

*

* @param canvas

*/

private void drawPsdPoints(Canvas canvas) {

float cx, cy = mHeight / 2;

float half = mWidth / psdLength;

for (int i = 0; i < mPasswordTextLength; i++) {

cx = half / 2 + half * i;

canvas.drawCircle(cx, cy, psdPointR, mPsdPointPaint);

}

}

@Override

protected void onTextChanged(CharSequence text, int start, int lengthBefore, int lengthAfter) {

super.onTextChanged(text, start, lengthBefore, lengthAfter);

mPasswordTextLength = text.toString().length();

if (mPasswordTextLength == psdLength) {//这边可以做接口回调，或者用过eventBus的同仁们进行事件发布

if (onTextEndListener != null) {

onTextEndListener.onTextEndListener(text.toString());

}

return;

}

invalidate();

}

public interface OnTextEndListener {

void onTextEndListener(String textString);

}

}布局文件：

xmlns:cyj="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:id="@+id/activity_main"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context="com.aomai.selfviews.MainActivity">

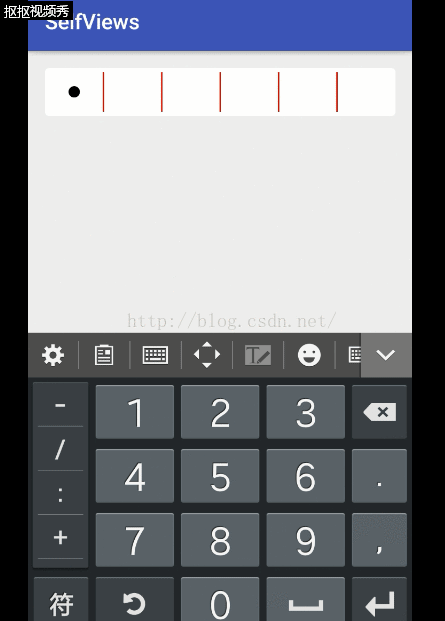

最后是效果图：

发一下牢骚：截gif图就是麻烦，要先截视频，然后在转gif！
