本文介绍了如何结合Flask web框架和Pyecharts图表库，创建两个展示柱状图的网页。首先配置Flask的环境和Pyecharts的全局变量，然后创建基本的柱状图并定义路由，将图表嵌入到HTML模板中。通过宏文件实现HTML代码复用，最后提供了一个展示不同边框圆角效果的柱状图页面。整个过程详细展示了从图表生成到网页展示的完整流程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

Flask系列已推送4篇，今天结合Flask和Pyecharts，做出两个页面。

首先，参考官方文档导入所需包：

from flask import Flask
from jinja2 import Markup, Environment, FileSystemLoader
from pyecharts.globals import CurrentConfig

配置环境，下面这行代码，告诉jinja2我的html模板位于哪个文件目录：

# 关于 CurrentConfig，可参考 [基本使用-全局变量]
CurrentConfig.GLOBAL_ENV = Environment(loader=FileSystemLoader("./templates"))

如果此处配置的有问题，会弹出下面的异常：

jinja2.exceptions.TemplateNotFound: index.html

下面两行代码是Flask的常规操作：

app = Flask(__name__, static_folder="templates")
app.config['SECRET_KEY']  = "hard_to_guess_secret_key$$#@"

下面该pyecharts登台，还是一顿导包：

from pyecharts.charts import Bar
from pyecharts.faker import Faker
import pyecharts.options as opts
from pyecharts.commons.utils import JsCode
from pyecharts.globals import ThemeType

创建一个基本的柱状图：

def bar():
    c = (
        Bar(init_opts=opts.InitOpts(
            animation_opts=opts.AnimationOpts(
                animation_delay=500, animation_easing="cubicOut"
            ),
            theme=ThemeType.MACARONS))
        .add_xaxis(["草莓", "芒果", "葡萄", "雪梨", "西瓜", "柠檬", "车厘子"])
        .add_yaxis("销售量", Faker.values(), category_gap="50%", is_selected=True)
        .set_global_opts(title_opts=opts.TitleOpts(title="Bar-基本参数使用"), toolbox_opts=opts.ToolboxOpts(), datazoom_opts=opts.DataZoomOpts(),)

    )

return c

下面是最重要的部分。pyecharts柱状图和flask的网页组装阶段。

@app.route("/")
def index():
    c = bar()
return c.render_embed(template_name='index.html')

组装的代码相当简单，普通的pyecharts渲染使用c.render(filename.html), 而嵌入到指定网页index.html中，使用API:render_embed.

具体index.html上如何布局显示，就要写点html代码：

{% import 'macro' as macro %}

<html><head><meta charset="UTF-8"><title>{{ chart.page_title }}title>
    {{ macro.render_chart_dependencies(chart) }}head><body>
    {{ macro.render_chart_content(chart) }}body>html>

为了让html代码尽可能的复用，Pyecharts开发团队太有心，专门抽象出一个宏文件macro. 这部分代码大家就不用修改了，直接copy即可。

为了保证本篇代码可复现，paster这个文件到这里：

{%- macro render_chart_content(c) -%}
<div id="{{ c.chart_id }}" class="chart-container" style="width:{{ c.width }}; height:{{ c.height }};">div>
<script>var chart_{{ c.chart_id }} = echarts.init(document.getElementById('{{ c.chart_id }}'), '{{ c.theme }}', {renderer: '{{ c.renderer }}'});
        {% for js in c.js_functions.items %}
            {{ js }}
        {% endfor %}var option_{{ c.chart_id }} = {{ c.json_contents }};
        chart_{{ c.chart_id }}.setOption(option_{{ c.chart_id }});
        {% if c._is_geo_chart %}var bmap = chart_{{ c.chart_id }}.getModel().getComponent('bmap').getBMap();
            {% if c.bmap_js_functions %}
                {% for fn in c.bmap_js_functions.items %}
                    {{ fn }}
                {% endfor %}
            {% endif %}
        {% endif %}script>
{%- endmacro %}

{%- macro render_notebook_charts(charts, libraries) -%}
<script>require([{{ libraries | join(', ') }}], function(echarts) {
        {% for c in charts %}
            {% if c._component_type not in ("table", "image") %}var chart_{{ c.chart_id }} = echarts.init(document.getElementById('{{ c.chart_id }}'), '{{ c.theme }}', {renderer: '{{ c.renderer }}'});
                {% for js in c.js_functions.items %}
                    {{ js }}
                {% endfor %}var option_{{ c.chart_id }} = {{ c.json_contents }};
                chart_{{ c.chart_id }}.setOption(option_{{ c.chart_id }});
                {% if c._is_geo_chart %}var bmap = chart_{{ c.chart_id }}.getModel().getComponent('bmap').getBMap();
                    bmap.addControl(new BMap.MapTypeControl());
                {% endif %}
            {% endif %}
        {% endfor %}
        });script>
{%- endmacro %}

{%- macro render_chart_dependencies(c) -%}
    {% for dep in c.dependencies %}
<script type="text/javascript" src="{{ dep }}">script>
    {% endfor %}
{%- endmacro %}

{%- macro render_chart_css(c) -%}
    {% for dep in c.css_libs %}
<link rel="stylesheet"  href="{{ dep }}">
    {% endfor %}
{%- endmacro %}

{%- macro display_tablinks(chart) -%}
<div class="tab">
        {% for c in chart %}
<button class="tablinks" onclick="showChart(event, '{{ c.chart_id }}')">{{ c.tab_name }}button>
        {% endfor %}
div>
{%- endmacro %}

{%- macro switch_tabs() -%}
<script>
        (function() {
            containers = document.getElementsByClassName("chart-container");if(containers.length > 0) {
                containers[0].style.display = "block";
            }
        })()function showChart(evt, chartID) {let containers = document.getElementsByClassName("chart-container");for (let i = 0; i < containers.length; i++) {
                containers[i].style.display = "none";
            }let tablinks = document.getElementsByClassName("tablinks");for (let i = 0; i < tablinks.length; i++) {
                tablinks[i].className = "tablinks";
            }document.getElementById(chartID).style.display = "block";
            evt.currentTarget.className += " active";
        }script>
{%- endmacro %}

{%- macro generate_tab_css() %}
<style>.tab {overflow: hidden;border: 1px solid #ccc;background-color: #f1f1f1;
        }.tab button {background-color: inherit;float: left;border: none;outline: none;cursor: pointer;padding: 12px 16px;transition: 0.3s;
        }.tab button:hover {background-color: #ddd;
        }.tab button.active {background-color: #ccc;
        }.chart-container {display: none;padding: 6px 12px;border-top: none;
        }style>
{%- endmacro %}

{%- macro gen_components_content(chart) %}
    {% if chart._component_type == "table" %}
<style>.fl-table {margin: 20px;border-radius: 5px;font-size: 12px;border: none;border-collapse: collapse;max-width: 100%;white-space: nowrap;word-break: keep-all;
            }.fl-table th {text-align: left;font-size: 20px;
            }.fl-table tr {display: table-row;vertical-align: inherit;border-color: inherit;
            }.fl-table tr:hover td {background: #00d1b2;color: #F8F8F8;
            }.fl-table td, .fl-table th {border-style: none;border-top: 1px solid #dbdbdb;border-left: 1px solid #dbdbdb;border-bottom: 3px solid #dbdbdb;border-right: 1px solid #dbdbdb;padding: .5em .55em;font-size: 15px;
            }.fl-table td {border-style: none;font-size: 15px;vertical-align: center;border-bottom: 1px solid #dbdbdb;border-left: 1px solid #dbdbdb;border-right: 1px solid #dbdbdb;height: 30px;
            }.fl-table tr:nth-child(even) {background: #F8F8F8;
            }style>
<div id="{{ chart.chart_id }}" class="chart-container" style="">
<p class="title" {{ chart.title_opts.title_style }}> {{ chart.title_opts.title }}p>
<p class="subtitle" {{ chart.title_opts.subtitle_style }}> {{ chart.title_opts.subtitle }}p>
            {{ chart.html_content }}
div>
    {% elif chart._component_type == "image" %}
<div id="{{ chart.chart_id }}" class="chart-container" style="">
<p class="title" {{ chart.title_opts.title_style }}> {{ chart.title_opts.title }}p>
<p class="subtitle" {{ chart.title_opts.subtitle_style }}> {{ chart.title_opts.subtitle }}p>
<img {{ chart.html_content }}/>
div>
    {% endif %}
{%- endmacro %}

记得最后把这个文件名称为macro和index.html文件都统一放到templates文件夹下。

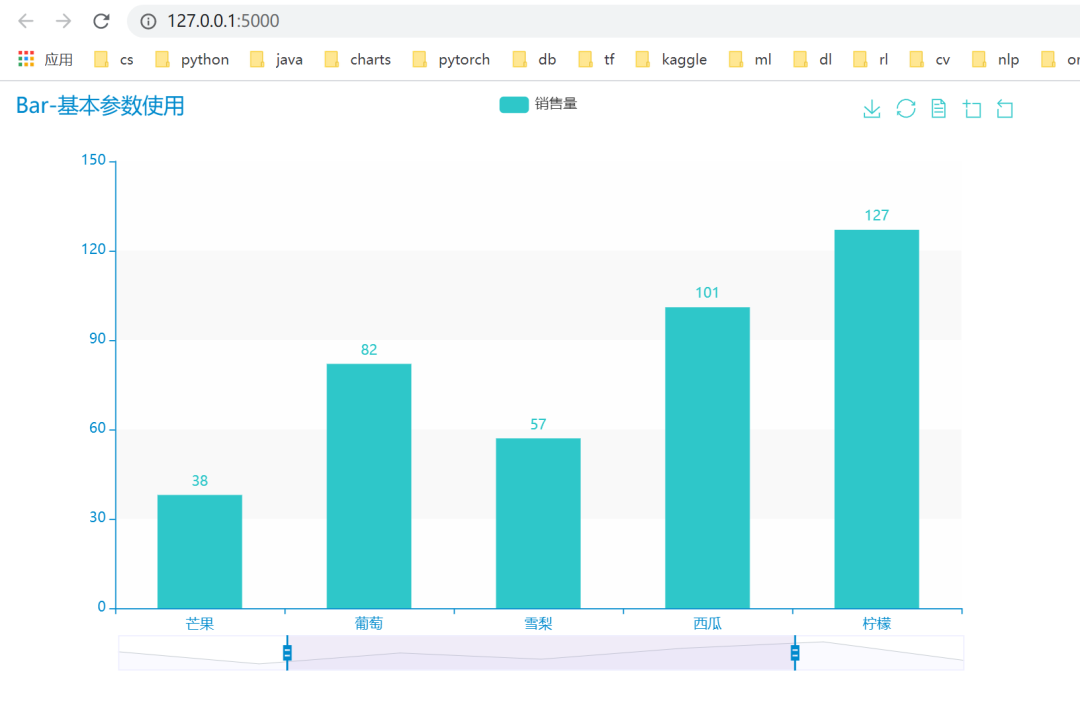

这样就可以调试了：

if __name__ == "__main__":
    app.run(debug=True)

附加

再写一个展示页面，路由为/bar2:

@app.route("/bar2")
def bar2():
    c = bar_border_radius()
return c.render_embed(template_name='index.html')

函数bar_border_radius定义如下：

def bar_border_radius():
    c = (
        Bar(init_opts=opts.InitOpts(
            animation_opts=opts.AnimationOpts(
                animation_delay=500, animation_easing="cubicOut"
            ),
            theme=ThemeType.MACARONS))
        .add_xaxis(["草莓", "芒果", "葡萄", "雪梨", "西瓜", "柠檬", "车厘子"])
        .add_yaxis("销售量", Faker.values(), category_gap="50%", is_selected=True)
        .set_series_opts(itemstyle_opts={
"normal": {
"color": JsCode("""new echarts.graphic.LinearGradient(0, 0, 0, 1, [{
                    offset: 0,
                    color: 'rgba(0, 244, 255, 1)'
                }, {
                    offset: 1,
                    color: 'rgba(0, 77, 167, 1)'
                }], false)"""),
"barBorderRadius": [6, 6, 6, 6],
"shadowColor": 'rgb(0, 160, 221)',
            }}, markpoint_opts=opts.MarkPointOpts(
                data=[
                    opts.MarkPointItem(type_="max", name="最大值"),
                    opts.MarkPointItem(type_="min", name="最小值"),
                ]
        ), markline_opts=opts.MarkLineOpts(
                data=[
                    opts.MarkLineItem(type_="min", name="最小值"),
                    opts.MarkLineItem(type_="max", name="最大值")
                ]
        ))
        .set_global_opts(title_opts=opts.TitleOpts(title="Bar-参数使用例子"), toolbox_opts=opts.ToolboxOpts(), yaxis_opts=opts.AxisOpts(position="right", name="Y轴"), datazoom_opts=opts.DataZoomOpts(),)

    )

return c

这样又出现一个页面，演示如下：
