Extjs布局

Ext.js 绝对布局

absolute
<!DOCTYPE html>
<html>
<head>
   <link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   <script type="text/javascript">
      Ext.onReady(function() {
         Ext.create('Ext.container.Container', {
            renderTo: Ext.getBody(),
            layout: 'absolute' ,
            items: [{
               title: 'Panel 1',
               x: 50,
               y: 50,
               html: 'Positioned at x:50, y:50',
               width: 500,
               height: 100
            },{
               title: 'Panel 2',
               x: 100,
               y: 95,
               html: 'Positioned at x:100, y:95',
               width: 500,
               height: 100
            }]
         });
      });
   </script>
</head>
<body>
</body>
</html>

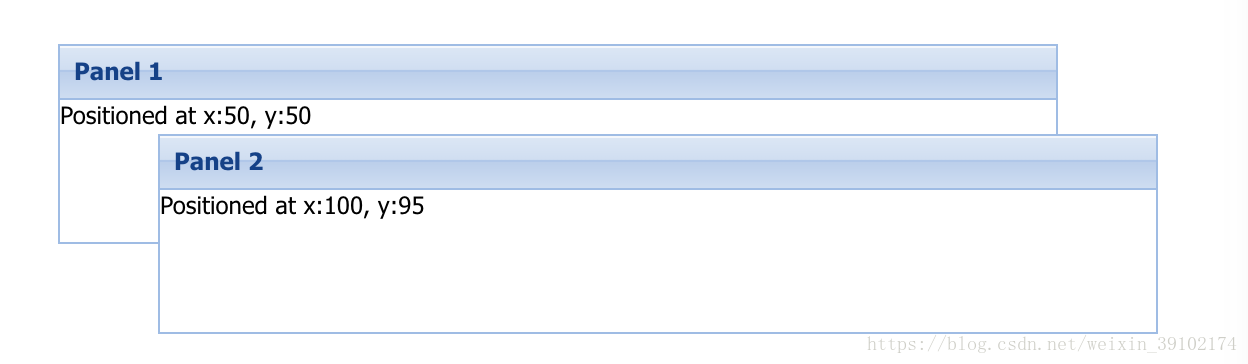

运行效果:

Ext.js  accordion布局

<!DOCTYPE html>
<html>
<head>
   <link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   <script type="text/javascript">
      Ext.onReady(function() {
         Ext.create('Ext.container.Container', {
            renderTo : Ext.getBody(),
            layout : 'accordion' ,
            width : 600,
            items : [{
               title : 'Panel 1',
               html : 'Panel 1 html content'
            },{
               title : 'Panel 2',
               html : 'Panel 2 html content'
            },{
               title : 'Panel 3',
               html : 'Panel 3 html content'
            },{
               title : 'Panel 4',
               html : 'Panel 4 html content'
            },{
               title : 'Panel 5',
               html : 'Panel 5 html content'
            }]
         });
      });
   </script>
</head>
<body>
</body>
</html>

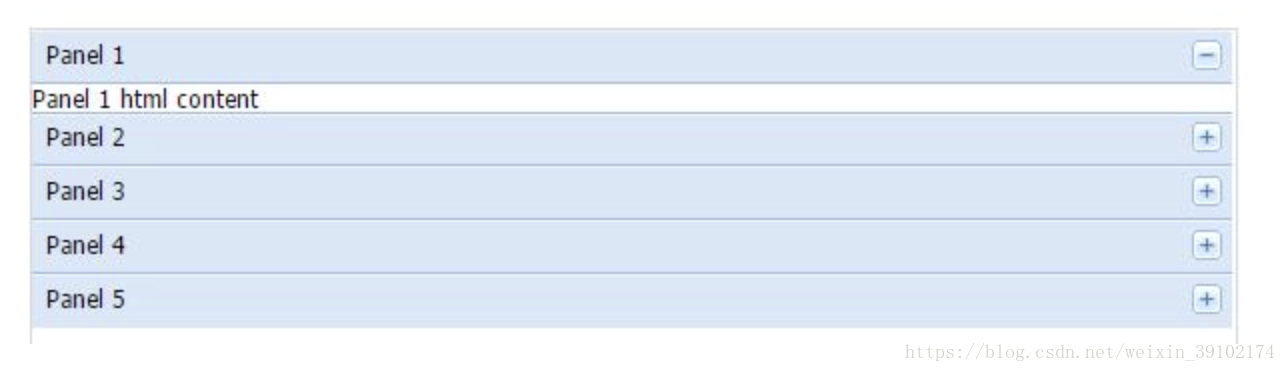

运行效果:

Ext.js

anchor 布局
<!DOCTYPE html>
<html>
<head>
   <link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   <script type="text/javascript">
      Ext.onReady(function() {
         Ext.create('Ext.container.Container', {
            renderTo : Ext.getBody(),
            layout : 'anchor' ,
            width : 600,
            items : [{
               title : 'Panel 1',
               html : 'panel 1',
               height : 100,
               anchor : '50%'
            },{
               title : 'Panel 2',
               html : 'panel 2',
               height : 100,
               anchor : '100%'
            },{
               title : 'Panel 3',
               html : 'panel 3',
               height : 100,
               anchor : '-100'
            },{
               title : 'Panel 4',
               html : 'panel 4',
               anchor : '-70, 500'
            }]
         });
      });
   </script>
</head>
<body>
</body>
</html>

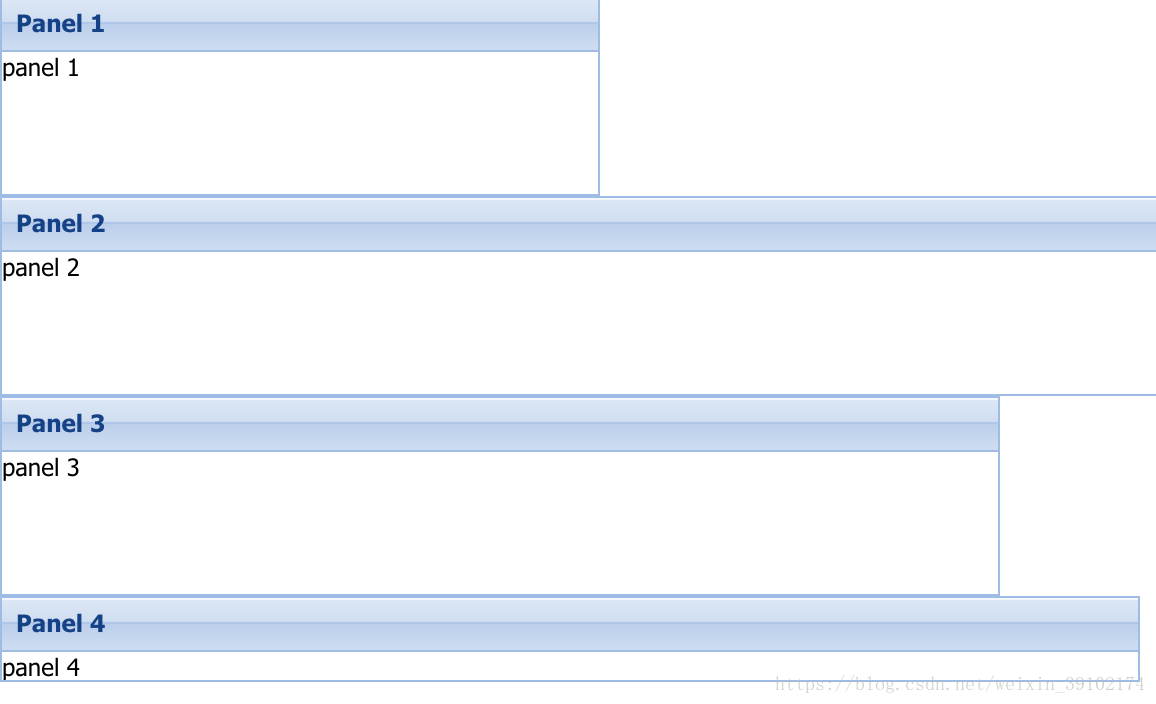

运行效果:

Ext.js

border布局
<!DOCTYPE html>
<html>
<head>
   <link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   <script type="text/javascript">
      Ext.onReady(function() {
         Ext.create('Ext.panel.Panel', {
            renderTo: Ext.getBody(),
            height: 300,
            width: 600,
            layout:'border',
            defaults: {
               collapsible: true,
               split: true,
               bodyStyle: 'padding:15px'
            },
            items: [{
               title: 'Panel1',
               region:'west',
               html: 'This is Panel 1'
            },{
               title: 'Panel2',
               region:'center',
               html: 'This is Panel 2'
            },{
               title: 'Panel3',
               region: 'south',
               html: 'This is Panel 3'
            },{
               title: 'Panel4',
               region: 'east',
               html: 'This is Panel 4'
            },{
               title: 'Panel5',
               region: 'north',
               html: 'This is Panel 5'
            }]
         });
      });
   </script>
</head>
<body>
</body>
</html>

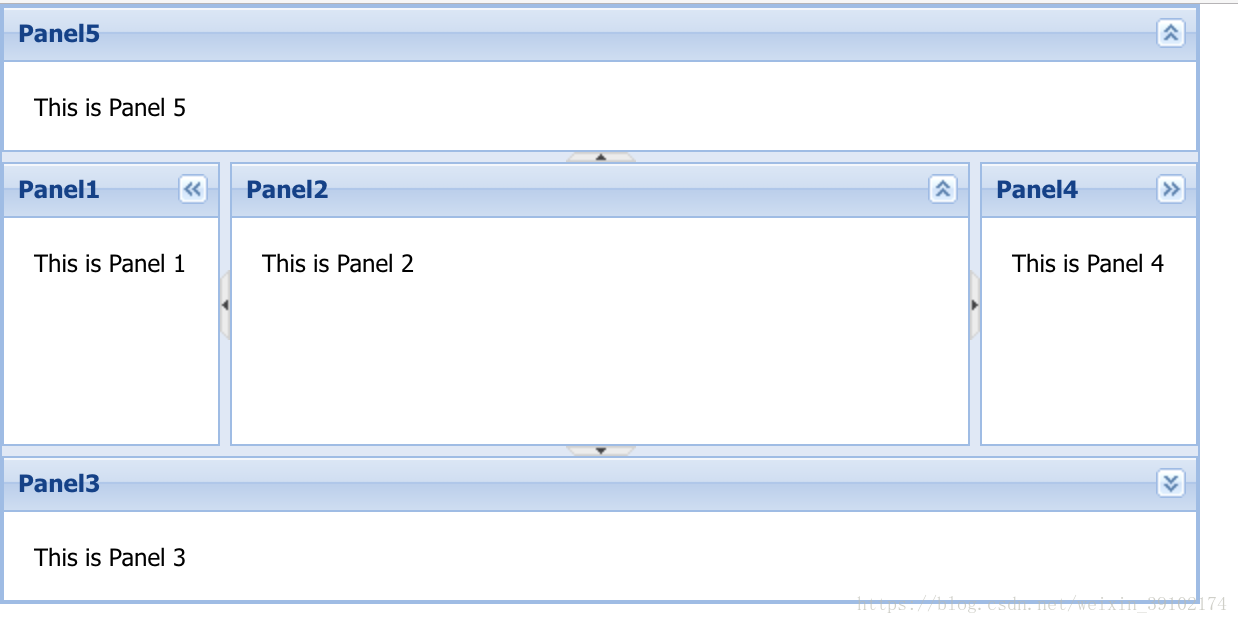

运行效果:

Card(TabPanel)

此布局以制表符方式排列不同的组件。 选项卡将显示在容器的顶部。每次只有一个选项卡可见,每个选项卡被视为不同的组件

<!DOCTYPE HTML>
<html>
<head>
	<title>absoluteHtmlTest</title>
	<link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   	<script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   	<script type="text/javascript">
Ext.onReady(function(){
	Ext.create('Ext.tab.Panel',{
		renderTo:Ext.getBody(),
		requires:['Ext.layout.container.Card'],
		width:600,
		height:200,
		items:[{
			title:'tab panel 1',
			html:'tab panel 1 content'
		},{
			title:'tab panel 2',
			html:'tab panel 2 content'
		},{
			title:'tab panel 3',
			html:'tab panel 3 content'
		}]
	});
});

   	</script>
</head>
<body>
</body>
</html>

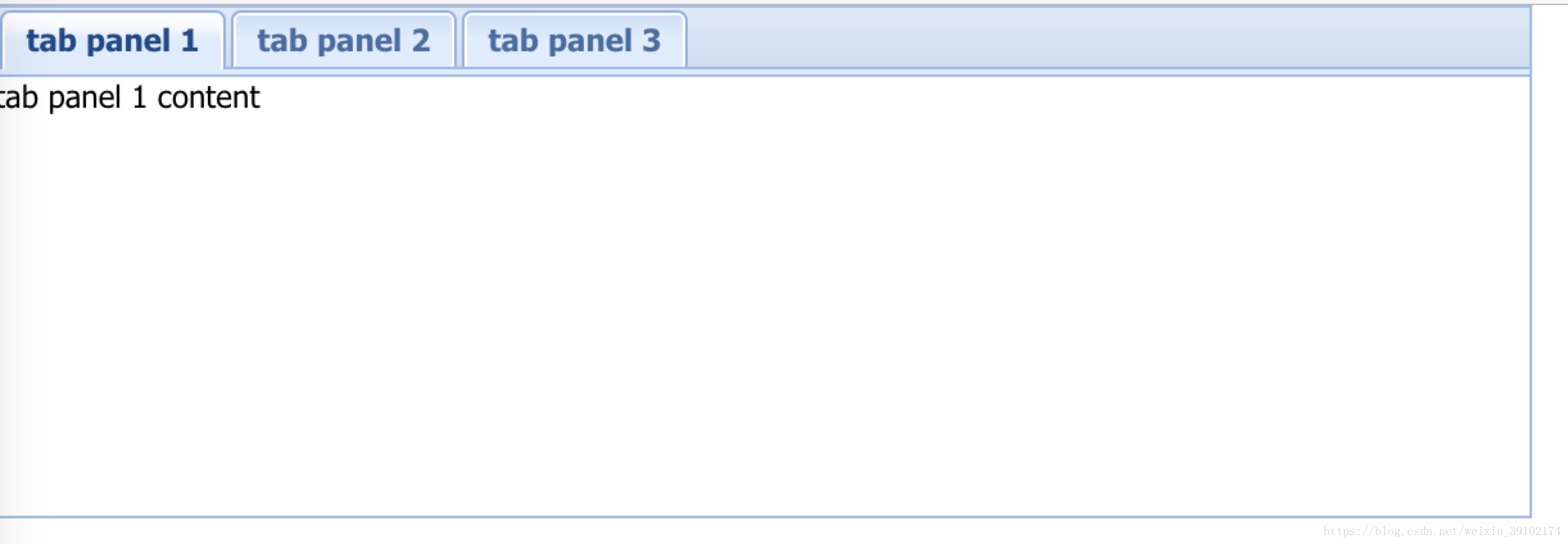

效果如下:



Card(Wizard)

在这个布局中,每次元素来到完整的容器空间。 向导中将有一个底部工具栏用于导航。

<!DOCTYPE HTML>
<html>
<head>
	<title>absoluteHtmlTest</title>
	<link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   	<script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   	<script type="text/javascript">
 		Ext.onReady(function(){
 			Ext.create('Ext.panel.Panel',{
 				renderTo:Ext.getBody(),
 				width:600,
 				height:200,
 				//勿忘layout布局属性
 				layout: 'card',
 				requires:['Ext.layout.container.Card'],
 				bodyPadding:15,
 				defaults:{
                    //隐藏内边框
 					border:false
 				},
 				defaultListenerScope:true,
//在bbar表示按钮,属性添加'->'可以让 previous和next按钮居右,必须是‘->’其他符号无效
 				bbar:['->',{
 					itemId:'card-prev',
 					text:'<< Previous',
 					handler:'showPrevious',
 					disabled:true
 				},{
 					itemId:'card-next',
 					text:'next >>',
 					handler:'showNext'
 				}],
 				items:[{
 					id:'card0',
 					html:'<h2> This is card wizard layout </h2><p> This is first card </p> <p> Please click the "Previous" button for previous card... </p>'
 				},{
 					id:'card1',
 					html:'<p> This is second card </p> <p> Please click the "Previous" button for previous card... </p>'
 				},{
 					id:'card2',
 					html:'<p> This is 3 card </p> <p> Please click the "Previous" button for previous card... </p>'
 				},{
 					id:'card3',
 					html:'<p> This is 4 card </p> <p> Please click the "Previous" button for previous card... </p>'
 				}],

 					showNext:function(){
 						this.cardPanelNavigation(1);
 					},
 					showPrevious:function(){
 						this.cardPanelNavigation(-1);
 					},

 					cardPanelNavigation:function(incr){
 						var me=this;
 						var l=me.getLayout();
 						var i=l.activeItem.id.split('card')[1];
 						var next=parseInt(i,10)+incr;
 						l.setActiveItem(next);
 						me.down('#card-prev').setDisabled(next===0);
 						me.down('#card-next').setDisabled(next===2);
 					}

 			});
 		});
   	</script>

</head>
<body>
</body>
</html>

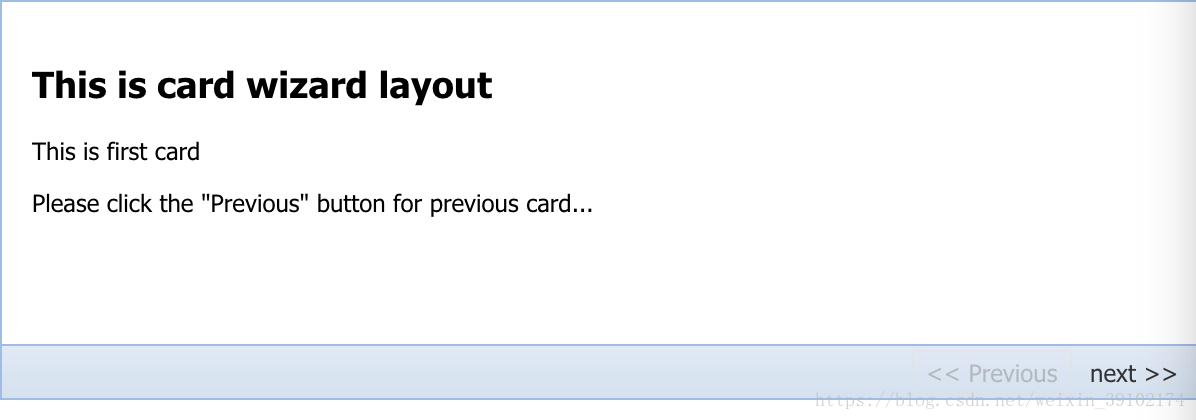

效果如下:

Column

此布局是要在容器中显示多个列。 我们可以定义列的固定宽度或百分比宽度。 百分比宽度将基于容器的完整大小计算。

每个column的高度会根据内容的高度自动变化

<!DOCTYPE HTML>
<html>
<head>
	<title>absoluteHtmlTest</title>
	<link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   	<script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   	<script type="text/javascript">
 		Ext.onReady(function(){
 			Ext.create('Ext.panel.Panel',{
 				renderTo:Ext.getBody(),
 				//一般只需要layout属性就可以,requires和xtype不是必须的
 				layout:'column',
 				requires:['Ext.layout.container.Column'],
 				xtype:'layout-column',
 				width:600,
 				items:[{
 					title : 'First Component width 30%',
 					html:'<p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p><p>first component content</p>',
 					//columnWidth字段不要写错,否则会出现填充不满的情况
 					columnWidth:0.30
 				},{
               title : 'Second Component width 40%',
               html : '<p> This is Second Component </p> <p> Next line for second component </p>',
               columnWidth : 0.40
            },{
               title : 'Third Component width 30%',
               html : 'This is Third Component' ,
               columnWidth : 0.30
 				}]
 			});
 		});
   	</script>

</head>
<body>
</body>
</html>

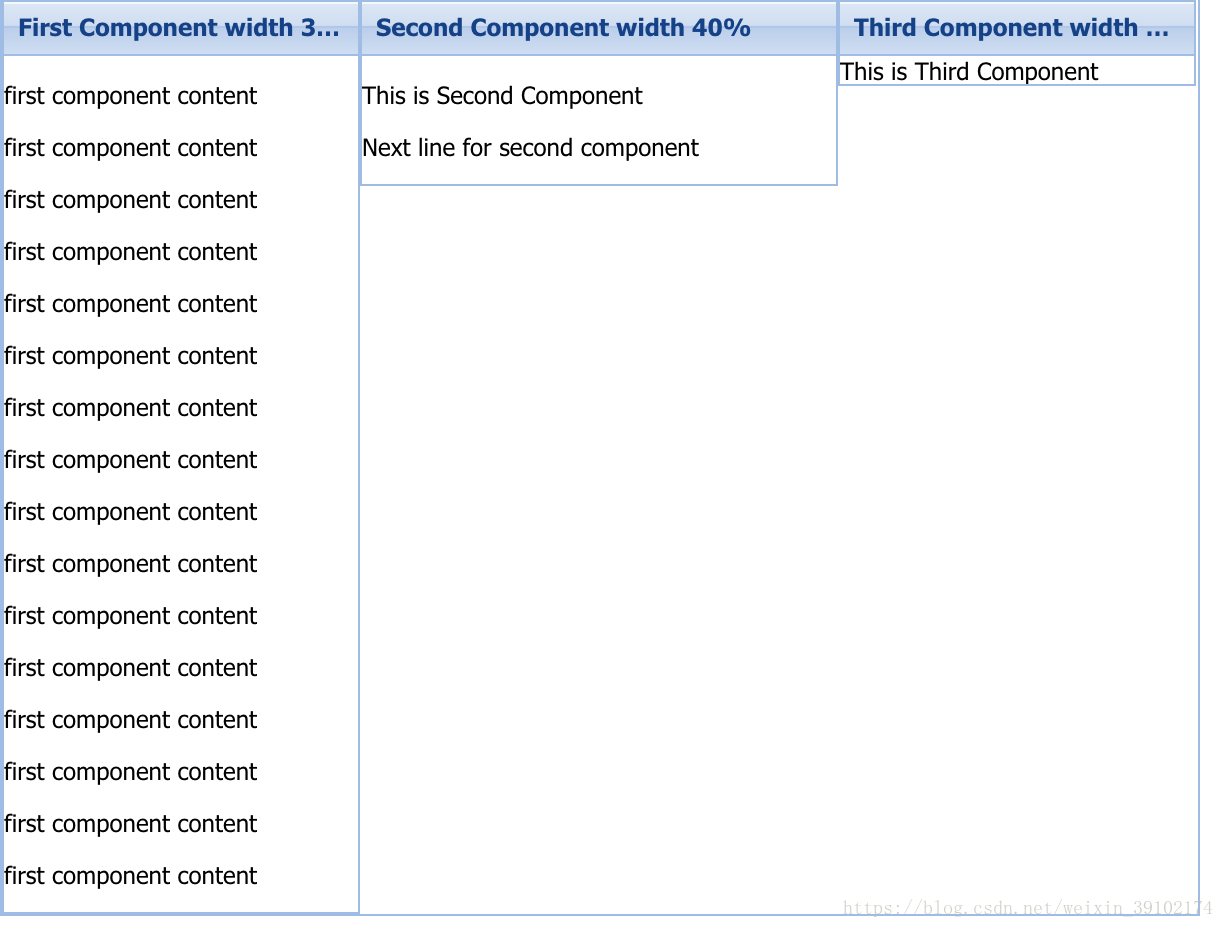

运行结果:

Fit

在此布局中,容器用单个面板填充,并且当没有与布局相关的特定要求时,则使用该布局。

适合:在此布局中,容器用单个面板填充,当没有与布局相关的特定要求时,则使用此布局。

<!DOCTYPE HTML>
<html>
<head>
	<title>absoluteHtmlTest</title>
	<link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   	<script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   	<script type="text/javascript">
 		Ext.onReady(function(){
 			Ext.create('Ext.container.Container',{
 				renderTo:Ext.getBody(),
 				layout:{
                    //fit和auto布局看着是一样的,即使不加layout,区别???
 					type:'fit'
 				},
 				defaults:{
 					bodyPadding:15
 				},
 				width:600,
 				items:[{
 					title:'panel 1',
 					html:'panel 1 content'
 				},{title:'panel 2',
 					html:'panel 2 content'
 				},{
 					title:'panel 3',
 					html:'panel 3 content'
 				}]
 			});
 		});
   	</script>

</head>
<body>
</body>
</html>

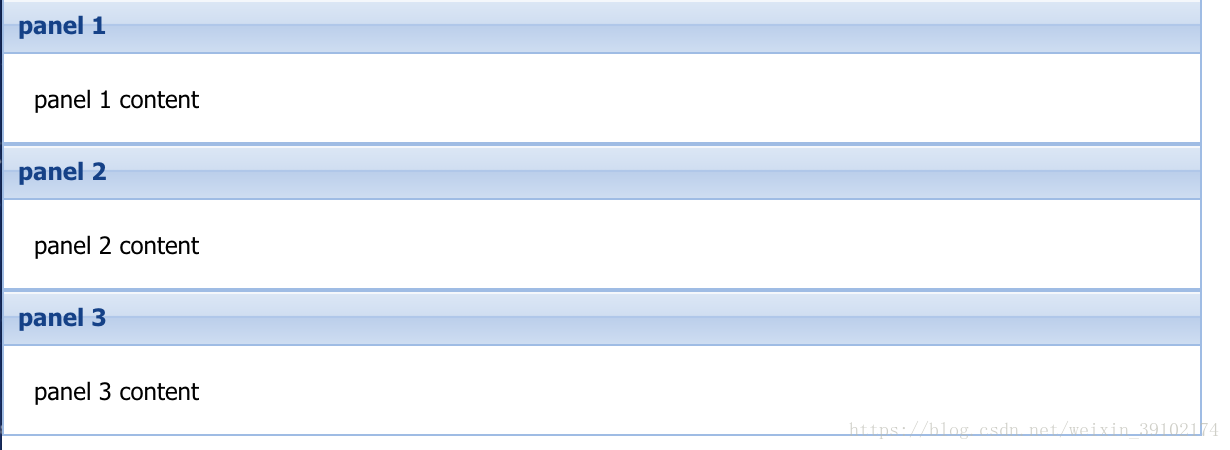

运行效果:



Table

由于名称意味着此布局以HTML表格式在容器中排列组件。

若columns的数值大于item的数量,则item会自动向下排列,还是分三列

情况一:columns和items数量一致

<!DOCTYPE html>
<html>
<head>
   <link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   <script type="text/javascript">
      Ext.onReady(function(){
      	Ext.create('Ext.container.Container',{
      		renderTo:Ext.getBody(),
      		layout:{
      			type:'table',
      			columns:3,
      			tableAttrs:{
      				style:{
      					width:'100%'
      				}
      			}
      		},
      		width:600,
      		height:200,
      		items:[{
      			title:'panel 1',
      			html:'panel 1 content'
      		},{
      			title:'panel 2',
      			html:'panel 2 content'
      		},{
      			title:'panel 3',
      			html:'panel 3 content'
      		}]
      	});
      });
   </script>
</head>
<body>
</body>
</html>

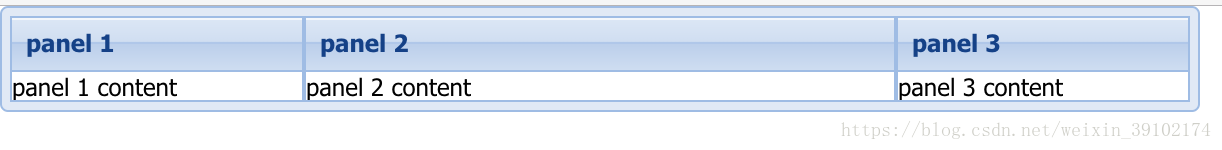

运行结果:

情况2:colums数量小于items数量

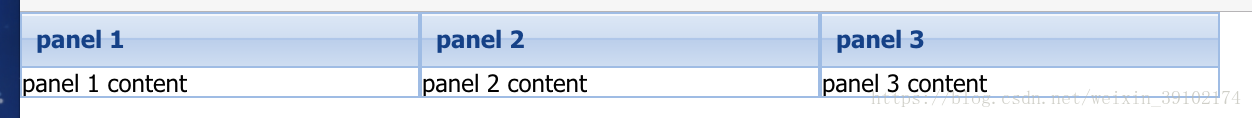

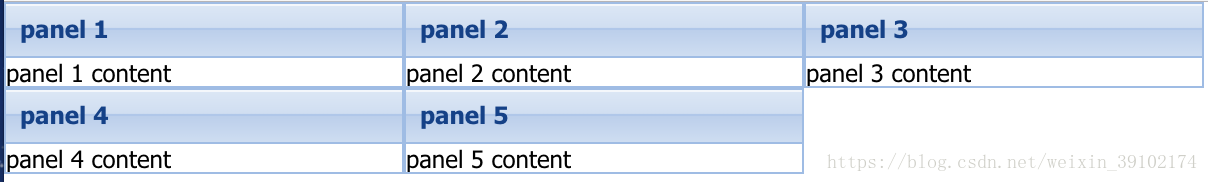

运行结果:

带有colspan和rowspan的table布局:

<!DOCTYPE html>
<html>
<head>
   <link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   <script type="text/javascript">
      Ext.onReady(function(){
      	Ext.create('Ext.container.Container',{
      		renderTo:Ext.getBody(),
      		layout:{
      			type:'table',
      			columns:3,
      			tableAttrs:{
      				style:{
      					width:'100%'
      				}
      			}
      		},
      		width:600,
      		height:200,
      		items:[{
      			title:'panel 1',
      			html:'panel 1 content',
      			colspan:2
      		},{
      			title:'panel 2',
      			html:'panel 2 content',
      			rowspan:2
      		},{
      			title:'panel 3',
      			html:'panel 3 content'
      		},{
      			title:'panel 4',
      			html:'panel 4 content'
      		},{
      			title:'panel 5',
      			html:'panel 5 content'
      		}]
      	});
      });
   </script>
</head>
<body>
</body>
</html>

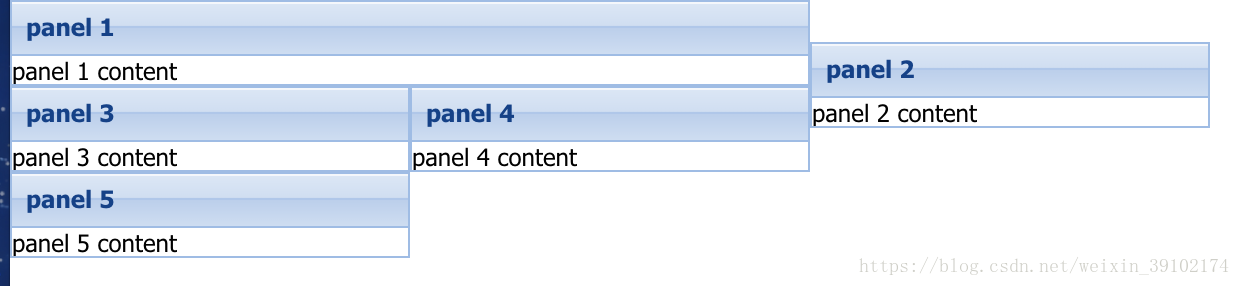

运行结果:



Ext.js vbox布局

vbox:这种布局允许元素以垂直方式分布。

<!DOCTYPE html>
<html>
<head>
   <link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   <script type="text/javascript">
      Ext.onReady(function(){
      	Ext.create('Ext.panel.Panel',{
      		renderTo:Ext.getBody(),
      		layout:{
      			type:'vbox',
      			//stretch伸展
      			align:'stretch'
      		},
      		requires:['Ext.layout.container.VBox'],
      		xtype:'layout-vertical-box',
      		width:600,
      		height:400,
      		frame:true,
      		items:[{
      			title:'panel 1',
      			html:'panel 1 content',
      			margin: '0 0 10 0',
      			//在vbox中flex控制向下拉伸的宽度
      			flex:1
      		},{
      			title:'panel 2',
      			html:'panel 2 content',
      			margin: '0 0 10 0',
      			flex:2
      		},{
      			title:'panel 3',
      			html:'panel 3 content',
      			margin: '0 0 10 0',
      			flex:2
      		},{
      			title:'panel 4',
      			html:'panel 4 content',
      			margin: '0 0 10 0',
      			flex:1
      		}]
      	});
      });
   </script>
</head>
<body>
</body>
</html>

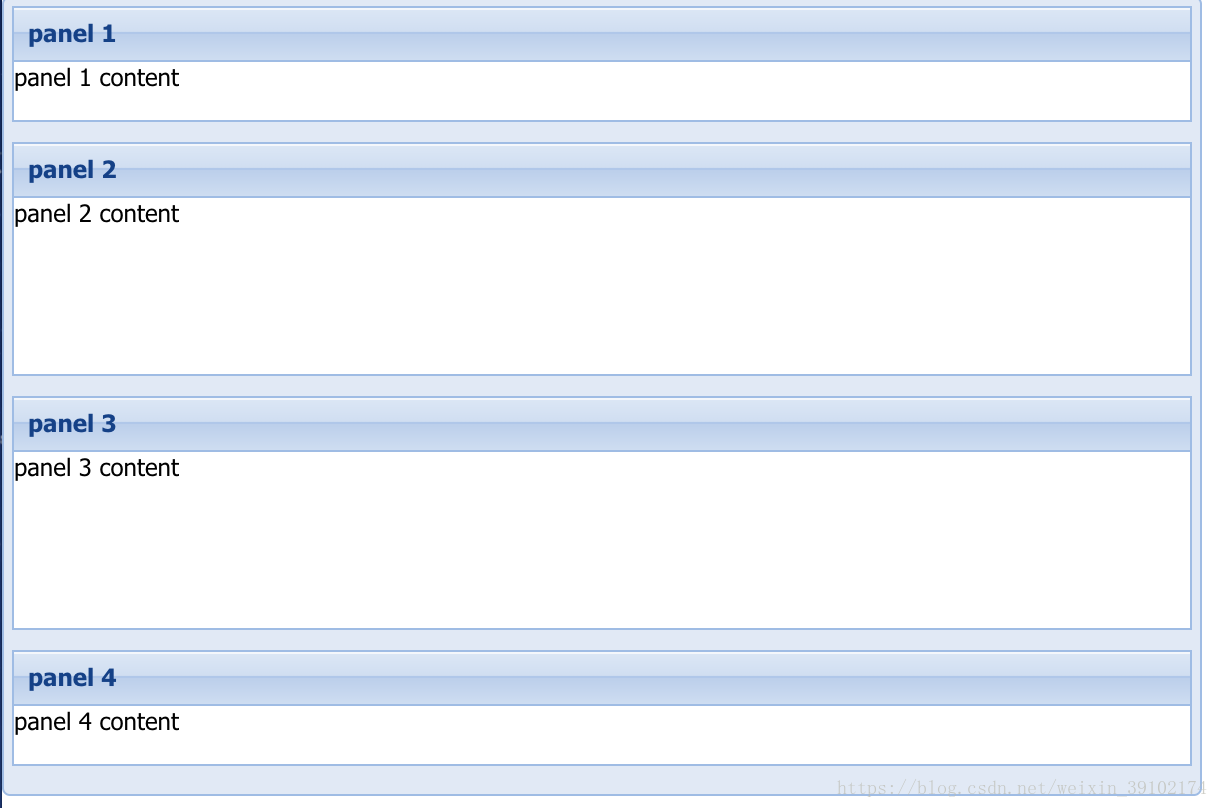

运行效果:

Ext.js hbox布局

hbox:这种布局允许元素以水平方式分布。



<!DOCTYPE html>
<html>
<head>
   <link href="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/classic/theme-classic/resources/theme-classic-all.css" rel="stylesheet" />
   <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/extjs/6.0.0/ext-all.js"></script>
   <script type="text/javascript">
      Ext.onReady(function() {
         Ext.create('Ext.panel.Panel', {
            renderTo : Ext.getBody(),
            layout : {
               type :'hbox'
            },
            requires: ['Ext.layout.container.HBox'],
            xtype: 'layout-horizontal-box',
            width : 600,
            frame :true,
            items : [{
               title: 'Panel 1',
               html : 'Panel with flex 1',
               flex : 1
            },{
               title: 'Panel 2',
               html : 'Panel with flex 2',
               flex : 2
            },{
               title: 'Panel 3',
               width: 150,
               html : 'Panel with width 150'
            },{
               title: 'Panel 4',
               html : 'Panel with flex 1',
               flex : 1
            }]
         });
      });
   </script>
</head>
<body>
</body>
</html>



运行效果:



原文地址:https://www.w3cschool.cn/extjs/extjs_layouts.html
