本文深入探讨SpringBoot MVC的内部工作原理，包括整体架构、初始化过程、Controller封装、参数解析、结果封装以及拦截器的工作机制。通过分析关键类如DispatcherServlet、RequestMappingHandlerMapping和HandlerAdapter，揭示了SpringBoot MVC的请求处理流程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

研究mvc 要搞清楚的几个问题

1 springmvc 整体架构

2 springmvc 初始化过程

3 springmvc 是如何封装controller 的

4 springmvc 是解析封装参数的

5 springmvc 是如何封装结果的

6 springmvc 拦截器是如何工作的

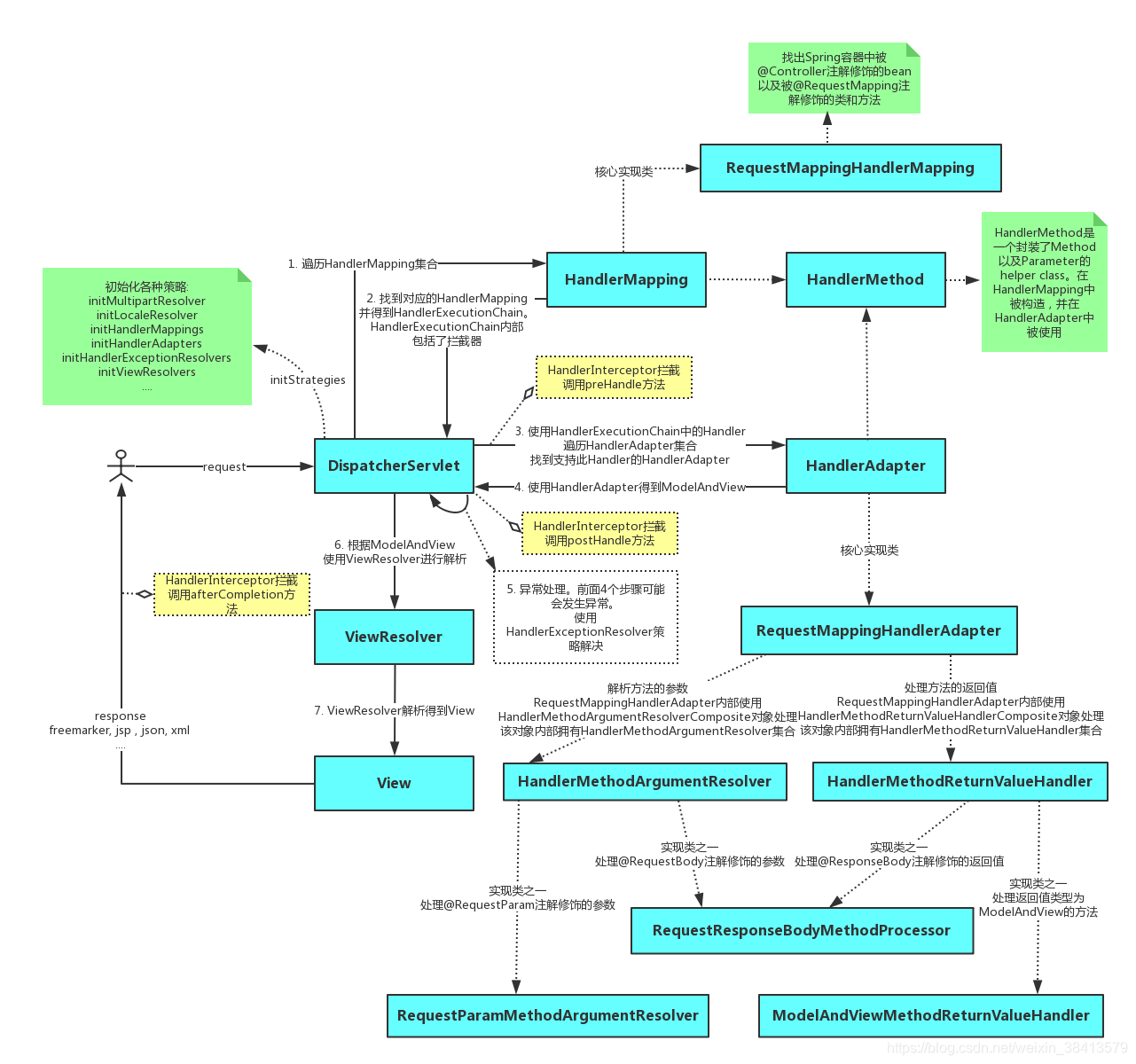

问题1:

架构一目了然。

问题2：

FrameworkServlet 是dispatcherServlet 的父类, 也是dispatcherServlet 初始化的入口;

@Override
protected final void initServletBean() throws ServletException {
   getServletContext().log("Initializing Spring " + getClass().getSimpleName() + " '" + getServletName() + "'");
   if (logger.isInfoEnabled()) {
      logger.info("Initializing Servlet '" + getServletName() + "'");
   }
   long startTime = System.currentTimeMillis();

   try {
      this.webApplicationContext = initWebApplicationContext();
      initFrameworkServlet(); //  这里调用dispatcherServlet 的初始化接口
   }
   catch (ServletException | RuntimeException ex) {
      logger.error("Context initialization failed", ex);
      throw ex;
   }

   if (logger.isDebugEnabled()) {
      String value = this.enableLoggingRequestDetails ?
            "shown which may lead to unsafe logging of potentially sensitive data" :
            "masked to prevent unsafe logging of potentially sensitive data";
      logger.debug("enableLoggingRequestDetails='" + this.enableLoggingRequestDetails +
            "': request parameters and headers will be " + value);
   }

   if (logger.isInfoEnabled()) {
      logger.info("Completed initialization in " + (System.currentTimeMillis() - startTime) + " ms");
   }
}

看下dispatcherServlet的代码

protected void initStrategies(ApplicationContext context) {
   initMultipartResolver(context);// 文件上传处理器
   initLocaleResolver(context);
   initThemeResolver(context);
   initHandlerMappings(context);// 处理器映射器
   initHandlerAdapters(context);// 处理器适配器
   initHandlerExceptionResolvers(context);
   initRequestToViewNameTranslator(context);
   initViewResolvers(context);
   initFlashMapManager(context);
}

初始化过程

重点关照initMultipartResolver, initHandlerMappings, initHandlerAdapters;

initMultipartResolver:

// 直接从容器中获取MultipartResolver
private void initMultipartResolver(ApplicationContext context) {
   try {
      this.multipartResolver = context.getBean(MULTIPART_RESOLVER_BEAN_NAME, MultipartResolver.class);
      if (logger.isTraceEnabled()) {
         logger.trace("Detected " + this.multipartResolver);
      }
      else if (logger.isDebugEnabled()) {
         logger.debug("Detected " + this.multipartResolver.getClass().getSimpleName());
      }
   }
   catch (NoSuchBeanDefinitionException ex) {
      // Default is no multipart resolver.
      this.multipartResolver = null;
      if (logger.isTraceEnabled()) {
         logger.trace("No MultipartResolver '" + MULTIPART_RESOLVER_BEAN_NAME + "' declared");
      }
   }
}

initHandlerMappings

// 从容器中获取HandlerMapping类型的bean , 封装进 handlerMappings
private void initHandlerMappings(ApplicationContext context) {
   this.handlerMappings = null;

   if (this.detectAllHandlerMappings) {
      // Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
      Map<String, HandlerMapping> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
      if (!matchingBeans.isEmpty()) {
         this.handlerMappings = new ArrayList<>(matchingBeans.values());
         // We keep HandlerMappings in sorted order.
         AnnotationAwareOrderComparator.sort(this.handlerMappings);
      }
   }
   else {
      try {
         HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
         this.handlerMappings = Collections.singletonList(hm);
      }
      catch (NoSuchBeanDefinitionException ex) {
         // Ignore, we'll add a default HandlerMapping later.
      }
   }

   // Ensure we have at least one HandlerMapping, by registering
   // a default HandlerMapping if no other mappings are found.
   if (this.handlerMappings == null) {
      this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
      if (logger.isTraceEnabled()) {
         logger.trace("No HandlerMappings declared for servlet '" + getServletName() +
               "': using default strategies from DispatcherServlet.properties");
      }
   }
}

initHandlerAdapters 和 initHandlerMappings很像, 从容器中获取 HandlerAdapter 然后封装进 handlerAdapters

private void initHandlerAdapters(ApplicationContext context) {
   this.handlerAdapters = null;

   if (this.detectAllHandlerAdapters) {
      // Find all HandlerAdapters in the ApplicationContext, including ancestor contexts.
      Map<String, HandlerAdapter> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerAdapter.class, true, false);
      if (!matchingBeans.isEmpty()) {
         this.handlerAdapters = new ArrayList<>(matchingBeans.values());
         // We keep HandlerAdapters in sorted order.
         AnnotationAwareOrderComparator.sort(this.handlerAdapters);
      }
   }
   else {
      try {
         HandlerAdapter ha = context.getBean(HANDLER_ADAPTER_BEAN_NAME, HandlerAdapter.class);
         this.handlerAdapters = Collections.singletonList(ha);
      }
      catch (NoSuchBeanDefinitionException ex) {
         // Ignore, we'll add a default HandlerAdapter later.
      }
   }

   // Ensure we have at least some HandlerAdapters, by registering
   // default HandlerAdapters if no other adapters are found.
   if (this.handlerAdapters == null) {
      this.handlerAdapters = getDefaultStrategies(context, HandlerAdapter.class);
      if (logger.isTraceEnabled()) {
         logger.trace("No HandlerAdapters declared for servlet '" + getServletName() +
               "': using default strategies from DispatcherServlet.properties");
      }
   }
}

问题3

controller 是什么时候封装的呢?

看一下RequestMappingHandlerMapping 这个类; 他间接实现了InitializingBean 接口, 所以初始化完成时会调用 afterPropertiesSet 方法,

@Override
public void afterPropertiesSet() {
   this.config = new RequestMappingInfo.BuilderConfiguration();
   this.config.setUrlPathHelper(getUrlPathHelper());
   this.config.setPathMatcher(getPathMatcher());
   this.config.setSuffixPatternMatch(this.useSuffixPatternMatch);
   this.config.setTrailingSlashMatch(this.useTrailingSlashMatch);
   this.config.setRegisteredSuffixPatternMatch(this.useRegisteredSuffixPatternMatch);
   this.config.setContentNegotiationManager(getContentNegotiationManager());

   super.afterPropertiesSet();
}

然后调用了父类的 afterPropertiesSet

AbstractHandlerMethodMapping
@Override
public void afterPropertiesSet() {
   initHandlerMethods();
}
protected void initHandlerMethods() {
   for (String beanName : getCandidateBeanNames()) {
      if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
         processCandidateBean(beanName);
      }
   }
   handlerMethodsInitialized(getHandlerMethods());
}

循环中调用了 AbstractHandlerMethodMapping.processCandidateBean方法, 逻辑的大概意思是根据类的名字获取容器中的类, 然后判断类中是否被@Controller或者@RestController 类标注,如果标注了,则注册进 HandlerMapping

protected void processCandidateBean(String beanName) {
   Class<?> beanType = null;
   try {
      beanType = obtainApplicationContext().getType(beanName);
   }
   catch (Throwable ex) {
      // An unresolvable bean type, probably from a lazy bean - let's ignore it.
      if (logger.isTraceEnabled()) {
         logger.trace("Could not resolve type for bean '" + beanName + "'", ex);
      }
   }
   if (beanType != null && isHandler(beanType)) {
      detectHandlerMethods(beanName);
   }
}

RequestMappingHandlerMapping 这里是对类进行判断的地方

@Override
protected boolean isHandler(Class<?> beanType) {
   return (AnnotatedElementUtils.hasAnnotation(beanType, Controller.class) ||
         AnnotatedElementUtils.hasAnnotation(beanType, RequestMapping.class));
}

AbstractHandlerMethodMapping 这里是注册controller 的地方 ,

protected void detectHandlerMethods(Object handler) {
   Class<?> handlerType = (handler instanceof String ?
         obtainApplicationContext().getType((String) handler) : handler.getClass());

   if (handlerType != null) {
      Class<?> userType = ClassUtils.getUserClass(handlerType);
      Map<Method, T> methods = MethodIntrospector.selectMethods(userType,
            (MethodIntrospector.MetadataLookup<T>) method -> {
               try {
                  return getMappingForMethod(method, userType);
               }
               catch (Throwable ex) {
                  throw new IllegalStateException("Invalid mapping on handler class [" +
                        userType.getName() + "]: " + method, ex);
               }
            });
      if (logger.isTraceEnabled()) {
         logger.trace(formatMappings(userType, methods));
      }
      methods.forEach((method, mapping) -> {
         Method invocableMethod = AopUtils.selectInvocableMethod(method, userType);
         registerHandlerMethod(handler, invocableMethod, mapping);
      });
   }
}

路由相关的信息封装进RequestMappingInfo , 方法相关的信息封装进 MappingRegistration , 最后他们分别以key 和 value 的形式封装进 MappingRegistry ; 这个类是专门为封装这些参数准备的;

这里有一个可重入读写锁的应用, 在注册MappingRegistry 时 , 只能有一个线程进行操作;

protected void registerHandlerMethod(Object handler, Method method, T mapping) {
   this.mappingRegistry.register(mapping, handler, method);
}
public void register(T mapping, Object handler, Method method) {
   this.readWriteLock.writeLock().lock();
   try {
      HandlerMethod handlerMethod = createHandlerMethod(handler, method);
      assertUniqueMethodMapping(handlerMethod, mapping);
      this.mappingLookup.put(mapping, handlerMethod);

      List<String> directUrls = getDirectUrls(mapping);
      for (String url : directUrls) {
         this.urlLookup.add(url, mapping);
      }

      String name = null;
      if (getNamingStrategy() != null) {
         name = getNamingStrategy().getName(handlerMethod, mapping);
         addMappingName(name, handlerMethod);
      }

      CorsConfiguration corsConfig = initCorsConfiguration(handler, method, mapping);
      if (corsConfig != null) {
         this.corsLookup.put(handlerMethod, corsConfig);
      }

      this.registry.put(mapping, new MappingRegistration<>(mapping, handlerMethod, directUrls, name));
   }
   finally {
      this.readWriteLock.writeLock().unlock();
   }
}

回到AbstractHandlerMethodMapping 的 initHandlerMethods 方法

protected void initHandlerMethods() {
   for (String beanName : getCandidateBeanNames()) {
      if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
         processCandidateBean(beanName);
      }
   }
   handlerMethodsInitialized(getHandlerMethods());
}

执行到 handlerMethodsInitialized 时, 所有的controller加载完毕, 此处进行最后的处理;

此时所有的controller 已经封装进容器;

观察HandlerMethodMapping 是如何调用的:

DispatcherServlet 类 doDispatch 方法:

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
   HttpServletRequest processedRequest = request;
   HandlerExecutionChain mappedHandler = null;
   boolean multipartRequestParsed = false;

   WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

   try {
      ModelAndView mv = null;
      Exception dispatchException = null;

      try {
         processedRequest = checkMultipart(request);
         multipartRequestParsed = (processedRequest != request);

         // Determine handler for the current request.
         mappedHandler = getHandler(processedRequest);
         if (mappedHandler == null) {
            noHandlerFound(processedRequest, response);
            return;
         }

         // Determine handler adapter for the current request.
         HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

         // Process last-modified header, if supported by the handler.
         String method = request.getMethod();
         boolean isGet = "GET".equals(method);
         if (isGet || "HEAD".equals(method)) {
            long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
            if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
               return;
            }
         }

         if (!mappedHandler.applyPreHandle(processedRequest, response)) {
            return;
         }

         // Actually invoke the handler.
         mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

         if (asyncManager.isConcurrentHandlingStarted()) {
            return;
         }

         applyDefaultViewName(processedRequest, mv);
         mappedHandler.applyPostHandle(processedRequest, response, mv);
      }
      catch (Exception ex) {
         dispatchException = ex;
      }
      catch (Throwable err) {
         // As of 4.3, we're processing Errors thrown from handler methods as well,
         // making them available for @ExceptionHandler methods and other scenarios.
         dispatchException = new NestedServletException("Handler dispatch failed", err);
      }
      processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
   }
   catch (Exception ex) {
      triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
   }
   catch (Throwable err) {
      triggerAfterCompletion(processedRequest, response, mappedHandler,
            new NestedServletException("Handler processing failed", err));
   }
   finally {
      if (asyncManager.isConcurrentHandlingStarted()) {
         // Instead of postHandle and afterCompletion
         if (mappedHandler != null) {
            mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
         }
      }
      else {
         // Clean up any resources used by a multipart request.
         if (multipartRequestParsed) {
            cleanupMultipart(processedRequest);
         }
      }
   }
}

mappedHandler = getHandler(processedRequest); 这里是获取handler 的地方, 详细了解一下;

@Nullable
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
   if (this.handlerMappings != null) {
      for (HandlerMapping mapping : this.handlerMappings) {
         HandlerExecutionChain handler = mapping.getHandler(request);
         if (handler != null) {
            return handler;
         }
      }
   }
   return null;
}

AbstractHandlerMapping

@Override
@Nullable
public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
   Object handler = getHandlerInternal(request);
   if (handler == null) {
      handler = getDefaultHandler();
   }
   if (handler == null) {
      return null;
   }
   // Bean name or resolved handler?
   if (handler instanceof String) {
      String handlerName = (String) handler;
      handler = obtainApplicationContext().getBean(handlerName);
   }

   HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);

   if (logger.isTraceEnabled()) {
      logger.trace("Mapped to " + handler);
   }
   else if (logger.isDebugEnabled() && !request.getDispatcherType().equals(DispatcherType.ASYNC)) {
      logger.debug("Mapped to " + executionChain.getHandler());
   }

   if (CorsUtils.isCorsRequest(request)) {
      CorsConfiguration globalConfig = this.corsConfigurationSource.getCorsConfiguration(request);
      CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
      CorsConfiguration config = (globalConfig != null ? globalConfig.combine(handlerConfig) : handlerConfig);
      executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
   }

   return executionChain;
}

AbstractHandlerMapping

@Override
protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
   String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
   this.mappingRegistry.acquireReadLock();
   try {
      HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
      return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);
   }
   finally {
      this.mappingRegistry.releaseReadLock();
   }
}

lookupHandlerMethod这个方法是查找的重点 , 首先从 urlLookup 匹配, 然后循环所有进行匹配;

@Nullable
protected HandlerMethod lookupHandlerMethod(String lookupPath, HttpServletRequest request) throws Exception {
   List<Match> matches = new ArrayList<>();
   List<T> directPathMatches = this.mappingRegistry.getMappingsByUrl(lookupPath); // 这里是重点,首先尝试从urlLookup 中数据进行匹配,如果匹配不到,则遍历全部;
   if (directPathMatches != null) {
      addMatchingMappings(directPathMatches, matches, request);  // 这里进行更精确的匹配 ,  重点看一下这个方法;
   }
   if (matches.isEmpty()) {
      // No choice but to go through all mappings...
      addMatchingMappings(this.mappingRegistry.getMappings().keySet(), matches, request);// 循环register中全部数据,进行匹配;
   }

   if (!matches.isEmpty()) {
      Comparator<Match> comparator = new MatchComparator(getMappingComparator(request));
      matches.sort(comparator);
      Match bestMatch = matches.get(0);
      if (matches.size() > 1) {
         if (logger.isTraceEnabled()) {
            logger.trace(matches.size() + " matching mappings: " + matches);
         }
         if (CorsUtils.isPreFlightRequest(request)) {
            return PREFLIGHT_AMBIGUOUS_MATCH;
         }
         Match secondBestMatch = matches.get(1);
         if (comparator.compare(bestMatch, secondBestMatch) == 0) {
            Method m1 = bestMatch.handlerMethod.getMethod();
            Method m2 = secondBestMatch.handlerMethod.getMethod();
            String uri = request.getRequestURI();
            throw new IllegalStateException(
                  "Ambiguous handler methods mapped for '" + uri + "': {" + m1 + ", " + m2 + "}");
         }
      }
      request.setAttribute(BEST_MATCHING_HANDLER_ATTRIBUTE, bestMatch.handlerMethod);
      handleMatch(bestMatch.mapping, lookupPath, request);
      return bestMatch.handlerMethod;
   }
   else {
      return handleNoMatch(this.mappingRegistry.getMappings().keySet(), lookupPath, request);
   }
}

遍历所有mappings 进行更精确匹配;

private void addMatchingMappings(Collection<T> mappings, List<Match> matches, HttpServletRequest request) {
   for (T mapping : mappings) {
      T match = getMatchingMapping(mapping, request);
      if (match != null) {
         matches.add(new Match(match, this.mappingRegistry.getMappings().get(mapping)));
      }
   }
}

RequestMappingInfoHandlerMapping , getMatchingMapping,

@Override
protected RequestMappingInfo getMatchingMapping(RequestMappingInfo info, HttpServletRequest request) {
   return info.getMatchingCondition(request);
}

RequestMappingInfo getMatchingCondition 这个方法将对url 进行全面的比对

@Override
@Nullable
public RequestMappingInfo getMatchingCondition(HttpServletRequest request) {
   RequestMethodsRequestCondition methods = this.methodsCondition.getMatchingCondition(request); // 匹配方法
   if (methods == null) {
      return null;
   }
   ParamsRequestCondition params = this.paramsCondition.getMatchingCondition(request); // 匹配参数
   if (params == null) {
      return null;
   }
   HeadersRequestCondition headers = this.headersCondition.getMatchingCondition(request); // 匹配请求头
   if (headers == null) {
      return null;
   }
   ConsumesRequestCondition consumes = this.consumesCondition.getMatchingCondition(request); // 匹配consume
   if (consumes == null) {
      return null;
   }
   ProducesRequestCondition produces = this.producesCondition.getMatchingCondition(request); // 匹配produce
   if (produces == null) {
      return null;
   }
   PatternsRequestCondition patterns = this.patternsCondition.getMatchingCondition(request); // 匹配路由
   if (patterns == null) {
      return null;
   }
   RequestConditionHolder custom = this.customConditionHolder.getMatchingCondition(request); // 不知道干嘛的
   if (custom == null) {
      return null;
   }

   return new RequestMappingInfo(this.name, patterns,
         methods, params, headers, consumes, produces, custom.getCondition());
}

回到 AbstractHandlerMethodMapping 的 addMatchingMappings方法, 匹配成功后添加进一个集合中

private void addMatchingMappings(Collection<T> mappings, List<Match> matches, HttpServletRequest request) {
   for (T mapping : mappings) {
      T match = getMatchingMapping(mapping, request);
      if (match != null) {
         matches.add(new Match(match, this.mappingRegistry.getMappings().get(mapping)));
      }
   }
}

随后选出一个最最匹配的, 这样就获取了handler ;

回到AbstractHandlerMapping 类的 getHandler 方法 ;

@Override
@Nullable
public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
   Object handler = getHandlerInternal(request);
   if (handler == null) {
      handler = getDefaultHandler();
   }
   if (handler == null) {
      return null;
   }
   // Bean name or resolved handler?
   if (handler instanceof String) {
      String handlerName = (String) handler;
      handler = obtainApplicationContext().getBean(handlerName);
   }

   HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);

   if (logger.isTraceEnabled()) {
      logger.trace("Mapped to " + handler);
   }
   else if (logger.isDebugEnabled() && !request.getDispatcherType().equals(DispatcherType.ASYNC)) {
      logger.debug("Mapped to " + executionChain.getHandler());
   }

   if (CorsUtils.isCorsRequest(request)) {
      CorsConfiguration globalConfig = this.corsConfigurationSource.getCorsConfiguration(request);
      CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
      CorsConfiguration config = (globalConfig != null ? globalConfig.combine(handlerConfig) : handlerConfig);
      executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
   }

   return executionChain;
}

getHandlerExecutionChain 主要作用是封装拦截器,

之后如果配置了跨域信息, 则会进行相关的配置 , 最后返回;'

controller 相关的封装一级调用过程就结束了;

问题4

通过问题3 已经了解了handler 的执行过程, 现在通过问题4 了解实际调用的过程;

首先回到 DispatcherServlet 由于handler 的形态不一样, 所以要加一个适配器, 即 HandlerAdapter , 获取他的方式也很简单, 就是遍历所有的adapter 看handler 是否匹配,

由于RequestMappingHandlerAdapter 最常见, 所以重点观察他

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
   HttpServletRequest processedRequest = request;
   HandlerExecutionChain mappedHandler = null;
   boolean multipartRequestParsed = false;

   WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

   try {
      ModelAndView mv = null;
      Exception dispatchException = null;

      try {
         processedRequest = checkMultipart(request);
         multipartRequestParsed = (processedRequest != request);

         // Determine handler for the current request.
         mappedHandler = getHandler(processedRequest);
         if (mappedHandler == null) {
            noHandlerFound(processedRequest, response);
            return;
         }

         // Determine handler adapter for the current request.
         HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

         // Process last-modified header, if supported by the handler.
         String method = request.getMethod();
         boolean isGet = "GET".equals(method);
         if (isGet || "HEAD".equals(method)) {
            long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
            if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
               return;
            }
         }

         if (!mappedHandler.applyPreHandle(processedRequest, response)) {
            return;
         }

         // Actually invoke the handler.
         mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

         if (asyncManager.isConcurrentHandlingStarted()) {
            return;
         }

         applyDefaultViewName(processedRequest, mv);
         mappedHandler.applyPostHandle(processedRequest, response, mv);
      }
      catch (Exception ex) {
         dispatchException = ex;
      }
      catch (Throwable err) {
         // As of 4.3, we're processing Errors thrown from handler methods as well,
         // making them available for @ExceptionHandler methods and other scenarios.
         dispatchException = new NestedServletException("Handler dispatch failed", err);
      }
      processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
   }
   catch (Exception ex) {
      triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
   }
   catch (Throwable err) {
      triggerAfterCompletion(processedRequest, response, mappedHandler,
            new NestedServletException("Handler processing failed", err));
   }
   finally {
      if (asyncManager.isConcurrentHandlingStarted()) {
         // Instead of postHandle and afterCompletion
         if (mappedHandler != null) {
            mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
         }
      }
      else {
         // Clean up any resources used by a multipart request.
         if (multipartRequestParsed) {
            cleanupMultipart(processedRequest);
         }
      }
   }
}

mv = ha.handle(processedRequest, response, mappedHandler.getHandler()); 这一行代码是实际调用controller中方法的地方, 观察下他到底是如何实现的,

RequestMappingHandlerAdapter
@Override
protected ModelAndView handleInternal(HttpServletRequest request,
      HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

   ModelAndView mav;
   checkRequest(request);

   // Execute invokeHandlerMethod in synchronized block if required.
   if (this.synchronizeOnSession) {
      HttpSession session = request.getSession(false);
      if (session != null) {
         Object mutex = WebUtils.getSessionMutex(session);
         synchronized (mutex) {
            mav = invokeHandlerMethod(request, response, handlerMethod);
         }
      }
      else {
         // No HttpSession available -> no mutex necessary
         mav = invokeHandlerMethod(request, response, handlerMethod);
      }
   }
   else {
      // No synchronization on session demanded at all...
      mav = invokeHandlerMethod(request, response, handlerMethod);
   }

   if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
      if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
         applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
      }
      else {
         prepareResponse(response);
      }
   }

   return mav;
}

RequestMappingHandlerAdapter 的 invokeHandlerMethod

@Nullable
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
      HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

   ServletWebRequest webRequest = new ServletWebRequest(request, response);
   try {
      WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
      ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

      ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod); // 封装ServletInvocableHandlerMethod 实际上就是对handlerMethod 进行一个包装
      if (this.argumentResolvers != null) {
         invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers); // 设置参数解析器,解析url的参数的时候需要用到
      }
      if (this.returnValueHandlers != null) {
         invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers); // 结果处理器,返回结果的时候用到
      }
      invocableMethod.setDataBinderFactory(binderFactory);
      invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);

      ModelAndViewContainer mavContainer = new ModelAndViewContainer(); // container 用来盛放ModelAndView的容器
      mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
      modelFactory.initModel(webRequest, mavContainer, invocableMethod);
      mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);

      AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
      asyncWebRequest.setTimeout(this.asyncRequestTimeout);

      WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request); // 异步相关, 暂不考虑
      asyncManager.setTaskExecutor(this.taskExecutor);
      asyncManager.setAsyncWebRequest(asyncWebRequest);
      asyncManager.registerCallableInterceptors(this.callableInterceptors);
      asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);

      if (asyncManager.hasConcurrentResult()) {
         Object result = asyncManager.getConcurrentResult();
         mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];
         asyncManager.clearConcurrentResult();
         LogFormatUtils.traceDebug(logger, traceOn -> {
            String formatted = LogFormatUtils.formatValue(result, !traceOn);
            return "Resume with async result [" + formatted + "]";
         });
         invocableMethod = invocableMethod.wrapConcurrentResult(result);
      }

      invocableMethod.invokeAndHandle(webRequest, mavContainer); // 真正执行invoke的地方 , 重点观察
      if (asyncManager.isConcurrentHandlingStarted()) {
         return null;
      }

      return getModelAndView(mavContainer, modelFactory, webRequest); // 封装modelAndView
   }
   finally {
      webRequest.requestCompleted();
   }
}

ServletInvocableHandlerMethod,

public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
      Object... providedArgs) throws Exception {

   Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs); // 具体执行invoke 方法
   setResponseStatus(webRequest);

   if (returnValue == null) {
      if (isRequestNotModified(webRequest) || getResponseStatus() != null || mavContainer.isRequestHandled()) {
         disableContentCachingIfNecessary(webRequest);
         mavContainer.setRequestHandled(true);
         return;
      }
   }
   else if (StringUtils.hasText(getResponseStatusReason())) {
      mavContainer.setRequestHandled(true);
      return;
   }

   mavContainer.setRequestHandled(false);
   Assert.state(this.returnValueHandlers != null, "No return value handlers");
   try {
      this.returnValueHandlers.handleReturnValue(
            returnValue, getReturnValueType(returnValue), mavContainer, webRequest);
   }
   catch (Exception ex) {
      if (logger.isTraceEnabled()) {
         logger.trace(formatErrorForReturnValue(returnValue), ex);
      }
      throw ex;
   }
}

// InvocableHandlerMethod

@Nullable
public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
      Object... providedArgs) throws Exception {

   Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs); //  从url中解析出参数
   if (logger.isTraceEnabled()) {
      logger.trace("Arguments: " + Arrays.toString(args));
   }
   return doInvoke(args); // 通过反射执行方法, 并返回结果
}
// 具体来看是如何解析出参数的;
protected Object[] getMethodArgumentValues(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
      Object... providedArgs) throws Exception {

   MethodParameter[] parameters = getMethodParameters();
   if (ObjectUtils.isEmpty(parameters)) {
      return EMPTY_ARGS;
   }

   Object[] args = new Object[parameters.length];
   for (int i = 0; i < parameters.length; i++) {
      MethodParameter parameter = parameters[i];
      parameter.initParameterNameDiscovery(this.parameterNameDiscoverer);
      args[i] = findProvidedArgument(parameter, providedArgs); // 从providedArgs中获取参数
      if (args[i] != null) {
         continue;
      }
      if (!this.resolvers.supportsParameter(parameter)) { // 查找该参数的处理器, 这里运用了组合模式, Resolver有很多个, 将其放到一个Composite 对象中,进行处理
         throw new IllegalStateException(formatArgumentError(parameter, "No suitable resolver"));
      }
      try {
         args[i] = this.resolvers.resolveArgument(parameter, mavContainer, request, this.dataBinderFactory); // 处理参数
      }
      catch (Exception ex) {
         // Leave stack trace for later, exception may actually be resolved and handled...
         if (logger.isDebugEnabled()) {
            String exMsg = ex.getMessage();
            if (exMsg != null && !exMsg.contains(parameter.getExecutable().toGenericString())) {
               logger.debug(formatArgumentError(parameter, exMsg));
            }
         }
         throw ex;
      }
   }
   return args;
}

HandlerMethodArgumentResolverComposite 观察一下Composite 中查找Resolver的过程,

实际上springmvc中定义的Resolver有三十几个之多, 系统定义了一个Composite 将他们封装到一起, 需要查找处理器时, 只要进行循环遍历

@Nullable
private HandlerMethodArgumentResolver getArgumentResolver(MethodParameter parameter) {
   HandlerMethodArgumentResolver result = this.argumentResolverCache.get(parameter);
   if (result == null) {
      for (HandlerMethodArgumentResolver methodArgumentResolver : this.argumentResolvers) {
         if (methodArgumentResolver.supportsParameter(parameter)) {
            result = methodArgumentResolver;
            this.argumentResolverCache.put(parameter, result);
            break;
         }
      }
   }
   return result;
}

这里的处理器再多了解一下, 这是一个借口, 其中有两个方法, 第一个是判断该处理器是否能够处理该参数, 第二个是处理的过程, 这个设计思路非常值得学习, handleradapter中也有类似的方法;

public interface HandlerMethodArgumentResolver {

   boolean supportsParameter(MethodParameter parameter);
   @Nullable
   Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
         NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception;

}

在回到InvocableHandlerMethod 观察一下参数是如何处理的 invokeForRequest 方法的 args[i] = this.resolvers.resolveArgument(parameter, mavContainer, request, this.dataBinderFactory);

AbstractNamedValueMethodArgumentResolver

@Override
@Nullable
public final Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
      NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {

   NamedValueInfo namedValueInfo = getNamedValueInfo(parameter);
   MethodParameter nestedParameter = parameter.nestedIfOptional();

   Object resolvedName = resolveStringValue(namedValueInfo.name);
   if (resolvedName == null) {
      throw new IllegalArgumentException(
            "Specified name must not resolve to null: [" + namedValueInfo.name + "]");
   }

   Object arg = resolveName(resolvedName.toString(), nestedParameter, webRequest);
   if (arg == null) {
      if (namedValueInfo.defaultValue != null) {
         arg = resolveStringValue(namedValueInfo.defaultValue);
      }
      else if (namedValueInfo.required && !nestedParameter.isOptional()) {
         handleMissingValue(namedValueInfo.name, nestedParameter, webRequest);
      }
      arg = handleNullValue(namedValueInfo.name, arg, nestedParameter.getNestedParameterType());
   }
   else if ("".equals(arg) && namedValueInfo.defaultValue != null) {
      arg = resolveStringValue(namedValueInfo.defaultValue);
   }

   if (binderFactory != null) {
      WebDataBinder binder = binderFactory.createBinder(webRequest, null, namedValueInfo.name);
      try {
         arg = binder.convertIfNecessary(arg, parameter.getParameterType(), parameter); // 将获取的request 中解析出来的参数转换成方法中参数的数据类型
      }
      catch (ConversionNotSupportedException ex) {
         throw new MethodArgumentConversionNotSupportedException(arg, ex.getRequiredType(),
               namedValueInfo.name, parameter, ex.getCause());
      }
      catch (TypeMismatchException ex) {
         throw new MethodArgumentTypeMismatchException(arg, ex.getRequiredType(),
               namedValueInfo.name, parameter, ex.getCause());

      }
   }

   handleResolvedValue(arg, namedValueInfo.name, parameter, mavContainer, webRequest);

   return arg;
}

其中 convertIfNecessary 是一个扩展点, 我们可以自定义 Converter 操作自定义变量

回到InvocableHandlerMethod 的 invokeForRequest 方法, 观察doInvoke方法

@Nullable
public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
      Object... providedArgs) throws Exception {

   Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);
   if (logger.isTraceEnabled()) {
      logger.trace("Arguments: " + Arrays.toString(args));
   }
   return doInvoke(args);
}

其过程就是调用反射调用controller中的方法 ;

@Nullable
protected Object doInvoke(Object... args) throws Exception {
   ReflectionUtils.makeAccessible(getBridgedMethod());
   try {
      return getBridgedMethod().invoke(getBean(), args);
   }
   catch (IllegalArgumentException ex) {
      assertTargetBean(getBridgedMethod(), getBean(), args);
      String text = (ex.getMessage() != null ? ex.getMessage() : "Illegal argument");
      throw new IllegalStateException(formatInvokeError(text, args), ex);
   }
   catch (InvocationTargetException ex) {
      // Unwrap for HandlerExceptionResolvers ...
      Throwable targetException = ex.getTargetException();
      if (targetException instanceof RuntimeException) {
         throw (RuntimeException) targetException;
      }
      else if (targetException instanceof Error) {
         throw (Error) targetException;
      }
      else if (targetException instanceof Exception) {
         throw (Exception) targetException;
      }
      else {
         throw new IllegalStateException(formatInvokeError("Invocation failure", args), targetException);
      }
   }
}

再回到 ServletInvocableHandlerMethod 中的invokeAndHandle 方法;

public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
      Object... providedArgs) throws Exception {

   Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
   setResponseStatus(webRequest);

   if (returnValue == null) {
      if (isRequestNotModified(webRequest) || getResponseStatus() != null || mavContainer.isRequestHandled()) {
         disableContentCachingIfNecessary(webRequest);
         mavContainer.setRequestHandled(true);
         return;
      }
   }
   else if (StringUtils.hasText(getResponseStatusReason())) {
      mavContainer.setRequestHandled(true);
      return;
   }

   mavContainer.setRequestHandled(false);
   Assert.state(this.returnValueHandlers != null, "No return value handlers");
   try {
      this.returnValueHandlers.handleReturnValue(
            returnValue, getReturnValueType(returnValue), mavContainer, webRequest); //  这里对结果进行处理,
   }
   catch (Exception ex) {
      if (logger.isTraceEnabled()) {
         logger.trace(formatErrorForReturnValue(returnValue), ex);
      }
      throw ex;
   }
}

问题5 springmvc是如何封装结果的

HandlerMethodReturnValueHandlerComposite handleReturnValue , 这里和Resolver一样使用了组合模式, 直接将结果输出到response

@Override
public void handleReturnValue(@Nullable Object returnValue, MethodParameter returnType,
      ModelAndViewContainer mavContainer, NativeWebRequest webRequest) throws Exception {

   HandlerMethodReturnValueHandler handler = selectHandler(returnValue, returnType);
   if (handler == null) {
      throw new IllegalArgumentException("Unknown return value type: " + returnType.getParameterType().getName());
   }
   handler.handleReturnValue(returnValue, returnType, mavContainer, webRequest);
}

以 RequestResponseBodyMethodProcessor 为例, 看他是如何工作的;

@Override
public void handleReturnValue(@Nullable Object returnValue, MethodParameter returnType,
      ModelAndViewContainer mavContainer, NativeWebRequest webRequest)
      throws IOException, HttpMediaTypeNotAcceptableException, HttpMessageNotWritableException {

   mavContainer.setRequestHandled(true);
   ServletServerHttpRequest inputMessage = createInputMessage(webRequest);
   ServletServerHttpResponse outputMessage = createOutputMessage(webRequest);

   // Try even with null return value. ResponseBodyAdvice could get involved.
   writeWithMessageConverters(returnValue, returnType, inputMessage, outputMessage);
}

protected <T> void writeWithMessageConverters(@Nullable T value, MethodParameter returnType,
      ServletServerHttpRequest inputMessage, ServletServerHttpResponse outputMessage)
      throws IOException, HttpMediaTypeNotAcceptableException, HttpMessageNotWritableException {

   Object body;
   Class<?> valueType;
   Type targetType;

   if (value instanceof CharSequence) {
      body = value.toString();
      valueType = String.class;
      targetType = String.class;
   }
   else {
      body = value;
      valueType = getReturnValueType(body, returnType);
      targetType = GenericTypeResolver.resolveType(getGenericType(returnType), returnType.getContainingClass());
   }

   if (isResourceType(value, returnType)) {
      outputMessage.getHeaders().set(HttpHeaders.ACCEPT_RANGES, "bytes");
      if (value != null && inputMessage.getHeaders().getFirst(HttpHeaders.RANGE) != null &&
            outputMessage.getServletResponse().getStatus() == 200) {
         Resource resource = (Resource) value;
         try {
            List<HttpRange> httpRanges = inputMessage.getHeaders().getRange();
            outputMessage.getServletResponse().setStatus(HttpStatus.PARTIAL_CONTENT.value());
            body = HttpRange.toResourceRegions(httpRanges, resource);
            valueType = body.getClass();
            targetType = RESOURCE_REGION_LIST_TYPE;
         }
         catch (IllegalArgumentException ex) {
            outputMessage.getHeaders().set(HttpHeaders.CONTENT_RANGE, "bytes */" + resource.contentLength());
            outputMessage.getServletResponse().setStatus(HttpStatus.REQUESTED_RANGE_NOT_SATISFIABLE.value());
         }
      }
   }

   MediaType selectedMediaType = null;
   MediaType contentType = outputMessage.getHeaders().getContentType();
   if (contentType != null && contentType.isConcrete()) {
      if (logger.isDebugEnabled()) {
         logger.debug("Found 'Content-Type:" + contentType + "' in response");
      }
      selectedMediaType = contentType;
   }
   else {
      HttpServletRequest request = inputMessage.getServletRequest();
      List<MediaType> acceptableTypes = getAcceptableMediaTypes(request);
      List<MediaType> producibleTypes = getProducibleMediaTypes(request, valueType, targetType);

      if (body != null && producibleTypes.isEmpty()) {
         throw new HttpMessageNotWritableException(
               "No converter found for return value of type: " + valueType);
      }
      List<MediaType> mediaTypesToUse = new ArrayList<>();
      for (MediaType requestedType : acceptableTypes) {
         for (MediaType producibleType : producibleTypes) {
            if (requestedType.isCompatibleWith(producibleType)) {
               mediaTypesToUse.add(getMostSpecificMediaType(requestedType, producibleType));
            }
         }
      }
      if (mediaTypesToUse.isEmpty()) {
         if (body != null) {
            throw new HttpMediaTypeNotAcceptableException(producibleTypes);
         }
         if (logger.isDebugEnabled()) {
            logger.debug("No match for " + acceptableTypes + ", supported: " + producibleTypes);
         }
         return;
      }

      MediaType.sortBySpecificityAndQuality(mediaTypesToUse);

      for (MediaType mediaType : mediaTypesToUse) {
         if (mediaType.isConcrete()) {
            selectedMediaType = mediaType;
            break;
         }
         else if (mediaType.isPresentIn(ALL_APPLICATION_MEDIA_TYPES)) {
            selectedMediaType = MediaType.APPLICATION_OCTET_STREAM;
            break;
         }
      }

      if (logger.isDebugEnabled()) {
         logger.debug("Using '" + selectedMediaType + "', given " +
               acceptableTypes + " and supported " + producibleTypes);
      }
   }

   if (selectedMediaType != null) {
      selectedMediaType = selectedMediaType.removeQualityValue();
      for (HttpMessageConverter<?> converter : this.messageConverters) {
         GenericHttpMessageConverter genericConverter = (converter instanceof GenericHttpMessageConverter ?
               (GenericHttpMessageConverter<?>) converter : null);
         if (genericConverter != null ?
               ((GenericHttpMessageConverter) converter).canWrite(targetType, valueType, selectedMediaType) :
               converter.canWrite(valueType, selectedMediaType)) {
            body = getAdvice().beforeBodyWrite(body, returnType, selectedMediaType,
                  (Class<? extends HttpMessageConverter<?>>) converter.getClass(),
                  inputMessage, outputMessage);
            if (body != null) {
               Object theBody = body;
               LogFormatUtils.traceDebug(logger, traceOn ->
                     "Writing [" + LogFormatUtils.formatValue(theBody, !traceOn) + "]");
               addContentDispositionHeader(inputMessage, outputMessage);
               if (genericConverter != null) {
                  genericConverter.write(body, targetType, selectedMediaType, outputMessage);
               }
               else {
                  ((HttpMessageConverter) converter).write(body, selectedMediaType, outputMessage);
               }
            }
            else {
               if (logger.isDebugEnabled()) {
                  logger.debug("Nothing to write: null body");
               }
            }
            return;
         }
      }
   }

   if (body != null) {
      throw new HttpMediaTypeNotAcceptableException(this.allSupportedMediaTypes);
   }
}

正个过程就是选择合适的转换器, 然后将model 数据写入response ;

这里执行完之后直接返回了dispatcherservlet

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
   HttpServletRequest processedRequest = request;
   HandlerExecutionChain mappedHandler = null;
   boolean multipartRequestParsed = false;

   WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

   try {
      ModelAndView mv = null;
      Exception dispatchException = null;

      try {
         processedRequest = checkMultipart(request);
         multipartRequestParsed = (processedRequest != request);

         // Determine handler for the current request.
         mappedHandler = getHandler(processedRequest);
         if (mappedHandler == null) {
            noHandlerFound(processedRequest, response);
            return;
         }

         // Determine handler adapter for the current request.
         HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

         // Process last-modified header, if supported by the handler.
         String method = request.getMethod();
         boolean isGet = "GET".equals(method);
         if (isGet || "HEAD".equals(method)) {
            long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
            if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
               return;
            }
         }

         if (!mappedHandler.applyPreHandle(processedRequest, response)) {
            return;
         }

         // Actually invoke the handler.
         mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

         if (asyncManager.isConcurrentHandlingStarted()) {
            return;
         }

         applyDefaultViewName(processedRequest, mv);
         mappedHandler.applyPostHandle(processedRequest, response, mv);
      }
      catch (Exception ex) {
         dispatchException = ex;
      }
      catch (Throwable err) {
         // As of 4.3, we're processing Errors thrown from handler methods as well,
         // making them available for @ExceptionHandler methods and other scenarios.
         dispatchException = new NestedServletException("Handler dispatch failed", err);
      }
      processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
   }
   catch (Exception ex) {
      triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
   }
   catch (Throwable err) {
      triggerAfterCompletion(processedRequest, response, mappedHandler,
            new NestedServletException("Handler processing failed", err));
   }
   finally {
      if (asyncManager.isConcurrentHandlingStarted()) {
         // Instead of postHandle and afterCompletion
         if (mappedHandler != null) {
            mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
         }
      }
      else {
         // Clean up any resources used by a multipart request.
         if (multipartRequestParsed) {
            cleanupMultipart(processedRequest);
         }
      }
   }
}

applyDefaultViewName(processedRequest, mv); 这段代码引入视图处理器, 对mv 进行解析, 但现在一般都是前后端分离的架构, 不太常用;

到这里参数解析, 方法执行的部分就分析完了;

问题6 springmvc 拦截器是如何工作的

通过 1-5 的分析, 已经可以了解到, 框架在获取adapter 时已经将封装了拦截器, 然后在doDispatch中, 调用handle 前后执行了拦截器相关操作;

 if (!mappedHandler.applyPreHandle(processedRequest, response)) {
            return;
         }

         // Actually invoke the handler.
         mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

         if (asyncManager.isConcurrentHandlingStarted()) {
            return;
         }

         applyDefaultViewName(processedRequest, mv);
         mappedHandler.applyPostHandle(processedRequest, response, mv);

至此, 开篇提到的6 个问题已经全部解决, springmvc框架是很复杂的, 其中的很多组件, 文中没有提到; 例如框架中解析参数的Resolver有三十几个, 本文只展示了其中的一个, 通过常用组件的分析, 来观察框架工作的流程, 这个过程中忽略了很多细节, 可以等以后遇到了相关的问题, 再去分析; springmvc是一款很优秀的框架, 他的解耦的设计思想非常值得借鉴, 例如前端控制器模式, 组合模式, 适配器模式, 分析器的典型应用等, 在学习, 理解和掌握了之后可以运用到我们自己的项目中去, 我们将会写出更优雅的代码 ;
