LiveData详解(下)

上一章节讲述了LiveData的基本使用和源码

LiveData详解(上)

LiveData详解(上)_jianning-wu的博客-优快云博客

本章节继续讲解LiveData。

一.自定义LiveData类

上一章节使用LiveData时，创建LiveData对象使用的是MutableLiveData类

mLiveData = new MutableLiveData<>();

那么是否可以自己定义实现LiveData类来创建LiveData对象呢。答案是可以的。

代码

Activity

package com.example.rxjava20.livedata;

import android.os.Bundle;
import android.util.Log;
import android.view.View;

import androidx.appcompat.app.AppCompatActivity;
import androidx.lifecycle.Observer;

import com.example.rxjava20.R;

public class LiveDataActivity extends AppCompatActivity {

    private MyLiveData mMyLiveData;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_livedata);

        initLiveData();

        //模拟子线程发送消息
        findViewById(R.id.activity_livedata_textview1).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                new Thread(new Runnable() {
                    @Override
                    public void run() {
                        mMyLiveData.postValue("自定义LiveData 模拟子线程发送消息...");
                    }
                }).start();
            }
        });

        //模拟主线程发送消息
        findViewById(R.id.activity_livedata_textview2).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mMyLiveData.setValue("自定义LiveData 模拟主线程发送消息...");
            }
        });

    }

    /**
     * 初始化LiveData
     */

    private void initLiveData() {
        mMyLiveData = new MyLiveData();
        mMyLiveData.observe(this, new Observer<String>() {
            @Override
            public void onChanged(String s) {
                Log.d("LiveDataActivity", "自定义LiveData观察者 感知变化 s----: " + s);
            }
        });
    }

}

自定义LiveData类

package com.example.rxjava20.livedata;

import android.util.Log;

import androidx.lifecycle.LiveData;

public class MyLiveData extends LiveData<String> {

    /**
     * 重写postValue方法 用于子线程发送消息
     */

    @Override
    protected void postValue(String value) {
        super.postValue(value);
    }

    /**
     * 重写setValue方法 用于主线程发送消息
     */

    @Override
    protected void setValue(String value) {
        super.setValue(value);
    }

    /**
     * 重写onActive方法 用于判断被观察者(LifecycleOwner的拥有者Activity/Fragment)的活跃状态 活跃状态调用
     */

    @Override
    protected void onActive() {
        super.onActive();
        Log.d("LiveDataActivity", "自定义LiveData观察者 onActive方法执行 活跃状态...");
    }

    /**
     * 重写onActive方法 用于判断被观察者(LifecycleOwner的拥有者Activity/Fragment)的活跃状态 非活跃状态调用
     */

    @Override
    protected void onInactive() {
        super.onInactive();
        Log.d("LiveDataActivity", "自定义LiveData观察者 onInactive方法执行 非活跃状态...");
    }
}

结果

进入页面

D/LiveDataActivity: 自定义LiveData观察者 onActive方法执行 活跃状态...

模拟子线程发送消息

D/LiveDataActivity: 自定义LiveData观察者 感知变化 s----: 自定义LiveData 模拟子线程发送消息...

模拟主线程发送消息

D/LiveDataActivity: 自定义LiveData观察者 感知变化 s----: 自定义LiveData 模拟主线程发送消息...

退出页面

D/LiveDataActivity: 自定义LiveData观察者 onInactive方法执行 非活跃状态...

上述使用LiveData。常用两个类和一个接口

类：LiveData

public abstract class LiveData<T> {

 ...

}

类：MutableLiveData

public class MutableLiveData<T> extends LiveData<T> {
    @Override
    public void postValue(T value) {
        super.postValue(value);
    }

    @Override
    public void setValue(T value) {
        super.setValue(value);
    }
}

接口：Observer

public interface Observer<T> {
    /**
     * Called when the data is changed.
     * @param t  The new data
     */
    void onChanged(T t);
}

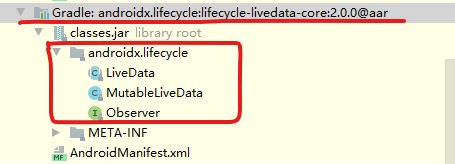

两个类和一个接口 所在的包

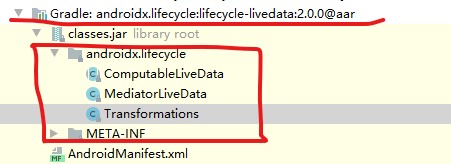

其实LiveData的依赖还有一个包 里面有三个类 也是很用的 下面继续讲解

二.Transformations类 变换 LiveData对象

Transformations类源码

public class Transformations {

    private Transformations() {

    }

    /**
     * Returns a {@code LiveData} mapped from the input {@code source} {@code LiveData} by applying
     * {@code mapFunction} to each value set on {@code source}.
     * <p>
     * This method is analogous to {@link io.reactivex.Observable#map}.
     * <p>
     * {@code transform} will be executed on the main thread.
     * <p>
     * Here is an example mapping a simple {@code User} struct in a {@code LiveData} to a
     * {@code LiveData} containing their full name as a {@code String}.
     *
     * <pre>
     * LiveData<User> userLiveData = ...;
     * LiveData<String> userFullNameLiveData =
     *     Transformations.map(
     *         userLiveData,
     *         user -> user.firstName + user.lastName);
     * });
     * </pre>
     *
     * @param source      the {@code LiveData} to map from
     * @param mapFunction a function to apply to each value set on {@code source} in order to set
     *                    it
     *                    on the output {@code LiveData}
     * @param <X>         the generic type parameter of {@code source}
     * @param <Y>         the generic type parameter of the returned {@code LiveData}
     * @return a LiveData mapped from {@code source} to type {@code <Y>} by applying
     * {@code mapFunction} to each value set.
     */
    @MainThread
    public static <X, Y> LiveData<Y> map(
            @NonNull LiveData<X> source,
            @NonNull final Function<X, Y> mapFunction) {
        final MediatorLiveData<Y> result = new MediatorLiveData<>();
        result.addSource(source, new Observer<X>() {
            @Override
            public void onChanged(@Nullable X x) {
                result.setValue(mapFunction.apply(x));
            }
        });
        return result;
    }

    /**
     * Returns a {@code LiveData} mapped from the input {@code source} {@code LiveData} by applying
     * {@code switchMapFunction} to each value set on {@code source}.
     * <p>
     * The returned {@code LiveData} delegates to the most recent {@code LiveData} created by
     * calling {@code switchMapFunction} with the most recent value set to {@code source}, without
     * changing the reference. In this way, {@code switchMapFunction} can change the 'backing'
     * {@code LiveData} transparently to any observer registered to the {@code LiveData} returned
     * by {@code switchMap()}.
     * <p>
     * Note that when the backing {@code LiveData} is switched, no further values from the older
     * {@code LiveData} will be set to the output {@code LiveData}. In this way, the method is
     * analogous to {@link io.reactivex.Observable#switchMap}.
     * <p>
     * {@code switchMapFunction} will be executed on the main thread.
     * <p>
     * Here is an example class that holds a typed-in name of a user
     * {@code String} (such as from an {@code EditText}) in a {@link MutableLiveData} and
     * returns a {@code LiveData} containing a List of {@code User} objects for users that have
     * that name. It populates that {@code LiveData} by requerying a repository-pattern object
     * each time the typed name changes.
     * <p>
     * This {@code ViewModel} would permit the observing UI to update "live" as the user ID text
     * changes.
     *
     * <pre>
     * class UserViewModel extends AndroidViewModel {
     *     MutableLiveData<String> nameQueryLiveData = ...
     *
     *     LiveData<List<String>> getUsersWithNameLiveData() {
     *         return Transformations.switchMap(
     *             nameQueryLiveData,
     *                 name -> myDataSource.getUsersWithNameLiveData(name));
     *     }
     *
     *     void setNameQuery(String name) {
     *         this.nameQueryLiveData.setValue(name);
     *     }
     * }
     * </pre>
     *
     * @param source            the {@code LiveData} to map from
     * @param switchMapFunction a function to apply to each value set on {@code source} to create a
     *                          new delegate {@code LiveData} for the returned one
     * @param <X>               the generic type parameter of {@code source}
     * @param <Y>               the generic type parameter of the returned {@code LiveData}
     * @return a LiveData mapped from {@code source} to type {@code <Y>} by delegating
     * to the LiveData returned by applying {@code switchMapFunction} to each
     * value set
     */
    @MainThread
    public static <X, Y> LiveData<Y> switchMap(
            @NonNull LiveData<X> source,
            @NonNull final Function<X, LiveData<Y>> switchMapFunction) {
        final MediatorLiveData<Y> result = new MediatorLiveData<>();
        result.addSource(source, new Observer<X>() {
            LiveData<Y> mSource;

            @Override
            public void onChanged(@Nullable X x) {
                LiveData<Y> newLiveData = switchMapFunction.apply(x);
                if (mSource == newLiveData) {
                    return;
                }
                if (mSource != null) {
                    result.removeSource(mSource);
                }
                mSource = newLiveData;
                if (mSource != null) {
                    result.addSource(mSource, new Observer<Y>() {
                        @Override
                        public void onChanged(@Nullable Y y) {
                            result.setValue(y);
                        }
                    });
                }
            }
        });
        return result;
    }
}

源码可见 类中有两个方法map()方法和switchMap方法。源码可以看出两个方法都是运行在主线程 用来对LiveData对象进行操作。

1.Transformations.map方法 修改LiveData

<1> 需求

有时候可能，LiveData发送了一条数据。接收的时候需要将刚刚发送的数据修改一下，然后再发送新的数据。那么就可以用到Transformations类的map方法。

<2> 代码

package com.example.rxjava20.livedata;

import android.os.Bundle;
import android.util.Log;
import android.view.View;

import androidx.appcompat.app.AppCompatActivity;
import androidx.arch.core.util.Function;
import androidx.lifecycle.LiveData;
import androidx.lifecycle.MutableLiveData;
import androidx.lifecycle.Observer;
import androidx.lifecycle.Transformations;

import com.example.rxjava20.R;

public class LiveDataActivity extends AppCompatActivity {

    private MutableLiveData<String> mOldLiveData;//原始LiveData对象 变化前
    private LiveData<String> mNewLiveData;//新LiveData对象 变化后

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_livedata);

        initLiveData();

        //模拟主线程发送消息
        findViewById(R.id.activity_livedata_textview2).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mOldLiveData.setValue("123");
            }
        });

    }

    /**
     * 初始化LiveData
     */

    private void initLiveData() {
        mOldLiveData = new MutableLiveData<String>();
        mNewLiveData = Transformations.map(mOldLiveData, new Function<String, String>() {
            @Override
            public String apply(String input) {
                Log.d("LiveDataActivity", "变化前数据：" + input);
                return "变化后的数据：" + input;
            }
        });
        mNewLiveData.observe(this, new Observer<String>() {
            @Override
            public void onChanged(String s) {
                Log.d("LiveDataActivity", "onChanged：" + s);
            }
        });
    }

}

<3> 结果

D/LiveDataActivity: 变化前数据：123


D/LiveDataActivity: onChanged：变化后的数据：123

<4>结论

原本oldLiveData发送的是“123”。但是通过Transformations.map将“123”修改成“变化后的数据：123”。最后接收到的就是“变化后的数据：123”。

2.Transformations.switchMap方法 切换LiveData

<1> 需求

有的时候可能，有几个LiveData对象发送不同的内容，但是接收那个LiveData对象发送的数据不固定。也就是说有的时候需要接收A对象的LiveData，有的时候需要接收B对象的LiveData。那么就可以用到Transformations类的switchMap方法。

<2> 代码

package com.example.rxjava20.livedata;

import android.os.Bundle;
import android.util.Log;
import android.view.View;

import androidx.appcompat.app.AppCompatActivity;
import androidx.arch.core.util.Function;
import androidx.lifecycle.LiveData;
import androidx.lifecycle.MutableLiveData;
import androidx.lifecycle.Observer;
import androidx.lifecycle.Transformations;

import com.example.rxjava20.R;

public class LiveDataActivity extends AppCompatActivity {

    private MutableLiveData<String> mLiveData1;//发送AAA的LiveData对象
    private MutableLiveData<String> mLiveData2;//发送BBB的LiveData对象
    private MutableLiveData<Boolean> mLiveData;//决定接收AAA还是BBB的LiveData对象
    private LiveData<String> mNewLiveData;//新LiveData对象 变化后

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_livedata);

        initLiveData();

        //接收AAA
        findViewById(R.id.activity_livedata_textview1).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mLiveData1.setValue("AAA");
                mLiveData.setValue(true);
            }
        });

        //接收BBB
        findViewById(R.id.activity_livedata_textview2).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mLiveData2.setValue("BBB");
                mLiveData.setValue(false);
            }
        });

    }

    /**
     * 初始化LiveData
     */

    private void initLiveData() {
        //发送AAA的LiveData对象
        mLiveData1 = new MutableLiveData<>();

        //发送BBB的LiveData对象
        mLiveData2 = new MutableLiveData<>();

        //决定接收AAA还是BBB的LiveData对象
        mLiveData = new MutableLiveData<>();

        //切换
        mNewLiveData = Transformations.switchMap(mLiveData, new Function<Boolean, LiveData<String>>() {
            @Override
            public LiveData<String> apply(Boolean input) {
                if (input) {//切换条件 true 发送AAA的LiveData对象
                    return mLiveData1;
                }
                return mLiveData2;//发送BBB的LiveData对象
            }
        });
        mNewLiveData.observe(this, new Observer<String>() {
            @Override
            public void onChanged(String s) {
                Log.d("LiveDataActivity", "onChanged：" + s);
            }
        });
    }

}

<3> 结果

点击接收AAA

D/LiveDataActivity: onChanged：AAA

点击接收BBB

D/LiveDataActivity: onChanged：BBB

<4> 结论

如果，有多个LiveData对象时，需要动态切换接收那个LiveData对象。可以使用Transformations类的switchMap方法。

三.MediatorLiveData类 合并 LiveData对象

MediatorLiveData类源码

/*
 * Copyright (C) 2017 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package androidx.lifecycle;

import androidx.annotation.CallSuper;
import androidx.annotation.MainThread;
import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.arch.core.internal.SafeIterableMap;

import java.util.Map;

/**
 * {@link LiveData} subclass which may observe other {@code LiveData} objects and react on
 * {@code OnChanged} events from them.
 * <p>
 * This class correctly propagates its active/inactive states down to source {@code LiveData}
 * objects.
 * <p>
 * Consider the following scenario: we have 2 instances of {@code LiveData}, let's name them
 * {@code liveData1} and {@code liveData2}, and we want to merge their emissions in one object:
 * {@code liveDataMerger}. Then, {@code liveData1} and {@code liveData2} will become sources for
 * the {@code MediatorLiveData liveDataMerger} and every time {@code onChanged} callback
 * is called for either of them, we set a new value in {@code liveDataMerger}.
 *
 * <pre>
 * LiveData<Integer> liveData1 = ...;
 * LiveData<Integer> liveData2 = ...;
 *
 * MediatorLiveData<Integer> liveDataMerger = new MediatorLiveData<>();
 * liveDataMerger.addSource(liveData1, value -> liveDataMerger.setValue(value));
 * liveDataMerger.addSource(liveData2, value -> liveDataMerger.setValue(value));
 * </pre>
 * <p>
 * Let's consider that we only want 10 values emitted by {@code liveData1}, to be
 * merged in the {@code liveDataMerger}. Then, after 10 values, we can stop listening to {@code
 * liveData1} and remove it as a source.
 * <pre>
 * liveDataMerger.addSource(liveData1, new Observer<Integer>() {
 *      private int count = 1;
 *
 *      {@literal @}Override public void onChanged(@Nullable Integer s) {
 *          count++;
 *          liveDataMerger.setValue(s);
 *          if (count > 10) {
 *              liveDataMerger.removeSource(liveData1);
 *          }
 *      }
 * });
 * </pre>
 *
 * @param <T> The type of data hold by this instance
 */
@SuppressWarnings("WeakerAccess")
public class MediatorLiveData<T> extends MutableLiveData<T> {
    private SafeIterableMap<LiveData<?>, Source<?>> mSources = new SafeIterableMap<>();

    /**
     * Starts to listen the given {@code source} LiveData, {@code onChanged} observer will be called
     * when {@code source} value was changed.
     * <p>
     * {@code onChanged} callback will be called only when this {@code MediatorLiveData} is active.
     * <p> If the given LiveData is already added as a source but with a different Observer,
     * {@link IllegalArgumentException} will be thrown.
     *
     * @param source    the {@code LiveData} to listen to
     * @param onChanged The observer that will receive the events
     * @param <S>       The type of data hold by {@code source} LiveData
     */
    @MainThread
    public <S> void addSource(@NonNull LiveData<S> source, @NonNull Observer<? super S> onChanged) {
        Source<S> e = new Source<>(source, onChanged);
        Source<?> existing = mSources.putIfAbsent(source, e);
        if (existing != null && existing.mObserver != onChanged) {
            throw new IllegalArgumentException(
                    "This source was already added with the different observer");
        }
        if (existing != null) {
            return;
        }
        if (hasActiveObservers()) {
            e.plug();
        }
    }

    /**
     * Stops to listen the given {@code LiveData}.
     *
     * @param toRemote {@code LiveData} to stop to listen
     * @param <S>      the type of data hold by {@code source} LiveData
     */
    @MainThread
    public <S> void removeSource(@NonNull LiveData<S> toRemote) {
        Source<?> source = mSources.remove(toRemote);
        if (source != null) {
            source.unplug();
        }
    }

    @CallSuper
    @Override
    protected void onActive() {
        for (Map.Entry<LiveData<?>, Source<?>> source : mSources) {
            source.getValue().plug();
        }
    }

    @CallSuper
    @Override
    protected void onInactive() {
        for (Map.Entry<LiveData<?>, Source<?>> source : mSources) {
            source.getValue().unplug();
        }
    }

    private static class Source<V> implements Observer<V> {
        final LiveData<V> mLiveData;
        final Observer<? super V> mObserver;
        int mVersion = START_VERSION;

        Source(LiveData<V> liveData, final Observer<? super V> observer) {
            mLiveData = liveData;
            mObserver = observer;
        }

        void plug() {
            mLiveData.observeForever(this);
        }

        void unplug() {
            mLiveData.removeObserver(this);
        }

        @Override
        public void onChanged(@Nullable V v) {
            if (mVersion != mLiveData.getVersion()) {
                mVersion = mLiveData.getVersion();
                mObserver.onChanged(v);
            }
        }
    }
}

源码可见 该类继承MutableLiveData类 而MutableLiveData类继承LiveData类。

类中 addSource()方法可以合并LiveData对象。 而重写LiveData抽象类的onActive方法和onInactive方法，又可以在适当的时机添加删除观察者。不需开发者手动删除。

1.MediatorLiveData.addSource()方法 合并多个LiveData

<1> 需求

假定，有两个LiveData对象，可能一个是从服务器获取数据，一个是从本地获取数据。两个LiveData对象来源不同，或者响应速度也不一样。但是数据Json报文一样。这个时候可能需要两个LiveData对象，公用一个观察者，即在一个onChanged方法中返回。这样就没必要监听两个onChanged方法了。

<2> 代码

package com.example.rxjava20.livedata;

import android.os.Bundle;
import android.util.Log;
import android.view.View;

import androidx.appcompat.app.AppCompatActivity;
import androidx.lifecycle.MediatorLiveData;
import androidx.lifecycle.MutableLiveData;
import androidx.lifecycle.Observer;

import com.example.rxjava20.R;

public class LiveDataActivity extends AppCompatActivity {

    private MutableLiveData<String> mLocalLiveData;//本地数据的LiveData对象
    private MutableLiveData<String> mNetWorkLiveData;//网络数据的LiveData对象
    private MediatorLiveData<String> mResultLiveData;//合并后的LiveData对象

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_livedata);

        initLiveData();

        //本地数据的LiveData对象 发送数据
        findViewById(R.id.activity_livedata_textview1).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mLocalLiveData.setValue("本地数据的LiveData对象：发送数据：这是Json报文");
            }
        });

        //网络数据的LiveData对象 发送数据
        findViewById(R.id.activity_livedata_textview2).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mNetWorkLiveData.setValue("网络数据的LiveData对象：发送数据：这是Json报文");
            }
        });

    }

    /**
     * 初始化LiveData
     */

    private void initLiveData() {
        //本地数据的LiveData对象
        mLocalLiveData = new MutableLiveData<>();

        //网络数据的LiveData对象
        mNetWorkLiveData = new MutableLiveData<>();

        //合并后的LiveData对象
        mResultLiveData = new MediatorLiveData<>();

        //添加本地数据的LiveData对象
        mResultLiveData.addSource(mLocalLiveData, new Observer<String>() {
            @Override
            public void onChanged(String s) {
                mResultLiveData.setValue(s);//将 本地数据的LiveData对象发送的数据 添加到 合并后的LiveData对象
            }
        });

        //添加网络数据的LiveData对象
        mResultLiveData.addSource(mNetWorkLiveData, new Observer<String>() {
            @Override
            public void onChanged(String s) {
                mResultLiveData.setValue(s);//将 网络数据的LiveData对象发送的数据 添加到 合并后的LiveData对象
            }
        });

        //监听合并后的LiveData对象的变化
        mResultLiveData.observe(this, new Observer<String>() {
            @Override
            public void onChanged(String s) {
                Log.d("LiveDataActivity", "监听合并后的LiveData对象的变化 onChanged方法 s----:" + s);
            }
        });
    }

}

<3> 结果

发送本地数据

D/LiveDataActivity: 监听合并后的LiveData对象的变化 onChanged方法 s----:本地数据的LiveData对象：发送数据：这是Json报文

发送网络数据

D/LiveDataActivity: 监听合并后的LiveData对象的变化 onChanged方法 s----:网络数据的LiveData对象：发送数据：这是Json报文

<4> 结论

MediatorLiveData类的addSource方法，可以合并多个相关的LiveData对象。然后使用一个监听onChanged方法即可。
