SSM环境搭建

环境：IDEA+Maven

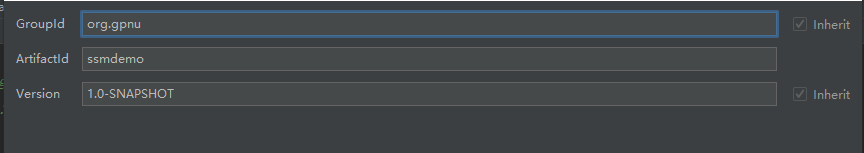

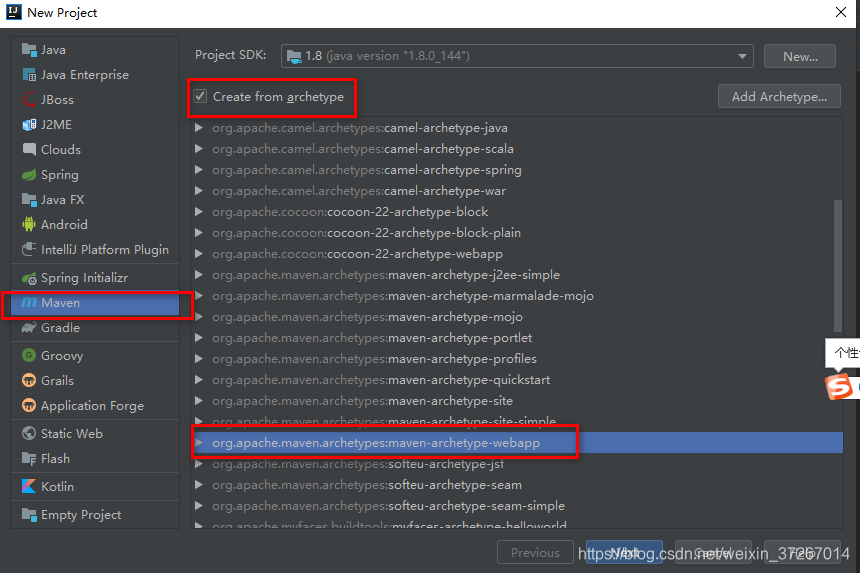

1. 创建web项目

在这里插入图片描述

2. 构建项目目录结构

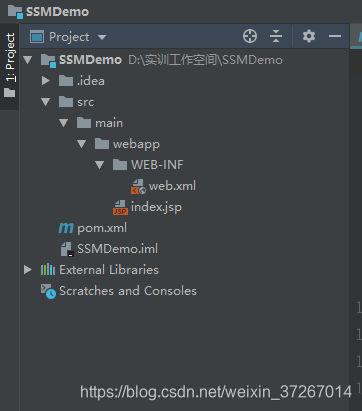

原始的目录结构为如下
在这里插入图片描述

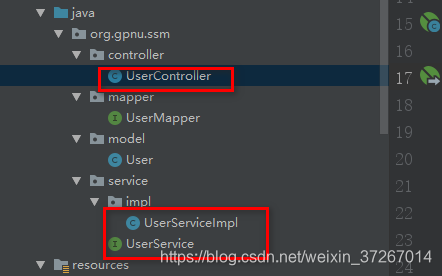

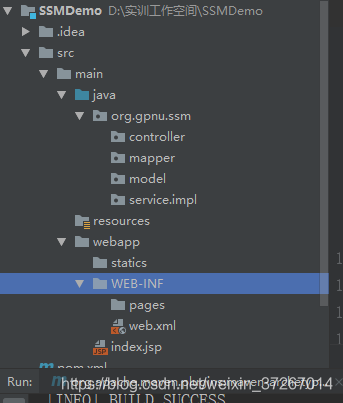

修改后如下
在这里插入图片描述
注意：
java：里面放的是编写的java代码，要把目录标记为Source Root
resources：里面存放的是一些配置文件，要把目录标记为Resources Root
statics：里面存放一些静态资源文件css、js
pages：里面存放html或者jsp等页面

3. pom.xml导入相关的依赖

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>org.gpnu</groupId>
  <artifactId>ssmdemo</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>ssmdemo Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>5.0.8.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.0.8.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.4.6</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.2</version>
    </dependency>
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.6</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.0.8.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>5.0.8.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.2</version>
    </dependency>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>1.18.8</version>
    </dependency>
<!--  SpringMVC不提供对象类型转换  -->
    <!--fastjson-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>fastjson</artifactId>
      <version>1.2.31</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.9.6</version>
    </dependency>


!--    文件上传-->
<dependency>
  <groupId>commons-fileupload</groupId>
  <artifactId>commons-fileupload</artifactId>
  <version>1.3.1</version>
</dependency>


<!--整合日志-->
<dependency>
  <groupId>org.slf4j</groupId>
  <artifactId>slf4j-api</artifactId>
  <version>1.7.21</version>
</dependency>
<dependency>
  <groupId>org.slf4j</groupId>
  <artifactId>slf4j-log4j12</artifactId>
  <version>1.7.21</version>
</dependency>

  </dependencies>

  <build>
    <finalName>ssmdemo</finalName>

<!--    Mybatis代码生成插件-->
    <plugins>
      <plugin>
        <groupId>org.mybatis.generator</groupId>
        <artifactId>mybatis-generator-maven-plugin</artifactId>
        <version>1.3.5</version>
        <configuration>
          <verbose>true</verbose>
          <!-- 代表mybatis generator生成的内容不要覆盖已有的内容 -->
          <overwrite>false</overwrite>
        </configuration>
        <dependencies>
          <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.6</version>
          </dependency>
        </dependencies>
      </plugin>
    </plugins>





    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

4. Mybatis逆向工程生成代码

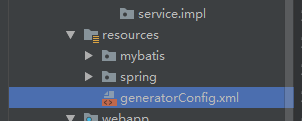

新建generatorConfig.xml
在这里插入图片描述

generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
    PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
    "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<!-- 配置生成器 -->
<generatorConfiguration>
    <context id="mysql" defaultModelType="hierarchical" targetRuntime="MyBatis3Simple">
        <property name="useActualColumnNames" value="true" />
        <!-- 自动识别数据库关键字，默认false，如果设置为true，根据SqlReservedWords中定义的关键字列表； 一般保留默认值，遇到数据库关键字（Java关键字），使用columnOverride覆盖 -->
        <property name="autoDelimitKeywords" value="false"/>
        <!-- 生成的Java文件的编码 -->
        <property name="javaFileEncoding" value="UTF-8"/>

        <!-- beginningDelimiter和endingDelimiter：指明数据库的用于标记数据库对象名的符号，比如ORACLE就是双引号，MYSQL默认是`反引号； -->
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <!-- 注释生成器 -->
        <commentGenerator>
            <property name="suppressDate" value="true"/>
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>

        <!-- 必须要有的，使用这个配置链接数据库 @TODO:是否可以扩展 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/gpnu_bbs" userId="root" password="root">
            <!-- 这里面可以设置property属性，每一个property属性都设置到配置的Driver上 -->
        </jdbcConnection>

        <!-- java模型创建器，是必须要的元素 负责：1，key类（见context的defaultModelType）；2，java类；3，查询类
            targetPackage：生成的类要放的包，真实的包受enableSubPackages属性控制； targetProject：目标项目，指定一个存在的目录下，生成的内容会放到指定目录中，如果目录不存在，MBG不会自动建目录 -->
        <javaModelGenerator targetPackage="org.gpnu.ssm.model" targetProject="src/main/java">
            <!-- for MyBatis3/MyBatis3Simple 自动为每一个生成的类创建一个构造方法，构造方法包含了所有的field；而不是使用setter； -->
            <property name="constructorBased" value="false"/>
            <!-- for MyBatis3 / MyBatis3Simple 是否创建一个不可变的类，如果为true， 那么MBG会创建一个没有setter方法的类，取而代之的是类似constructorBased的类 -->
            <property name="immutable" value="false"/>
        </javaModelGenerator>


        <!-- 生成SQL map的XML文件生成器， 注意，在Mybatis3之后，我们可以使用mapper.xml文件+Mapper接口（或者不用mapper接口），
            或者只使用Mapper接口+Annotation，所以，如果 javaClientGenerator配置中配置了需要生成XML的话，这个元素就必须配置
            targetPackage/targetProject:同javaModelGenerator -->
        <sqlMapGenerator targetPackage="mybatis.mapper"
                         targetProject="src/main/resources">
            <!-- 在targetPackage的基础上，根据数据库的schema再生成一层package，最终生成的类放在这个package下，默认为false -->
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>

        <!-- 对于mybatis来说，即生成Mapper接口，注意，如果没有配置该元素，那么默认不会生成Mapper接口 targetPackage/targetProject:同javaModelGenerator
            type：选择怎么生成mapper接口（在MyBatis3/MyBatis3Simple下）：
            1，ANNOTATEDMAPPER：会生成使用Mapper接口+Annotation的方式创建（SQL生成在annotation中），不会生成对应的XML；
            2，MIXEDMAPPER：使用混合配置，会生成Mapper接口，并适当添加合适的Annotation，但是XML会生成在XML中；
            3，XMLMAPPER：会生成Mapper接口，接口完全依赖XML；
            注意，如果context是MyBatis3Simple：只支持ANNOTATEDMAPPER和XMLMAPPER -->
        <javaClientGenerator targetPackage="org.gpnu.ssm.mapper"
                             type="XMLMAPPER" targetProject="src/main/java">
            <!-- 在targetPackage的基础上，根据数据库的schema再生成一层package，最终生成的类放在这个package下，默认为false -->
            <property name="enableSubPackages" value="true"/>

            <!-- 可以为所有生成的接口添加一个父接口，但是MBG只负责生成，不负责检查 <property name="rootInterface"
                value=""/> -->
        </javaClientGenerator>

        <table tableName="user" domainObjectName="User" >
            <property name="useActualColumnNames" value="true" />
            <!-- 参考 javaModelGenerator 的 constructorBased属性 -->
            <property name="constructorBased" value="false"/>
            <generatedKey column="id" sqlStatement="JDBC"/>
        </table>
    </context>
</generatorConfiguration>

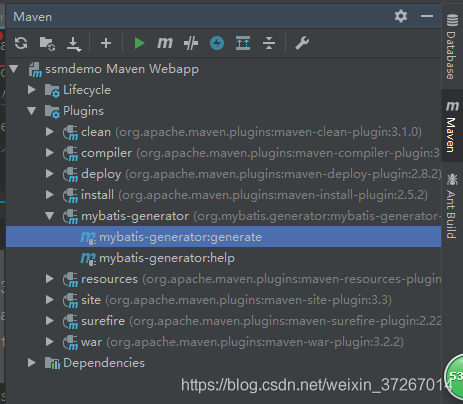

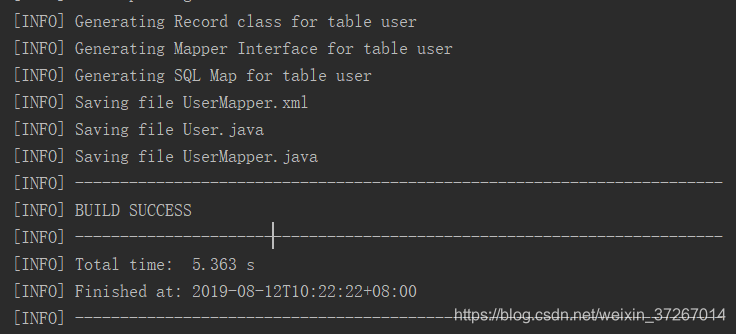

运行mybatis-generator:generate
在这里插入图片描述

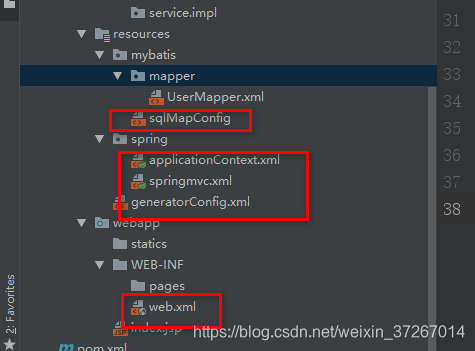

5. 配置文件存放位置

在这里插入图片描述

6. sqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "https://www.mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

<!--    开启延迟加载策略-->
    <settings>
        <setting name="lazyLoadingEnabled" value="true"/>
        <setting name="aggressiveLazyLoading" value="false"/>

        <setting name="lazyLoadTriggerMethods" value="true"/>
    </settings>

    <!-- 和spring整合后 environments配置将废除-->
<!--    <environments default="development">-->
<!--        <environment id="development">-->
<!--            &lt;!&ndash; 使用jdbc事务管理&ndash;&gt;-->
<!--            <transactionManager type="JDBC" />-->
<!--            &lt;!&ndash; 数据库连接池&ndash;&gt;-->
<!--            <dataSource type="POOLED">-->
<!--                <property name="driver" value="com.mysql.jdbc.Driver" />-->
<!--                <property name="jdbcUrl" value="jdbc:mysql://localhost:3306/gpnu_bbs"/>-->
<!--                &lt;!&ndash;注意：这里必须是username,一定要规范&ndash;&gt;-->
<!--                <property name="username" value="root" />-->
<!--                <property name="password" value="root" />-->
<!--            </dataSource>-->
<!--        </environment>-->
<!--    </environments>-->

<!--    <mappers>-->
<!--        <mapper class=""/>-->
<!--    </mappers>-->
</configuration>

7. applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx.xsd">

  <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
    <property name="driverClass" value="com.mysql.jdbc.Driver"/>
    <property name="jdbcUrl" value="jdbc:mysql://localhost:3306/gpnu_bbs"/>
    <property name="user" value="root"/>
    <property name="password" value="root"/>
  </bean>

  <bean id="sessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
    <property name="dataSource" ref="dataSource"/>
	<property name="mapperLocations" value="classpath:mybatis/mapper/*.xml"/>
    <property name="configLocation" value="classpath:mybatis/sqlMapConfig"/>
    <property name="typeAliasesPackage" value="org.gpnu.ssm.model"/>
  </bean>

  <!-- 配置事务 -->
  <bean id="txManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <property name="dataSource" ref="dataSource" />
  </bean>

  <tx:annotation-driven transaction-manager="txManager"/>

<!--  <tx:advice id="txAdvice" transaction-manager="txManager">-->
<!--    <tx:attributes>-->
<!--      <tx:method name="get*" read-only="true"/>-->
<!--      <tx:method name="list*" read-only="true"/>-->
<!--      <tx:method name="query*" read-only="true"/>-->
<!--      <tx:method name="select*" read-only="true"/>-->
<!--      <tx:method name="*"  />-->
<!--    </tx:attributes>-->
<!--  </tx:advice>-->

<!--  <aop:config>-->
<!--    &lt;!&ndash;配置事务切点 &ndash;&gt;-->
<!--    <aop:pointcut id="services"-->
<!--                  expression="execution(* org.gpnu.ssm.service.*(..))" />-->
<!--    <aop:advisor pointcut-ref="services" advice-ref="txAdvice" />-->
<!--  </aop:config>-->


  <!--Mapper接口代理扫描器-->
  <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
    <property name="basePackage" value="mybatis/mapper"/>
  </bean>

  <!--    开启注解扫描-->
  <context:component-scan base-package="org.gpnu.ssm"/>

</beans>

8. springmvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">

  <import resource="classpath:spring/applicationContext.xml"/>
<!--  配置视图解析器-->
  <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
    <property name="prefix" value="WEB-INF/pages/"/>
    <property name="suffix" value=".jsp"/>
  </bean>

<!--  开启SpringMVC注解支持-->
  <mvc:annotation-driven/>

<!--  配置dispatcherServlet不拦截的资源-->
  <mvc:resources mapping="/statics/**/" location="/statics/"/>


</beans>

9. log4j.properties

# Global logging configuration
log4j.rootLogger=INFO, stdout
# MyBatis logging configuration...
log4j.logger.org.gpnu.ssm=TRACE
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

10. web.xml

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Archetype Created Web Application</display-name>
  <!-- 配置DispatchcerServlet -->
  <servlet>
    <servlet-name>dispatcherServlet</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <!-- 配置Spring mvc下的配置文件的位置和名称 -->
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring/springmvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>dispatcherServlet</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

<!--  配置解决中文乱码过滤器-->
  <filter>
    <filter-name>characterEncodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>characterEncodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

</web-app>

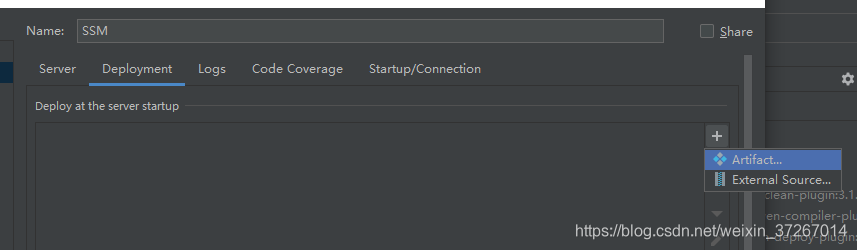

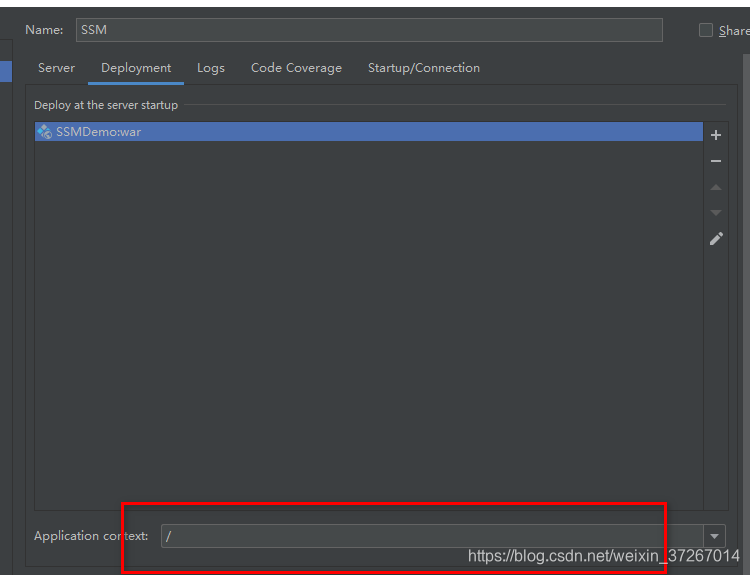

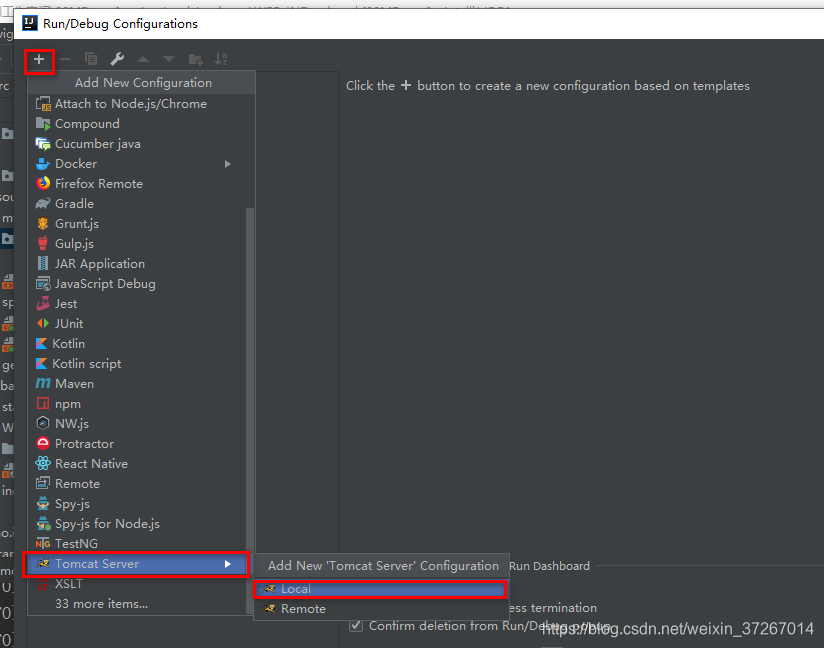

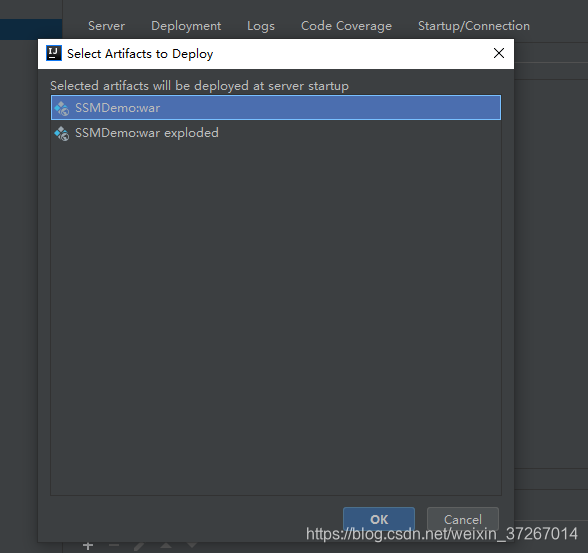

11. 配置Tomcat服务器

在这里插入图片描述

12. 测试代码

在这里插入图片描述

UserService.java

package org.gpnu.ssm.service;

import org.gpnu.ssm.model.User;

/**
 * @Author: PurcellHuang
 * @Date: 2019-08-12 10:38
 */
public interface UserService {
    User selectUserById(int id);
}

UserServiceImpl.java

package org.gpnu.ssm.service.impl;

import org.gpnu.ssm.mapper.UserMapper;
import org.gpnu.ssm.model.User;
import org.gpnu.ssm.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * @Author: PurcellHuang
 * @Date: 2019-08-12 10:39
 */
@Service
public class UserServiceImpl implements UserService {
    @Autowired
    private UserMapper userMapper;

    @Override
    public User selectUserById(int id) {
        return userMapper.selectByPrimaryKey(id);
    }
}

UserController.java

package org.gpnu.ssm.controller;

import org.gpnu.ssm.model.User;
import org.gpnu.ssm.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Author: PurcellHuang
 * @Date: 2019-08-12 10:43
 */
@RestController
public class UserController {
    @Autowired
    private UserService userService;

    @GetMapping("/user/{id}")
    public User getUser(@PathVariable("id") int id){
        User u =userService.selectUserById(id);
        return u;
    }
}

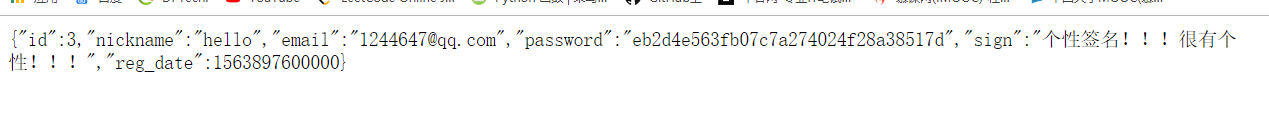

测试结果：
在这里插入图片描述
