SpringBoot2.X之旅，Thymeleaf模板及html静态化（Web Project）

一、使用idea新建web工程

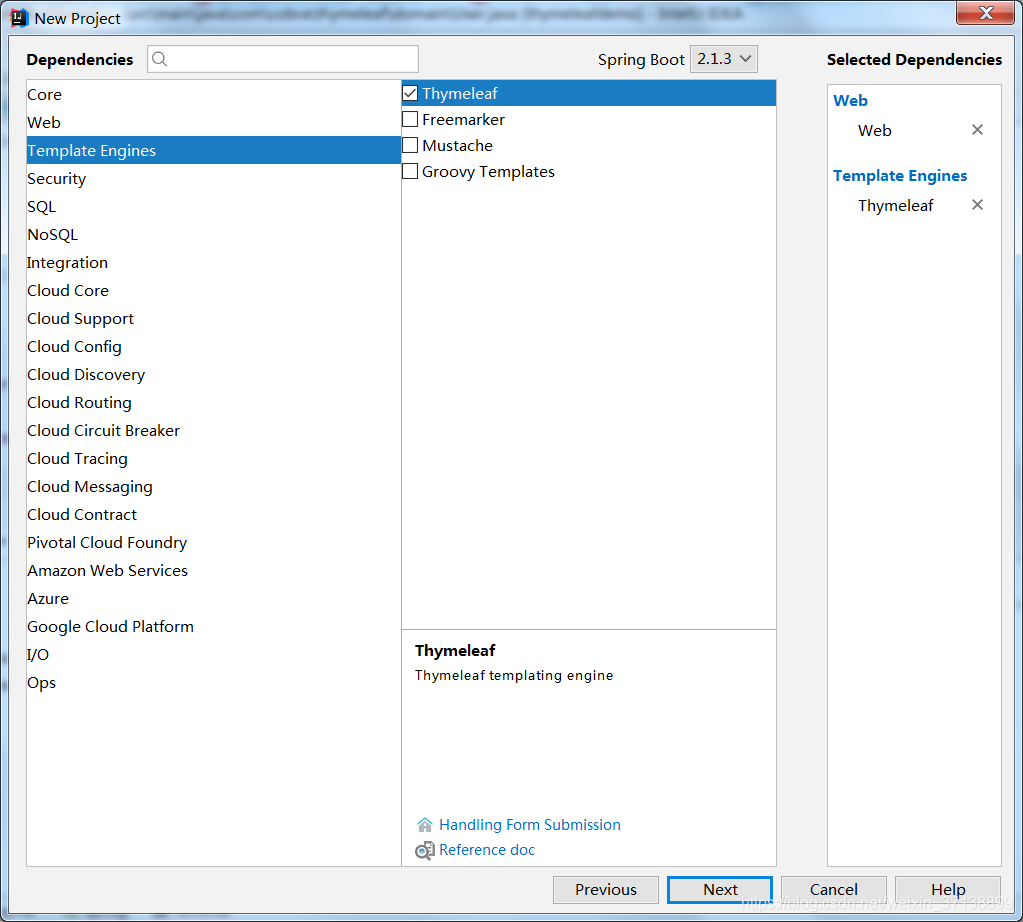

1、引入Thymeleaf依赖

2、pom.xml为：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.cobra.thymeleaf</groupId>
    <artifactId>thymeleaf</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>thymeleaf</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

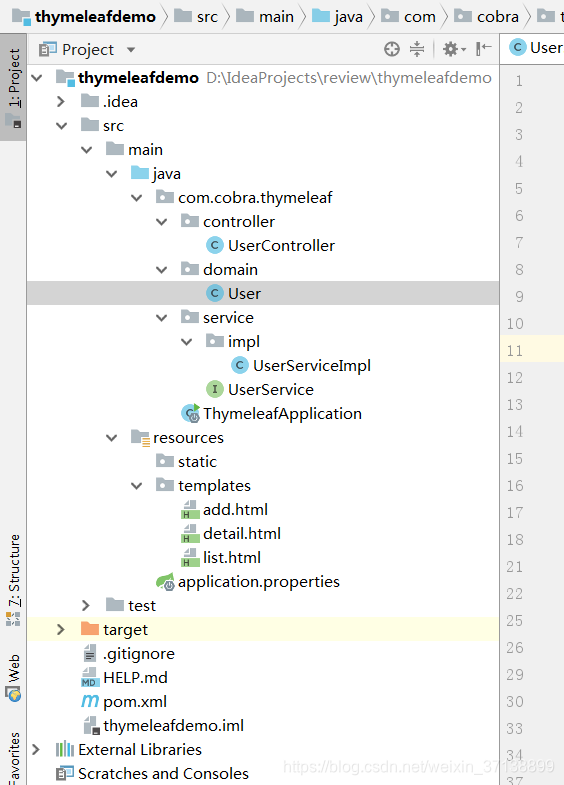

3、工程结构为：

二、后端coding：

1、定义domain，User.java：

package com.cobra.thymeleaf.domain;

/**
 * @Author: Baron
 * @Description:
 * @Date: Created in 2019/3/23 22:34
 */
public class User {

    private Integer userId;

    private String username;

    private String address;

    private String email;

    public Integer getUserId() {
        return userId;
    }

    public void setUserId(Integer userId) {
        this.userId = userId;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    @Override
    public String toString() {
        return "User{" +
                "userId=" + userId +
                ", username='" + username + '\'' +
                ", address='" + address + '\'' +
                ", email='" + email + '\'' +
                '}';
    }
}

2、service层

定义接口UserService和方法：

package com.cobra.thymeleaf.service;

import com.cobra.thymeleaf.domain.User;

import java.util.Collection;

/**
 * @Author: Baron
 * @Description: 用户服务接口
 * @Date: Created in 2019/3/23 23:26
 */
public interface UserService {

    /**
     * 根据userId查找User
     *
     * @param userId
     * @return
     */
    User findById(Integer userId);

    /**
     * 添加新用户
     *
     * @param user
     */
    void add(User user);

    /**
     * 查询所有用户
     *
     * @return
     */
    Collection<User> findAllUsers();

}

实现接口方法，使用ConcurrentHashMap存储用户信息，AtomicInteger生成用户id：

package com.cobra.thymeleaf.service.impl;

import com.cobra.thymeleaf.domain.User;
import com.cobra.thymeleaf.service.UserService;
import org.springframework.stereotype.Service;

import java.util.Collection;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.ConcurrentMap;
import java.util.concurrent.atomic.AtomicInteger;

/**
 * @Author: Baron
 * @Description: 用户服务实现
 * @Date: Created in 2019/3/23 23:42
 */
@Service
public class UserServiceImpl implements UserService {

    private ConcurrentMap<Integer, User> userMap = new ConcurrentHashMap<>();

    private final static AtomicInteger idGenerator = new AtomicInteger();

    /**
     * 根据userId查找User
     *
     * @param userId
     * @return
     */
    @Override
    public User findById(Integer userId) {
        return userMap.get(userId);
    }

    /**
     * 添加新用户
     *
     * @param user
     */
    @Override
    public void add(User user) {
        user.setUserId(idGenerator.incrementAndGet());
        userMap.put(user.getUserId(), user);
    }

    /**
     * 查询所有用户
     *
     * @return
     */
    @Override
    public Collection<User> findAllUsers() {
        return userMap.values();
    }
}

3、controller层：

package com.cobra.thymeleaf.controller;

import com.cobra.thymeleaf.domain.User;
import com.cobra.thymeleaf.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.servlet.ModelAndView;

import java.util.Collection;
import java.util.Map;

/**
 * @Author: Baron
 * @Description:
 * @Date: Created in 2019/3/24 15:25
 */
@Controller
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    /**
     * 获取所有用户
     * @param model
     * @return
     */
    @GetMapping("/list")
    public String index(Model model) {
        Collection<User> users = userService.findAllUsers();
        model.addAttribute("users", users);
        return "list";
    }

    /**
     * 根据id获取单个用户详情
     * @param userId
     * @param model
     * @return
     */
    @GetMapping("/detail")
    public String detail(@RequestParam Integer userId,Model model) {
        User user = userService.findById(userId);
        model.addAttribute("user", user);
        return "detail";
    }

    /**
     * 根据id获取单个用户详情
     * @param userId
     * @param model
     * @return
     */
    @GetMapping("/{userId}")
    public String getDetail(@PathVariable("userId") Integer userId, Model model) {
        User user = userService.findById(userId);
        model.addAttribute("user", user);
        return "detail";
    }

    /**
     * 返回添加用户页
     * @return
     */
    @GetMapping("/add")
    public String add() {
        return "add";
    }

    /**
     * 添加用户操作
     * @param user
     * @return
     */
    @PostMapping("/save")
    public String save(User user) {
        userService.add(user);
        return "redirect:/user/list";
    }


}

三、前端视图模板的定义：

在resources下templates中定义模板，新建html文件（业务逻辑可以提前看第四部分测试）：

1、用户list.html列表页：

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.w3.org/1999/xhtml">
<head>
    <meta charset="UTF-8">
    <title>列表页</title>
</head>
<style>
    td {
        text-align: center;
        height: 30px;
    }

    .code {
        width: 40px
    }

    .username {
        width: 80px
    }

    .address {
        width: 150px
    }

    .link {
        width: 130px
    }
</style>
<body>
<h3>欢迎来到！</h3>
<a href="/user/add">添加新用户</a>
<br>
<br>
<table>
    <thead>
    <tr>
        <td class="code">编号</td>
        <td class="username">姓名</td>
        <td class="address">地址</td>
        <td class="link">详情(?userId=..)</td>
        <td class="link">详情(Restful)</td>
    </tr>
    </thead>
    <tbody>
            <tr th:each="user:${users}">
                <td class="code" scope="row" th:text="${user.userId}">1</td>
                <td class="username" th:text="${user.username}">默认姓名</td>
                <td class="address" th:text="${user.address}">默认地址</td>
                <td class="link"><a th:href="@{../user/detail(userId=${user.userId})}" target="_blank">查看详情</a></td>
                <td class="link"><a th:href="@{../user/{userId}(userId=${user.userId})}" target="_blank">查看详情</a></td>
            </tr>
    </tbody>
</table>
</body>
</html>

2、用户添加add.html页面：

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>新建用户</title>
</head>
<body>
<h3>新建用户</h3>
<form action="/user/save" method="post">
    <label>姓名：</label><input type="text" name="username"/><br><br>
    <label>地址：</label><input type="text" name="address"/><br><br>
    <label>邮箱：</label><input type="text" name="email"/><br><br>
    <input type="submit" value="提交"/>
</form>

</body>
</html>

3、用户详情detail页面：

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.w3.org/1999/xhtml">
<head>
    <meta charset="UTF-8">
    <title>用户详情</title>
    <style>
        td {
            height: 30px;
        }

        .left {
            width: 50px;
        }

        .right {
            width: 150px;
        }
    </style>
</head>
<body>
<h3>用户详情-获取方式一</h3>
<table>
    <tr>
        <td class="left">编号：</td>
        <td class="right" th:text="${user.userId}">默认编号</td>
    <tr>
        <td>姓名：</td>
        <td  th:text="${user.username}">默认姓名</td>
    <tr>
        <td>地址：</td>
        <td th:text="${user.address}">默认地址</td>
    <tr>
        <td>邮编：</td>
        <td th:text="${user.email}">默认邮箱</td>
</table>
<h3>用户详情-获取方式二</h3>
<table th:object="${user}">
    <tr>
        <td class="left">编号：</td>
        <td class="right" th:text="*{userId}">默认编号</td>
    <tr>
        <td>姓名：</td>
        <td  th:text="*{username}">默认姓名</td>
    <tr>
        <td>地址：</td>
        <td th:text="*{address}">默认地址</td>
    <tr>
        <td>邮编：</td>
        <td th:text="*{email}">默认邮箱</td>
</table>
</body>
</html>

四、测试Thymeleaf的模板引擎功能：

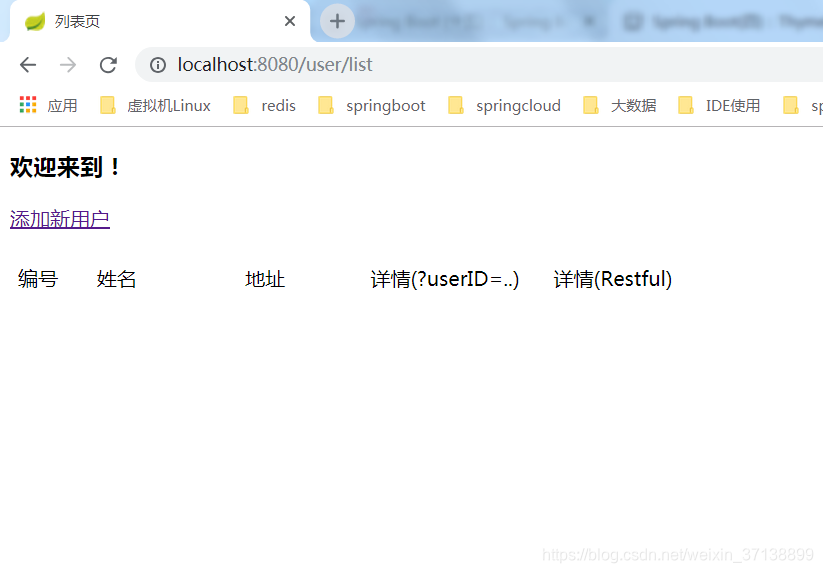

1、启动工程，访问http://localhost:8080/user/list：

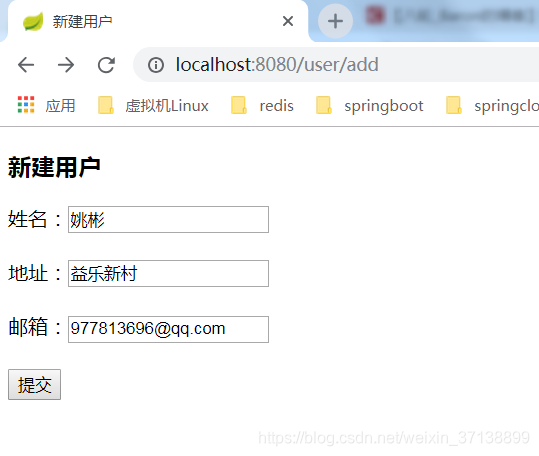

2、添加用户：

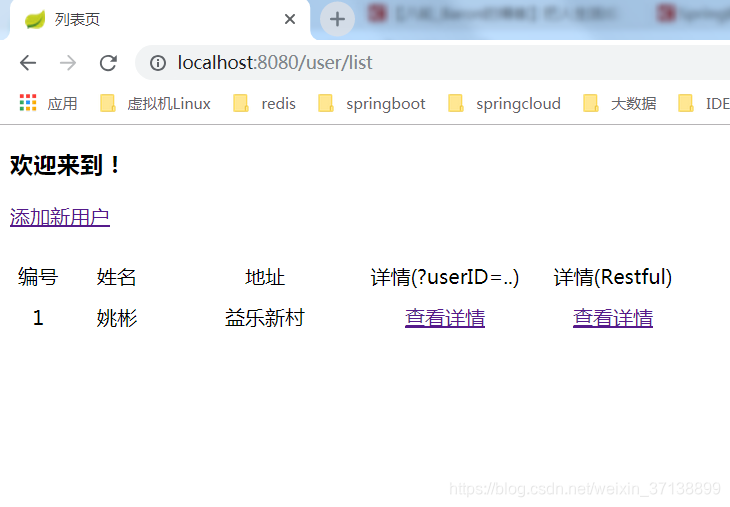

3、提交返回：

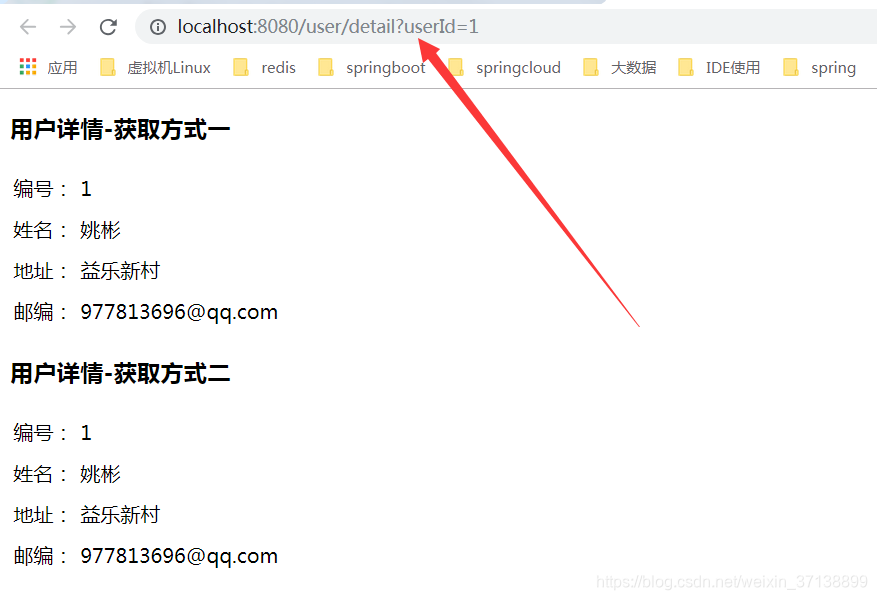

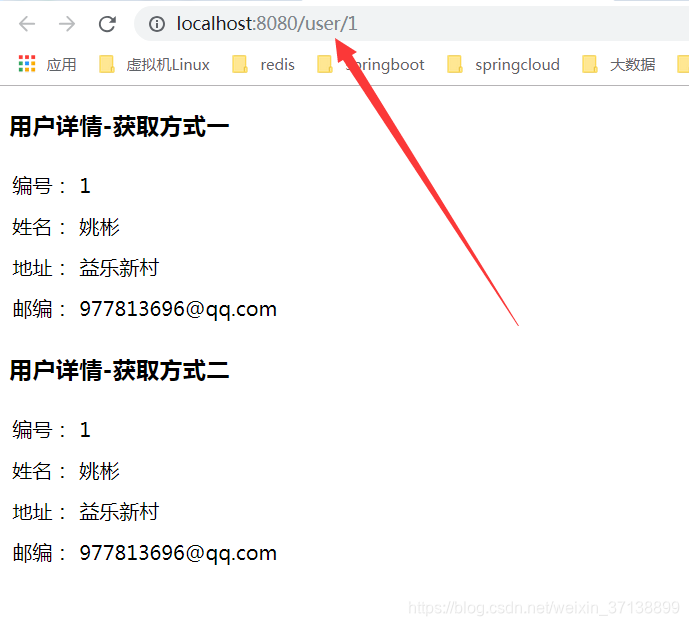

4、查看详情：

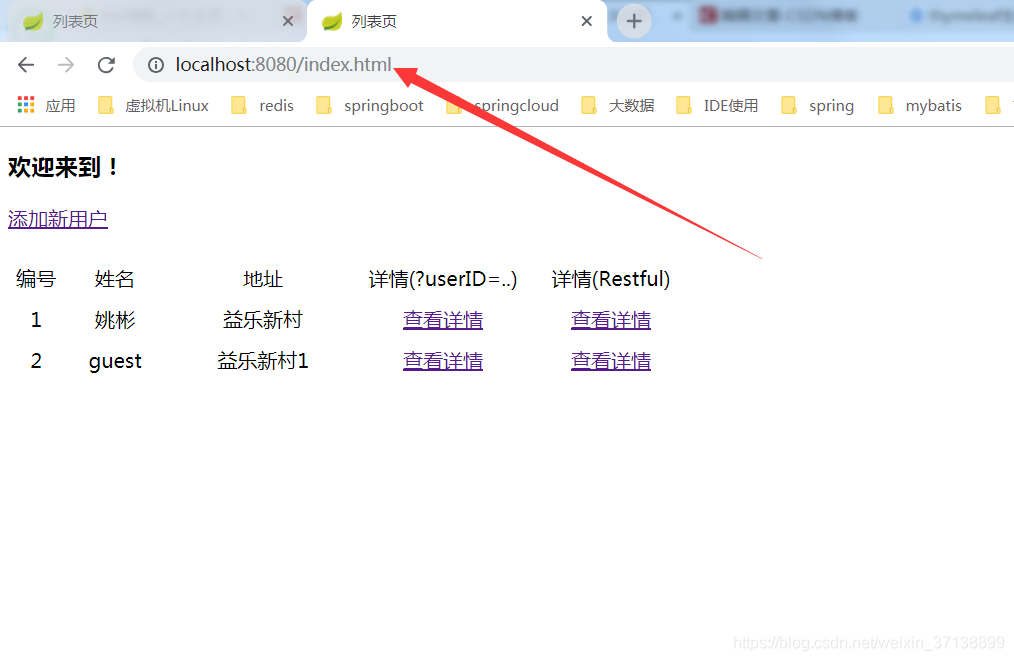

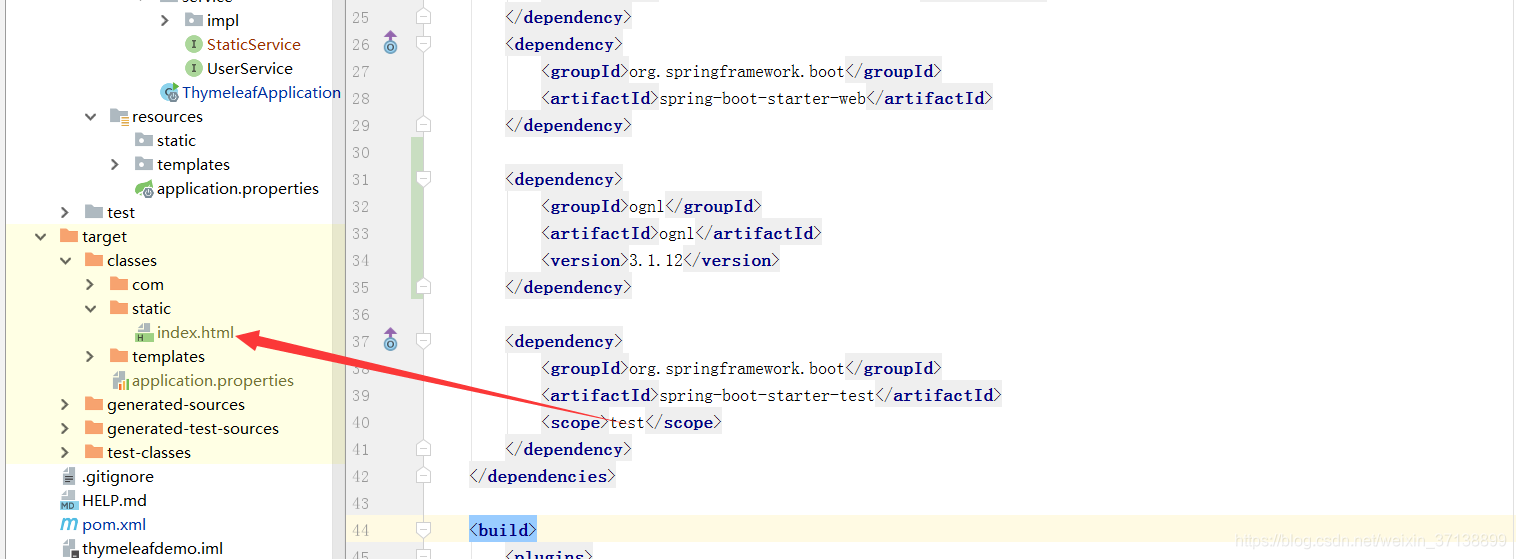

五、页面静态化实现模板转化为html页面，可以让前端直接浏览html页面，减少对数据库的请求：

1、定义静态化服务接口StaticService 及将list.ftl生成index.html的方法：

package com.cobra.thymeleaf.service;

/**
 * @Author: Baron
 * @Description:
 * @Date: Created in 2019/3/24 18:11
 */
public interface StaticService {

    /**
     * 生成首页静态页面
     */
    void createIndexHtml();
}

2、实现类：

package com.cobra.thymeleaf.service.impl;

import com.cobra.thymeleaf.service.StaticService;
import com.cobra.thymeleaf.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.thymeleaf.TemplateEngine;
import org.thymeleaf.context.Context;
import org.thymeleaf.templateresolver.ClassLoaderTemplateResolver;

import java.io.*;
import java.net.URISyntaxException;

/**
 * @Author: Baron
 * @Description:
 * @Date: Created in 2019/3/24 18:12
 */
@Service
public class StaticServiceImpl implements StaticService {

    @Autowired
    private UserService userService;

    /**
     * 生成首页静态页面
     */
    @Override
    public void createIndexHtml() {
        try {

            ClassLoaderTemplateResolver resolver = new ClassLoaderTemplateResolver();
            resolver.setPrefix("templates/");
            resolver.setSuffix(".html");
            TemplateEngine templateEngine = new TemplateEngine();
            templateEngine.setTemplateResolver(resolver);

            Context context = new Context();
            context.setVariable("users", userService.findAllUsers());

            /**获取输出目标文件输出流------开始*/
            String filepath = this.getClass().getResource("/").toURI().getPath() + "static/";
            File folder = new File(filepath);
            //如果文件夹不存在
            if (!folder.exists()) {
                folder.mkdir();
            }
            String indexFileName = "index.html";
            File indexHtml = new File(folder, indexFileName);
            //如果html文件不存在
            if (!indexHtml.exists()) {
                indexHtml.createNewFile();
            }
            Writer writer = new BufferedWriter(new OutputStreamWriter(new FileOutputStream(indexHtml), "UTF-8"));
            /**获取输出目标文件输出流------结束*/

            templateEngine.process("list", context, writer);
            writer.flush();
            writer.close();
        } catch (IOException e) {
            e.printStackTrace();
        } catch (URISyntaxException e) {
            e.printStackTrace();
        }
    }
}

3、在UserController中，添加用户时，调用静态方法，实现每次添加用户，都会生成最新的静态页面，如果有修改、删除操作，也要调用静态化方法：

package com.cobra.thymeleaf.controller;

import com.cobra.thymeleaf.domain.User;
import com.cobra.thymeleaf.service.StaticService;
import com.cobra.thymeleaf.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.*;

import java.util.Collection;

/**
 * @Author: Baron
 * @Description:
 * @Date: Created in 2019/3/24 15:25
 */
@Controller
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @Autowired
    private StaticService staticService;

    /**
     * 获取所有用户
     * @param model
     * @return
     */
    @GetMapping("/list")
    public String index(Model model) {
        Collection<User> users = userService.findAllUsers();
        model.addAttribute("users", users);
        return "list";
    }

    /**
     * 根据id获取单个用户详情
     * @param userId
     * @param model
     * @return
     */
    @GetMapping("/detail")
    public String detail(@RequestParam Integer userId,Model model) {
        User user = userService.findById(userId);
        model.addAttribute("user", user);
        return "detail";
    }

    /**
     * 根据id获取单个用户详情
     * @param userId
     * @param model
     * @return
     */
    @GetMapping("/{userId}")
    public String getDetail(@PathVariable("userId") Integer userId, Model model) {
        User user = userService.findById(userId);
        model.addAttribute("user", user);
        return "detail";
    }

    /**
     * 返回添加用户页
     * @return
     */
    @GetMapping("/add")
    public String add() {
        return "add";
    }

    /**
     * 添加用户操作
     * @param user
     * @return
     */
    @PostMapping("/save")
    public String save(User user) {
        System.out.println(user);
        userService.add(user);
        staticService.createIndexHtml();
        return "redirect:/user/list";
    }


}

4、为了防止报错java.lang.ClassNotFoundException: ognl.PropertyAccessor，需要加依赖包

参考https://blog.youkuaiyun.com/lookbbs/article/details/85276615，特别鸣谢！

<dependency>
    <groupId>ognl</groupId>
    <artifactId>ognl</artifactId>
    <version>3.1.12</version>
</dependency>

5、添加一个用户之后，在static下会生成一个index.html页面：

直接访问生成的html页面：http://localhost:8080/index.html：

六、项目下载地址：https://github.com/yaobaron/thymeleafdemo
