SSBM数据模型基准测试

1、模型介绍

SSB（Star Schema Benchmark）是麻省州立大学波士顿校区的研究人员定义的基于现实商业应用的数据模型，业界公认用来模拟决策支持类应用，比较公正和中立。
学术界和工业界普遍采用它来评价决策支持技术方面应用的性能。
全方位评测系统的整体商业计算综合能力，对厂商的要求更高。
在银行信贷分析和信用卡分析、电信运营分析、税收分析、烟草行业决策分析中都有广泛的应用。

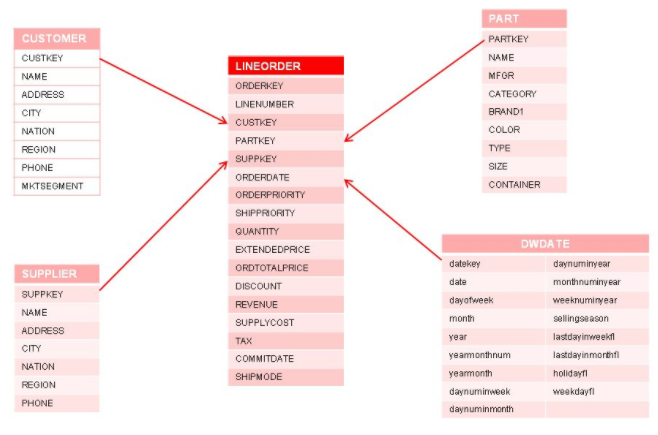

SSB基准测试包括：
1个事实表：lineorder
4个维度表：customer，part，dwdate，supplier
13条标准SQL查询测试语句：统计查询、多表关联、sum、复杂条件、group by、order by等组合方式。

SSB数据自动生成器下载地址：地址

2、生成数据步骤

生成步骤：

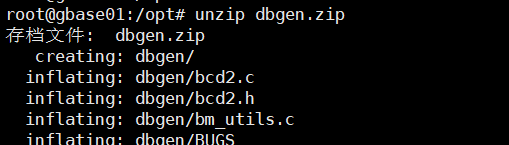

1、将下载的dbgen.zip文件上传到服务器并解压unzip dbgen.zip

2、编译
编译之前需要安装依赖包

yum -y install gcc gcc-c++ make cmake

root@gbase01:/opt# cd dbgen/

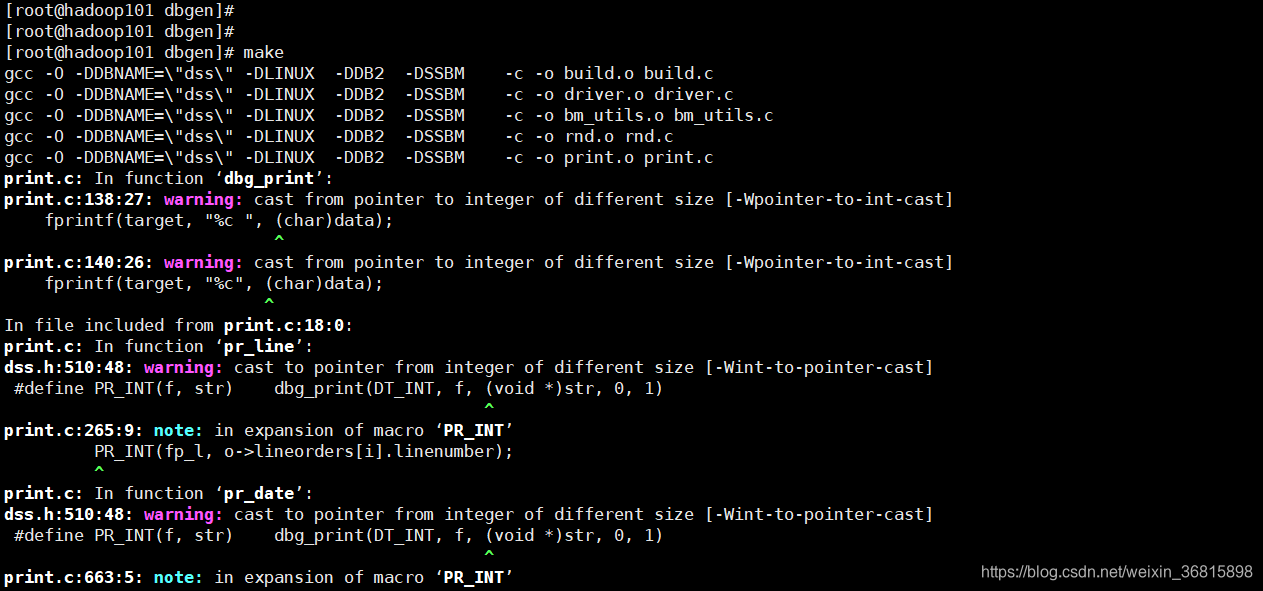

root@gbase01:/opt/dbgen# make

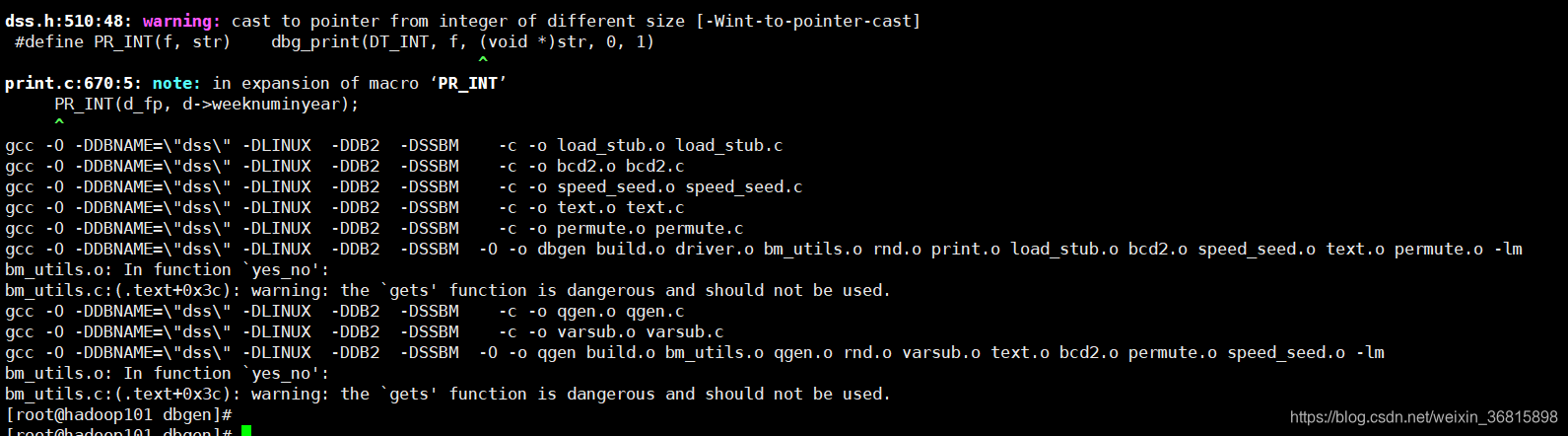

最后的告警可以忽略，执行完成之后会生成dbgen文件，查看 dbgen 命令帮助：./dbgen -h

root@gbase01:/opt/dbgen# ./dbgen -h
SSBM (Star Schema Benchmark) Population Generator (Version 1.0.0)
Copyright Transaction Processing Performance Council 1994 - 2000
USAGE:
dbgen [-{vfFD}] [-O {fhmsv}][-T {pcsdla}]
	[-s <scale>][-C <procs>][-S <step>]
dbgen [-v] [-O {dfhmr}] [-s <scale>] [-U <updates>] [-r <percent>]

-b <s> -- load distributions for <s>
-C <n> -- use <n> processes to generate data
          [Under DOS, must be used with -S]
-D     -- do database load in line
-d <n> -- split deletes between <n> files
-f     -- force. Overwrite existing files
-F     -- generate flat files output
-h     -- display this message
-i <n> -- split inserts between <n> files
-n <s> -- inline load into database <s>
-O d   -- generate SQL syntax for deletes
-O f   -- over-ride default output file names
-O h   -- output files with headers
-O m   -- produce columnar output
-O r   -- generate key ranges for deletes.
-O v   -- Verify data set without generating it.
-q     -- enable QUIET mode
-r <n> -- updates refresh (n/100)% of the
          data set
-s <n> -- set Scale Factor (SF) to  <n>
-S <n> -- build the <n>th step of the data/update set
-T c   -- generate cutomers dimension table ONLY
-T p   -- generate parts dimension table ONLY
-T s   -- generate suppliers dimension table ONLY
-T d   -- generate date dimension table ONLY
-T l   -- generate lineorder fact table ONLY
-U <s> -- generate <s> update sets
-v     -- enable VERBOSE mode

To generate the SF=1 (1GB), validation database population, use:
	dbgen -vfF -s 1

To generate updates for a SF=1 (1GB), use:
	dbgen -v -U 1 -s 1
root@gbase01:/opt/dbgen#

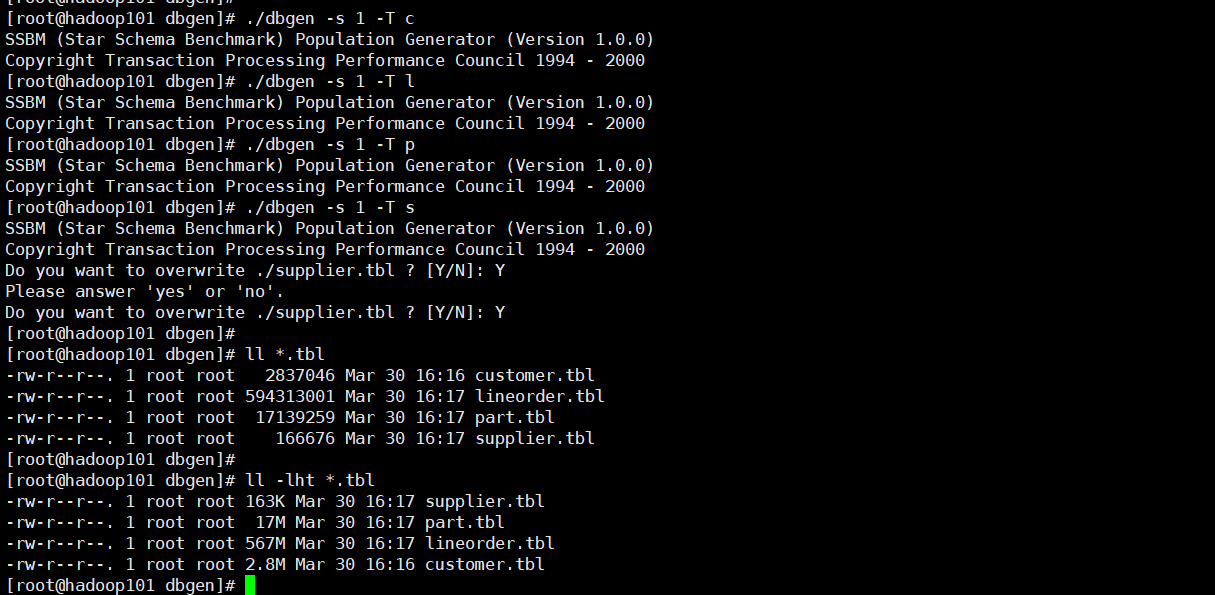

生成表数据

生成customer.tbl
./dbgen -s 1 -T c

生成part.tbl
./dbgen -s 1 -T p

生成supplier.tbl
./dbgen -s 1 -T s

生成date.tbl
./dbgen -s 1 -T d

生成lineorder.tbl
./dbgen -s 1 -T l

生成所有的表for all SSBM tables 是参数a
./dbgen -s 1 -T a

-s<n> -- 比例因子（SF）设置为<n> 比如生成100倍的数据就是 ./dbgen -s 100 -T a

3、数据库建表

创建数据库： create database ssbm;
创建数据库表：
CREATE TABLE CUSTOMER ( C_CUSTKEY     INTEGER,
                            C_NAME        VARCHAR(25) NOT NULL,
                            C_ADDRESS     VARCHAR(40) NOT NULL,
                            C_CITY        VARCHAR(10) NOT NULL,
                            C_NATION      VARCHAR(15) NOT NULL,
                            C_REGION      VARCHAR(12) NOT NULL,
                            C_PHONE       VARCHAR(15) NOT NULL,
                            C_MKTSEGMENT  VARCHAR(10) NOT NULL);

CREATE TABLE DATES ( D_DATEKEY          INTEGER,
                         D_DATE             VARCHAR(18) NOT NULL,
                         D_DAYOFWEEK        VARCHAR(18) NOT NULL,
                         D_MONTH            VARCHAR(9) NOT NULL,
                         D_YEAR             INTEGER NOT NULL,
                         D_YEARMONTHNUM     INTEGER,
                         D_YEARMONTH        VARCHAR(7) NOT NULL,
                         D_DAYNUMINWEEK     INTEGER,
                         D_DAYNUMINMONTH    INTEGER,
                         D_DAYNUMINYEAR     INTEGER,
                         D_MONTHNUMINYEAR   INTEGER,
                         D_WEEKNUMINYEAR    INTEGER,
                         D_SELLINGSEASON    VARCHAR(12) NOT NULL,
                         D_LASTDAYINWEEKFL  INTEGER,
                         D_LASTDAYINMONTHFL INTEGER,
                         D_HOLIDAYFL        INTEGER,
                         D_WEEKDAYFL        INTEGER);

CREATE TABLE PART  ( P_PARTKEY     INTEGER,
                         P_NAME        VARCHAR(22) NOT NULL,
                         P_MFGR        VARCHAR(6) NOT NULL,
                         P_CATEGORY    VARCHAR(7) NOT NULL,
                         P_BRAND       VARCHAR(9) NOT NULL,
                         P_COLOR       VARCHAR(11) NOT NULL,
                         P_TYPE        VARCHAR(25) NOT NULL,
                         P_SIZE        INTEGER NOT NULL,
                         P_CONTAINER   VARCHAR(10) NOT NULL);

CREATE TABLE SUPPLIER ( S_SUPPKEY     INTEGER,
                            S_NAME        VARCHAR(25) NOT NULL,
                            S_ADDRESS     VARCHAR(25) NOT NULL,
                            S_CITY        VARCHAR(10) NOT NULL,
                            S_NATION      VARCHAR(15) NOT NULL,
                            S_REGION      VARCHAR(12) NOT NULL,
                            S_PHONE       VARCHAR(15) NOT NULL);

CREATE TABLE LINEORDER ( LO_ORDERKEY       BIGINT,
                             LO_LINENUMBER     BIGINT,
                             LO_CUSTKEY        INTEGER NOT NULL,
                             LO_PARTKEY        INTEGER NOT NULL,
                             LO_SUPPKEY        INTEGER NOT NULL,
                             LO_ORDERDATE      INTEGER NOT NULL,
                             LO_ORDERPRIOTITY  VARCHAR(15) NOT NULL,
                             LO_SHIPPRIOTITY   INTEGER,
                             LO_QUANTITY       BIGINT,
                             LO_EXTENDEDPRICE  BIGINT,
                             LO_ORDTOTALPRICE  BIGINT,
                             LO_DISCOUNT       BIGINT,
                              LO_REVENUE        BIGINT,
                              LO_SUPPLYCOST     BIGINT,
                              LO_TAX            BIGINT,
                              LO_COMMITDATE     INTEGER NOT NULL,
                              LO_SHIPMODE       VARCHAR(10) NOT NULL);

加载数据
mysql

load data infile '/dbgen/lineorder.tbl' into table LINEORDER fields terminated by '|' lines terminated by '|\n';

load data infile '/dbgen/supplier.tbl' into table SUPPLIER fields terminated by '|' lines terminated by '|\n';

load data infile '/dbgen/customer.tbl' into table CUSTOMER fields terminated by '|' lines terminated by '|\n';

load data infile '/dbgen/part.tbl' into table PART fields terminated by '|' lines terminated by '|\n';

load data infile '/dbgen/date.tbl' into table DATES fields terminated by '|' lines terminated by '|\n';

gbase

load data infile ' sftp://gbase:gbase@node1ip//opt/data/lineorder.tbl' into table lineorder data_format 3 fields terminated by '|';

load data infile ' sftp://gbase:gbase@node1ip//opt/data/part.tbl' into table part data_format 3 fields terminated by '|';

load data infile ' sftp://gbase:gbase@node1ip//opt/data/supplier.tbl' into table supplier data_format 3 fields terminated by '|';

load data infile ' sftp://gbase:gbase@node1ip//opt/data/customer.tbl' into table customer data_format 3 fields terminated by '|';

load data infile ' sftp://gbase:gbase@node1ip//opt/data/dwdate.tbl' into table dwdate data_format 3 fields terminated by '|';

ClickHouse参考：
https://www.it610.com/article/1314439393146150912.htm
