html博客页面实验报告,×××实验报告

1.1实验任务

在路由器组上配置×××

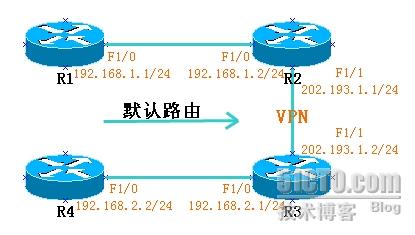

1.2实验环境和网络拓扑

1.3完成标准

(1)按照拓扑配置路由，保证网络的连通性

(2)在R2和R3上配置×××，并检查×××配置

2．详细操作步骤

Step 1:配置接口、路由并检查网络连通性

(1)配置各交换机的接口和路由

路由器R1配置如下：

R1(config)#int f1/0

R1(config-if)#ip add 192.168.1.1 255.255.255.0

R1(config-if)#no shut

R1(config-if)#

*Dec 27 16:36:52.115: %LINK-3-UPDOWN: Interface FastEthernet1/0, changed stat

o up

*Dec 27 16:36:53.115: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEth

et1/0, changed state to up

R1(config-if)#exit

R1(config)#ip route 0.0.0.0 0.0.0.0 192.168.1.2

路由器R2配置如下：

R2(config)#int f1/0

R2(config-if)#ip add 192.168.1.2 255.255.255.0

R2(config-if)#no shut

R2(config-if)#

*Dec 27 16:37:12.027: %LINK-3-UPDOWN: Interface FastEthernet1/0, changed stat

o up

*Dec 27 16:37:13.027: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEth

et1/0, changed state to up

R2(config-if)#int f1/1

R2(config-if)#ip add 202.193.1.1 255.255.255.0

R2(config-if)#no shut

R2(config-if)#

*Dec 27 16:37:31.347: %LINK-3-UPDOWN: Interface FastEthernet1/1, changed stat

o up

*Dec 27 16:37:32.347: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEth

et1/1, changed state to up

R2(config-if)#exit

R2(config)#ip route 0.0.0.0 0.0.0.0 202.193.1.2

路由器R3配置如下：

R3(config)#int f1/1

R3(config-if)#ip add 202.193.1.2 255.255.255.0

R3(config-if)#no shut

R3(config-if)#

*Dec 27 16:37:49.923: %LINK-3-UPDOWN: Interface FastEthernet1/1, changed stat

o up

*Dec 27 16:37:50.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEth

et1/1, changed state to up

R3(config-if)#int f1/0

R3(config-if)#ip add 192.168.2.1 255.255.255.0

R3(config-if)#no shut

R3(config-if)#

*Dec 27 16:38:14.075: %LINK-3-UPDOWN: Interface FastEthernet1/0, changed stat

o up

*Dec 27 16:38:15.075: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEth

et1/0, changed state to up

R3(config-if)#exit

R3(config)#ip route 0.0.0.0 0.0.0.0 202.193.1.1

路由器R4配置如下：

R4(config)#int f1/0

R4(config-if)#ip add 192.168.2.2 255.255.255.0

R4(config-if)#no shut

R4(config-if)#

*Dec 27 16:38:31.963: %LINK-3-UPDOWN: Interface FastEthernet1/0, changed state t

o up

*Dec 27 16:38:32.963: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthern

et1/0, changed state to up

R4(config-if)#exit

R4(config)#ip route 0.0.0.0 0.0.0.0 192.168.2.1

(2)连通性测试

路由器R1连通性测试如下：

R1(config)#do ping 192.168.2.2

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.2.2, timeout is 2 seconds:

.!!!!

Success rate is 80 percent (4/5), round-trip min/avg/max = 80/115/176 ms

路由器R4连通性测试如下：

R4(config)#do ping 192.168.1.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 24/77/140 ms

Step 2:配置路由器的×××

(1)配置路由器R2和R3上的×××

路由器R2配置如下：

R2(config)#crypto isakmp enable//启动IKE

R2(config)#crypto isakmp policy 1//建立IKE协商策略1

R2(config-isakmp)#authentication pre-share//使用预定义秘钥

R2(config-isakmp)#encryption des//加密算法DES

R2(config-isakmp)#hash md5//认证算法MD5

R2(config-isakmp)#lifetime 3600//SA的活动时间3600秒

R2(config-isakmp)#crypto isakmp key keywang address 202.193.1.2

//设置共享秘钥keywang和对端IP地址

R2(config)#crypto ipsec transform-set setwang ah-md5-hmac esp-des

//设置名为setwang的传输模式集为AH验证、ESP加密

R2(cfg-crypto-trans)#exit

R2(config)#access-list 101 permit ip any any

//配置保护访问控制列表101允许IP协议通过所有

R2(config)#crypto map mapwang 1 ipsec-isakmp

//创建名为mapwang序列优先级1的Crypto maps

% NOTE: This new crypto map will remain disabled until a peer

and a valid access list have been configured.

//提示：这个新的Crypto map将保持未启动，直到一个对端或存在的访问列表被设置好

R2(config-crypto-map)#match address 101//配对ACL号101

R2(config-crypto-map)#set peer 202.193.1.2//设置对端IP地址

R2(config-crypto-map)#set transform-set setwang//设置传输模式名称setwang

R2(config-crypto-map)#exit

R2(config)#int f1/1

R2(config-if)#crypto map mapwang//应用Crypto Mapsmapwang到接口

R2(config-if)#

*Dec 27 16:49:03.135: %CRYPTO-6-ISAKMP_ON_OFF: ISAKMP is ON

//网络安全联盟密钥管理协议启动

R2(config-if)#exit

路由器R3配置如下：

R3(config)#crypto isakmp enable

R3(config)#crypto isakmp policy 1

R3(config-isakmp)#authentication pre-share

R3(config-isakmp)#encryption des

R3(config-isakmp)#hash md5

R3(config-isakmp)#lifetime 3600

R3(config-isakmp)#crypto isakmp key keywang address 202.193.1.1

R3(config)#crypto ipsec transform-set setwang ah-md5-hmac esp-des

R3(cfg-crypto-trans)#exit

R3(config)#access-list 101 permit ip any any

R3(config)#crypto map mapwang 1 ipsec-isakmp

% NOTE: This new crypto map will remain disabled until a peer

and a valid access list have been configured.

R3(config-crypto-map)#match address 101

R3(config-crypto-map)#set peer 202.193.1.1

R3(config-crypto-map)#set transform-set setwang

R3(config-crypto-map)#exit

R3(config)#int f1/1

R3(config-if)#crypto map mapwang

R3(config-if)#

*Dec 27 16:54:27.799: %CRYPTO-6-ISAKMP_ON_OFF: ISAKMP is ON

R3(config-if)#exit

(2)检查×××设置

路由器R2设置如下：

R2(config)#do show crypto isakmp policy//查看IKE策略

Global IKE policy

Protection suite of priority 1//优先级1的保护套件

encryption algorithm:DES - Data Encryption Standard (56 bit keys).

//加密算法：DES –标准数据加密(56 bit密钥)

hash algorithm:Message Digest 5

//验证算法：MD5

authentication method: Pre-Shared Key

//认证方法：预定义密钥

Diffie-Hellman group:#1 (768 bit)

lifetime:3600 seconds, no volume limit

//活动时间：3600秒，没有容量限制

Default protection suite

encryption algorithm:DES - Data Encryption Standard (56 bit keys).

hash algorithm:Secure Hash Standard

authentication method:Rivest-Shamir-Adleman Signature

Diffie-Hellman group:#1 (768 bit)

lifetime:86400 seconds, no volume limit

R2(config)#do show crypto ipsec transform-set//查看IPSec策略

Transform set setwang: { ah-md5-hmac}//传输集设置setwang {AH验证}

will negotiate = { Tunnel,},//将协商={通道, }

{ esp-des}//{ESP加密}

will negotiate = { Tunnel,},

R2(config)#do show crypto ipsec sa//查看SA信息

interface: FastEthernet1/1//接口F1/1

Crypto map tag: mapwang, local addr. 202.193.1.1

//Crypto Map标签：mapwang，本地地址：202.193.1.1

protected vrf://保护的vrf成员

localident (addr/mask/prot/port): (0.0.0.0/0.0.0.0/0/0)//本地鉴定

remote ident (addr/mask/prot/port): (0.0.0.0/0.0.0.0/0/0)//偏远鉴定

current_peer: 202.193.1.2:500//当前对端：202.193.1.2:500

PERMIT, flags={origin_is_acl,ipsec_sa_request_sent}

//允许，标记={ACL初始，SA请求的发送}

#pkts encaps: 0, #pkts encrypt: 0, #pkts digest 0//包封装/包加密/包分类

#pkts decaps: 0, #pkts decrypt: 0, #pkts verify 0

#pkts compressed: 0, #pkts decompressed: 0

#pkts not compressed: 0, #pkts compr. failed: 0

#pkts not decompressed: 0, #pkts decompress failed: 0

#send errors 1, #recv errors 0

local crypto endpt.: 202.193.1.1, remote crypto endpt.: 202.193.1.2

path mtu 1500, ip mtu 1500, ip mtu idb FastEthernet1/1

current outbound spi: 0

inbound esp sas:

inbound ah sas:

inbound pcp sas:

outbound esp sas:

outbound ah sas:

outbound pcp sas:

protected vrf:

localident (addr/mask/prot/port): (202.193.1.1/0.0.0.0/0/0)

remote ident (addr/mask/prot/port): (0.0.0.0/0.0.0.0/0/0)

current_peer: 202.193.1.2:500

PERMIT, flags={}

#pkts encaps: 4, #pkts encrypt: 4, #pkts digest 4

#pkts decaps: 4, #pkts decrypt: 4, #pkts verify 4

#pkts compressed: 0, #pkts decompressed: 0

#pkts not compressed: 0, #pkts compr. failed: 0

#pkts not decompressed: 0, #pkts decompress failed: 0

#send errors 0, #recv errors 0

local crypto endpt.: 202.193.1.1, remote crypto endpt.: 202.193.1.2

path mtu 1500, ip mtu 1500, ip mtu idb FastEthernet1/1

current outbound spi: B65DE175

inbound esp sas:

spi: 0x8966F923(2305227043)

transform: esp-des ,

in use settings ={Tunnel, }

slot: 0, conn id: 2002, flow_id: 1, crypto map: mapwang

sa timing: remaining key lifetime (k/sec): (4413499/3588)

IV size: 8 bytes

replay detection support: Y

inbound ah sas:

spi: 0xAACACE76(2865417846)

transform: ah-md5-hmac ,

in use settings ={Tunnel, }

slot: 0, conn id: 2000, flow_id: 1, crypto map: mapwang

sa timing: remaining key lifetime (k/sec): (4413499/3588)

replay detection support: Y

inbound pcp sas:

outbound esp sas:

spi: 0xB65DE175(3059605877)

transform: esp-des ,

in use settings ={Tunnel, }

slot: 0, conn id: 2003, flow_id: 2, crypto map: mapwang

sa timing: remaining key lifetime (k/sec): (4413499/3588)

IV size: 8 bytes

replay detection support: Y

outbound ah sas:

spi: 0x61C0644B(1639998539)

transform: ah-md5-hmac ,

in use settings ={Tunnel, }

slot: 0, conn id: 2001, flow_id: 2, crypto map: mapwang

sa timing: remaining key lifetime (k/sec): (4413499/3586)

replay detection support: Y

outbound pcp sas:

R2(config)#do show crypto map//查看加密映射

Crypto Map "mapwang" 1 ipsec-isakmp

Peer = 202.193.1.2

Extended IP access list 101

access-list 101 permit ip any any

Current peer: 202.193.1.2

Security association lifetime: 4608000 kilobytes/3600 seconds

PFS (Y/N): N

Transform sets={

setwang,

}

Interfaces using crypto map mapwang:

FastEthernet1/1
