netty加载html文件的原理,Netty内存池工做原理分析

为了提高消息接收和发送性能，Netty针对ByteBuf的申请和释放采用了池化技术，经过PooledByteBufAllocator 能够建立基于内存池分配的ByteBuf对象，这样就避免了每次消息读写都申请和释放ByteBuf，这样很大程度减小了gc的次数，对性能提高是很是可观的，下面就具体介绍下Netty内存池的分配原理以及内存管理的数据结构。html

Netty的内存池总体上参照jemalloc实现，首先先介绍下Netty内存池的数据结构：java

PoolArena：表明内存中一大块连续的区域，PoolArena由PoolChunkList组成的双向链表组成，每一个PoolChunkList由多个PoolChunk组成，每一个PoolChunk由PoolSubpage数组组成，Netty为了提高性能，内存池中包含一组PoolArena。

PoolChunk：用来组织和管理和组织多个PoolSubpage的内存分配和释放，默认16M.

PoolSubpage：对于小于一个Page的内存，Netty在Page中完成分配，每一个page会被切分红大小相等的多个存储块，存储快的大小由第一次申请内存块大小决定.。假如一个Page 是8字节，若是第一次申请块的大小是4字节，那么这个Page就包括两个存储块；若是第一次申请的块大小是8个字节，那么这个Page就被分红一个存储块。一个Page只能用于分配与第一次申请时大小相同的内存。

内存池的内存分配从PoolArena开始，一个PoolArena包含多个PoolChunkList，PoolChunk具体负责内存的分配和回收。每个PoolChunk包含多个Page(PoolSubpage)，每一个Page由大小相等块组成，每一个Page块大小由第一次从Page申请的内存大小决定，某个Page中的块大小是相等的。PoolChunk默认为16MB，包含2048个Page,每一个Page8kB。数组

//pageSize默认值为8192 maxOrder默认值为11

chunkSize = validateAndCalculateChunkSize(pageSize, maxOrder);

//chunkSize =16777216B=16384KB=16MB

private static int validateAndCalculateChunkSize(int pageSize, int maxOrder) {

if (maxOrder > 14) {

throw new IllegalArgumentException("maxOrder: " + maxOrder + " (expected: 0-14)");

}

// Ensure the resulting chunkSize does not overflow.

int chunkSize = pageSize;

for (int i = maxOrder; i > 0; i --) {

if (chunkSize > MAX_CHUNK_SIZE / 2) {

throw new IllegalArgumentException(String.format(

"pageSize (%d) << maxOrder (%d) must not exceed %d", pageSize, maxOrder, MAX_CHUNK_SIZE));

}

chunkSize <<= 1;

}

return chunkSize;

}

内存分配策略：经过PooledByteBufAllocator申请内存时首先从PoolThreadLocalCache中获取与线程绑定的缓存池PoolThreadCache，若是不存在线程私有缓存池，则轮询分配一个Arena数组中PoolArena，建立一个新的PoolThreadLocalCache做为缓存池使用，以下代码：缓存

protected ByteBuf newDirectBuffer(int initialCapacity, int maxCapacity) {

PoolThreadCache cache = threadCache.get();

PoolArena directArena = cache.directArena;

final ByteBuf buf;

if (directArena != null) {

buf = directArena.allocate(cache, initialCapacity, maxCapacity);

} else {

buf = PlatformDependent.hasUnsafe() ?

UnsafeByteBufUtil.newUnsafeDirectByteBuf(this, initialCapacity, maxCapacity) :

new UnpooledDirectByteBuf(this, initialCapacity, maxCapacity);

}

return toLeakAwareBuffer(buf);

}

PoolArena在进行内存分配时对预分配的内存容量作判断，分为以下几种场景：数据结构

须要分配的内存小与PageSize时，分配tiny(小于512B)或者small(大于等于512B小于8KB)内存。

须要分配的内存介于PageSize和ChunkSize之间时，则分配normal(大于等于8KB小于等于16MB)内存。

须要分配的内存大于Chunk时，则分配huge(大于16MB)内存(非池化内存)

private void allocate(PoolThreadCache cache, PooledByteBuf buf, final int reqCapacity) {

final int normCapacity = normalizeCapacity(reqCapacity);

if (isTinyOrSmall(normCapacity)) { // capacity < pageSize

int tableIdx;

PoolSubpage[] table;

boolean tiny = isTiny(normCapacity);

if (tiny) { // < 512

if (cache.allocateTiny(this, buf, reqCapacity, normCapacity)) {

// was able to allocate out of the cache so move on

return;

}

tableIdx = tinyIdx(normCapacity);

table = tinySubpagePools;

} else {

if (cache.allocateSmall(this, buf, reqCapacity, normCapacity)) {

// was able to allocate out of the cache so move on

return;

}

tableIdx = smallIdx(normCapacity);

table = smallSubpagePools;

}

final PoolSubpage head = table[tableIdx];

/**

* Synchronize on the head. This is needed as {@link PoolChunk#allocateSubpage(int)} and

* {@link PoolChunk#free(long)} may modify the doubly linked list as well.

*/

synchronized (head) {

final PoolSubpage s = head.next;

if (s != head) {

assert s.doNotDestroy && s.elemSize == normCapacity;

long handle = s.allocate();

assert handle >= 0;

s.chunk.initBufWithSubpage(buf, handle, reqCapacity);

incTinySmallAllocation(tiny);

return;

}

}

synchronized (this) {

allocateNormal(buf, reqCapacity, normCapacity);

}

incTinySmallAllocation(tiny);

return;

}

if (normCapacity <= chunkSize) {

if (cache.allocateNormal(this, buf, reqCapacity, normCapacity)) {

// was able to allocate out of the cache so move on

return;

}

synchronized (this) {

allocateNormal(buf, reqCapacity, normCapacity);

++allocationsNormal;

}

} else {

// Huge allocations are never served via the cache so just call allocateHuge

allocateHuge(buf, reqCapacity);

}

}

在PoolArena中建立PoolChunk后，调用PoolChunk的allocate()方法进行真正的内存分配：PoolChunk经过二叉树记录每一个PoolSubpage的分配状况，实现代码以下：性能

long allocate(int normCapacity) {

if ((normCapacity & subpageOverflowMask) != 0) { // >= pageSize

return allocateRun(normCapacity);

} else {

return allocateSubpage(normCapacity);

}

}

/**

* Create/ initialize a new PoolSubpage of normCapacity

* Any PoolSubpage created/ initialized here is added to subpage pool in the PoolArena that owns this PoolChunk

*

* @param normCapacity normalized capacity

* @return index in memoryMap

*/

private long allocateSubpage(int normCapacity) {

// Obtain the head of the PoolSubPage pool that is owned by the PoolArena and synchronize on it.

// This is need as we may add it back and so alter the linked-list structure.

PoolSubpage head = arena.findSubpagePoolHead(normCapacity);

synchronized (head) {

int d = maxOrder; // 子页面只能从页面分配，即叶子

int id = allocateNode(d);

if (id < 0) {

return id;

}

final PoolSubpage[] subpages = this.subpages;

final int pageSize = this.pageSize;

freeBytes -= pageSize;

int subpageIdx = subpageIdx(id);

PoolSubpage subpage = subpages[subpageIdx];

if (subpage == null) {

subpage = new PoolSubpage(head, this, id, runOffset(id), pageSize, normCapacity);

subpages[subpageIdx] = subpage;

} else {

subpage.init(head, normCapacity);

}

return subpage.allocate();

}

}

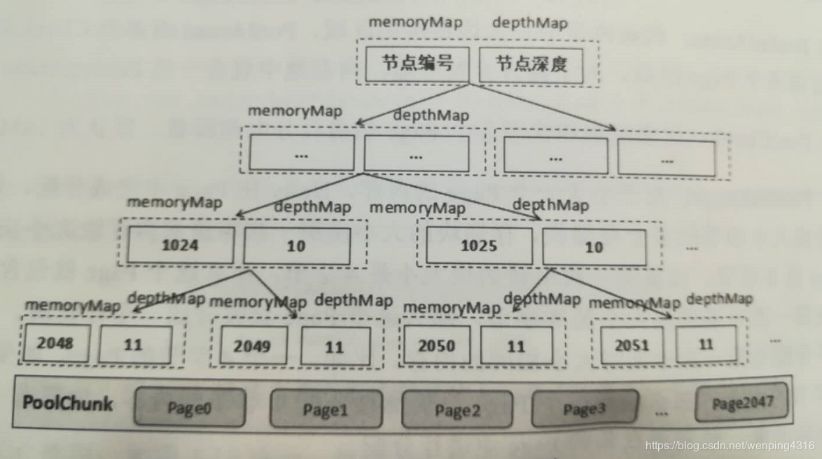

具体的PoolChunk结构以下图所示学习

PoolChunk用memoryMap和depthMap来表示二叉树，其实memoryMap存放的是PoolSubpage的分配信息，depthMap存放的是二叉树的深度。depthMap初始化以后就再也不变化，而memoryMap则随着PoolSubpage的分配而改变。初始化时，memoryMap和depthMap的取值相同。节点的分配状况有以下三种可能。this

memoryMap[id] = depthMap[id]：表示当前节点可分配内存。

memoryMap[id] > depthMap[id]：表示当前节点已经被分配，没法分配知足该深度的内存，可是能够分配更小一些的内存

memoryMap[id] = 最大深度(默认11)+1：表示当前节点下全部的子节点都已经分配完，没有可用内存。

Netty内存池的实现细节仍是很是复杂的，限于篇幅只总结了Netty内存池实现的重点，若是还想深刻去了解的话，能够经过jemalloc原理学习+Netty源码调试的方式，更深刻地学习和掌握Netty内存池。线程
