android动态页面设计,Android雷达扫描动态界面制作

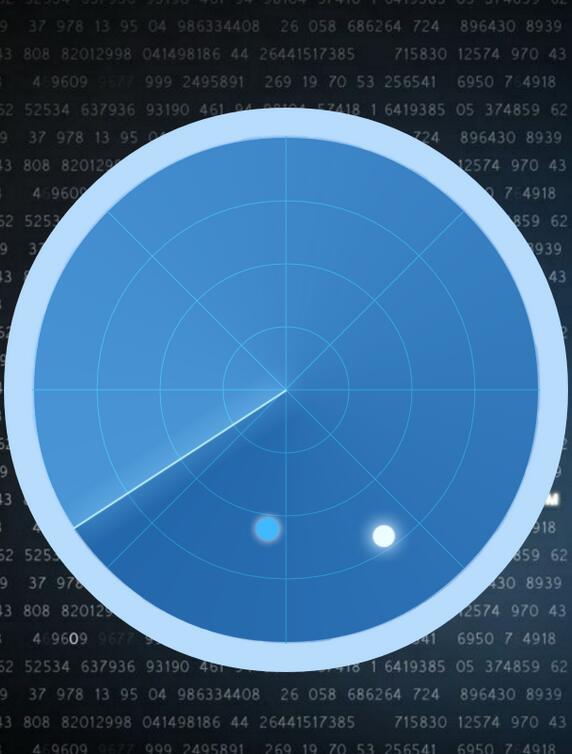

先看看效果图：

源码：

package com.zihao.radar;

import android.app.Activity;

import android.os.Bundle;

import android.view.Window;

import android.view.WindowManager;

import com.zihao.radar.view.RadarView;

public class MainActivity extends Activity {

private RadarView mRadarView;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

requestWindowFeature(Window.FEATURE_NO_TITLE);

// 取消状态栏

getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,

WindowManager.LayoutParams.FLAG_FULLSCREEN);

setContentView(R.layout.activity_main);

mRadarView = (RadarView) findViewById(R.id.radar_view);

mRadarView.setSearching(true);

mRadarView.addPoint();

mRadarView.addPoint();

}

}

package com.zihao.radar.view;

import java.util.ArrayList;

import java.util.List;

import java.util.Random;

import android.annotation.SuppressLint;

import android.content.Context;

import android.graphics.Bitmap;

import android.graphics.BitmapFactory;

import android.graphics.Canvas;

import android.graphics.Paint;

import android.graphics.Paint.Style;

import android.util.AttributeSet;

import android.view.View;

import com.zihao.radar.R;

/**

* @ClassName：RadarView

* @Description：TODO

* @author：zihao

* @date：2015年11月11日 上午12:26:11

* @version：v1.1

*/

@SuppressLint("DrawAllocation")

public class RadarView extends View {

private Context mContext;

private boolean isSearching = false;// 标识是否处于扫描状态,默认为不在扫描状态

private Paint mPaint;// 画笔

private Bitmap mScanBmp;// 执行扫描运动的图片

private int mOffsetArgs = 0;// 扫描运动偏移量参数

private Bitmap mDefaultPointBmp;// 标识设备的圆点-默认

private Bitmap mLightPointBmp;// 标识设备的圆点-高亮

private int mPointCount = 0;// 圆点总数

private List mPointArray = new ArrayList();// 存放偏移量的map

private Random mRandom = new Random();

private int mWidth, mHeight;// 宽高

int mOutWidth;// 外圆宽度(w/4/5*2=w/10)

int mCx, mCy;// x、y轴中心点

int mOutsideRadius, mInsideRadius;// 外、内圆半径

public RadarView(Context context, AttributeSet attrs, int defStyleAttr) {

super(context, attrs, defStyleAttr);

// TODO Auto-generated constructor stub

init(context);

}

public RadarView(Context context, AttributeSet attrs) {

super(context, attrs);

// TODO Auto-generated constructor stub

init(context);

}

public RadarView(Context context) {

super(context);

// TODO Auto-generated constructor stub

init(context);

}

/**

* TODO

*

* @return void

*/

private void init(Context context) {

mPaint = new Paint();

this.mContext = context;

this.mDefaultPointBmp = Bitmap.createBitmap(BitmapFactory

.decodeResource(mContext.getResources(),

R.drawable.radar_default_point_ico));

this.mLightPointBmp = Bitmap.createBitmap(BitmapFactory.decodeResource(

mContext.getResources(), R.drawable.radar_light_point_ico));

}

/**

* 测量视图及其内容,以确定所测量的宽度和高度(测量获取控件尺寸).

*/

@Override

protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {

// TODO Auto-generated method stub

super.onMeasure(widthMeasureSpec, heightMeasureSpec);

// 获取控件区域宽高

if (mWidth == 0 || mHeight == 0) {

final int minimumWidth = getSuggestedMinimumWidth();

final int minimumHeight = getSuggestedMinimumHeight();

mWidth = resolveMeasured(widthMeasureSpec, minimumWidth);

mHeight = resolveMeasured(heightMeasureSpec, minimumHeight);

mScanBmp = Bitmap.createScaledBitmap(BitmapFactory.decodeResource(

mContext.getResources(), R.drawable.radar_scan_img), mWidth

- mOutWidth, mWidth - mOutWidth, false);

// 获取x/y轴中心点

mCx = mWidth / 2;

mCy = mHeight / 2;

// 获取外圆宽度

mOutWidth = mWidth / 10;

// 计算内、外半径

mOutsideRadius = mWidth / 2;// 外圆的半径

mInsideRadius = (mWidth - mOutWidth) / 4 / 2;// 内圆的半径,除最外层,其它圆的半径=层数*insideRadius

}

}

/**

* 绘制视图--从外部向内部绘制

*/

@Override

protected void onDraw(Canvas canvas) {

// TODO Auto-generated method stub

super.onDraw(canvas);

// 开始绘制最外层的圆

mPaint.setAntiAlias(true);// 设置抗锯齿

mPaint.setStyle(Style.FILL);// 设置填充样式

mPaint.setColor(0xffB8DCFC);// 设置画笔颜色

// 1.开始绘制圆形

canvas.drawCircle(mCx, mCy, mOutsideRadius, mPaint);

// 开始绘制内4圆

mPaint.setColor(0xff3278B4);

canvas.drawCircle(mCx, mCy, mInsideRadius * 4, mPaint);

// 开始绘制内3圆

mPaint.setStyle(Style.STROKE);

mPaint.setColor(0xff31C9F2);

canvas.drawCircle(mCx, mCy, mInsideRadius * 3, mPaint);

// 开始绘制内2圆

canvas.drawCircle(mCx, mCy, mInsideRadius * 2, mPaint);

// 开始绘制内1圆

canvas.drawCircle(mCx, mCy, mInsideRadius * 1, mPaint);

// 2.开始绘制对角线

canvas.drawLine(mOutWidth / 2, mCy, mWidth - mOutWidth / 2, mCy, mPaint);// 绘制0°~180°对角线

canvas.drawLine(mCx, mHeight - mOutWidth / 2, mCx, mOutWidth / 2,

mPaint);// 绘制90°~270°对角线

// 根据角度绘制对角线

int startX, startY, endX, endY;

double radian;

// 绘制45°~225°对角线

// 计算开始位置x/y坐标点

radian = Math.toRadians((double) 45);// 将角度转换为弧度

startX = (int) (mCx + mInsideRadius * 4 * Math.cos(radian));// 通过圆心坐标、半径和当前角度计算当前圆周的某点横坐标

startY = (int) (mCy + mInsideRadius * 4 * Math.sin(radian));// 通过圆心坐标、半径和当前角度计算当前圆周的某点纵坐标

// 计算结束位置x/y坐标点

radian = Math.toRadians((double) 45 + 180);

endX = (int) (mCx + mInsideRadius * 4 * Math.cos(radian));

endY = (int) (mCy + mInsideRadius * 4 * Math.sin(radian));

canvas.drawLine(startX, startY, endX, endY, mPaint);

// 绘制135°~315°对角线

// 计算开始位置x/y坐标点

radian = Math.toRadians((double) 135);

startX = (int) (mCx + mInsideRadius * 4 * Math.cos(radian));

startY = (int) (mCy + mInsideRadius * 4 * Math.sin(radian));

// 计算结束位置x/y坐标点

radian = Math.toRadians((double) 135 + 180);

endX = (int) (mCx + mInsideRadius * 4 * Math.cos(radian));

endY = (int) (mCy + mInsideRadius * 4 * Math.sin(radian));

canvas.drawLine(startX, startY, endX, endY, mPaint);

// 3.绘制扫描扇形图

canvas.save();// 用来保存Canvas的状态.save之后，可以调用Canvas的平移、放缩、旋转、错切、裁剪等操作.

if (isSearching) {// 判断是否处于扫描

canvas.rotate(mOffsetArgs, mCx, mCy);// 绘制旋转角度,参数一：角度;参数二：x中心;参数三：y中心.

canvas.drawBitmap(mScanBmp, mCx - mScanBmp.getWidth() / 2, mCy

- mScanBmp.getHeight() / 2, null);// 绘制Bitmap扫描图片效果

mOffsetArgs += 3;

} else {

canvas.drawBitmap(mScanBmp, mCx - mScanBmp.getWidth() / 2, mCy

- mScanBmp.getHeight() / 2, null);

}

// 4.开始绘制动态点

canvas.restore();// 用来恢复Canvas之前保存的状态.防止save后对Canvas执行的操作对后续的绘制有影响.

if (mPointCount > 0) {// 当圆点总数>0时,进入下一层判断

if (mPointCount > mPointArray.size()) {// 当圆点总数大于存储坐标点数目时,说明有增加,需要重新生成随机坐标点

int mx = mInsideRadius + mRandom.nextInt(mInsideRadius * 6);

int my = mInsideRadius + mRandom.nextInt(mInsideRadius * 6);

mPointArray.add(mx + "/" + my);

}

// 开始绘制坐标点

for (int i = 0; i < mPointArray.size(); i++) {

String[] result = mPointArray.get(i).split("/");

// 开始绘制动态点

if (i < mPointArray.size() - 1)

canvas.drawBitmap(mDefaultPointBmp,

Integer.parseInt(result[0]),

Integer.parseInt(result[1]), null);

else

canvas.drawBitmap(mLightPointBmp,

Integer.parseInt(result[0]),

Integer.parseInt(result[1]), null);

}

}

if (isSearching)

this.invalidate();

}

/**

* TODO

*

* @return void

*/

public void setSearching(boolean status) {

this.isSearching = status;

this.invalidate();

}

/**

* TODO

*

* @return void

*/

public void addPoint() {

mPointCount++;

this.invalidate();

}

/**

* TODO

*

* @return int

*/

private int resolveMeasured(int measureSpec, int desired) {

int result = 0;

int specSize = MeasureSpec.getSize(measureSpec);

switch (MeasureSpec.getMode(measureSpec)) {

case MeasureSpec.UNSPECIFIED:

result = desired;

break;

case MeasureSpec.AT_MOST:

result = Math.min(specSize, desired);

break;

case MeasureSpec.EXACTLY:

default:

result = specSize;

}

return result;

}

}

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:background="@drawable/bgp"

tools:context="com.zihao.radar.MainActivity" >

android:id="@+id/radar_view"

android:layout_width="600px"

android:layout_height="600px"

android:layout_centerInParent="true" />
