Oracle Naming,Oracle_052_lesson_p6

Configuring the Oracle Network Environment

配置oracle网络环境

you should be able to:

Use Enterprise Manager to:

1、Create additional listeners

2、Create Oracle Net Service aliases

3、Configure connect-time failover

4、Control the Oracle Net Listener

5、Use tnsping to test Oracle Net connectivity

6、Identify when to use shared servers and when to use dedicated servers

Oracle Net configuration files ：

/network/admin/listener.ora

./sqlnet.ora

grid用户下：

more listener.ora

more sqlnet.ora

ss -ln

windows cmd> tnsping 192.168.133.120:1521/tech1

Tools for Configuring and Managing the Oracle Network：

1、Enterprise Manager Net Services Administration page

2、Oracle Net Manager

3、Oracle Net Configuration Assistant

4、Command line

例：

$ . oraenv

ORACLE_SID = [orcl] ? +ASM

$ lsnrctl

LSNRCTL for Linux: Version 11.2.0.1.0 - Production on 30-JUN-2009 00:47:01

Copyright (c) 1991, 2009, Oracle. All rights reserved.

Welcome to LSNRCTL, type "help" for information.

LSNRCTL> help

The following operations are available

An asterisk () denotes a modifier or extended command:

start stop status

services version reload

save_config trace spawn

change_password quit exit

set show*

$ lsnrctl

$ lsnrctl start

$ lsnrctl status

LSNRCTL>

LSNRCTL> start

LSNRCTL> status

LSNRCTL> show parameter service

LSNRCTL> change_password 设置监听密码

vim listener.ora

LSNRCTL>reload 重启才生效

Using SRVCTL to Start and Stop the Listener 使用 srvctl 起停监听

$ srvctl -h

$ srvctl start listener

$ srvctl stop listener

$ srvctl start listener –l mylistener

$ srvctl status listener

$srvctl status listener

$crs_stat -t

Naming Methods 服务命名方式

Oracle Net supports several methods of resolving connection information:

1、Easy connect naming: Uses a TCP/IP connect string

2、Local naming: Uses a local configuration file

3、Directory naming: Uses a centralized LDAP-compliant directory server

4、External naming: Uses a supported non-Oracle naming service

1、 easy connect 简易连接

SQL> CONNECT hr/hr@db.us.oracle.com:1521/dba11g

2、Local naming

Requires a client-side Names Resolution file

Supports all Oracle Net protocols

Supports advanced connection options such as:

a. Connect-time failover

b. Source routing

c. Load balancing

SQL> CONNECT hr/hr@orcl

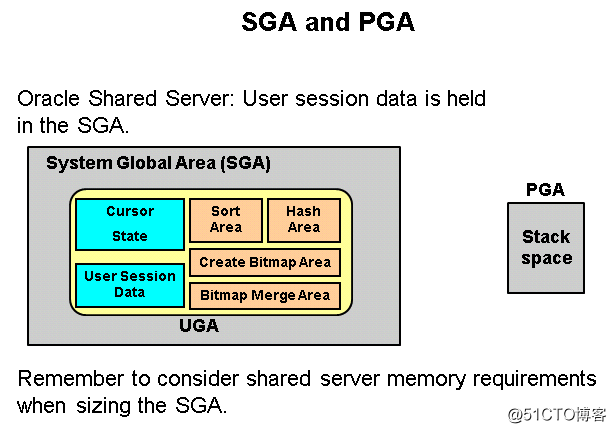

仅限共享模式：SGA->UGA

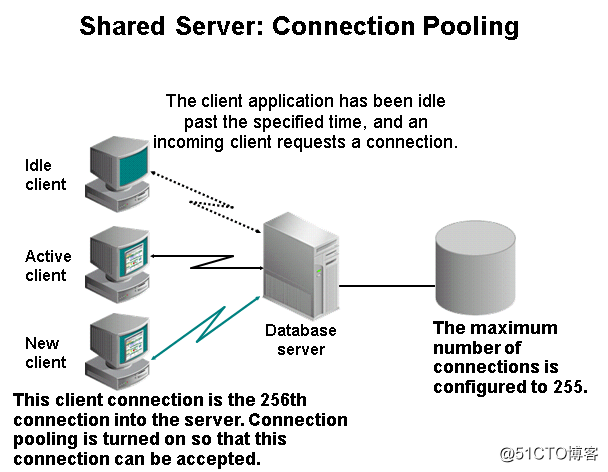

When Not to Use a Shared Server

Certain types of database work must not be performed using shared servers:

a. Database administration

b. Backup and recovery operations

c. Batch processing and bulk load operations

d. Data warehouse operations

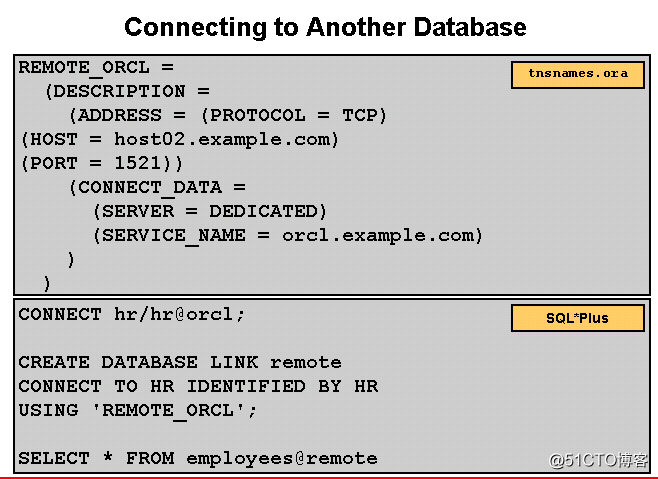

Configuring CommunicationBetween Databases 配置交互在DB之间

Sending data or messages between sites requires network configuration on both sites.

You must configure the following:

Network connectivity (for example, TNSNAMES.ora)

Database links

CREATE DATABASE LINK

CONNECT TO IDENTIFIED BY

USING '';

例：

show con_name;

alter session set contaioner=pdb;

create database link ......

connect to .....

using .......;

alter pluggable database pdb open;
