oracle em 7802,Oracle Enterprise Manager Cloud Control 12c R4 安装配置

Alert delete em

Mon Dec 09 21:08:01 2013

XDB installed.

XDB initialized.

Mon Dec 09 21:08:02 2013

Stopping background process CJQ0

Mon Dec 09 21:08:02 2013

ALTER SYSTEM SET job_queue_processes=0SCOPE=BOTH SID='*';

Warning: drop_queue_table: No evaluationfor the queue table: SYSMAN.MGMT_TASK_QTABLE

Warning: drop_queue_table: No evaluationfor the queue table: SYSMAN.MGMT_NOTIFY_INPUT_QTABLE

Warning: drop_queue_table: No evaluationfor the queue table: SYSMAN.MGMT_PAF_MSG_QTABLE_1

Warning: drop_queue_table: No evaluationfor the queue table: SYSMAN.MGMT_PAF_MSG_QTABLE_2

Mon Dec 09 21:08:28 2013

Thread 1 advanced to log sequence 9 (LGWRswitch)

Current log# 3 seq# 9 mem# 0:+DATA/ngcdb/onlinelog/group_3.263.833729183

Current log# 3 seq# 9 mem# 1: +FRA/ngcdb/onlinelog/group_3.259.833729183

Mon Dec 09 21:08:29 2013

Archived Log entry 4 added for thread 1sequence 8 ID 0x9c38e516 dest 1:

Mon Dec 09 21:08:48 2013

Thread 1 advanced to log sequence 10 (LGWRswitch)

ALTER SYSTEM SET job_queue_processes=20 SCOPE=BOTHSID='*';

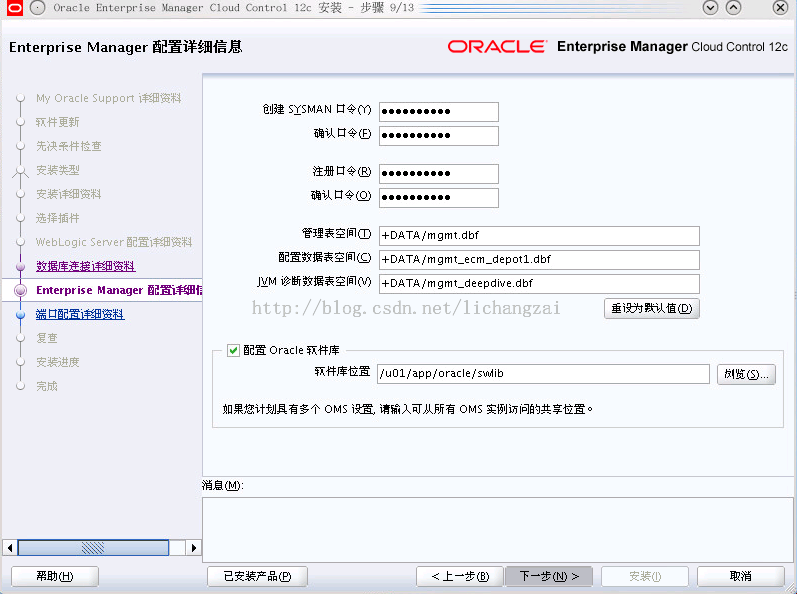

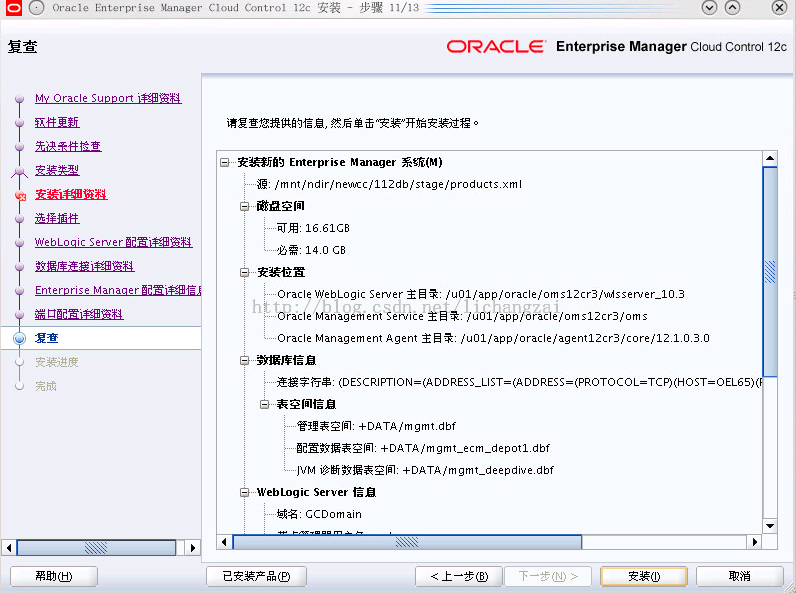

手动写+DATA

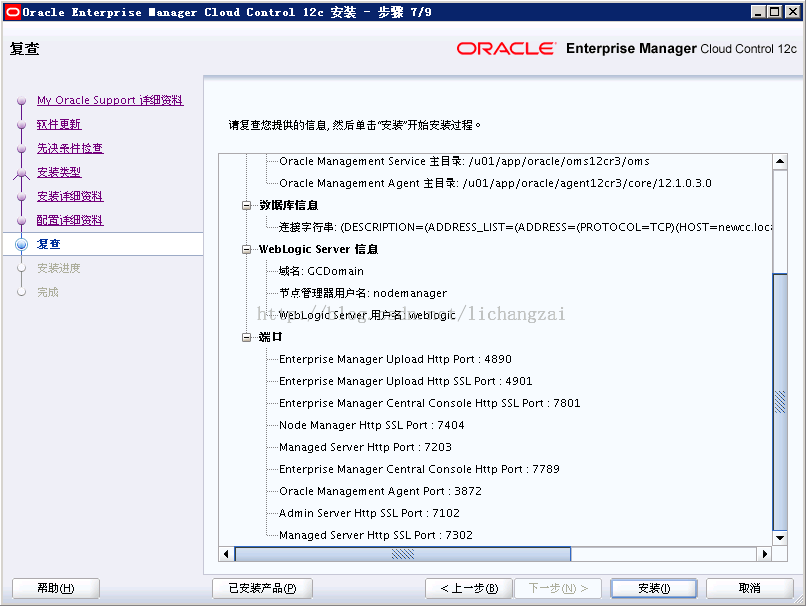

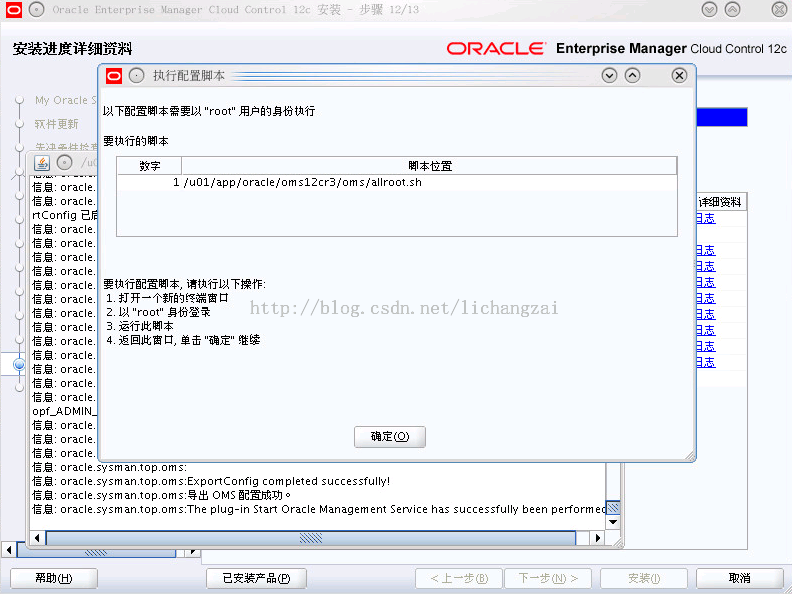

简单安装方法界面如下：

[root@OEL65 ~]# export LANG=zh_CN

[root@OEL65 ~]#/u01/app/Oracle/oms12cr3/oms/allroot.sh

Starting to execute allroot.sh .........

Starting to execute /u01/app/oracle/oms12cr3/oms/root.sh......

Running Oracle 11g root.sh script...

The following environment variables are setas:

ORACLE_OWNER= oracle

ORACLE_HOME= /u01/app/oracle/oms12cr3/oms

Enter the full pathname of the local bindirectory: [/usr/local/bin]:

The file "dbhome" already existsin /usr/local/bin.  Overwrite it? (y/n)

[n]: y

Copying dbhome to /usr/local/bin ...

The file "oraenv" already existsin /usr/local/bin.  Overwrite it? (y/n)

[n]: y

Copying oraenv to /usr/local/bin ...

The file "coraenv" already existsin /usr/local/bin.  Overwrite it? (y/n)

[n]: y

Copying coraenv to /usr/local/bin ...

Entries will be added to the /etc/oratabfile as needed by

Database Configuration Assistant when adatabase is created

Finished running generic part of root.shscript.

Now product-specific root actions will beperformed.

/etc exist

Creating /etc/oragchomelist file...

/u01/app/oracle/oms12cr3/oms

Finished execution of  /u01/app/oracle/oms12cr3/oms/root.sh ......

Starting to execute /u01/app/oracle/agent12cr3/core/12.1.0.3.0/root.sh......

Finished product-specific root actions.

/etc exist

Finished execution of /u01/app/oracle/agent12cr3/core/12.1.0.3.0/root.sh ......

[root@OEL65 ~]#

Sysman

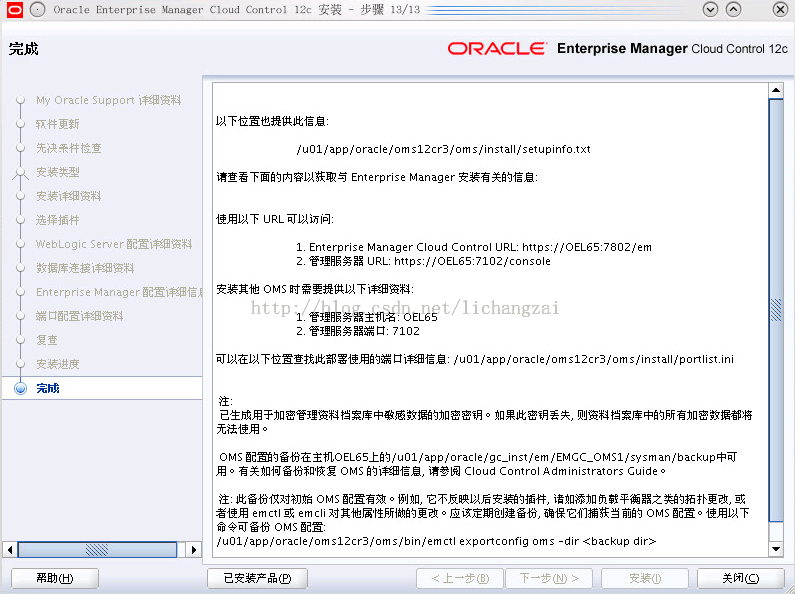

安装后续操作

CC相关命令

#!/bin/bash

exportORACLE_HOME=/u01/app/oracle/product/11.2.0.3/db_1

exportOMS_HOME=/u01/app/oracle/oms12cr3/oms

exportAGENT_HOME=/u01/app/oracle/agent12cr3/core/12.1.0.3.0

# Start everything

$ORACLE_HOME/bin/dbstart$ORACLE_HOME

$OMS_HOME/bin/emctlstart oms

$AGENT_HOME/bin/emctlstart agent

#!/bin/bash

exportORACLE_HOME=/u01/app/oracle/product/11.2.0.3/db_1

exportOMS_HOME=/u01/app/oracle/oms12cr3/oms

exportAGENT_HOME=/u01/app/oracle/agent12cr3/core/12.1.0.3.0

# Stop everything

$OMS_HOME/bin/emctlstop oms -all

$AGENT_HOME/bin/emctlstop agent

$ORACLE_HOME/bin/dbshut$ORACLE_HOME

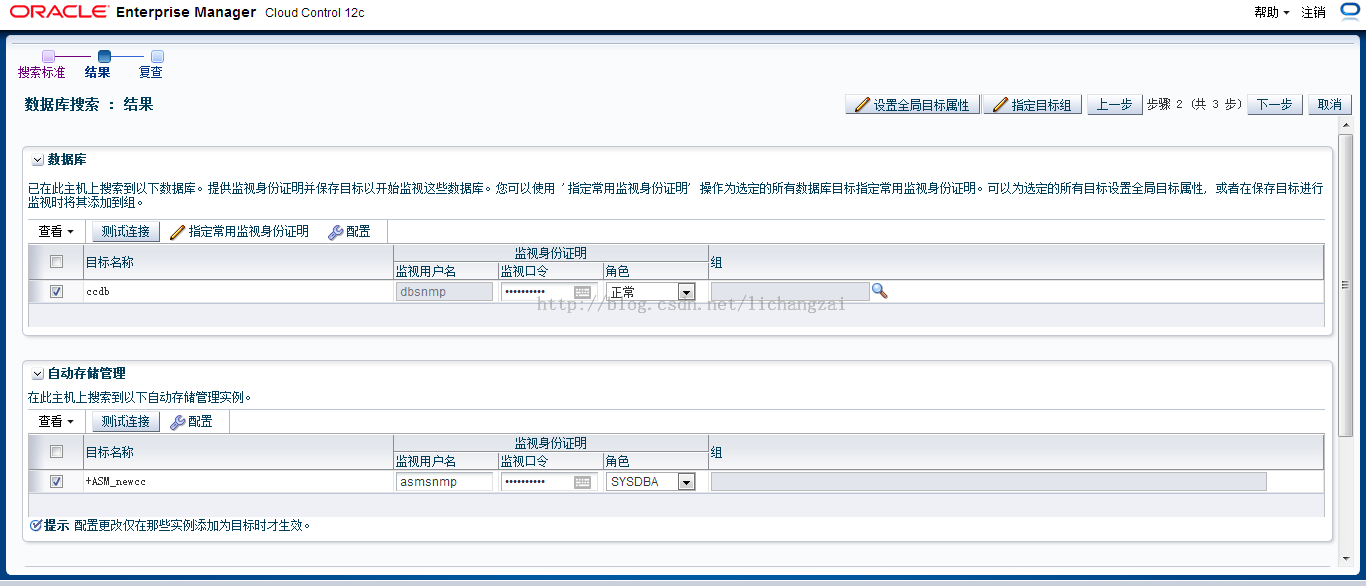

添加ccdb目标数据库

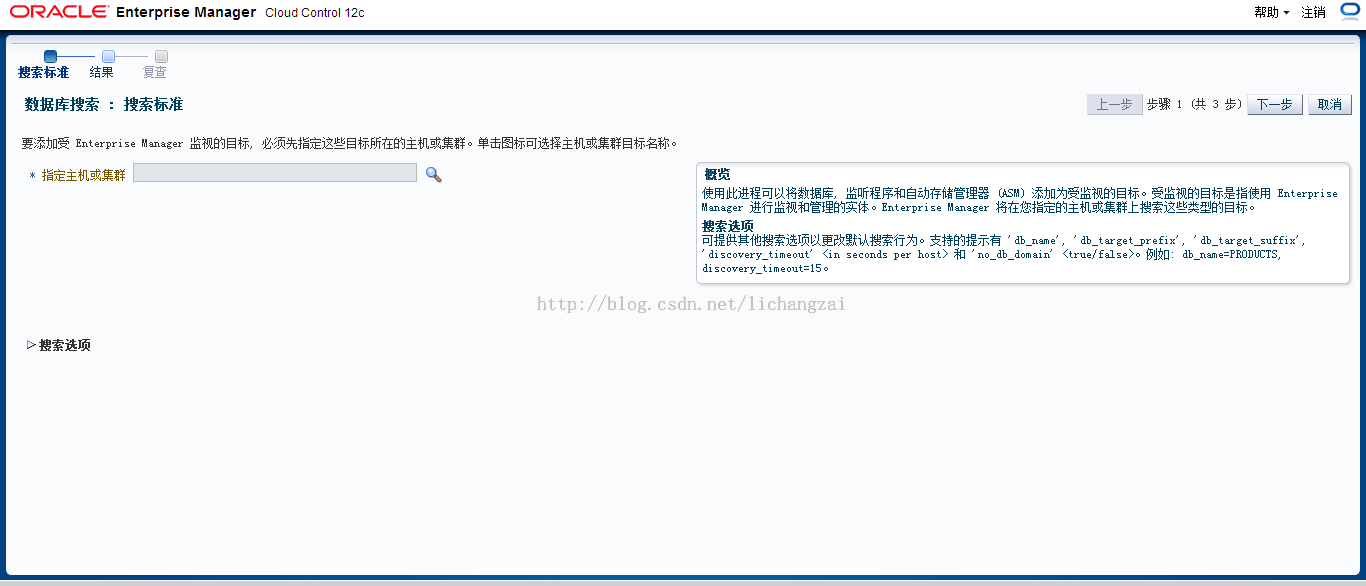

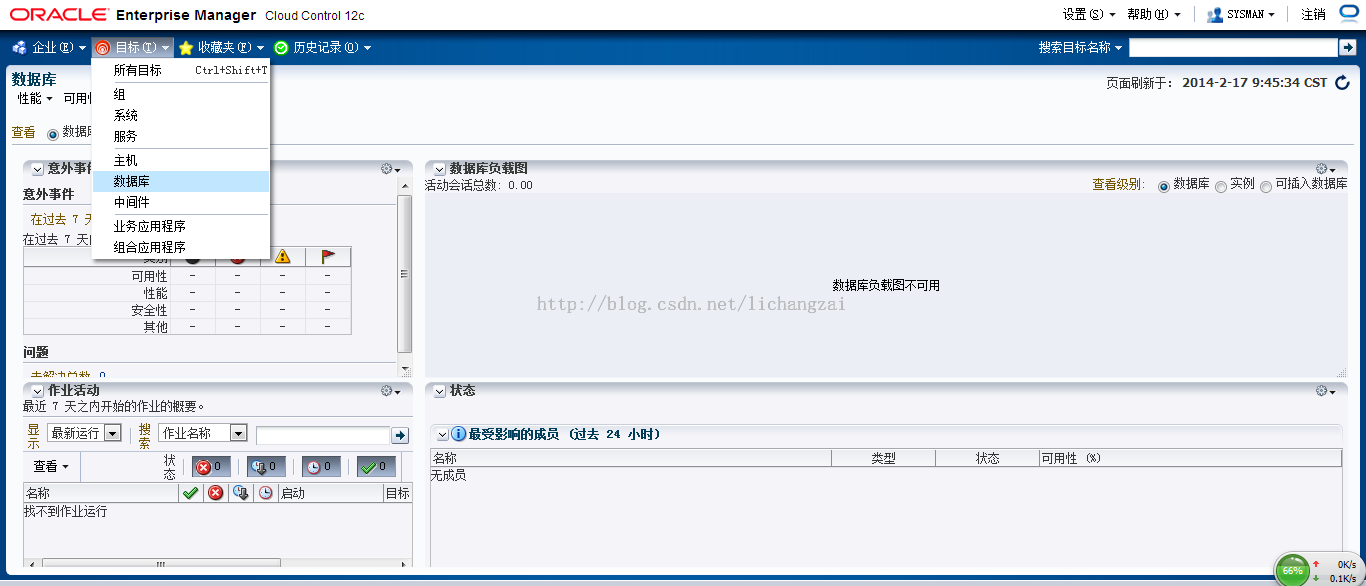

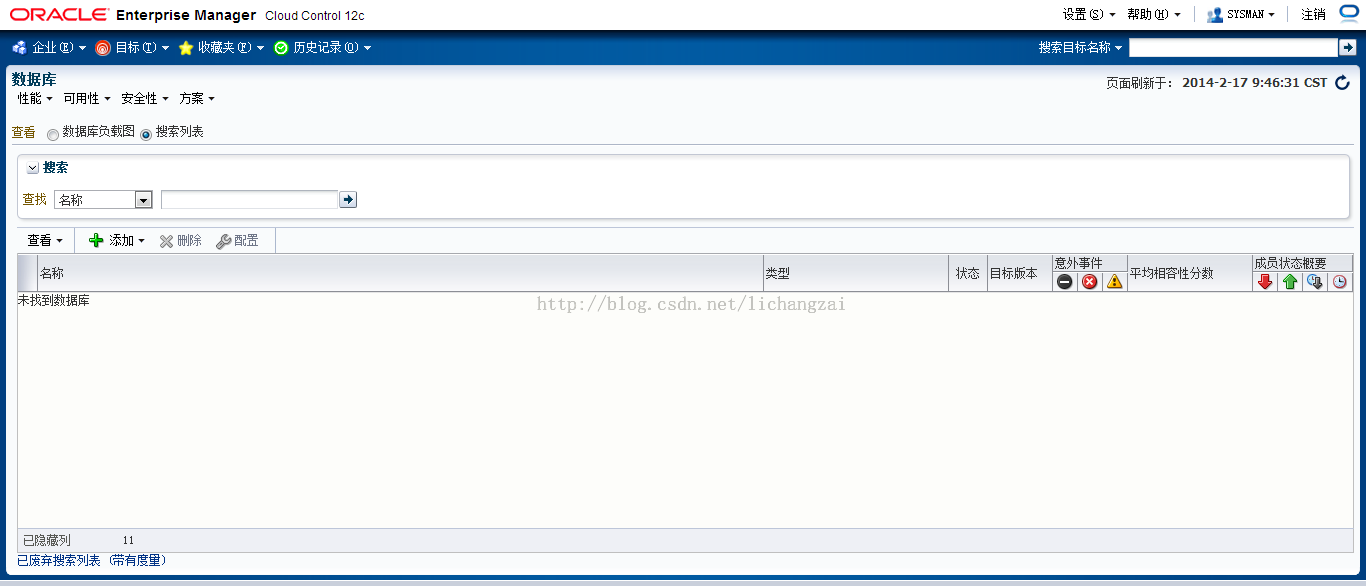

点搜索列表

先点添加提示数据库

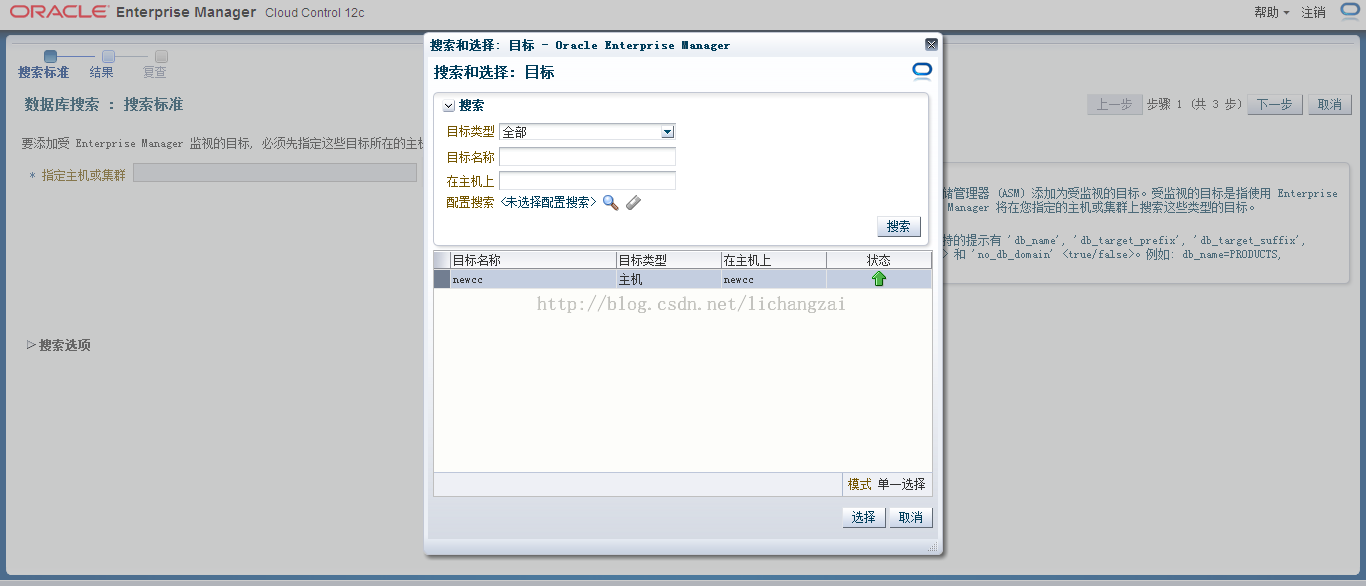

选折要添加数据库所在的主机

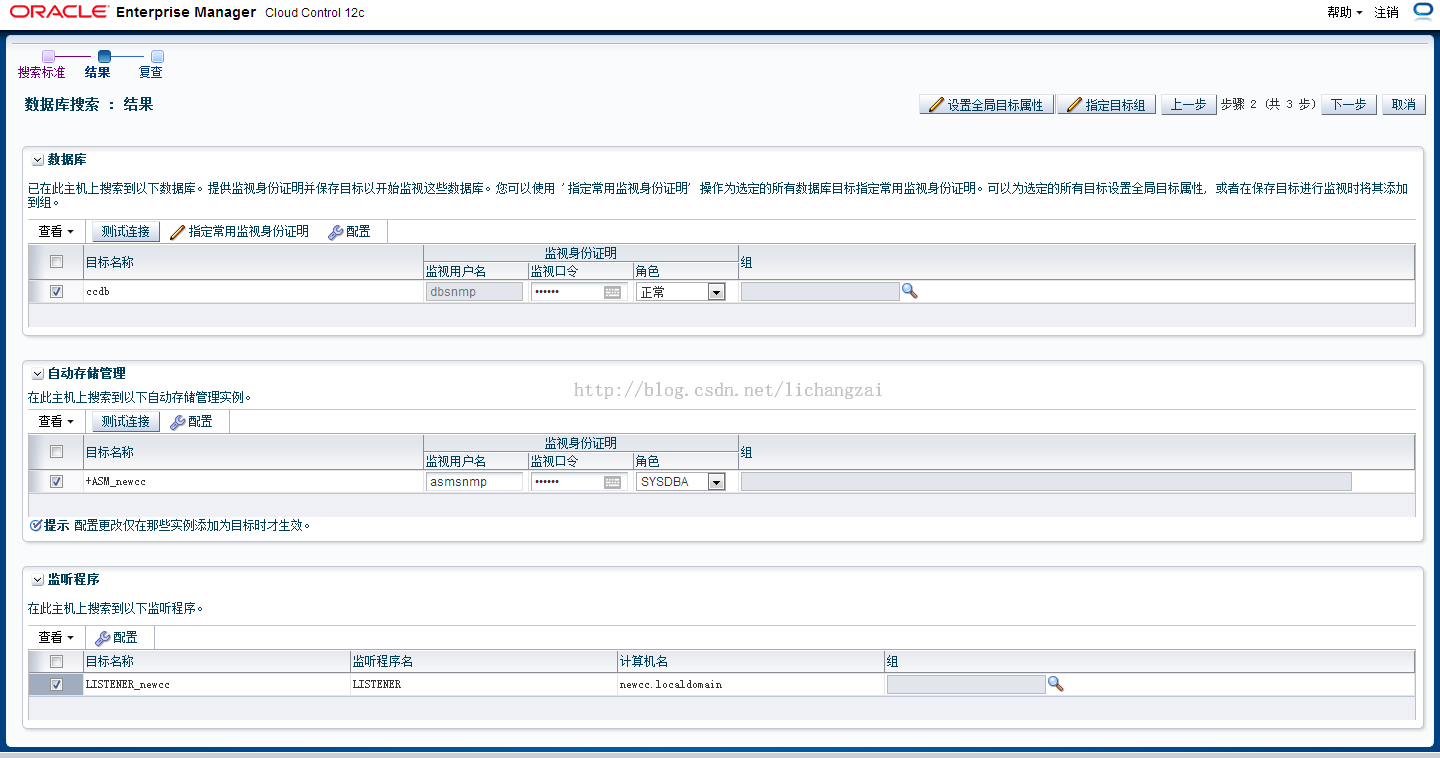

先点测试

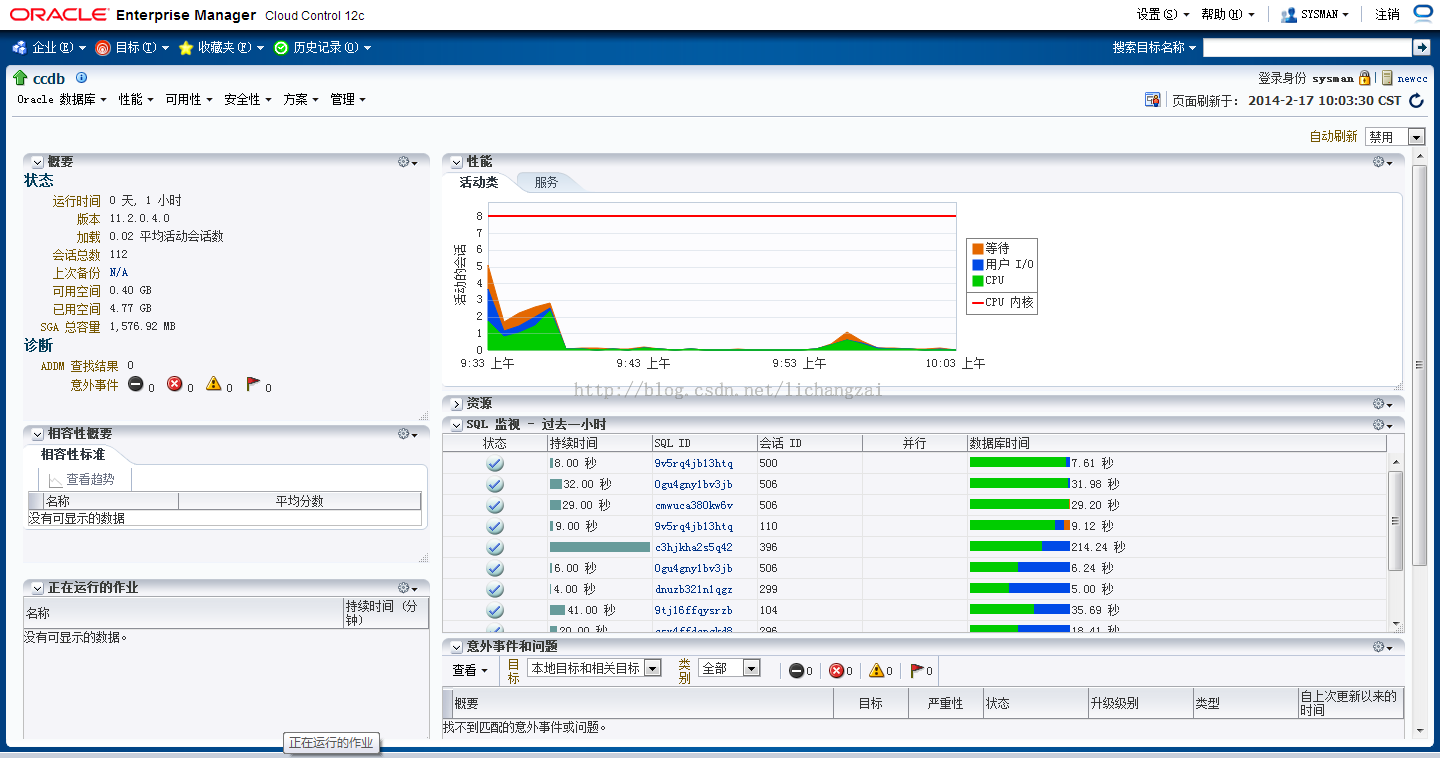

点数据库用sysman登陆

[oracle@newcc bin]$ pwd

/u01/app/oracle/oms12cr3/oms/bin

[oracle@newcc bin]$./emctl status oms

Oracle Enterprise Manager Cloud Control 12cRelease 3

Copyright (c) 1996, 2013 OracleCorporation.  All rights reserved.

WebTier is Up

Oracle Management Server is Up

[oracle@newcc bin]$ ./emctl status oms -details

Oracle Enterprise Manager Cloud Control 12cRelease 3

Copyright (c) 1996, 2013 Oracle Corporation.  All rights reserved.

Enter Enterprise Manager Root (SYSMAN)Password :

Console Server Host        : newcc

HTTP Console Port          : 7788

HTTPS Console Port        : 7802

HTTP Upload Port          : 4889

HTTPS Upload Port          : 4903

EM Instance Home          :/u01/app/oracle/gc_inst/em/EMGC_OMS1

OMS Log Directory Location :/u01/app/oracle/gc_inst/em/EMGC_OMS1/sysman/log

OMS is not configured with SLB or virtualhostname

Agent Upload is locked.

OMS Console is locked.

Active CA ID: 1

Console URL: https://newcc:7802/em

Upload URL: https://newcc:4903/empbs/upload

WLS Domain Information

Domain Name            : GCDomain

Admin Server Host      : newcc

Admin Server HTTPS Port: 7102

Admin Server is RUNNING

Managed Server Information

Managed Server Instance Name: EMGC_OMS1

Managed Server Instance Host: newcc

WebTier is Up

Oracle Management Server is Up

[oracle@newcc bin]$ pwd

/u01/app/oracle/oms12cr3/oms/bin

[oracle@newcc bin]$ pwd

/u01/app/oracle/agent12cr3/agent_inst/bin

[oracle@newcc bin]$ ./emctl  status agent

Oracle Enterprise Manager Cloud Control 12cRelease 3

Copyright (c) 1996, 2013 OracleCorporation.  All rights reserved.

---------------------------------------------------------------

Agent Version    : 12.1.0.3.0

OMS Version       :12.1.0.3.0

Protocol Version  : 12.1.0.1.0

Agent Home        : /u01/app/oracle/agent12cr3/agent_inst

Agent Binaries    :/u01/app/oracle/agent12cr3/core/12.1.0.3.0

Agent Process ID  : 3676

Parent Process ID : 3607

Agent URL        : https://newcc:3872/emd/main/

Repository URL    : https://newcc:4903/empbs/upload

Started at        : 2014-02-17 09:24:59

Started by user  : oracle

Last Reload      : (none)

Last successful upload                      : 2014-02-17 10:06:31

Last attempted upload                       : 2014-02-17 10:06:31

Total Megabytes of XML files uploaded sofar : 0.27

Number of XML files pending upload          : 0

Size of XML files pending upload(MB)        : 0

Available disk space on uploadfilesystem    : 14.86%

Collection Status                            : Collectionsenabled

Heartbeat Status                            : Ok

Last attempted heartbeat to OMS              : 2014-02-17 10:07:15

Last successful heartbeat to OMS            : 2014-02-17 10:07:15

Next scheduled heartbeat to OMS              : 2014-02-17 10:08:15

---------------------------------------------------------------

Agent is Running and Ready

[oracle@newcc bin]$
