在完成前面的基础性工作之后，接下来就到了重头戏：游戏主界面和游戏逻辑的搭建。

1.游戏主界面的搭建

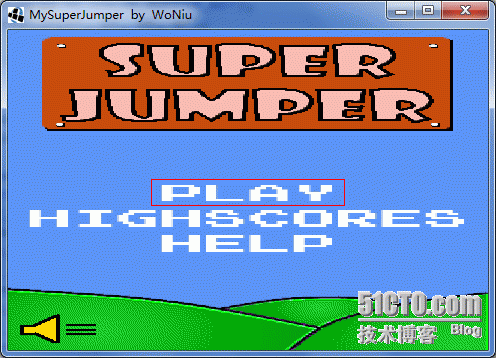

今天我们要完成的工作是：点击play进入游戏界面，对应的在游戏界面显示一些东西.

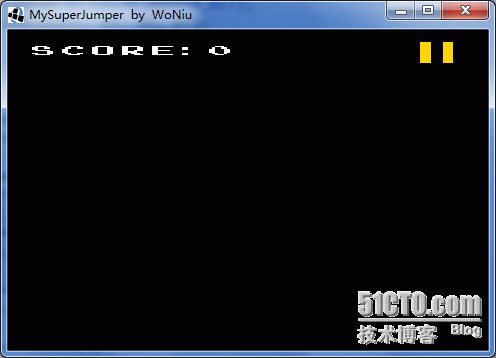

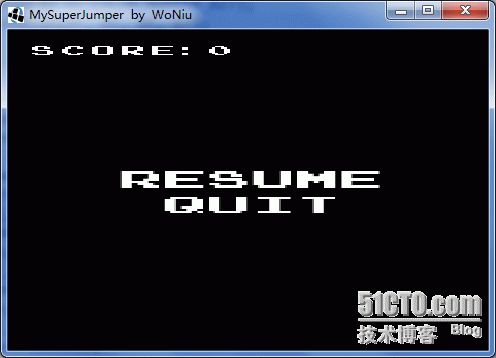

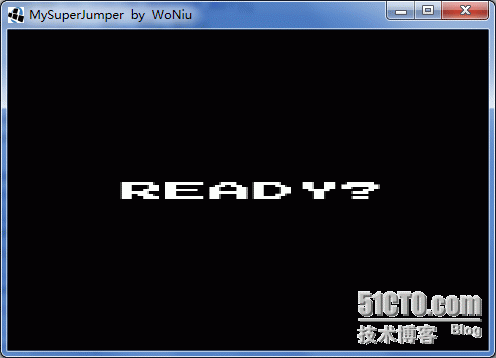

效果：

看到以上四张图相信大家应该很明白要干什么了，下面我们上代码

GameScreen类：

package com.zhf.mylibgdx;

import com.badlogic.gdx.Game;

import com.badlogic.gdx.Gdx;

import com.badlogic.gdx.Screen;

import com.badlogic.gdx.graphics.GL10;

import com.badlogic.gdx.graphics.GLCommon;

import com.badlogic.gdx.graphics.OrthographicCamera;

import com.badlogic.gdx.graphics.g2d.SpriteBatch;

import com.badlogic.gdx.math.Rectangle;

import com.badlogic.gdx.math.Vector3;

/**

* 游戏主界面

* @author ZHF

*

*/

public class GameScreen implements Screen {

//状态

static final int GAME_READY = 0; //准备

static final int GAME_RUNNING = 1; //运行

static final int GAME_PAUSED = 2; //暂停

static final int GAME_LEVEL_END = 3; //本关结束

static final int GAME_OVER = 4; //游戏结束

Game game;

int state; //状态

OrthographicCamera guiCam; //相机

Vector3 touchPoint; //触点

SpriteBatch batcher; //用于绘画的

Rectangle pauseBounds; //暂停按钮

Rectangle resumeBounds; //继续游戏按钮

Rectangle quitBounds; //离开按钮

int lastScore; //最后得分

String scoreString; //显示分数

public GameScreen(Game game) {

this.game = game;

//初始化工作

state = GAME_READY;

guiCam = new OrthographicCamera(320, 480);

guiCam.position.set(320 / 2, 480 / 2, 0); //将相机的视角设为中间

touchPoint = new Vector3();

batcher = new SpriteBatch();

pauseBounds = new Rectangle(320 - 64, 480 - 64, 64, 64);

resumeBounds = new Rectangle(160 - 96, 240, 192, 36);

quitBounds = new Rectangle(160 - 96, 240 - 36, 192, 36);

lastScore = 0;

scoreString = "SCORE: 0";

}

/**刷新状态**/

public void update (float deltaTime) {

if (deltaTime > 0.1f) deltaTime = 0.1f;

//根据游戏动向，刷新状态

switch (state) {

case GAME_READY:

updateReady(); //准备状态

break;

case GAME_RUNNING:

updateRunning(deltaTime); //游戏运行状态

break;

case GAME_PAUSED:

updatePaused(); //游戏暂停状态

break;

case GAME_LEVEL_END: //本关结束

updateLevelEnd();

break;

case GAME_OVER:

updateGameOver(); //游戏结束

break;

}

}

/**准备状态**/

private void updateReady () {

if (Gdx.input.justTouched()) {

state = GAME_RUNNING;

}

}

/**游戏运行状态**/

private void updateRunning (float deltaTime) {

if (Gdx.input.justTouched()) {

guiCam.unproject(touchPoint.set(Gdx.input.getX(), Gdx.input.getY(), 0));

//点击暂停

if (OverlapTester.pointInRectangle(pauseBounds, touchPoint.x, touchPoint.y)) {

Assets.playSound(Assets.clickSound);

state = GAME_PAUSED;

return;

}

}

}

/**游戏暂停状态**/

private void updatePaused () {

if (Gdx.input.justTouched()) {

guiCam.unproject(touchPoint.set(Gdx.input.getX(), Gdx.input.getY(), 0));

//点击继续游戏

if (OverlapTester.pointInRectangle(resumeBounds, touchPoint.x, touchPoint.y)) {

Assets.playSound(Assets.clickSound);

state = GAME_RUNNING;

return;

}

//点击离开，返回到主菜单界面

if (OverlapTester.pointInRectangle(quitBounds, touchPoint.x, touchPoint.y)) {

Assets.playSound(Assets.clickSound);

game.setScreen(new MainMenuScreen(game));

return;

}

}

}

/**本关结束**/

private void updateLevelEnd () {

if (Gdx.input.justTouched()) {

state = GAME_READY;

}

}

/**游戏结束**/

private void updateGameOver () {

if (Gdx.input.justTouched()) {

game.setScreen(new MainMenuScreen(game));

}

}

/**绘画**/

public void draw (float deltaTime) {

GLCommon gl = Gdx.gl;

gl.glClear(GL10.GL_COLOR_BUFFER_BIT);

gl.glClearColor(0f, 0f, 0f, 0f);

guiCam.update();

batcher.setProjectionMatrix(guiCam.combined);

batcher.enableBlending();

batcher.begin();

//根据游戏状态刷新界面

switch (state) {

case GAME_READY:

presentReady(); //绘制准备界面

break;

case GAME_RUNNING:

presentRunning(); //绘制暂停和分数显示

break;

case GAME_PAUSED:

presentPaused(); //绘制暂停菜单和分数显示

break;

case GAME_LEVEL_END:

presentLevelEnd(); //绘制本关结束

break;

case GAME_OVER:

presentGameOver(); //绘制游戏结束

break;

}

batcher.end();

}

/**绘制准备**/

private void presentReady () {

batcher.draw(Assets.ready, 160 - 192 / 2, 240 - 32 / 2, 192, 32);

}

/**绘制暂停和分数显示**/

private void presentRunning () {

batcher.draw(Assets.pause, 320 - 64, 480 - 64, 64, 64);

Assets.font.draw(batcher, scoreString, 16, 480 - 20);

}

/**绘制暂停菜单和分数显示**/

private void presentPaused () {

batcher.draw(Assets.pauseMenu, 160 - 192 / 2, 240 - 96 / 2, 192, 96);

Assets.font.draw(batcher, scoreString, 16, 480 - 20);

}

/**绘制本关结束**/

private void presentLevelEnd () {

String topText = "the princess is ...";

String bottomText = "in another castle!";

float topWidth = Assets.font.getBounds(topText).width;

float bottomWidth = Assets.font.getBounds(bottomText).width;

Assets.font.draw(batcher, topText, 160 - topWidth / 2, 480 - 40);

Assets.font.draw(batcher, bottomText, 160 - bottomWidth / 2, 40);

}

/**绘制游戏结束**/

private void presentGameOver () {

batcher.draw(Assets.gameOver, 160 - 160 / 2, 240 - 96 / 2, 160, 96);

float scoreWidth = Assets.font.getBounds(scoreString).width;

Assets.font.draw(batcher, scoreString, 160 - scoreWidth / 2, 480 - 20);

}

@Override

public void render(float delta) {

update(delta);

draw(delta);

}

@Override

public void resize(int width, int height) {

// TODO Auto-generated method stub

}

@Override

public void show() {

// TODO Auto-generated method stub

}

@Override

public void hide() {

// TODO Auto-generated method stub

}

@Override

public void pause() {

if (state == GAME_RUNNING) state = GAME_PAUSED;

}

@Override

public void resume() {

// TODO Auto-generated method stub

}

@Override

public void dispose() {

// TODO Auto-generated method stub

}

}

分析：

这里代码里的注释已经写得很清楚，这里我再讲一下框架，方便初学者学习，在构造方法里我们初始化了一些变量，接下来很重要的一步就是在render()方法里写了两个重要的方法：update() 和 draw(); 即：游戏的逻辑

update(floatdeltaTime): 根据游戏动向不断地刷新状态(准备状态、游戏运行状态、游戏暂停状态、本关结束、本关结束)

draw(floatdeltaTime): 根据游戏状态刷新界面(

presentReady();//绘制准备界面

presentRunning();//绘制暂停和分数显示

presentPaused();//绘制暂停菜单和分数显示

presentLevelEnd();//绘制本关结束

presentGameOver();//绘制游戏结束)

我们别忘了和前面一样，在MainMneuScreen中将条状那行注释去掉：

game.setScreen(new GameScreen(game));

同样，游戏界面中包含一些元素(如暂停按钮，菜单等)，自然要在Asset类中对应的加载资源进去。

声明：

//游戏界面

public static TextureRegion pause;//暂停按钮

public static TextureRegion pauseMenu; //暂停弹出菜单

public static TextureRegion ready; //准备

public static TextureRegion gameOver; //游戏结束

实例化：

//游戏界面界面

pause = new TextureRegion(items, 64, 64, 64, 64);

pauseMenu = new TextureRegion(items, 224, 128, 192, 96);

ready = new TextureRegion(items, 320, 224, 192, 32);

gameOver = new TextureRegion(items, 352, 256, 160, 96);

ok！这一讲可能代码比较少，这里我们主要先将框架搭建起来，下一讲我们我涉及到游戏场景中各个元素以及世界的编写。
