常规的用法先总结一下。前台设置列名，列宽，列高，绑定数据。后台构造数据源，设置是否排序等。

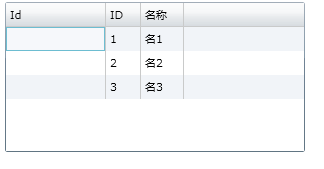

其他的小技巧遇到了总结到此文。如图：

uc_DataGrid.xaml

大气象

< UserControl x:Class ="HCLoad.uc_DataGrid"
    xmlns ="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x ="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d ="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc ="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable ="d"
    d:DesignHeight ="300" d:DesignWidth ="400" xmlns:sdk ="http://schemas.microsoft.com/winfx/2006/xaml/presentation/sdk" >

     < Grid x:Name ="LayoutRoot" Background ="White" >
         < sdk:DataGrid AutoGenerateColumns ="True" Height ="100" HorizontalAlignment ="Left" Margin ="10,10,0,0" Name ="dgList" VerticalAlignment ="Top" Width ="300" >
             < sdk:DataGrid.Columns >
                 < sdk:DataGridTextColumn Header ="Id" Binding =" {Binding 编号} " Width ="100" ></ sdk:DataGridTextColumn >
             </ sdk:DataGrid.Columns >
         </ sdk:DataGrid >
     </ Grid >
</ UserControl >

uc_DataGrid.xaml.cs

大气象

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;

namespace HCLoad
{
     public partial class uc_DataGrid : UserControl
    {
         public uc_DataGrid()
        {
            InitializeComponent();
            Bind();
        }
        List < Model > list = new List < Model > ();
         public class Model
        {
             public int ID { get ; set ; }
             public string 名称 { get ; set ; }
             public Model() { }
             public Model( int _ID, string _名称)
            {
                ID = _ID;
                名称 = _名称;
            }
        }
         private void Bind()
        {
            list.Clear();
            list.Add( new Model( 1 , " 名1 " ));
            list.Add( new Model( 2 , " 名2 " ));
            list.Add( new Model( 3 , " 名3 " ));

            dgList.ItemsSource = list;
            dgList.CanUserSortColumns = false ; // 设置不排序
            dgList.Height = 150 ;
            dgList.IsReadOnly = true ; // 设置只读，选择的时候，不能进入编辑状态
        }
    }
}
