High Version Count(高版本游标)数目过多诊断的方法
什么是high version cursor(高版本游标)?

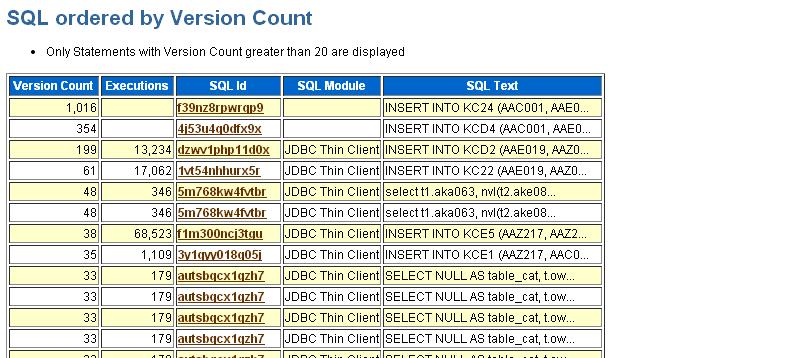

对于一个特定的游标有多少个版本就属于高版本游标是没有明确定义的.对于不同的系统有不同的数量界定.然而在awr报告中对于一个父游标超过20个子游标个数时就会被报告出来
然而当一个游标的版本数据达到成百上千,那么这些绝对是高版本游标.所以要检查这些sql有高版本的原因要尽量使用这些sql能够被共享.
什么是共享sql?
首先要记住的是所有sql语句都是式共享的.当一个sql语句被输入时,oracle将会对一个语句的文本创建一个hash value,oracle将使用这个hash value很容易地在共享池中查找是否已经存在有相同hash value的sql存在.
例如:select count*) from emp语句有一个hash value为 4085390015
那么oracle就会对这个sql语句创建一个父游标和一个子游标.如果一个sql语句永远也不会被共享也没关系-当它第一次被解析时会创建一个父游标和一个子游标.可以简单地认为这个父游标代表这个hash value,子游标代表sql的元数据.
什么是元数据?
元数据是能让sql语句运行的所有信息.例如,在上面的例子中给定的emp表属于scott用户,因此它有一个object_id来指示这个emp表.当scott用户登录时,对于运行这个语句的会话优化器参数会被初始化,所以优化器的使用也属于元数据.
当scott用户重新登录后运行相同的命令(相同的sql语句),这时在共享池中已经存在相同的sql,(但是我们是不知道的),将对这个sql生成hash value并且在共享池搜索这个hash value.如果找到这个hash value,就会通过子游标来进行搜索来判断是否存在子游标可以被重用(元数据相同).如果是那么就可以共享这个sql语句.
现在在共享池中这个sql语句只有一个子游标,因为元数据相同能让我们使用已经存在的子游标来共享sql语句.父游标不是判断能不能共享的基础子游标才能决定是否共享.
现在如果另一个用户test也有一个emp表.如果这个用户也运行上面的查询语句将会发生什么:
1. 会对这个语句创建一个hash value.它的hash value为4085390015
2. 这个sql在共享池中被找到
3. 搜索子游标(在这时已经有一个子游标了)
4. 因为test用户的emp表的object_id与scott用户的emp表的object_id是不同的所以会有一个’mismatch’
(本质上这里会依次搜索子游标链表,使用所有的子游标与当前sql的元数据进行比较.如果已经搜索了100个子游标直到找到一个可以共享的子游标为止.如果没有找到可以共享的子游标那么就会重新创建一个子游标
5. 因此创建一个新的子游标所以现在有1个父游标和2个子游标.
为什么要关注high version cursor(高版本游标)
可以共享但没有被共享的sql和合成版本的sql是造成library cache竞争的主要原因.竞争会降低数据库的性能.在极端情况下会使用数据库hang住.当一个游标有太多个不必要的版本时,每次游标被执行时,这个解析引擎为了找到你所想要的游标不得不搜索整个游标链表.这是非常消耗CPU资源的.
怎样查看high version cursor(高版本游标)以及为何不能被共享
一种最简单查看high version cursor(高版本游标)的方法是使用脚本High SQL Version Counts - Script to determine reason(s) (文档 ID 438755.1)
现在这个脚本的版本为 version_rpt3_23.sql
下载这个脚本后需要进行安装
SQ>conn / as sysdba
SQL>@F:\ version_rpt3_23.sql
使用方法如下:
对于10g及以后的版本来收集version超过100的所有游标
SQL> set pages 2000 lines 100 SQL> SQL> SELECT b.* 2 FROM v$sqlarea a , 3 TABLE(version_rpt(a.sql_id)) b 4 WHERE loaded_versions >=100; COLUMN_VALUE ---------------------------------------------------------------------
根据hash value来收集version超过100的所有游标
SQL> set pages 2000 lines 100 SQL> SELECT b.* 2 FROM v$sqlarea a , 3 TABLE(version_rpt(NULL,a.hash_value)) b 4 WHERE loaded_versions>=100; COLUMN_VALUE ---------------------------------------------------------------------
使用sql_id来收集游标报告
SQL> set pages 2000 lines 100
SQL> SELECT * FROM TABLE(version_rpt('g7vpupcuqd9zz'));
COLUMN_VALUE
--------------------------------------------------------------------------------
Note:438755.1 Version Count Report Version 3.2.3 -- Today's Date 22-4月 -14 15:44
RDBMS Version :10.2.0.4.0 Host: IBMP740-1 Instance 1 : RLZY
==================================================================
Addr: 070000066F6659E8 Hash_Value: 895920127 SQL_ID g7vpupcuqd9zz
Sharable_Mem: 135775 bytes Parses: 110924 Execs:621954
Stmt:
0 insert into mt_fee( hospital_id,serial_no,serial_fee,stat_type,f
1 ee_batch,medi_item_type,item_code,item_name,his_item_code,his_it
2 em_name,serial_apply,fee_date,model,factory,standard,unit,price,
3 dosage,money,reduce_money,usage_flag,usage_days,opp_serial_fee,i
4 nput_staff,input_man,input_date,calc_flag,frozen_flag,frozen_ser
5 ial_fee,trans_date,recipe_no,hos_serial,doctor_no,doctor_name,au
6 dit_flag,trans_flag,defray_type ) values ( :1,:2,:3,:4,:5,:6,:7,
7 :8,:9,:10,:11,:12,:13,:14,:15,:16,:17,:18,:19,:20,:21,:22,:23,:2
8 4,:25,:26,:27,:28,:29,:30,:31,:32,:33,:34,:35,:36,:37)
9
Versions Summary
----------------
AUTH_CHECK_MISMATCH :1
BIND_MISMATCH :13
TRANSLATION_MISMATCH :1
ROLL_INVALID_MISMATCH :3
Total Versions:12
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
cursor_sharing = exact
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Plan Hash Value Summary
-----------------------
Plan Hash Value Count
=============== =====
0 8
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Details for AUTH_CHECK_MISMATCH :
# of Ver PARSING_USER_ID PARSING_SCHEMA_ID PARSING_SCHEMA_NAME
========== =============== ================= ===================
8 211 211 INSUR_CHANGDE
~~~~~~~~~~~~~~~~~~~~~~~~~~~
Details for BIND_MISMATCH :
Consolidated details for BIND* columns:
BIND_MISMATCH,USER_BIND_PEEK_MISMATCH,BIND_UACS_DIFF,BIND_LENGTH_UPGRADEABLE,etc
BIND_EQUIV_FAILURE (Mislabled as ROW_LEVEL_SEC_MISMATCH BY bug 6964441 in 11gR1)
from v$sql_bind_capture
COUNT(*) POSITION MIN(MAX_LENGTH) MAX(MAX_LENGTH) DATATYPE BIND GRADUATION (PREC
======== ======== =============== =============== ======== =============== =====
13 1 32 32 1 No (,)
13 2 32 32 1 No (,)
13 3 32 32 1 No (,)
13 4 32 32 1 No (,)
13 5 32 32 1 No (,)
13 6 32 32 1 No (,)
13 7 32 32 1 No (,)
13 8 32 128 1 Yes (,)
13 9 32 128 1 Yes (,)
13 10 32 128 1 Yes (,)
13 11 32 32 1 No (,)
13 12 11 11 180 No (,)
13 13 32 32 1 No (,)
13 14 32 128 1 Yes (,)
13 15 32 128 1 Yes (,)
13 16 32 128 1 Yes (,)
9 17 32 128 1 Yes (,)
4 17 22 22 2 No (,)
13 18 32 128 1 Yes (,)
13 19 32 32 1 No (,)
13 20 32 32 1 No (,)
13 21 32 32 1 No (,)
13 22 32 32 1 No (,)
13 23 32 32 1 No (,)
13 24 32 32 1 No (,)
13 25 32 32 1 No (,)
13 26 11 11 180 No (,)
13 27 32 32 1 No (,)
13 28 32 32 1 No (,)
13 29 32 32 1 No (,)
13 30 7 7 12 No (,)
13 31 32 32 1 No (,)
13 32 32 128 1 Yes (,)
13 33 32 32 1 No (,)
13 34 32 32 1 No (,)
13 35 32 32 1 No (,)
13 36 32 32 1 No (,)
13 37 32 32 1 No (,)
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Details for TRANSLATION_MISMATCH :
No objects in the plans with same name and different owner were found.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Details for ROLL_INVALID_MISMATCH :
No details available
####
To further debug Ask Oracle Support for the appropiate level LLL.
alter session set events
'immediate trace name cursortrace address 895920127, level LLL';
To turn it off do use address 1, level 2147483648
================================================================
如果不能使用这个脚本可以使用下面的方法从基本视图中来查询相同的信息
下面使用scott用户来运行select count(*) from emp 语句,并运行下面的查询来查看这个语句的父游标和它的hash value和address
SQL>select sql_text, hash_value,address from v$sqlarea where sql_text like 'select count(*) from emp%'; SQL_TEXT HASH_VALUE ADDRESS ------------------------ ------------ ---------------- select count(*) from emp 4085390015 0000000386BC2E58
为了查看子游标:
对于oracle 9.2.x.x及以下版本
SQL>select * from v$sql_shared_cursor where kglhdpar = '0000000386BC2E58';
对于oracle 10.0.x.x及以上版本
SQL> select * from v$sql_shared_cursor where address = '0000000386BC2E58';
对于oracle 9.2.x.x及以下版本查询的输出如下:
ADDRESS KGLHDPAR U S O O S L S E B P I S T A B D L T R I I R L I O S M U T N F ---------------- ---------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 0000000386BC2D08 0000000386BC2E58 N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N
可以看到有一个子游标(address: 0000000386BC2D080).mismatch信息都为N因为这是第一个子游标.如果另一个用户运行相同的语句(select count(*) from emp)再次执行上面查询输出如下:
ADDRESS KGLHDPAR U S O O S L S E B P I S T A B D L T R I I R L I O S M U T N F ---------------- ---------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 0000000386BC2D08 0000000386BC2E58 N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N 0000000386A91AA0 0000000386BC2E58 N N N N N N N N N N N N N Y N N N Y N N N N N N N N N N N N N
现在可以看到第二个子游标(address: 0000000386A91AA0)且为什么与第一个子游标不能共享(‘Y’表示不匹配).原因如下:
(1) AUTH_CHECK_MISMATCH and (2) TRANSLATION_MISMATCH
这是因为新用户下的emp对象与scott用户下的emp对象不匹配.当不能访问scott用户的对象时且因为在每个用户方案下有一个emp对象而object_id不同所以翻译失败发生了一次mismatch.
在v$SQL_SHARED_CURSOR中给出了不能共享游标的原因
下面介绍一些游标不能共享的原因:
.UNBOUND_CURSOR--现有的子游标没有完全创建(换句话说不能被优化)
.SQL_TYPE_MISMATCH—sql类型与现有的子游标不匹配
.OPTIMIZER_MISMATCH—优化器环境与现有的子游标不匹配
例如:
SQL>select count(*) from emp; ->> 1 PARENT, 1 CHILD
SQL>alter session set optimizer_mode=ALL_ROWS
SQL>select count(*) from emp; ->> 1 PARENT, 2 CHILDREN
因为 optimizer_mode被改变,因为现有的子游标不能被共享
如果使用10046跟踪事件将会得到optimizer_mismatch和第三个子游标
使用cursortrace将会看到更详细的原因比如:
Optimizer mismatch(12)
其中括号内的数字给出了原因
1 = Degree used is not the default DOP 2 = In (RAC) cases where instance count is not the same, or session CPU count is not the same, or thread count is not the same 3 = _parallel_syspls_obey_force is FALSE 4 = The PQ mode does not match. 5 = The degree does not match. 6 = The parallel degree policy does not match. 7 = The session limit is not the same as the cursor limit but the cursor limit is the same as the degree used. 8 = The cursor limit is greater than the degree used and the session limit is less than the cursor limit 9 = The cursor limit is less than the degree used and the session limit is not the same as the cursor limit 10 = Optimizer mode difference 11 = Materialized View mismatch 12 = Optimizer environment mismatch (ie an optimizer parameter is different) 13 = Cardinality Feedback is use
.OUTLINE_MISMATCH—The outlines do not match the existing child cursor
If my user had created stored outlines previously for this command and they were stored in seperate categories (say "OUTLINES1" and "OUTLINES2") running:-
SQL>alter session set use_stored_outlines = OUTLINES1;
SQL>select count(*) from emp;
SQL>alter session set use_stored_oulines= OUTLINES2;
SQL>select count(*) from emp;
.STATS_ROW_MISMATCH—The existing statistics do not match the existing child cursor. Check that 10046/sql_trace is not set on all sessions as this can cause this.
.LITERAL_MISMATCH—Non-data literal values do not match the existing child cursor
.SEC_DEPTH_MISMATCH—Security level does not match the existing child cursor
.EXPLAIN_PLAN_CURSOR—The child cursor is an explain plan cursor and should not be shared. Explain plan statements will generate a new child by default - the mismatch will be this
.BUFFERED_DML_MISMATCH—Buffered DML does not match the existing child cursor
.PDML_ENV_MISMATCH—PDML environment does not match the existing child cursor
.INST_DRTLD_MISMATCH—Insert direct load does not match the existing child cursor
.SLAVE_QC_MISMATCH—The existing child cursor is a slave cursor and the new one was issued by the coordinator (or, the existing child cursor was issued by the coordinator and the new one is a slave cursor).
.TYPECHECK_MISMATCH—The existing child cursor is not fully optimized
.AUTH_CHECK_MISMATCH— Authorization/translation check failed for the existing child cursor
The user does not have permission to access the object in any previous version of the cursor. A typical example would be where each user has it's own copy of a table
.BIND_MISMATCH—The bind metadata does not match the existing child cursor. For example:
SQL>variable a varchar2(100);
SQL>select count(*) from emp where ename = :a ->> 1 PARENT, 1 CHILD
SQL>variable a varchar2(400);
SQL>select count(*) from emp where ename = :a ->> 1 PARENT, 2 CHILDREN
.DESCRIBE_MISMATCH—The typecheck heap is not present during the describe for the child cursor
.LANGUAGE_MISMATCH—The language handle does not match the existing child cursor
.TRANSLATION_MISMATCH—The base objects of the existing child cursor do not match.
The definition of the object does not match any current version. Usually this is indicative of the same issue as "AUTH_CHECK_MISMATCH" where the object is different.
.ROW_LEVEL_SEC_MISMATCH—The row level security policies do not match
.INSUFF_PRIVS— Insufficient privileges on objects referenced by the existing child cursor
.INSUFF_PRIVS_REM-- Insufficient privileges on remote objects referenced by the existing child cursor
.REMOTE_TRANS_MISMATCH—The remote base objects of the existing child cursor do not match
USER1: select count(*) from table@remote_db
USER2: select count(*) from table@remote_db
(Although the SQL is identical, the dblink pointed to
by remote_db may be a private dblink which resolves
to a different object altogether)
.LOGMINER_SESSION_MISMATCH
.INCOMP_LTRL_MISMATCH
.OVERLAP_TIME_MISMATCH—error_on_overlap_time_msimatch
.SQL_REDIRECT_MISMATCH—sql redirection mismatch
.MV_QUERY_GEN_MISMATCH—materialized view query generation
.USER_BIND_PEEK_MISMATCH—user bind peek mismatch
.TYPCHK_DEP_MISMATCH—cursor has typecheck dependencies
.NO_TRIGGER_MISMATCH— no trigger mismatch
.FLASHBACK_CURSOR—No cursor sharing for flashback
.ANYDATA_TRANSFORMATION - anydata transformation change
.INCOMPLETE_CURSOR - incomplete cursor.
When bind length is upgradeable (i.e. we found a child cursor that matches everything
else except that the bind length is not long enough), we mark the old cursor is not usable
and build a new one. This means the version can be ignored.
.TOP_LEVEL_RPI_CURSOR - top level/rpi cursor
In a Parallel Query invocation this is expected behaviour (we purposely do not share)
.DIFFERENT_LONG_LENGTH - different long length
.LOGICAL_STANDBY_APPLY - logical standby apply mismatch
.DIFF_CALL_DURN - different call duration
.BIND_UACS_DIFF - bind uacs mismatch
.PLSQL_CMP_SWITCHS_DIFF - plsql compiler switches mismatch
.CURSOR_PARTS_MISMATCH - cursor-parts executed mismatch
.STB_OBJECT_MISMATCH - STB object different (now exists)
.ROW_SHIP_MISMATCH - row shipping capability mismatch
.PQ_SLAVE_MISMATCH - PQ slave mismatch
Check you want to be using PX with this reason code, as the problem could be caused by running lots of small SQL statements which do not really need PX. If you are on < 11i you may be hitting Bug:4367986
.TOP_LEVEL_DDL_MISMATCH - top-level DDL cursor
.MULTI_PX_MISMATCH - multi-px and slave-compiled cursor
.BIND_PEEKED_PQ_MISMATCH - bind-peeked PQ cursor
.MV_REWRITE_MISMATCH - MV rewrite cursor
.ROLL_INVALID_MISMATCH - rolling invalidation window exceeded
.OPTIMIZER_MODE_MISMATCH - optimizer mode mismatch
.PX_MISMATCH - parallel query mismatch
If running 11.1.0.6 and RAC see Bug:7352775. Check that if (on each instance) parallel_instance_groups is set then instance_groups is set to the same.
.MV_STALEOBJ_MISMATCH - mv stale object mismatch
.FLASHBACK_TABLE_MISMATCH - flashback table mismatch
.LITREP_COMP_MISMATCH - literal replacement compilation mismatch
New in 11g :
PLSQL_DEBUG - debug mismatch Session has debugging parameter plsql_debug set to true
.LOAD_OPTIMIZER_STATS - Load optimizer stats for cursor sharing
.ACL_MISMATCH - Check ACL mismatch
.FLASHBACK_ARCHIVE_MISMATCH - Flashback archive mismatch
.LOCK_USER_SCHEMA_FAILED - Failed to lock user and schema
.REMOTE_MAPPING_MISMATCH - Remote mapping mismatch
.LOAD_RUNTIME_HEAP_FAILED - Runtime heap mismatch
.HASH_MATCH_FAILED - Hash mismatch
Set to "Y" if sharing fails due to a hash mismatch, such as the case with mismatched histogram data or a range predicate marked as unsafe by literal replacement (See Bug 3461251)
New in 11.2 :
PURGED_CURSOR - cursor marked for purging
The cursor has been marked for purging with dbms_shared_pool.purge
.BIND_LENGTH_UPGRADEABLE - bind length upgradeable
Could not be shared because a bind variable size was smaller than the new value beiing inserted (marked as BIND_MISMATCH in earlier versions).
.USE_FEEDBACK_STATS - cardinality feedback
Cardinality feedback is being used and therefore a new plan could be formed for the current execution.
.BIND_EQUIV_FAILURE - The bind value's selectivity does not match that used to optimize the existing child cursor. When adaptive cursor sharing is used and the cursor is bind aware, then if the selectivity is outside of the current ranges and a new plan is desirable then a new child is raised with this as the reason code for non-sharing of the previous plan. For an example, see Document 836256.1. After each execution in the example, run:
select sql_id, address, child_address, child_number, BIND_EQUIV_FAILURE from v$sql_shared_cursor where sql_id='19sxt3v07nzm4';
... once the cursor is marked as bind aware and a second plan is seen then the following will be the resultant output:
SQL_ID ADDRESS CHILD_ADDRESS CHILD_NUMBER B
------------- ---------------- ---------------- ------------ -
19sxt3v07nzm4 000000007A1C0DE0 000000007A1BF980 0 N
19sxt3v07nzm4 000000007A1C0DE0 000000007A10DDB0 1 Y
As can be seen, the new version is created due to BIND_EQUIV_FAILURE
There is no longer ROW_LEVEL_SEC_MISMATCH in 11.2.
可以进一步跟踪
在oracle10g及以上版本中可以使用cursortrace来查找游标不能被共享的原因.
SQL>alter system set events 'immediate trace name cursortrace level 577, address hash_value';
其中可以使用三个level,level 1为577,level 2为578,level 3为580
当重用这个游标时将会向user_dump_dest目录中写一个跟踪文件.
关闭cursortrace:
SQL>alter system set events 'immediate trace name cursortrace level 2147483648, address 1';
注意在10.2.0.4以下版本存在Bug 5555371导致cursortrace无法彻底关闭的情况.最终导致其trace文件不停的增长,从而可能导致oracle文件系统被撑爆的现象
在11.2中有了cursordump可以使用如下方式进行cursor dump:
SQL>alter system set events ‘immediate trace name cursordump level 16’;
这种方式收集的信息比较全:例如它可以采集部分别的方式无法看到的px_mismatch以及它会进一步展开optimizer_mismatch的信息等
尽管使用绑定变量还是会存在high version cursor
当cursor_sharing为similar时
select /* TEST */ * from emp where sal > 100;
select /* TEST */ * from emp where sal > 101;
select /* TEST */ * from emp where sal > 102;
select /* TEST */ * from emp where sal > 103;
select /* TEST */ * from emp where sal > 104;
SELECT sql_text,version_count,address
FROM V$SQLAREA
WHERE sql_text like 'select /* TEST */%';
SELECT * FROM V$SQL_SHARED_CURSOR WHERE kglhdpar = '&my_addr';
将会出现多个子游标
Cursor_sharing设置为similar或force都可能导致high version count可以参考:
High Version Count with CURSOR_SHARING=SIMILAR or FORCE(文档ID 261020.1)
在11g中引入的adaptive cursor sharing特性很容易导致high version count的问题
可以参考:Bug 12334286 High version count with CURSOR_SHARING=FORCE(BIND_MISMATCH and INCOMP_LTRL_MISMATCH)
Document 740052.1 Adaptive Cursor Sharing Overview
Document 7213010.8 Bug 7213010 - Adaptive cursor sharing generates lots of child cursors
Document 8491399.8 Bug 8491399 - Adaptive Cursor Sharing does not match the correct cursor version for queries using CHAR datatype
在oracle 11g中可以通过其它的一些手段限制child cursor的数量
Document 10187168.8 Enhancement to obsolete parent cursors if Version Count exceeds a threshold
引入了一个隐含参数_cursor_obsolete_threshold该参数用来限制单个parent cursor下的child cursor的数量,默认值为100.如果child cursor的数量超过这个阈值就会触发cursor obsolescence特性.这个时候parent cursor就会被丢弃并同时重新创建一个新的parent cursor.
1. If 11.2.0.3 and above, set the following parameters:
"_cursor_obsolete_threshold" to 100 (this is the number of child cursor after which we obsolete it)
2. If 11.2.0.2.2, then set:
SQL>alter system set "_cursor_features_enabled"=1026 scope=spfile;
SQL>alter system set event=’106001 trace name context forever,level 1024’ scope=spfile;
3.If 11.2.0.1:
SQL>alter system set “_cursor_features_enabled”=34 scope=spfile;
SQL>alter system set event=’106001 trace name context forever,level 1024’ scope=spfile;
Oracle SQL调优是我们进行应用系统调优的一个重要方面。一个SQL的书写方式、执行计划和执行时间会显著的影响到系统的投产性能。本篇我们主要聊一下SQL version count数目过多，子游标过多的问题诊断。
1、关于version count
首先我们一起来回顾一下Oracle的“父子游标”（child cursor and parent cursor）概念。在Oracle中，任何一个执行的SQL语句，都会以游标cursor的形式进行处理。具体来说，一个SQL要涉及到两个游标对象，共享游标shared cursor和私有游标private cursor。
Private cursor是驻留在Oracle Server Process PGA内部，只能被一个Server Process对应的会话使用。而shared cursor驻留在SGA的shared pool中，具体位于shared pool中的library cache。
对shared cursor而言，主要缓存的目的在于执行计划的共享。一个SQL经过validate和parse过程，会形成父游标和子游标的配对组合。SQL文本完全相同的语句，会共享父游标。而环境信息、对象信息相同的SQL语句，才可能共享子游标。当找不到对应的子游标或者父游标时，也就意味着找不到可共享的执行计划。这样对应的SQL就需要发生hard parse，重新生成执行计划。
一个父游标下对应的子游标个数，我们成为version count。每一个子游标对应一个执行计划对象。下面通过示例来演示，依然选择Oracle 11g环境进行试验。
SQL> select * from v$version;
BANNER
------------------------------------------------------------
Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
PL/SQL Release 11.2.0.1.0 - Production
CORE 11.2.0.1.0 Production
构建数据表T。
SQL> create table t as select * from dba_objects;
Table created
SQL> create index idx_t_owner on t(owner);
Index created
SQL> exec dbms_stats.gather_table_stats(user,'T',cascade => true);
PL/SQL procedure successfully completed
我们使用实验SQL，通过视图v$sqlarea和v$sql可以观察到library cache中的父子游标情况。v$sqlarea中保存父游标信息，而v$sql保存子游标信息。
SQL> select /*+version_count */count(*) from t where wner='SCOTT';
COUNT(*)
----------
14
SQL> select sql_id, version_count from v$sqlarea where sql_text like 'select /*+version_count */count(*)%';
SQL_ID VERSION_COUNT
------------- -------------
54fuganxkyky6 1
SQL> select sql_id, child_number from v$sql where sql_id='54fuganxkyky6';
SQL_ID CHILD_NUMBER
------------- ------------
54fuganxkyky6 0
SQL语句（sql_id=54fuganxkyky6）对应一个父游标和一个子游标。
version count就表示当前父游标下对应子游标的个数。如果一个父游标对应的子游标version count过多，也就是对应了很多的子游标对象。这样，当server process检查可共享的游标时，就需要长时间的检索子游标列表。
最有名的version count过多问题是由于设置cursor_sharing参数为similar后，引发的version count错误。
此外，version count过多也是我们需要诊断SQL为什么不会共享的一个出发点。比较常用的有两种，本篇中进行详细介绍：
2、v$sql_shared_cursor视图
SQL执行计划的生成，是受到很多因素影响的。相同父游标只是表示输入SQL的字面值相同。子游标对应的因素，如优化器类型、optimizer_mode、对应对象权限等的差异，都会影响到子游标的共享。
在Oracle 11g中，一个新的视图被提供出来，用于帮助诊断子游标不共享问题的原因，就是v$sql_shared_cursor。
SQL> desc v$sql_shared_cursor;
Name Type Nullable Default Comments
----------------------------- ------------ -------- ------- --------
SQL_ID VARCHAR2(13) Y
ADDRESS RAW(4) Y
CHILD_ADDRESS RAW(4) Y
CHILD_NUMBER NUMBER Y
UNBOUND_CURSOR VARCHAR2(1) Y
SQL_TYPE_MISMATCH VARCHAR2(1) Y
OPTIMIZER_MISMATCH VARCHAR2(1) Y
OUTLINE_MISMATCH VARCHAR2(1) Y
（篇幅原因，省略……）
PDML_ENV_MISMATCH VARCHAR2(1) Y
INST_DRTLD_MISMATCH VARCHAR2(1) Y
BIND_LENGTH_UPGRADEABLE VARCHAR2(1) Y
该视图是一个宽列视图，通过sql_id和child_number就可以定义某个特定子游标的信息。其他大部分列都是以varchar2(1)的Y/N取值，每列的含义都是一个不能共享的理由。注意：这个理由N表示的是不能共享第一个子游标child_number=0的理由。下面通过简单的示例演示，继续上面的实验。
SQL> select sql_id, child_number from v$sql where sql_id='54fuganxkyky6';
SQL_ID CHILD_NUMBER
------------- ------------
54fuganxkyky6 0
通过变换环境信息来生成新的子游标。
SQL> show parameter optimizer_mode
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
optimizer_mode string ALL_ROWS
--会话层面取值变化；
SQL> alter session set optimizer_mode=first_rows;
Session altered
SQL> select value from v$parameter where name='optimizer_mode';
VALUE
-----------------------------------------------------------------
FIRST_ROWS
重新执行SQL，检查执行计划。
SQL> select /*+version_count */count(*) from t where wner='SCOTT';
COUNT(*)
----------
14
SQL> select sql_id, version_count from v$sqlarea where sql_text like 'select /*+version_count */count(*)%';
SQL_ID VERSION_COUNT
------------- -------------
54fuganxkyky6 2
SQL> select sql_id, child_number, OPTIMIZER_MODE from v$sql where sql_id='54fuganxkyky6';
SQL_ID CHILD_NUMBER OPTIMIZER_MODE
------------- ------------ --------------
54fuganxkyky6 0 ALL_ROWS
54fuganxkyky6 1 FIRST_ROWS
生成了两个执行计划。此时，如果我们检查v$sql_shared_cursor，就可以发现非共享的原因。
SQL> select sql_id, child_number, OPTIMIZER_MODE_MISMATCH from v$sql_shared_cursor where sql_id='54fuganxkyky6';
SQL_ID CHILD_NUMBER OPTIMIZER_MODE_MISMATCH
------------- ------------ -----------------------
54fuganxkyky6 0 N
54fuganxkyky6 1 Y
在实际中，使用v$sql_shared_cursor就可以确定非共享SQL子游标的原因。
3、version-rpt脚本
在MOS438755.1中，Oracle提供了一个专门的脚本程序，用于协助诊断high SQL version count问题。
首先，我们需要从MOS上下载到脚本version_rpt.sql，目前笔者的版本为3.1.2。使用sys用户登录之后，调用该脚本创建相应的数据库对象。
SQL> @version_rpt3_12.sql
视图已创建。
函数已创建。
注意，在笔者的实验中，直接从MOS上下载的文件是不能正确编译通过的。要将下面片段进行修改：
--原有结构
SELECT COLUMN_NAME,0
from cols
where table_name='SQL_SHARED_CURSOR'
and CHAR_LENGTH=1
order by column_id;
--修改之后
SELECT COLUMN_NAME,0 bulk collect into v_colname,v_Ycnt
from dba_tab_cols
where table_name='SQL_SHARED_CURSOR'
and CHAR_LENGTH=1
order by column_id;
借助创建的函数version_rpt，可以详细分析version count问题。具体使用的方法有三个场景：
ü 列出version count大于某个阈值的报告，以sql_id方式显示
SQL> select b.* from v$sqlarea a ,table(version_rpt(a.sql_id)) b where loaded_versions >=4;
COLUMN_VALUE
----------------------------------------------------------------------------
Version Count Report Version 3.1.2 -- Today's Date 12-5月 -12 15:20
RDBMS Version :11.2.0.1.0 Host: oracle11g Instance 1 : wilson
==================================================================
Addr: 385D72E0 Hash_Value: 3393782897 SQL_ID 9p6bq1v54k13j
Sharable_Mem: 51266 bytes Parses: 5
Stmt:
0 select value$ from sys.props$ where name = :1
Versions Summary
----------------
SQL_TYPE_MISMATCH :3
BIND_MISMATCH :1
Total Versions:3
~
Plan Hash Value Summary
-----------------------
Plan Hash Value Count
=============== =====
415205717 4
COLUMN_VALUE
-----------------------------------------------------------------------
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Details for SQL_TYPE_MISMATCH :
No details available
~~~~~~~~~~~~~~~~~~~~~~~~~~~
Details for BIND_MISMATCH :
Consolidated details for :
BIND_MISMATCH,USER_BIND_PEEK_MISMATCH,BIND_UACS_DIFF and
BIND_EQUIV_FAILURE (Mislabled as ROW_LEVEL_SEC_MISMATCH BY bug 6964441 in 11gR1)
from v$sql_bind_capture
COUNT(*) POSITION MIN(MAX_LENGTH) MAX(MAX_LENGTH) DATATYPE (PRECISION,SCALE)
======== ======== =============== =============== ======== ================
4 1 32 32 1 ()
SUM(DECODE(column,Y, 1, 0) FROM V$SQL
IS_OBSOLETE IS_BIND_SENSITIVE IS_BIND_AWARE IS_SHAREABLE
=========== ================= ============= ============
0 0 0 4
####
COLUMN_VALUE
--------------------------------------------------------------------------------
To further debug Ask Oracle Support for the appropiate level LLL.
alter session set events
'immediate trace name cursortrace address 3393782897, level LLL';
To turn it off do use address 1, level 2147483648
================================================================
46 rows selected
ü 列出version count大于某个阈值的报告，以sql_hash方式显示
SQL> select b.* from v$sqlarea a ,table(version_rpt(null,a.hash_value)) b where loaded_versions>=4;
COLUMN_VALUE
--------------------------------------------------------------------------------
Version Count Report Version 3.1.2 -- Today's Date 12-5月 -12 15:22
RDBMS Version :11.2.0.1.0 Host: oracle11g Instance 1 : wilson
==================================================================
Addr: 385D72E0 Hash_Value: 3393782897 SQL_ID 9p6bq1v54k13j
Sharable_Mem: 51266 bytes Parses: 5
Stmt:
0 select value$ from sys.props$ where name = :1
Versions Summary
----------------
SQL_TYPE_MISMATCH :3
BIND_MISMATCH :1
Total Versions:3
~
Plan Hash Value Summary
-----------------------
Plan Hash Value Count
=============== =====
415205717 4
（篇幅原因，省略……）
ü 列出某个特定sql_id的version count
SQL> select * from table(version_rpt('9p6bq1v54k13j'));
COLUMN_VALUE
--------------------------------------------------------------------------------
Version Count Report Version 3.1.2 -- Today's Date 12-5月 -12 15:23
RDBMS Version :11.2.0.1.0 Host: oracle11g Instance 1 : wilson
==================================================================
Addr: 385D72E0 Hash_Value: 3393782897 SQL_ID 9p6bq1v54k13j
Sharable_Mem: 51266 bytes Parses: 5
Stmt:
0 select value$ from sys.props$ where name = :1
Versions Summary
----------------
SQL_TYPE_MISMATCH :3
BIND_MISMATCH :1
Total Versions:3
三种方法，都可以很直观的帮助我们定位问题和错误。
4、结论
version count问题是Oracle SQL共享的一个方面。借助适当的工具手段，我们可以准确的定位问题，解决问题。
翻译metalink上关于high version count的文章
SQL_TEXT HASH_VALUE ADDRESS
------------------------ ------------ ----------------
select count(*) from emp 4085390015 0000000386BC2E58
oracle 10.0.X.X以后：
select * from v$sql_shared_cursor where address = '0000000386BC2E58'
输出如下：
ADDRESS KGLHDPAR U S O O S L S E B P I S T A B D L T R I I R L I O S M U T N F
---------------- ---------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
0000000386BC2D08 0000000386BC2E58 N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N
---------------- ---------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
0000000386BC2D08 0000000386BC2E58 N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N
0000000386A91AA0 0000000386BC2E58 N N N N N N N N N N N N N Y N N N Y N N N N N N N N N N N N N
>>>>
>>>>
<
>
>
>
>
>
>
&
>
扫一扫
1906
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
