433.92 TX RX module design and test recording。。

This paper records the process of 433.92 TX RX module  design and test，fyi。



 1 RX module

         The circuit shown in Fig 1，The super-heterodyne FM receiver RX with High sensitivity and selectivity. It is equipped by front-end SAW filter that allows an High noise immunity. Enable pin allows to reach power-down mode to reduce the power consumption up to 0,5 uA. Ideal for Microchip Keeloq decoders

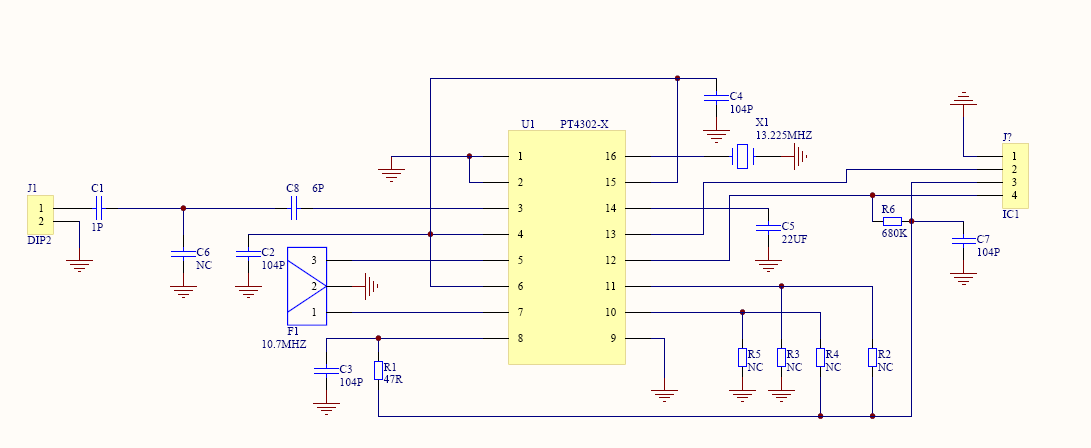

                                                     Fig 1 circult







  2 TX module

        TX module  is more complicated than rx module.
