ELK介绍

需求背景：

业务发展越来越庞大，服务器越来越多.
各种访问日志、应用日志、错误日志量越来越多开发人员排查问题，需要到服务器上查日志，不方便 .
运营人员需要一些数据，需要我们运维到服务器上分析日志.

官网:https://www.elastic.co/cn/
中文指南https://www.gitbook.com/book/chenryn/elk-stack-guide-cn/details
ELK Stack （5.0版本之后） Elastic Stack == （ELK Stack + Beats）
ELK Stack包含：ElasticSearch、Logstash、Kibana
ElasticSearch是一个搜索引擎，用来搜索、分析、存储日志。它是分布式的，也就是说可以横向扩容，可以自动发现，索引自动分片，总之很强大。
文档https://www.elastic.co/guide/cn/elasticsearch/guide/current/index.html
Logstash用来采集日志，把日志解析为json格式交给ElasticSearch。
Kibana是一个数据可视化组件，把处理后的结果通过web界面展示
Beats在这里是一个轻量级日志采集器，其实Beats家族有5个成员
早期的ELK架构中使用Logstash收集、解析日志，但是Logstash对内存、cpu、io等资源消耗比较高。相比 Logstash，Beats所占系统的CPU和内存几乎可以忽略不计
x-pack对Elastic Stack提供了安全、警报、监控、报表、图表于一身的扩展包，是收费的

ELK安装准备工作
安装es

准备三台服务器：
192.168.2.115 -- 主节点
192.168.2.116 -- 数据节点
192.168.2.117 -- 数据节点

1.角色划分:

192.168.2.115 -- 主节点安装Kibana
192.168.2.116 -- 数据节点安装logstash

三台虚拟机安装: elasticsearch
Ps: 以下操作三台机器都要执行

#下载rpm包
[root@root-01 ~]# rpm --import https://artifacts.elastic.co/GPG-KEY-elasticsearch


#写一个repo文件

[root@root-03 ~]# vim /etc/yum.repos.d/elastic.repo
[elasticsearch-6.x]
name=Elasticsearch repository for 6.x packages
baseurl=https://artifacts.elastic.co/packages/6.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
autorefresh=1
type=rpm-md



#yum 安装elasticsh

[root@root-01 ~]# yum list |grep elastic
apm-server.i686                             6.1.1-1                    elasticsearch-6.x
apm-server.x86_64                           6.1.1-1                    elasticsearch-6.x
auditbeat.i686                              6.1.1-1                    elasticsearch-6.x
auditbeat.x86_64                            6.1.1-1                    elasticsearch-6.x
elasticsearch.noarch                        6.1.1-1                    elasticsearch-6.x
filebeat.i686                               6.1.1-1                    elasticsearch-6.x
filebeat.x86_64                             6.1.1-1                    elasticsearch-6.x
heartbeat-elastic.i686                      6.1.1-1                    elasticsearch-6.x
heartbeat-elastic.x86_64                    6.1.1-1                    elasticsearch-6.x
kibana.x86_64                               6.1.1-1                    elasticsearch-6.x
logstash.noarch                             1:6.1.1-1                  elasticsearch-6.x
metricbeat.i686                             6.1.1-1                    elasticsearch-6.x
metricbeat.x86_64                           6.1.1-1                    elasticsearch-6.x
packetbeat.i686                             6.1.1-1                    elasticsearch-6.x
packetbeat.x86_64                           6.1.1-1                    elasticsearch-6.x
pcp-pmda-elasticsearch.x86_64               3.11.8-7.el7               base
rsyslog-elasticsearch.x86_64                8.24.0-12.el7              base


[root@root-03 ~]# yum install -y elasticsearch

三台虚拟机都安装：java-1.8.0-openjdk

安装：
[root@root-01 ~]# yum install -y java-1.8.0-openjdk

查看版本:
[root@root-01 ~]# java -version
openjdk version "1.8.0_151"
OpenJDK Runtime Environment (build 1.8.0_151-b12)
OpenJDK 64-Bit Server VM (build 25.151-b12, mixed mode)

[root@root-01 ~]# which java
/usr/bin/java

配置es

在主节点上操作

说明: elasticsearch配置文件：/etc/elasticsearch/elasticsearch.yml和/etc/sysconfig/elasticsearch

[root@root-01 ~]# vim /etc/elasticsearch/elasticsearch.yml

# ======================== Elasticsearch Configuration =========================
................................................................................
................................................................................
................................................................................
#cluster.name: my-application
cluster.name: Elk-application   //集群的名称，可自定义


# ------------------------------------ Node ------------------------------------
................................................................................
................................................................................
................................................................................
#node.name: node-1
node.name: root-01       //节点名称
node.master: true      //定义角色，是否是master，是的话写true，不是的话写false
node.data: false       //定义角色，是否是数据节点，是的话写true，不是的话写false


# ---------------------------------- Network -----------------------------------
................................................................................
................................................................................
................................................................................
#network.host: 192.168.0.1  //将注释去掉,修改为:network.host: 192.168.2.115
#http.port: 9200            //将注释去掉，即可:http.port: 9200


# --------------------------------- Discovery ----------------------------------
#discovery.zen.ping.unicast.hosts: ["host1", "host2"]
discovery.zen.ping.unicast.hosts: ["192.168.2.115", "192.168.2.116", "192.168.2.117"]
说明:定义自动发现，可以写主机名，前提是写了hosts,可以写IP.

在数据节点上操作 --两台

[root@root-02 ~]# vim /etc/elasticsearch/elasticsearch.yml

# ======================== Elasticsearch Configuration =========================
................................................................................
................................................................................
................................................................................
#cluster.name: my-application
cluster.name:Elk-application   //集群的名称，可自定义


# ------------------------------------ Node ------------------------------------
................................................................................
................................................................................
................................................................................
#node.name: node-1
node.name: root-02       //节点名称
node.master: false      //定义角色，是否是master，是的话写true，不是的话写false
node.data: true         //定义角色，是否是数据节点，是的话写true，不是的话写false


# ---------------------------------- Network -----------------------------------
................................................................................
................................................................................
................................................................................
#network.host: 192.168.0.1  //将注释去掉,修改为:network.host: 192.168.2.116
#http.port: 9200            //将注释去掉，即可:http.port: 9200


# --------------------------------- Discovery ----------------------------------
#discovery.zen.ping.unicast.hosts: ["host1", "host2"]
discovery.zen.ping.unicast.hosts: ["192.168.2.115", "192.168.2.116", "192.168.2.117"]
说明:定义自动发现，可以写主机名，前提是写了hosts,可以写IP.




[root@root-3 ~]# vim /etc/elasticsearch/elasticsearch.yml

# ======================== Elasticsearch Configuration =========================
................................................................................
................................................................................
................................................................................
#cluster.name: my-application
cluster.name:Elk-application   //集群的名称，可自定义


# ------------------------------------ Node ------------------------------------
................................................................................
................................................................................
................................................................................
#node.name: node-1
node.name: root-03        //节点名称
node.master: false      //定义角色，是否是master，是的话写true，不是的话写false
node.data: true         //定义角色，是否是数据节点，是的话写true，不是的话写false


# ---------------------------------- Network -----------------------------------
................................................................................
................................................................................
................................................................................
#network.host: 192.168.0.1  //将注释去掉,修改为:network.host: 192.168.2.117
#http.port: 9200            //将注释去掉，即可:http.port: 9200


# --------------------------------- Discovery ----------------------------------
#discovery.zen.ping.unicast.hosts: ["host1", "host2"]
discovery.zen.ping.unicast.hosts: ["192.168.2.115", "192.168.2.116", "192.168.2.117"]
说明:定义自动发现，可以写主机名，前提是写了hosts,可以写IP.

启动es 服务

#启动elasticsearch
[root@root-01 ~]# systemctl start elasticsearch

#查看elasticsearch是否起来
[root@root-01 log]# ps aux |grep elasticsearch
root       4862  0.0  0.0 112664   972 pts/0    S+   23:26   0:00 grep --color=auto elasticsearch

说明:没有elasticsearch的进程，elasticsearch的服务没有启动起来.


#排查错误
说明:因为没有定义elasticsearch的错误日志，所以只能查看messages
[root@root-01 ~]# tail -n 200 /var/log/messages
........................................
........................................
........................................
Dec 31 23:19:57 root-01 elasticsearch: Exception in thread "main" 2017-12-31 23:19:57,202 main ERROR No log4j2 configuration file found. Using default configuration: logging only errors to the console. Set system property 'log4j2.debug' to show Log4j2 internal initialization logging.


【在线程异常“主要”2017-12-31 23：19：57202主要误差不对log4j2配置文件中找到。使用默认配置：只将错误记录到控制台。设置系统属性“log4j2。调试的显示log4j2内部初始化记录】


#根据问题原因去解决，解决方法如下：
[root@root-01 ~]# yum install -y log4j*


#重新启动elasticsearch
[root@root-01 ~]# systemctl start elasticsearch


#查进程
[[root@root-02 ~]# ps aux |grep elasticsearch
elastic+   3321  3.6 68.9 3632996 689680 ?      Ssl  23:43   0:03 /bin/java -Xms1g -Xmx1g -XX:+UseConcMarkSweepGC -XX:CMSInitiatingOccupancyFraction=75 -XX:+UseCMSInitiatingOccupancyOnly -XX:+AlwaysPreTouch -server -Xss1m -Djava.awt.headless=true -Dfile.encoding=UTF-8 -Djna.nosys=true -XX:-OmitStackTraceInFastThrow -Dio.netty.noUnsafe=true -Dio.netty.noKeySetOptimization=true -Dio.netty.recycler.maxCapacityPerThread=0 -Dlog4j.shutdownHookEnabled=false -Dlog4j2.disable.jmx=true -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/var/lib/elasticsearch -Des.path.home=/usr/share/elasticsearch -Des.path.conf=/etc/elasticsearch -cp /usr/share/elasticsearch/lib/* org.elasticsearch.bootstrap.Elasticsearch -p /var/run/elasticsearch/elasticsearch.pid --quiet
root       3368  0.6  0.0 112664   976 pts/0    S+   23:44   0:00 grep --color=auto elasticsearch


#查看端口：9200 9300
[root@root-01 ~]# netstat -nlpt
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1395/sshd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      2147/sendmail: acce
tcp        0      0 127.0.0.1:9000          0.0.0.0:*               LISTEN      2017/php-fpm: maste
tcp6       0      0 192.168.2.115:9200      :::*                    LISTEN      5402/java
tcp6       0      0 192.168.2.115:9300      :::*                    LISTEN      5402/java
tcp6       0      0 :::22                   :::*                    LISTEN      1395/sshd

curl查看es

1.curl '192.168.2.115:9200/_cluster/health?pretty' ---> 健康检查

[root@root-01 ~]# curl '192.168.2.115:9200/_cluster/health?pretty'
{
  "cluster_name" : "Elk-application",
  "status" : "green",
  "timed_out" : false,
  "number_of_nodes" : 3,
  "number_of_data_nodes" : 2,
  "active_primary_shards" : 0,
  "active_shards" : 0,
  "relocating_shards" : 0,
  "initializing_shards" : 0,
  "unassigned_shards" : 0,
  "delayed_unassigned_shards" : 0,
  "number_of_pending_tasks" : 0,
  "number_of_in_flight_fetch" : 0,
  "task_max_waiting_in_queue_millis" : 0,
  "active_shards_percent_as_number" : 100.0
}

2.curl '192.168.2.115:9200/_cluster/state?pretty' --->集群详细信息

[root@root-01 ~]# curl '192.168.2.115:9200/_cluster/state?pretty'
{
  "cluster_name" : "Elk-application",
  "compressed_size_in_bytes" : 343,
  "version" : 4,
  "state_uuid" : "na1Sj50iRQ-Zz-yBJNUJUQ",
  "master_node" : "LuMCh0GiR16kqB0vZ3kvbw",
  "blocks" : { },
  "nodes" : {
    "LuMCh0GiR16kqB0vZ3kvbw" : {
      "name" : "root-01",
      "ephemeral_id" : "-VFAkd6WQH2-Q28-FcxvaQ",
      "transport_address" : "192.168.2.115:9300",
      "attributes" : { }
    },
    "wD7xAKG_Sn2DeR1m4K1O3A" : {
      "name" : "root-02",
      "ephemeral_id" : "b9BSaEicQ7GQnDO1LaPCYg",
      "transport_address" : "192.168.2.116:9300",
      "attributes" : { }
    },
    "qtCZi5gHSJyobT3714lTYA" : {
      "name" : "root-03",
      "ephemeral_id" : "tAsVI0oeRNSBi3aTbCYupw",
      "transport_address" : "192.168.2.117:9300",
      "attributes" : { }
    }
  },
  "metadata" : {
    "cluster_uuid" : "eExPC1ViTU2u3WWjwiW94A",
    "templates" : { },
    "indices" : { },
    "index-graveyard" : {
      "tombstones" : [ ]
    }
  },
  "routing_table" : {
    "indices" : { }
  },
  "routing_nodes" : {
    "unassigned" : [ ],
    "nodes" : {
      "qtCZi5gHSJyobT3714lTYA" : [ ],
      "wD7xAKG_Sn2DeR1m4K1O3A" : [ ]
    }
  },
  "snapshots" : {
    "snapshots" : [ ]
  },
  "restore" : {
    "snapshots" : [ ]
  },
  "snapshot_deletions" : {
    "snapshot_deletions" : [ ]
  }
}

安装kibana

说明:Kibana是呈现图形，是Web的一个工具.

1.在主节点上安装kibana即可

[root@root-01 src]# wget https://artifacts.elastic.co/downloads/kibana/kibana-6.0.0-x86_64.rpm
[root@root-01 src]# rpm -ivh kibana-6.0.0-x86_64.rpm

2.配置kibana配置文件

[root@root-01 src]# vim /etc/kibana/kibana.yml

..................
#server.port: 5601
#server.port: 5601   //kibana默认端口是5601，把#去掉

..................
#server.host: "localhost"
server.host: "192.168.2.115"   //定义绑定的IP


...................
#elasticsearch.url: "http://localhost:9200"
elasticsearch.url: "http://192.168.2.115:9200"  //kibana需要和es通信，所以需要定义一下es的URL，也就是主节点


...................
#logging.dest: stdout
logging.dest:/var/log/kibana.log  //定义kibana日志路径

3.启动kibana

[root@root-01 src]# systemctl start kibana

#查看进程
[root@root-01 src]# ps aux |grep kibana
kibana     2843 20.0 11.5 1123548 115684 ?      Ssl  15:12   0:07 /usr/share/kibana/bin/../node/bin/node --no-warnings /usr/share/kibana/bin/../src/cli -c /etc/kibana/kibana.yml
root       2873  2.0  0.0 112664   968 pts/0    R+   15:13   0:00 grep --color=auto kibana


#监听端口5601
[root@root-01 src]# netstat -nvlpt |grep node
tcp        0      0 192.168.2.115:5601      0.0.0.0:*               LISTEN      2843/node

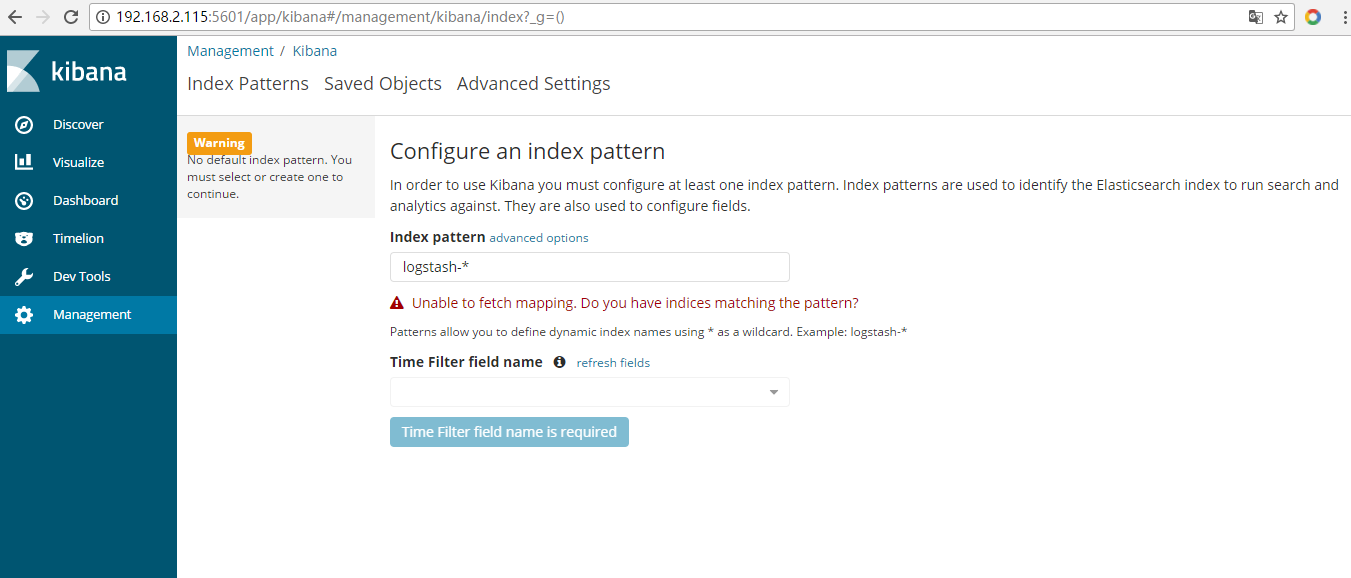

4. 浏览器里访问:http://192.168.2.115:5601/

安装logstash

1.下载安装logstash

说明:在其中一个从节点上在安装（192.168.2.116）

[root@root-02 ~]# cd /usr/local/src
[root@root-02 src]# wget https://artifacts.elastic.co/downloads/logstash/logstash6.0.0.rpm
[root@root-02 src]# rpm -ivh logstash-6.0.0.rpm

2.logstash收集syslog日志

说明: input : 进入的，也就是日志源
output: 输出的，日志输出到哪里去

[root@root-02 src]# vim /etc/logstash/conf.d/syslog.conf

input {
  syslog {
    type => "system-syslog"
    port => 10514
  }
}
output {
  stdout {
    codec => rubydebug
  }
}

3. 检测配置文件是否有错

[root@root-02 src]# cd /usr/share/logstash/bin

[root@root-02 bin]# ./logstash --path.settings /etc/logstash/ -f /etc/logstash/conf.d/syslog.conf --config.test_and_exit
Sending Logstash's logs to /var/log/logstash which is now configured via log4j2.properties
Configuration OK  ---> 说明配置文件没有问题

#检测命令: ./logstash --path.settings /etc/logstash/ -f /etc/logstash/conf.d/syslog.conf --config.test_and_exit

4.检测是否开启10514端口

[root@root-02 bin]# vi /etc/rsyslog.conf
....................
....................
....................
#### RULES ####

*.* @@192.168.2.116:10514   //定义这行配置的意思是把所有的日志都输出给10514端口

5. 启动logstash

说明：执行启动logstash是不会退出终端的，当安装、访问或者ssh登录某个虚拟机时产生日志，会在终端上显示

[root@root-02 bin]# ./logstash --path.settings /etc/logstash/ -f /etc/logstash/conf.d/syslog.conf
Sending Logstash's logs to /var/log/logstash which is now configured via log4j2.properties

5.1 再开一个终端，重启rsyslog服务

[root@root-02 ~]# systemctl restart rsyslog

[root@root-02 ~]# netstat -nvlpt
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1683/nginx: master
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1603/sshd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      2065/master
tcp        0      0 0.0.0.0:10050           0.0.0.0:*               LISTEN      1418/zabbix_agentd
tcp        0      0 127.0.0.1:9000          0.0.0.0:*               LISTEN      2111/php-fpm: maste
tcp6       0      0 192.168.2.116:9200      :::*                    LISTEN      2290/java
tcp6       0      0 :::10514                :::*                    LISTEN      2883/java
tcp6       0      0 192.168.2.116:9300      :::*                    LISTEN      2290/java
tcp6       0      0 :::22                   :::*                    LISTEN      1603/sshd
tcp6       0      0 ::1:25                  :::*                    LISTEN      2065/master
tcp6       0      0 127.0.0.1:9600          :::*                    LISTEN      2883/java
tcp6       0      0 :::10050                :::*                    LISTEN      1418/zabbix_agentd

5.2 ssh 到root-01

说明: 安装或是ssh 登录某台服务器都会产生日志

[root@root-02 ~]# ssh root-01
The authenticity of host 'root-01 (192.168.2.115)' can't be established.
ECDSA key fingerprint is bd:fd:56:cf:07:80:0d:a6:9c:38:00:be:33:1f:f5:7a.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'root-01' (ECDSA) to the list of known hosts.
root@root-01's password:
Last login: Sun Jan  7 13:30:44 2018 from 192.168.2.206
-bash: /etc/profile: 权限不够



#可以看到登录的日志
[root@root-02 bin]# ./logstash --path.settings /etc/logstash/ -f /etc/logstash/conf.d/syslog.conf
Sending Logstash's logs to /var/log/logstash which is now configured via log4j2.properties
10514{
          "severity" => 6,
           "program" => "rsyslogd",
           "message" => "[origin software=\"rsyslogd\" swVersion=\"7.4.7\" x-pid=\"3005\" x-info=\"http://www.rsyslog.com\"] start\n",
              "type" => "system-syslog",
          "priority" => 46,
         "logsource" => "root-02",
        "@timestamp" => 2018-01-07T08:52:46.000Z,
          "@version" => "1",
              "host" => "192.168.2.116",
          "facility" => 5,
    "severity_label" => "Informational",
         "timestamp" => "Jan  7 16:52:46",
    "facility_label" => "syslogd"
}
{
          "severity" => 6,
           "program" => "systemd",
           "message" => "Stopping System Logging Service...\n",
              "type" => "system-syslog",
          "priority" => 30,
         "logsource" => "root-02",
        "@timestamp" => 2018-01-07T08:52:46.000Z,
          "@version" => "1",
              "host" => "192.168.2.116",
          "facility" => 3,
    "severity_label" => "Informational",
         "timestamp" => "Jan  7 16:52:46",
    "facility_label" => "system"
}
{
          "severity" => 6,
           "program" => "systemd",
           "message" => "Starting System Logging Service...\n",
              "type" => "system-syslog",
          "priority" => 30,
         "logsource" => "root-02",
        "@timestamp" => 2018-01-07T08:52:46.000Z,
          "@version" => "1",
              "host" => "192.168.2.116",
          "facility" => 3,
    "severity_label" => "Informational",
         "timestamp" => "Jan  7 16:52:46",
    "facility_label" => "system"
}
{
          "severity" => 5,
               "pid" => "543",
           "program" => "polkitd",
           "message" => "Unregistered Authentication Agent for unix-process:2998:1227980 (system bus name :1.79, object path /org/freedesktop/PolicyKit1/AuthenticationAgent, locale zh_CN.UTF-8) (disconnected from bus)\n",
              "type" => "system-syslog",
          "priority" => 85,
         "logsource" => "root-02",
        "@timestamp" => 2018-01-07T08:52:46.000Z,
          "@version" => "1",
              "host" => "192.168.2.116",
          "facility" => 10,
    "severity_label" => "Notice",
         "timestamp" => "Jan  7 16:52:46",
    "facility_label" => "security/authorization"
}
{
          "severity" => 6,
           "program" => "systemd",
           "message" => "Started System Logging Service.\n",
              "type" => "system-syslog",
          "priority" => 30,
         "logsource" => "root-02",
        "@timestamp" => 2018-01-07T08:52:46.000Z,
          "@version" => "1",
              "host" => "192.168.2.116",
          "facility" => 3,
    "severity_label" => "Informational",
         "timestamp" => "Jan  7 16:52:46",
    "facility_label" => "system"
}                                                                                                                               {
          "severity" => 6,
           "program" => "systemd",
           "message" => "Started Session 28 of user root.\n",
              "type" => "system-syslog",
          "priority" => 30,
         "logsource" => "root-02",
        "@timestamp" => 2018-01-07T09:00:01.000Z,
          "@version" => "1",
              "host" => "192.168.2.116",
          "facility" => 3,
    "severity_label" => "Informational",
         "timestamp" => "Jan  7 17:00:01",
    "facility_label" => "system"
}
{
          "severity" => 6,
               "pid" => "3016",
           "program" => "CROND",
           "message" => "(root) CMD (/usr/lib64/sa/sa1 1 1)\n",
              "type" => "system-syslog",
          "priority" => 78,
         "logsource" => "root-02",
        "@timestamp" => 2018-01-07T09:00:01.000Z,
          "@version" => "1",
              "host" => "192.168.2.116",
          "facility" => 9,
    "severity_label" => "Informational",
         "timestamp" => "Jan  7 17:00:01",
    "facility_label" => "clock"
}
{
          "severity" => 6,
           "program" => "systemd",
           "message" => "Starting Session 28 of user root.\n",
              "type" => "system-syslog",
          "priority" => 30,
         "logsource" => "root-02",
        "@timestamp" => 2018-01-07T09:00:01.000Z,
          "@version" => "1",
              "host" => "192.168.2.116",
          "facility" => 3,
    "severity_label" => "Informational",
         "timestamp" => "Jan  7 17:00:01",
    "facility_label" => "system"
}

6.配置logstash

说明:后端形式启动logstash

#修改配置文件
[root@root-02 bin]# vim /etc/logstash/conf.d/syslog.conf

input {
  syslog {
    type => "system-syslog"
    port => 10514
  }
}
output {
  elasticsearch {
    hosts => ["192.168.2.115:9200"]
    index => "system-syslog-%{+YYYY.MM}"    //定义索引
  }
}


#检测配置文件是否ok
[root@root-02 bin]# ./logstash --path.settings /etc/logstash/ -f /etc/logstash/conf.d/syslog.conf --config.test_and_exit
Sending Logstash's logs to /var/log/logstash which is now configured via log4j2.properties
Configuration OK


#以后台形式启动logstash
[root@root-02 bin]# systemctl start logstash

#查看logstash进程
[root@root-02 bin]# ps aux |grep logstash
logstash   3138  269 38.7 3780868 387308 ?      SNsl 17:17   1:18 /bin/java -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:CMSInitiatingOccupancyFraction=75 -XX:+UseCMSInitiatingOccupancyOnly -XX:+DisableExplicitGC -Djava.awt.headless=true -Dfile.encoding=UTF-8 -XX:+HeapDumpOnOutOfMemoryError -Xmx1g -Xms256m -Xss2048k -Djffi.boot.library.path=/usr/share/logstash/vendor/jruby/lib/jni -Xbootclasspath/a:/usr/share/logstash/vendor/jruby/lib/jruby.jar -classpath : -Djruby.home=/usr/share/logstash/vendor/jruby -Djruby.lib=/usr/share/logstash/vendor/jruby/lib -Djruby.script=jruby -Djruby.shell=/bin/sh org.jruby.Main /usr/share/logstash/lib/bootstrap/environment.rb logstash/runner.rb --path.settings /etc/logstash
root       3175  0.0  0.0 112664   972 pts/0    R+   17:18   0:00 grep --color=auto logstash


#监听的端口有两个9600 & 10514
说明：启动需要一些时间，启动完成后，可以看到9600端口和10514端口已被监听
[root@root-02 ~]# !net
netstat -nvlpt
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1683/nginx: master
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1603/sshd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      2065/master
tcp        0      0 0.0.0.0:10050           0.0.0.0:*               LISTEN      1418/zabbix_agentd
tcp        0      0 127.0.0.1:9000          0.0.0.0:*               LISTEN      2111/php-fpm: maste
tcp6       0      0 192.168.2.116:9200      :::*                    LISTEN      2290/java
tcp6       0      0 192.168.2.116:9300      :::*                    LISTEN      2290/java
tcp6       0      0 :::22                   :::*                    LISTEN      1603/sshd
tcp6       0      0 ::1:25                  :::*                    LISTEN      2065/master
tcp6       0      0 :::10050                :::*                    LISTEN      1418/zabbix_agentd



#启动很久都没有启动成功,设置一下日志权限即可
[root@root-02 ~]# ls -lh !$
ls -lh /var/log/logstash/logstash-plain.log
-rw-r--r-- 1 root root 3.9K 1月   7 17:15 /var/log/logstash/logstash-plain.log

[root@root-02 ~]# chown logstash /var/log/logstash/logstash-plain.log

[root@root-02 ~]# ls -lh !$
ls -lh /var/log/logstash/logstash-plain.log
-rw-r--r-- 1 logstash root 3.9K 1月   7 17:15 /var/log/logstash/logstash-plain.log


#重新启动logstash
[root@root-02 ~]# systemctl restart logstash


#9600端口和10514端口还是没有起来
[root@root-02 ~]# !net
netstat -nvlpt
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1683/nginx: master
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1603/sshd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      2065/master
tcp        0      0 0.0.0.0:10050           0.0.0.0:*               LISTEN      1418/zabbix_agentd
tcp        0      0 127.0.0.1:9000          0.0.0.0:*               LISTEN      2111/php-fpm: maste
tcp6       0      0 192.168.2.116:9200      :::*                    LISTEN      2290/java
tcp6       0      0 192.168.2.116:9300      :::*                    LISTEN      2290/java
tcp6       0      0 :::22                   :::*                    LISTEN      1603/sshd
tcp6       0      0 ::1:25                  :::*                    LISTEN      2065/master
tcp6       0      0 :::10050                :::*                    LISTEN      1418/zabbix_agentd


#查看logstash日志
[root@root-02 ~]# tailf /var/log/logstash/logstash-plain.log

[2018-01-07T20:24:56,378][FATAL][logstash.runner          ] An unexpected error occurred! {:error=>#<ArgumentError: Path "/var/lib/logstash/queue" must be a writable directory. It is not writable.>, :backtrace=>["/usr/share/logstash/logstash-core/lib/logstash/settings.rb:443:in `validate'", "/usr/share/logstash/logstash-core/lib/logstash/settings.rb:225:in `validate_value'", "/usr/share/logstash/logstash-core/lib/logstash/settings.rb:136:in `block in validate_all'", "org/jruby/RubyHash.java:1343:in `each'", "/usr/share/logstash/logstash-core/lib/logstash/settings.rb:135:in `validate_all'", "/usr/share/logstash/logstash-core/lib/logstash/runner.rb:280:in `execute'", "/usr/share/logstash/vendor/bundle/jruby/2.3.0/gems/clamp-0.6.5/lib/clamp/command.rb:67:in `run'", "/usr/share/logstash/logstash-core/lib/logstash/runner.rb:232:in `run'", "/usr/share/logstash/vendor/bundle/jruby/2.3.0/gems/clamp-0.6.5/lib/clamp/command.rb:132:in `run'", "/usr/share/logstash/lib/bootstrap/environment.rb:71:in `<main>'"]}

说明：/var/lib/logstash/queue 属主也需要设为logstash

#解决
[root@root-02 ~]# chown logstash -R /var/lib/logstash/queue

[root@root-02 ~]# ls -ld /var/lib/logstash/queue
drwxr-xr-x 2 logstash root 6 1月   7 16:23 /var/lib/logstash/queue


#重新启动logstash
[root@root-02 ~]# systemctl restart logstash


#可以看到已经监听9600 和10514端口
[root@root-02 ~]# netstat -nvlpt
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1683/nginx: master
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1603/sshd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      2065/master
tcp        0      0 0.0.0.0:10050           0.0.0.0:*               LISTEN      1418/zabbix_agentd
tcp        0      0 127.0.0.1:9000          0.0.0.0:*               LISTEN      2111/php-fpm: maste
tcp6       0      0 192.168.2.116:9200      :::*                    LISTEN      2290/java
tcp6       0      0 :::10514                :::*                    LISTEN      23133/java
tcp6       0      0 192.168.2.116:9300      :::*                    LISTEN      2290/java
tcp6       0      0 :::22                   :::*                    LISTEN      1603/sshd
tcp6       0      0 ::1:25                  :::*                    LISTEN      2065/master
tcp6       0      0 127.0.0.1:9600          :::*                    LISTEN      23133/java
tcp6       0      0 :::10050                :::*                    LISTEN      1418/zabbix_agentd

温馨提示：若一直启动不了端口，查看tail /var/log/logstash/logstash-plain.log ，一般是权限问题

转载于:https://my.oschina.net/AnnaWu/blog/1600077
