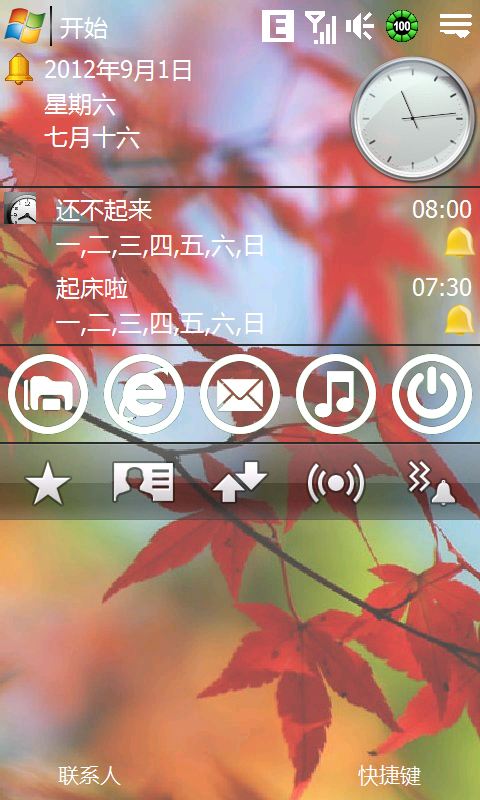

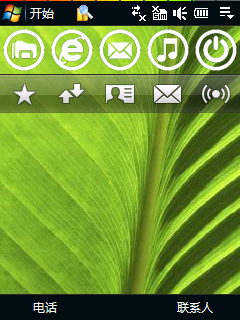

本文介绍了一个用于今日启动器的插件开发实例，该插件可以读取配置文件并加载图片资源，通过鼠标点击来启动不同的应用程序。文章详细展示了如何使用 COM 对象创建和绘制图片，以及如何通过 Windows API 进行界面绘制和消息处理。

用到了RdWrtIni.h RdWrtIni.cpp，不知道是誰寫的，用來讀取ini，感謝他的分享。

用到了IImage庫。

// HelloWorldTodayPlug.cpp : 定义 DLL 应用程序的入口点。
//

extern "C" _declspec(dllexport) HWND	APIENTRY	InitializeCustomItem(TODAYLISTITEM, HWND);
extern "C" _declspec(dllexport)	DWORD	APIENTRY	CustomOptionsDlgProc();
#include "stdafx.h"
#include <windows.h>
#include <commctrl.h>
#include "stdio.h"
#include "RdWrtIni.h"
#include <initguid.h>
#include <imaging.h>
#pragma comment(lib, "Imaging")

HINSTANCE	g_hInst;
HWND		g_hWndParent;

#define PROFILE _T(".\\TodayLauncher.ini")

IImage *img[10];
IImagingFactory *imgFac[10];

int Length;
int FocusSel;
TCHAR szCmdExe[5][MAX_PATH];
TCHAR szCmdLine[5][MAX_PATH];

//void DrawUI(HDC hDC, int type);
//void FillSolidRect(HDC hDC, int x, int y, int cx, int cy, COLORREF clr);
void ShowUI(HDC hDC, int type);

BOOL APIENTRY DllMain( HANDLE hModule, DWORD  ul_reason_for_call, LPVOID lpReserved)
{
    return TRUE;
}

LRESULT WINAPI MsgProc(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam)
{
	switch(msg)
	{
	case WM_CREATE:
		{
			FocusSel = 0;
			Length = GetSystemMetrics(SM_CXSCREEN) / 5;

			GetPrivateProfileString(_T("Executable"), _T("App1"), _T(""), szCmdExe[0], MAX_PATH, PROFILE);
			GetPrivateProfileString(_T("Executable"), _T("App2"), _T(""), szCmdExe[1], MAX_PATH, PROFILE);
			GetPrivateProfileString(_T("Executable"), _T("App3"), _T(""), szCmdExe[2], MAX_PATH, PROFILE);
			GetPrivateProfileString(_T("Executable"), _T("App4"), _T(""), szCmdExe[3], MAX_PATH, PROFILE);
			GetPrivateProfileString(_T("Executable"), _T("App5"), _T(""), szCmdExe[4], MAX_PATH, PROFILE);

			GetPrivateProfileString(_T("CommandLine"), _T("Cmd1"), _T(""), szCmdLine[0], MAX_PATH, PROFILE);
			GetPrivateProfileString(_T("CommandLine"), _T("Cmd2"), _T(""), szCmdLine[1], MAX_PATH, PROFILE);
			GetPrivateProfileString(_T("CommandLine"), _T("Cmd3"), _T(""), szCmdLine[2], MAX_PATH, PROFILE);
			GetPrivateProfileString(_T("CommandLine"), _T("Cmd4"), _T(""), szCmdLine[3], MAX_PATH, PROFILE);
			GetPrivateProfileString(_T("CommandLine"), _T("Cmd5"), _T(""), szCmdLine[4], MAX_PATH, PROFILE);

			if (FAILED(CoInitializeEx(NULL, COINIT_MULTITHREADED)))
			{
				MessageBox(NULL, _T("COM初始化失敗"), NULL, MB_OK);
				return FALSE;
			}

			for (int i=0; i<10; i++)
			{
				if(FAILED(CoCreateInstance(CLSID_ImagingFactory, NULL,CLSCTX_INPROC_SERVER, IID_IImagingFactory, (void**)&imgFac[i])))
				{
					MessageBox(NULL, _T("創建COM實例失敗"), NULL, MB_OK);
					return FALSE;
				}
			}

			if(FAILED(imgFac[0]->CreateImageFromFile(TEXT("\\TodayLauncher\\1.png"), &img[0])))
			{
				MessageBox(NULL, _T("載入圖片1失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[1]->CreateImageFromFile(TEXT("\\TodayLauncher\\2.png"), &img[1])))
			{
				MessageBox(NULL, _T("載入圖片2失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[2]->CreateImageFromFile(TEXT("\\TodayLauncher\\3.png"), &img[2])))
			{
				MessageBox(NULL, _T("載入圖片3失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[3]->CreateImageFromFile(TEXT("\\TodayLauncher\\4.png"), &img[3])))
			{
				MessageBox(NULL, _T("載入圖片4失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[4]->CreateImageFromFile(TEXT("\\TodayLauncher\\5.png"), &img[4])))
			{
				MessageBox(NULL, _T("載入圖片5失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[5]->CreateImageFromFile(TEXT("\\TodayLauncher\\6.png"), &img[5])))
			{
				MessageBox(NULL, _T("載入圖片6失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[6]->CreateImageFromFile(TEXT("\\TodayLauncher\\7.png"), &img[6])))
			{
				MessageBox(NULL, _T("載入圖片7失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[7]->CreateImageFromFile(TEXT("\\TodayLauncher\\8.png"), &img[7])))
			{
				MessageBox(NULL, _T("載入圖片8失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[8]->CreateImageFromFile(TEXT("\\TodayLauncher\\9.png"), &img[8])))
			{
				MessageBox(NULL, _T("載入圖片9失敗"), NULL, MB_OK);
			}
			if(FAILED(imgFac[9]->CreateImageFromFile(TEXT("\\TodayLauncher\\10.png"), &img[9])))
			{
				MessageBox(NULL, _T("載入圖片10失敗"), NULL, MB_OK);
			}
		}
		break;
	case WM_ERASEBKGND:
		{
			TODAYDRAWWATERMARKINFO tbi;
			tbi.hwnd	= hWnd;
			tbi.hdc		= (HDC)wParam;
			GetClientRect(hWnd, &tbi.rc);
			SendMessage(GetParent(hWnd), TODAYM_DRAWWATERMARK, 0, (LPARAM)&tbi);

			//ShowUI(tbi.hdc, FocusSel);

			return TRUE;
		}
		break;
	case WM_TODAYCUSTOM_QUERYREFRESHCACHE:
		if (!((TODAYLISTITEM*)wParam)->cyp)
		{
			((TODAYLISTITEM*)wParam)->cyp = GetSystemMetrics(SM_CXSCREEN)/5;
			return TRUE;
		}

		break;

	case WM_TODAYCUSTOM_CLEARCACHE:
		break;

	case WM_DESTROY:
		{
			for (int i=0; i<10; i++)
			{
				img[i]->Release();
				img[i] = NULL;

				imgFac[i]->Release();
				imgFac[i] = NULL;
			}

			CoUninitialize();
		}
		break;

	case WM_PAINT:
		{
			PAINTSTRUCT pt;
			HDC dc	= BeginPaint(hWnd, &pt);
			SetBkMode(dc, TRANSPARENT);

 			ShowUI(dc, FocusSel);

			EndPaint(hWnd, &pt);
			ReleaseDC(hWnd, dc);

			return 0;
		}
		break;

	case WM_LBUTTONUP:
		{
			POINT pt;
			pt.x = LOWORD(lParam);

			FocusSel = 0;
			InvalidateRect(hWnd, NULL, FALSE);
			UpdateWindow(hWnd);

			PROCESS_INFORMATION pi; //必备参数设置结束

			if (pt.x > Length * 4)
			{
				if(!CreateProcess(szCmdExe[4], szCmdLine[4], NULL, NULL, FALSE, 0, NULL, NULL, NULL, &pi))
				{
					MessageBox(NULL, _T("CreateProcess Failed!"), _T("ERROR"), MB_OK);
				}
			}
			else if (pt.x > Length * 3)
			{
				if(!CreateProcess(szCmdExe[3], szCmdLine[3], NULL, NULL, FALSE, 0, NULL, NULL, NULL, &pi))
				{
					MessageBox(NULL, _T("CreateProcess Failed!"), _T("ERROR"), MB_OK);
				}
			}
			else if (pt.x > Length * 2)
			{
				if(!CreateProcess(szCmdExe[2], szCmdLine[2], NULL, NULL, FALSE, 0, NULL, NULL, NULL, &pi))
				{
					MessageBox(NULL, _T("CreateProcess Failed!"), _T("ERROR"), MB_OK);
				}
			}
			else if (pt.x > Length)
			{
				if(!CreateProcess(szCmdExe[1], szCmdLine[1], NULL, NULL, FALSE, 0, NULL, NULL, NULL, &pi))
				{
					MessageBox(NULL, _T("CreateProcess Failed!"), _T("ERROR"), MB_OK);
				}
			}
			else
			{
				if(!CreateProcess(szCmdExe[0], szCmdLine[0], NULL, NULL, FALSE, 0, NULL, NULL, NULL, &pi))
				{
					MessageBox(NULL, _T("CreateProcess Failed!"), _T("ERROR"), MB_OK);
				}
			}

			return TRUE;
		}

	case WM_LBUTTONDOWN:
		{
			POINT pt;
			pt.x = LOWORD(lParam);

			if (pt.x > Length * 4)
			{
				FocusSel = 5;
			}
			else if (pt.x > Length * 3)
			{
				FocusSel = 4;
			}
			else if (pt.x > Length * 2)
			{
				FocusSel = 3;
			}
			else if (pt.x > Length)
			{
				FocusSel = 2;
			}
			else
			{
				FocusSel = 1;
			}

			InvalidateRect(hWnd, NULL, FALSE);
			UpdateWindow(hWnd);

			return TRUE;
		}

	default:
		return	DefWindowProc( hWnd, msg, wParam, lParam );
	}
	return 0;
}


ATOM MyRegisterClass(HINSTANCE hInstance)
{
	WNDCLASS wc = { 0L,
					MsgProc,
					0L,
					0L,
                    hInstance,
					NULL,
					NULL,
					NULL,
					NULL,
                    TEXT("TodayLauncherPlug")
				  };
	return RegisterClass( &wc );
}

HWND	APIENTRY	InitializeCustomItem(TODAYLISTITEM *ptli, HWND hWndParent)
{
	if (!ptli->fEnabled)
	{
		MessageBox(0, TEXT("DISABLED!"), NULL, 0);
		return NULL;
	}
	g_hInst			= ptli->hinstDLL;
	g_hWndParent	= hWndParent;
	MyRegisterClass(g_hInst);

	HWND hWnd = CreateWindow(TEXT("TodayLauncherPlug"),
							 TEXT("TodayLauncherWindow"),
							 WS_VISIBLE | WS_CHILD,
							 0,
							 0,
							 GetSystemMetrics (SM_CXSCREEN),
							 GetSystemMetrics (SM_CXSCREEN)/5,
							 hWndParent,
							 NULL,
							 g_hInst,
							 NULL);
	if (!hWnd)
		MessageBox(0, TEXT("MyRegisterClass Fail!"), NULL, 0);

	ShowWindow (hWnd, SW_SHOWNORMAL);
	UpdateWindow(hWnd);

	return hWnd;
}


DWORD	APIENTRY	CustomOptionsDlgProc()
{
	return 0;
}

//if(!CreateProcess(szCmdExe,szCmdLine,NULL,NULL,FALSE,0,NULL,NULL,NULL,&pi))

// void DrawUI(HDC hDC, int type)
// {
// 	HDC MemDC = NULL;
// 	HBITMAP MemBitmap = NULL;
// 	MemDC = CreateCompatibleDC(NULL);
// 	MemBitmap = CreateCompatibleBitmap(hDC, Length*5, Length);
//
// 	SelectObject(MemDC, MemBitmap);
// 	FillSolidRect(MemDC, 0, 0, Length*5, Length, RGB(0, 255, 0));
//
// 	//繪圖
// 	HBITMAP hBitmap;
// 	HDC mdc;
//
// 	if (type != 1)
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_1);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, 0, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
// 	else
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_AT1);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, 0, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
//
// 	if (type != 2)
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_2);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, Length, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
// 	else
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_AT2);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, Length, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
//
// 	if (type != 3)
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_3);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, Length*2, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
// 	else
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_AT3);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, Length*2, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
//
// 	if (type != 4)
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_4);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, Length*3, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
// 	else
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_AT4);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, Length*3, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
//
// 	if (type != 5)
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_5);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, Length*4, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
// 	else
// 	{
// 		hBitmap = SHLoadImageFile(IMAGE_AT5);
// 		mdc = CreateCompatibleDC(NULL);
// 		SelectObject(mdc, hBitmap);
// 		BitBlt(MemDC, Length*4, 0, Length, Length, mdc, 0, 0, SRCCOPY);
// 		DeleteDC(mdc);
// 		DeleteObject(hBitmap);
// 	}
//
// 	BitBlt(hDC, 0, 0, Length*5, Length, MemDC, 0, 0, SRCCOPY);
//
// 	//清理
// 	DeleteDC(MemDC);
// 	DeleteObject(MemBitmap);
// }
//
// void FillSolidRect(HDC hDC, int x, int y, int cx, int cy, COLORREF clr)
// {
// 	RECT rct;
// 	rct.left = x;
// 	rct.top = y;
// 	rct.right = x + cx;
// 	rct.bottom = y + cy;
//
// 	SetBkColor(hDC, clr);
// 	ExtTextOut(hDC, 0, 0, ETO_OPAQUE, &rct, NULL, 0, NULL);
// }

void ShowUI(HDC hDC, int type)
{
	RECT rect;
	rect.left = 0;
	rect.right = Length;
	rect.top = 0;
	rect.bottom = Length;

	if (type != 1)
	{
		if(FAILED(img[0]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片1失敗"), NULL, MB_OK);
		}
	}
	else
	{
		if(FAILED(img[5]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片6失敗"), NULL, MB_OK);
		}
	}

	rect.left = Length;
	rect.right = Length * 2;
	if (type != 2)
	{
		if(FAILED(img[1]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片2失敗"), NULL, MB_OK);
		}
	}
	else
	{
		if(FAILED(img[6]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片7失敗"), NULL, MB_OK);
		}
	}

	rect.left = Length * 2;
	rect.right = Length * 3;
	if (type != 3)
	{
		if(FAILED(img[2]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片3失敗"), NULL, MB_OK);
		}
	}
	else
	{
		if(FAILED(img[7]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片8失敗"), NULL, MB_OK);
		}
	}

	rect.left = Length * 3;
	rect.right = Length * 4;
	if (type != 4)
	{
		if(FAILED(img[3]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片4失敗"), NULL, MB_OK);
		}
	}
	else
	{
		if(FAILED(img[8]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片9失敗"), NULL, MB_OK);
		}
	}

	rect.left = Length * 4;
	rect.right = Length * 5;
	if (type != 5)
	{
		if(FAILED(img[4]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片5失敗"), NULL, MB_OK);
		}
	}
	else
	{
		if(FAILED(img[9]->Draw(hDC, &rect, NULL)))
		{
			MessageBox(NULL, _T("繪製圖片10失敗"), NULL, MB_OK);
		}
	}
}

經過測試，Q屏和WVGA屏通過，理論兼容所有分辨率。

（五個白圈圈）

附上stdafx.h

// stdafx.h : 标准系统包含文件的包含文件，
// 或是经常使用但不常更改的
// 特定于项目的包含文件
//

#pragma once

#pragma comment(linker, "/nodefaultlib:libc.lib")
#pragma comment(linker, "/nodefaultlib:libcd.lib")

// 注意 - 这个值与作为目标的 Windows CE OS 版本的关联性并不强
#define WINVER _WIN32_WCE

#include <ceconfig.h>
#if defined(WIN32_PLATFORM_PSPC) || defined(WIN32_PLATFORM_WFSP)
#define SHELL_AYGSHELL
#endif

#ifdef _CE_DCOM
#define _ATL_APARTMENT_THREADED
#endif

#include <aygshell.h>
#pragma comment(lib, "aygshell.lib")


// Windows 头文件:
#include <windows.h>


#if defined(WIN32_PLATFORM_PSPC) || defined(WIN32_PLATFORM_WFSP)
#ifndef _DEVICE_RESOLUTION_AWARE
#define _DEVICE_RESOLUTION_AWARE
#endif
#endif

#ifdef _DEVICE_RESOLUTION_AWARE
#include "DeviceResolutionAware.h"
#endif

#if _WIN32_WCE < 0x500 && ( defined(WIN32_PLATFORM_PSPC) || defined(WIN32_PLATFORM_WFSP) )
	#pragma comment(lib, "ccrtrtti.lib")
	#ifdef _X86_
		#if defined(_DEBUG)
			#pragma comment(lib, "libcmtx86d.lib")
		#else
			#pragma comment(lib, "libcmtx86.lib")
		#endif
	#endif
#endif

#include <altcecrt.h>

// TODO: 在此处引用程序需要的其他头文件
#include <windows.h>
#include <todaycmn.h>

转载于:https://www.cnblogs.com/ZzzZzz/archive/2012/09/02/2667232.html
