SharedCache分析：服务端程序

SharedCache由3个主要的项目组成MergeSystem.Indexus.WinServiceCommon、MergeSystem.Indexus.WinService和MergeSystem.Indexus.Notify。WinService可以以Windows服务方式加载，也可以以控制台方式运行，如果注册为Windows服务，则可以通过MergeSystem.Indexus.Notify程序来了解其状态，若是以控制台方式运行，则运行时的信息会在控制台窗口中显示。当然也可以配置通过NLog.dll记录日志。

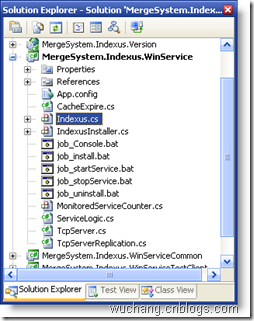

大部分的功能都封装在WinServiceCommon项目中，WinService项目只负责监听和数据中转，这个项目中只有几个文件，如图1。

Indexus是个windows服务，也是程序的入口点，其类图如图2。

图1	图2

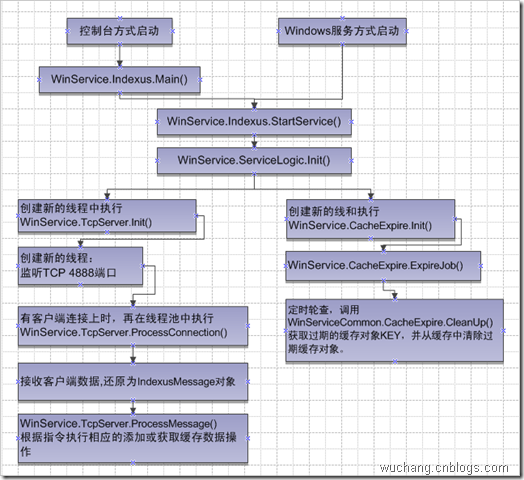

图3　ShareCache服务端程序主流程

Indexus可以接受几个命令行参数/install /i /uninstall /u来安装或卸载windows服务，若想以控制台方式启动程序，可以使用/local参数，如：
MergeSystem.Indexus.WinService.exe /local

或直接使用相同目录中的几个批处理文件来执行。来看一下main函数：

public   static   void Main( string [] args)
{
    Access Log#region Access Log
    COM.Handler.LogHandler.Tracking(
        "Access Method: " + ((object)MethodBase.GetCurrentMethod()).ToString() + " ;"
    );
    #endregion Access Log

    string optionalArgs = string.Empty;
    if (args.Length > 0)
    {
        optionalArgs = args[0];
    }
    args Handling#region args Handling
    if (!string.IsNullOrEmpty(optionalArgs))
    {
        if("/?".Equals(optionalArgs.ToLower()))
        {
            Console.WriteLine("Help Menu");
            Console.ReadLine();
            return;
        }
        else if("/local".Equals(optionalArgs.ToLower()))
        {
            Console.Title = "Indexus.Net Shared Cache - Server";
            Console.BackgroundColor = ConsoleColor.DarkBlue;
            Console.ForegroundColor = ConsoleColor.White;
            // running as cmd appliacation
            Indexus SrvIndexus = new Indexus();
            SrvIndexus.StartService();
            Console.ReadLine();
            SrvIndexus.StopService();
            return;
        }
        else if(@"/verbose".Equals(optionalArgs.ToLower()))
        {
            // Console.SetOut(this);
            // Console.SetIn(Console.Out);
            // Console.ReadLine();
            return;
        }
        TransactedInstaller ti = new TransactedInstaller();
        IndexusInstaller ii = new IndexusInstaller();
        ti.Installers.Add(ti);
        string path = string.Format("/assemblypath={0}", System.Reflection.Assembly.GetExecutingAssembly().Location);
        string[] cmd = { path };
        InstallContext context = new InstallContext(string.Empty, cmd);
        ti.Context = context;

        if ("/install".Equals(optionalArgs.ToLower()) || "/i".Equals(optionalArgs.ToLower()))
        {
            ti.Install(new Hashtable());
        }
        else if ("/uninstall".Equals(optionalArgs.ToLower()) || "/u".Equals(optionalArgs.ToLower()))
        {
            ti.Uninstall(null);
        }
        else
        {
            StringBuilder sb = new StringBuilder();
            sb.Append(@"Your provided Argument is not available." + Environment.NewLine);
            sb.Append(@"Use one of the following once:" + Environment.NewLine);
            sb.AppendFormat(@"To Install the service '{0}': '/install' or '/i'" + Environment.NewLine, @"IndeXus.Net");
            sb.AppendFormat(@"To Un-Install the service'{0}': '/uninstall' or '/u'" + Environment.NewLine, @"IndeXus.Net");
            Console.WriteLine(sb.ToString());
        }
    }
    else
    {
        // nothing received as input argument
        ServiceBase[] servicesToRun;
        servicesToRun = new ServiceBase[] { new Indexus() };
        ServiceBase.Run(servicesToRun);
    }
    #endregion args Handling
}

这里可以看到，加/local参数启动时，直接调用StartService()方法，然后就是和安装windows服务后启动服务一样了。

StartService中调用ServiceLogic.Init()方法进行初始化。代码注释比较少，但已经够我们理解这段代码了。



/**/ /// <summary>
/// Inits this instance. This method used at startup to initialize
/// all required server components
/// </summary>
public   void Init()
{
    Access Log#region Access Log
    COM.Handler.LogHandler.Tracking(
        "Access Method: " + this.GetType().ToString()+ "->" + ((object)MethodBase.GetCurrentMethod()).ToString() + " ;"
    );
    #endregion Access Log

    COM.Handler.LogHandler.Force("Initializing Settings" + COM.Enums.LogCategory.ServiceStart.ToString());
    Console.WriteLine(@"Welcome to indeXus.Net Shared Cache");
    Console.WriteLine();
    Console.WriteLine(COM.Handler.Config.DisplayAppSettings());
    COM.Handler.LogHandler.Info(COM.Handler.Config.DisplayAppSettings());
    // needs to be instantiated before TCP, it needs an instance of CachExpire
    cacheExpireInstance = new CacheExpire();
    // TCP needs an instance of CacheExpire
    tcpInstance = new TcpServer(cacheExpireInstance);

    COM.Handler.LogHandler.Force("Init and Start Thread Tcp");
    COM.Handler.LogHandler.Force("Init and Start Thread CacheExpire");
    // Init all extenders
    // an extender is a class which initializes its own logic around
    // specific issue within its own thread;
    /**////////////////////////////////////////////////////////////////////
    this.workerTcp = new Thread(this.tcpInstance.Init);
    this.workerTcp.Name = "TCP Handler";
    this.workerTcp.IsBackground = true;
    this.workerTcp.Priority = ThreadPriority.Normal;
    /**////////////////////////////////////////////////////////////////////
    this.workerCacheExpire = new Thread(this.cacheExpireInstance.Init);
    this.workerCacheExpire.Name = "Cache Expire Handler";
    this.workerCacheExpire.IsBackground = true;
    this.workerCacheExpire.Priority = ThreadPriority.Lowest;
    /**////////////////////////////////////////////////////////////////////
    this.workerCacheExpire.Start();
    this.workerTcp.Start();

    // enable the search of replicaiton servers
    if (this.enableServiceFamilyMode)
    {
        NetworkDistribution.Init();
    }

    string msgThreadInfo = Environment.NewLine +
        "Main Thread Id: " + Thread.CurrentThread.ManagedThreadId.ToString() + Environment.NewLine +
        "this.workerTcp: " + this.workerTcp.ManagedThreadId.ToString() + Environment.NewLine +
        /**//*"this.workerTimer: " + this.workerTimer.ManagedThreadId.ToString() + Environment.NewLine +*/
        "this.workerCacheExpire: " + this.workerCacheExpire.ManagedThreadId.ToString();

    Console.WriteLine(msgThreadInfo + Environment.NewLine);
    Console.WriteLine("+ + + + + + + + + + + + + + + + + + + + + + + + + + + + ");
    Console.WriteLine("server is ready to receive data.");

    COM.Handler.LogHandler.Force("IndeXus.Net Service Started " + COM.Enums.LogCategory.ServiceStart.ToString());
}





这里启动2个Thread，一个负责执行CacheExpire.Init()方法，负责定时轮查缓Cache中设置有过期策略的对象，如果有到期的，就从Cache中清除。另一个Thread负责监听TCP端口，然后每有一个新的客户端连接过来，又启动一个新的线程处理。

接下来转到MergeSystem.Indexus.WinService.TcpServer.Init()方法：



public   void Init()
{


    IPEndPoint endpoint = COM.Handler.Network.GetServerAnyIPEndPoint(this.cacheIpPort);

    serverSocket = new Socket(endpoint.Address.AddressFamily, SocketType.Stream, ProtocolType.Tcp);
    serverSocket.Bind(endpoint);
    serverSocket.Listen((int)SocketOptionName.MaxConnections);



    // setup listener issues
    acceptThread = new Thread(AcceptConnections);
    acceptThread.IsBackground = true;
    acceptThread.Priority = ThreadPriority.Normal;
    acceptThread.Start();



}



这里启动一个新线程监听TCP　48888（默认值）端口，跟到AcceptConnections方法：



private   void AcceptConnections()
{


    while (true)
    {
        // Accept a connection
        Socket socket = serverSocket.Accept();
        ConnectionInfo connection = new ConnectionInfo();
        connection.Socket = socket;

        // Modified:06-01-2008 Merge System GmbH, rschuetz : for more information checkout the following link> http://netrsc.blogspot.com/2007/02/another-extract-from-scalenet-threading.html
        ThreadPool.QueueUserWorkItem(this.ProcessConnection, connection);

        // Store the socket in the open connections
        lock (this.connections)
        {
            this.connections.Add(connection);
        }

    }
}





这个比较简单，只是在一个死循环中等待客户端连接，等到后要线程池中执行ProcessConnection方法来处理，此线程继续等待下一个请求。跟到ProcessConnection方法：



private   void ProcessConnection( object stats)
{


    ConnectionInfo connection = (ConnectionInfo)stats;

    try
    {


        // read data from Socket and convert it to an IndeXusMessage
        COM.IndexusMessage msg = new COM.Handler.NetworkMessage().ProcessNetworkMessage(connection.Socket);

        if (msg != null)
        {
            this.ProcessMessage(msg, connection);
        }
        else
        {
            Console.WriteLine("Error appears due processing network message!");
            COM.Handler.LogHandler.Error("Error appears due processing network message!");
        }
    }
    catch (OutOfMemoryException ex)
    {

    }
    catch (Exception ex)
    {


    }
    finally
    {
        connection.Socket.Close();
        lock (this.connections)
            this.connections.Remove(connection);
    }
}





这里只调用了COM.Handler.NetworkMessage().ProcessNetworkMessage()方法将客户端发过来的内容还原为IndexusMessage 对象，然后交给ProcessMessage()方法处理：



private   void ProcessMessage(COM.IndexusMessage msg, ConnectionInfo connection)
{


    // check status first [Request || Response]
    switch (msg.Status)
    {
        case COM.IndexusMessage.StatusValue.Request:
            {
                request case#region request case
                COM.IndexusMessage replicationMessage = null;

                if (ServiceLogic.NetworkDistribution.ReplicationEnabled)
                {
                    // create a new object of received msg. to broadcast on servers.
                    replicationMessage = new COM.IndexusMessage(new Random().Next(), msg.Action, COM.IndexusMessage.StatusValue.Request,new KeyValuePair<string,byte[]>(msg.Key, msg.Payload));
                }


                // switch over cache actions
                switch (msg.Action)
                {
                    case COM.IndexusMessage.ActionValue.Ping:
                        {

                        }
                    case COM.IndexusMessage.ActionValue.Add:
                        {

                        }
                    case COM.IndexusMessage.ActionValue.Get:
                        {

                        }
                    case COM.IndexusMessage.ActionValue.Remove:
                        {

                        }
                    case COM.IndexusMessage.ActionValue.RemoveAll:
                        {

                        }
                    case COM.IndexusMessage.ActionValue.GetAllKeys:
                        {

                        }
                    case COM.IndexusMessage.ActionValue.Statistic:
                        {

                        }
                }
                break;
                #endregion request case
            }
        case COM.IndexusMessage.StatusValue.Response:
            {

            }
    }

}





这里分类对消息进行处理，如添加到缓存或移除等。下面仔细看下Add分支：



case COM.IndexusMessage.ActionValue.Add:
    {
        Add Case#region Add Case
        if (writeStats)
            Console.WriteLine("Message Action: {0}", msg.Action.ToString());

        Console.WriteLine(@"Adding new Item with Key: {0}", msg.Key);
        lock (bulkObject)
        {
            LocalCache.Add(new KeyValuePair<string, byte[]>(msg.Key, msg.Payload));
            // if the given msg expires is not MaxValue
            // it will be listed sub-process which clean
            // up in iterations the cache.
            // QuickFix
            if (msg.Expires != DateTime.MaxValue)
            {
                if (this.expire != null)
                {
                    this.expire.Expire.DumpCacheItemAt(msg.Key, msg.Expires);
                }
            }
            // update cleanup list with new object
            CacheCleanup.Update(msg);
        }

        msg.Action = COM.IndexusMessage.ActionValue.Successful;

        rschuetz: MODIFIED: 21-07-2007: distribute object over wire to other installations#region rschuetz: MODIFIED: 21-07-2007: distribute object over wire to other installations
        // Question is if the client needs to wait until this happens,
        // or should the client first get an answer and just then it
        // will distribute it.
        if (ServiceLogic.NetworkDistribution.ReplicationEnabled)
        {
            ServiceLogic.NetworkDistribution.Replicate(replicationMessage);
        }
        #endregion

        // send object back throug the connection
        connection.Socket.Send(msg.GetBytes());

        // handle max size and purge issues
        //DateTime startTime = DateTime.Now;
        if (this.cacheAmountOfObjects != -1 && this.cacheAmountOfObjects <= LocalCache.CalculatedCacheSize && !CacheCleanup.PurgeIsRunning)
        {
            Console.WriteLine(@"Current Size of Cache: {0} ; {1} ", LocalCache.CalculatedCacheSize, LocalCache.CalculatedCacheSize <= 0 ? 0 : LocalCache.CalculatedCacheSize / (1024 * 1024));
            List<string> remove = CacheCleanup.Purge(LocalCache.CalculatedCacheSize);
            if (remove != null)
            {
                lock (bulkObject)
                {
                    foreach (string s in remove)
                    {
                        LocalCache.Remove(s);
                    }
                }
            }
        }
        break;
        #endregion Add Case
    }





主要完成了4个功能：1.将数据保存到LocalCache中；2.如果要缓存的对象设置有过期时间，则在expire中保存一份存根；3.如果配置有复制服务器，则分发到各兄弟节点；4.如果缓存对象超出了最大值，则使用配置的策略靖仓。LocalCache是MergeSystem.Indexus.WinServiceCommon.Cache类型的静态成员，expire是WinServiceCommon.CacheExpire类型的静态成员。

分析到这里，ShartCache的大概思路已经很清晰了。

ShartCache的核心是MergeSystem.Indexus.WinServiceCommon.Cache和MergeSystem.Indexus.WinServiceCommon.CacheExpire这二个类。WinServiceCommon.Cache中使用一个字典对象readonly Dictionary<string, byte[]> dict;来存储需要缓存的数据，因为要缓存的数据都已经序列化通过TCP传输过来，这里就直接保存byte[]类型的了。WinServiceCommon.CacheExpire类中也有一个字典对象private static Dictionary<string, DateTime> expireTable = null;所有设置有过期时间的缓存对象，都在这里有个存根，过期的缓存有WinServiceCommon.CacheExpire负责清除。



来源:wuchang.cnblogs.com
