用UIInterpolatingMotionEffect产生透视效果

使用UIInterpolatingMotionEffect实现透视效果

最新推荐文章于 2018-11-25 17:36:58 发布

转载最新推荐文章于 2018-11-25 17:36:58 发布 · 125 阅读

本文介绍如何利用UIInterpolatingMotionEffect在iOS应用中创建透视效果，并通过代码实例展示实现过程。

用UIInterpolatingMotionEffect产生透视效果

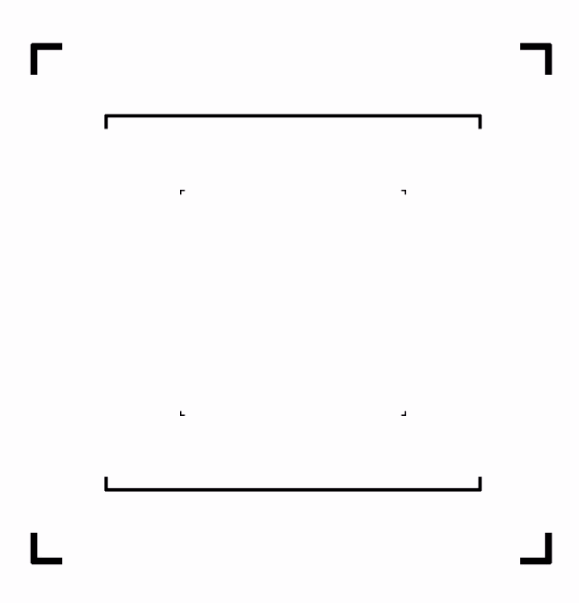

效果

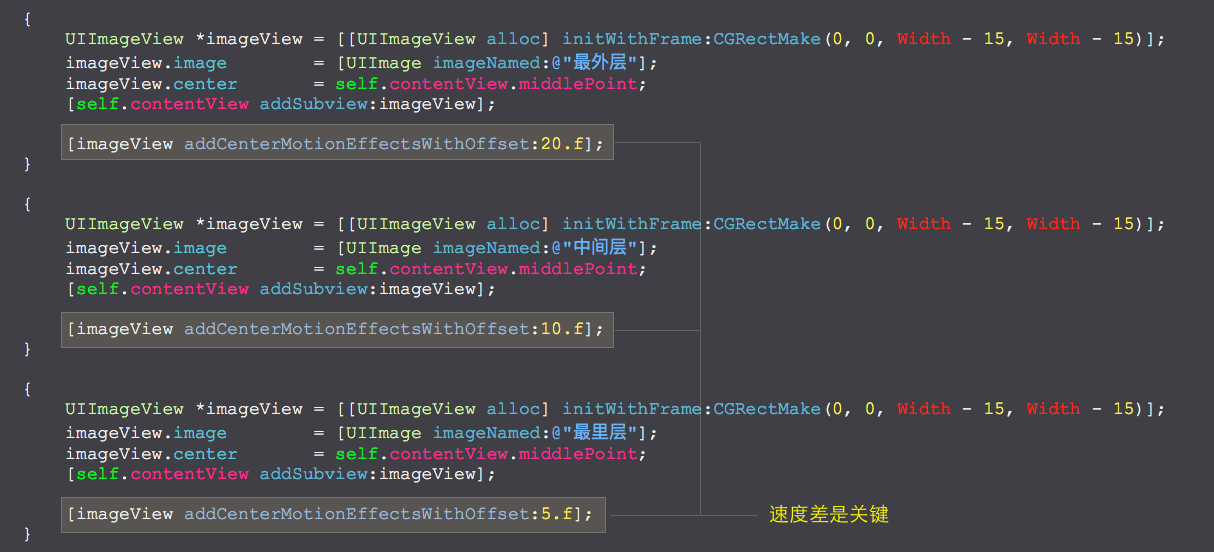

源码

https://github.com/YouXianMing/Animations

//
//  MotionEffectViewController.m
//  Animations
//
//  Created by YouXianMing on 16/2/18.
//  Copyright © 2016年 YouXianMing. All rights reserved.
//

#import "MotionEffectViewController.h"
#import "UIView+MotionEffect.h"
#import "UIView+SetRect.h"

@interface MotionEffectViewController ()

@end

@implementation MotionEffectViewController

- (void)setup {

    [super setup];

    {
        UIImageView *imageView = [[UIImageView alloc] initWithFrame:CGRectMake(0, 0, Width - 15, Width - 15)];
        imageView.image        = [UIImage imageNamed:@"最外层"];
        imageView.center       = self.contentView.middlePoint;
        [self.contentView addSubview:imageView];

        [imageView addCenterMotionEffectsWithOffset:20.f];
    }

    {
        UIImageView *imageView = [[UIImageView alloc] initWithFrame:CGRectMake(0, 0, Width - 15, Width - 15)];
        imageView.image        = [UIImage imageNamed:@"中间层"];
        imageView.center       = self.contentView.middlePoint;
        [self.contentView addSubview:imageView];

        [imageView addCenterMotionEffectsWithOffset:10.f];
    }

    {
        UIImageView *imageView = [[UIImageView alloc] initWithFrame:CGRectMake(0, 0, Width - 15, Width - 15)];
        imageView.image        = [UIImage imageNamed:@"最里层"];
        imageView.center       = self.contentView.middlePoint;
        [self.contentView addSubview:imageView];

        [imageView addCenterMotionEffectsWithOffset:5.f];
    }
}

@end
