UML类图图示及代码对应

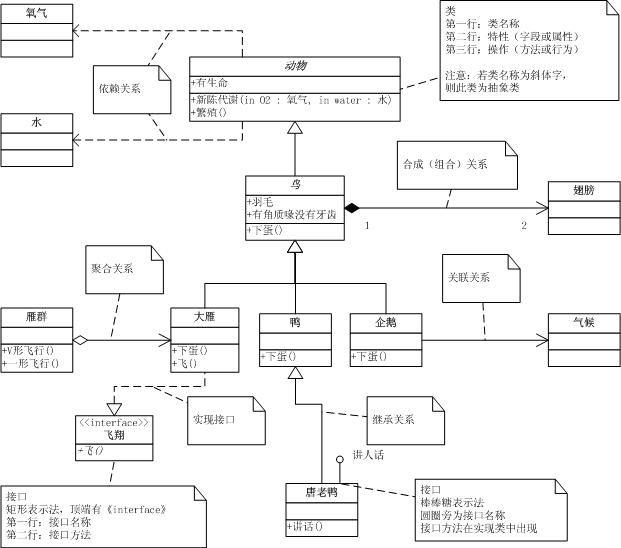

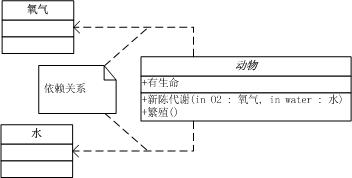

UML类图图示样例



代码对应：



　

Code
    interface IFly
    {
void Fly();
    }





Code
    interface ILanguage
    {
void Speak();
    }





Code
    class WideGoose:IFly
    {

    }





Code
    class Penguin:Bird
    {
private Climate climate;
    }





Code
    class WideGooseAggregate
    {
private WideGoose[] arrayWideGoose;
    }





Code
    class Bird
    {
private Wing wing;
public Bird()
        {
            wing = new Wing();
        }
    }





Code
    abstract class Animal
    {
public Metabolism(Oxygen oxygen,Water water)
        {

        }
    }
