本文详细阐述了VGA显示模块的工作原理及其实现过程，包括计数器逻辑、有效信号生成、地址映射和颜色数据读取等关键步骤。通过VGA控制模块与ROM数据交互，实现64x64像素图片的显示。

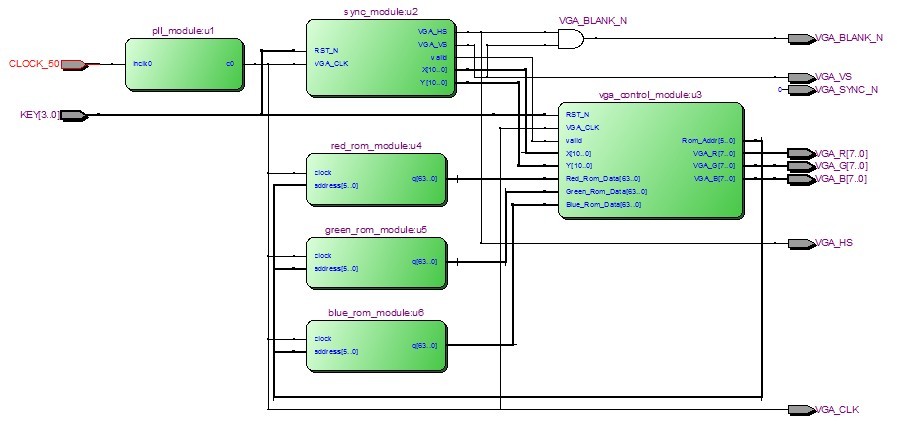

一、RTL视图

二、

sync_module

module sync_module(
input VGA_CLK,	//800x600
input RST_N,
output VGA_HS,VGA_VS,valid,
output[10:0] X,Y	//column and row addr signal
);

reg[10:0] Count_H;
always@(posedge VGA_CLK or negedge RST_N)
	if(!RST_N)
		Count_H<=11'd0;
	else if(Count_H==11'd1056)
		Count_H<=11'd0;
	else
		Count_H<=Count_H+1'b1;

reg[10:0] Count_V;
always@(posedge VGA_CLK or negedge RST_N)
	if(!RST_N)
		Count_V<=11'd0;
	else if(Count_V==11'd628)
		Count_V<=11'd0;
	else if(Count_H==11'd1056)
		Count_V<=Count_V+1'b1;

reg valid_r;
always@(posedge VGA_CLK or negedge RST_N)
	if(!RST_N)
		valid_r<=1'b0;
	else if((Count_H>216&&Count_H<1017)&&(Count_V>11'd27&&Count_V<11'd627))
		valid_r<=1'b1;
	else
		valid_r<=1'b0;

assign VGA_HS=(Count_H<=11'd128) ? 1'b0 : 1'b1;
assign VGA_VS=(Count_V<=11'd4) ? 1'b0 : 1'b1;
assign valid=valid_r;

assign X=valid_r ? Count_H-11'd217 : 11'd0;
assign Y=valid_r ? Count_V-11'd28 : 11'd0;

endmodule

vga_control_module

module vga_control_module(
input VGA_CLK,
input RST_N,
input[10:0] X,Y,
input valid,
input[63:0] Red_Rom_Data,Green_Rom_Data,Blue_Rom_Data,
output[5:0] Rom_Addr,
output[7:0] VGA_R,VGA_G,VGA_B
);

reg[5:0] m;
always@(posedge VGA_CLK or negedge RST_N)
	if(!RST_N)
		m<=6'd0;
	else if(valid && Y<11'd64)
		m<=Y[5:0];
	else m<=6'd0;

reg[5:0] n;
always@(posedge VGA_CLK or negedge RST_N)
	if(!RST_N)
		n<=6'b0;
	else if(valid && X<11'd64)
		n<=X[5:0];
	else
		n<=6'b0;

assign Rom_Addr=m;

assign VGA_R=valid ? {Red_Rom_Data[6'd63-n],Red_Rom_Data[6'd63-n],Red_Rom_Data[6'd63-n],Red_Rom_Data[6'd63-n],Red_Rom_Data[6'd63-n],Red_Rom_Data[6'd63-n],Red_Rom_Data[6'd63-n],Red_Rom_Data[6'd63-n]} : 8'b0;
assign VGA_G=valid ? {Green_Rom_Data[6'd63-n],Green_Rom_Data[6'd63-n],Green_Rom_Data[6'd63-n],Green_Rom_Data[6'd63-n],Green_Rom_Data[6'd63-n],Green_Rom_Data[6'd63-n],Green_Rom_Data[6'd63-n],Green_Rom_Data[6'd63-n]} : 8'b0;
assign VGA_B=valid ? {Blue_Rom_Data[6'd63-n],Blue_Rom_Data[6'd63-n],Blue_Rom_Data[6'd63-n],Blue_Rom_Data[6'd63-n],Blue_Rom_Data[6'd63-n],Blue_Rom_Data[6'd63-n],Blue_Rom_Data[6'd63-n],Blue_Rom_Data[6'd63-n]} : 8'b0;

endmodule

vga_module

//* Display a color photo pika.bmp(64x64)
module vga_module(
input CLOCK_50,
input[3:0] KEY,
output VGA_CLK,
output[7:0] VGA_R,VGA_G,VGA_B,
output VGA_HS,VGA_VS,
output VGA_BLANK_N,
output VGA_SYNC_N
);

assign VGA_SYNC_N=1'b0;	//If not SOG,Sync input should be tied to 0;
assign VGA_BLANK_N=VGA_HS&&VGA_VS;


pll_module u1(
				.inclk0 ( CLOCK_50 ),
				.c0 ( VGA_CLK )
				);

wire[10:0] X,Y;
wire valid;


wire RST_N;
assign RST_N=KEY[0];
sync_module u2(
				.VGA_CLK(VGA_CLK),
				.RST_N(RST_N),
				.VGA_HS(VGA_HS),
				.VGA_VS(VGA_VS),
				.X(X),
				.Y(Y),
				.valid(valid)
				);

wire[5:0] Rom_Addr;
wire[63:0] Red_Rom_Data;
red_rom_module u4(
				.clock(VGA_CLK),
				.address(Rom_Addr),
				.q(Red_Rom_Data)
				);
wire[63:0] Green_Rom_Data;
green_rom_module u5(
				.clock(VGA_CLK),
				.address(Rom_Addr),
				.q(Green_Rom_Data)
				);
wire[63:0] Blue_Rom_Data;
blue_rom_module u6(
				.clock(VGA_CLK),
				.address(Rom_Addr),
				.q(Blue_Rom_Data)
				);

vga_control_module u3(
						.VGA_CLK(VGA_CLK),
						.RST_N(RST_N),
						.VGA_R(VGA_R),
						.VGA_G(VGA_G),
						.VGA_B(VGA_B),
						.X(X),
						.Y(Y),
						.valid(valid),
						.Rom_Addr(Rom_Addr),
						.Red_Rom_Data(Red_Rom_Data),
						.Green_Rom_Data(Green_Rom_Data),
						.Blue_Rom_Data(Blue_Rom_Data)

						);
endmodule
