Windows Moible, Wince 使用.NET Compact Framework的进行蓝牙(Bluetooth)设备配对的开发

最新推荐文章于 2024-06-18 19:41:49 发布
转载 最新推荐文章于 2024-06-18 19:41:49 发布 · 152 阅读 · 0

本文介绍使用32feet.net库在.NET Compact Framework下进行蓝牙设备配对的开发过程，包括扫描附近蓝牙设备、设置配对密码及连接指定服务类型的详细步骤。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

在.NET Compact Framework下的Bluetooth开发 之 32feet.NET 里讲述了如何使用32feet.net库来进行Bluetooth的开发，天机 同学在使用过程发现设备配对问题，本文讲述如何进行Bluetooth设备配对的开发。

以下是一个Bluetooth配对程序。在配对之前先扫描附近的Bluetooth设备。

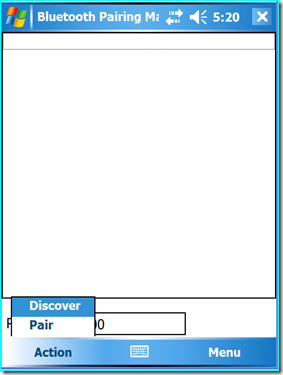

bt_pair1

        BluetoothClient client  =   new  BluetoothClient();
        Dictionary < string , BluetoothAddress >  deviceAddresses  =   new  Dictionary < string , BluetoothAddress > ();
         private   void  menuItem2_Click( object  sender, EventArgs e)
        {
             // Turn on the bluetooth
            BluetoothRadio radio  =  BluetoothRadio.PrimaryRadio;
            radio.Mode  =  RadioMode.Connectable;

             // Scan the nearby devices
            BluetoothDeviceInfo[] devices  =  client.DiscoverDevices();
            listBoxDevices.Items.Clear();
            deviceAddresses.Clear();
             foreach (BluetoothDeviceInfo device  in  devices)
            {
                listBoxDevices.Items.Add(device.DeviceName);
                deviceAddresses[device.DeviceName]  =  device.DeviceAddress;
            }
        }

deviceAddresses 用于保存设备名字和设备地址的映射。当点击 Discover 菜单，先修改BluetoothRadio 的 property Mode 来打开Bluetooth设备，然后通过DiscoverDevices() 函数来扫描附近的所有Bluetooth设备。

 bt_pair2

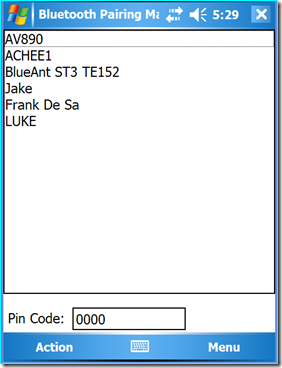

这是扫描的结果， Jake为我的手机， AV890为Bluetooth 耳机。点击AV890 然后点击 Pair 菜单进行配对。AV890的默认配对密码为 0000。

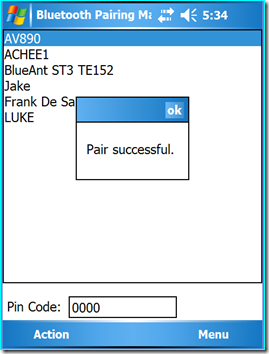

bt_pair3

配对的代码如下：

         private   void  menuItem3_Click( object  sender, EventArgs e)
        {
             try
            {
                BluetoothAddress deviceAddress  =  deviceAddresses[listBoxDevices.SelectedItem.ToString()];
                client.SetPin(deviceAddress, textBoxPin.Text.Trim());
                client.Connect(deviceAddress, BluetoothService.Handsfree);  // if connect ot Hands free.
                 // client.Connect(deviceAddress, BluetoothService.SerialPort);  // if connect to cell phone and so forth.
                MessageBox.Show( " Pair successful. " );

                 // transfer data..
            }
             catch  (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

由于设备有密码，所以配对的时候需要设置密码，使用 SetPin()函数设置对端设备的密码。SetPin() 函数使用了下面的API

[DllImport( " btdrt.dll " , SetLastError = true )]
 public   static   extern   int  BthSetPIN( byte [] pba,  int  cPinLength,  byte [] ppin);



Connect() 函数的第二个参数十分重要，天机 同学的程序配对失败可能是因为在这里没有设置正确。参数二是服务类型，通信双方必须使用同样的服务类型。如果通信双方的程序都是由我们负责开发，可以使用通用的服务类型，例如BluetoothService.SerialPort。但是如果要与第三方设备进行通信，需要查出该设备的服务类型，在设备端的通信服务类型一般编写在Firmware(固件)里面，而且会按照规范编写，例如Bluetooth耳机会使用BluetoothService.Handsfree。具体的规范可以参考下面文章。http://en.wikipedia.org/wiki/Bluetooth_profile

在32feet.net里使用BluetoothService来定义服务类型，如下：


ContractedBlock.gif ExpandedBlockStart.gif Code
        /// <summary>
        /// Represents the base Guid from which all standard Bluetooth profiles are derived - not used for connections.
        /// </summary>
        public static readonly Guid BluetoothBase = new Guid(0x00000000, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);

        //Considering moving all the protocol definitions to a separate class from the profiles
        public static readonly Guid SdpProtocol = new Guid(0x00000001, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid UdpProtocol = new Guid(0x00000002, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid RFCommProtocol = new Guid(0x00000003, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid TcpProtocol = new Guid(0x00000004, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid TcsBinProtocol = new Guid(0x00000005, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid TcsAtProtocol = new Guid(0x00000006, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid ObexProtocol = new Guid(0x00000008, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid IPProtocol = new Guid(0x00000009, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid FtpProtocol = new Guid(0x0000000A, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid HttpProtocol = new Guid(0x0000000C, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid WspProtocol = new Guid(0x0000000E, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid BnepProtocol = new Guid(0x0000000F, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid UpnpProtocol = new Guid(0x00000010, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid HidpProtocol = new Guid(0x00000011, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid HardcopyControlChannelProtocol = new Guid(0x00000012, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid HardcopyDataChannelProtocol = new Guid(0x00000014, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid HardcopyNotificationProtocol = new Guid(0x00000016, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid AvctpProtocol = new Guid(0x00000017, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid AvdtpProtocol = new Guid(0x00000019, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid CmtpProtocol = new Guid(0x0000001B, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid UdiCPlaneProtocol = new Guid(0x0000001D, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid McapControlChannelProtocol = new Guid(0x0000001E, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        public static readonly Guid McapDataChannelProtocol = new Guid(0x0000001F, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);

        public static readonly Guid L2CapProtocol = new Guid(0x00000100, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);

        /// <summary>
        /// [0x1000]
        /// </summary>
        public static readonly Guid ServiceDiscoveryServer = new Guid(0x00001000, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1001]
        /// </summary>
        public static readonly Guid BrowseGroupDescriptor = new Guid(0x00001001, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1002]
        /// </summary>
        public static readonly Guid PublicBrowseGroup = new Guid(0x00001002, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Provides a basic Serial emulation connect over Bluetooth. [0x1101]
        /// </summary>
        public static readonly Guid SerialPort = new Guid(0x00001101, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Used to establish PPP connections over RFComm channels. [0x1102]
        /// </summary>
        public static readonly Guid LanAccessUsingPpp = new Guid(0x00001102, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1103]
        /// </summary>
        public static readonly Guid DialupNetworking = new Guid(0x00001103, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1104]
        /// </summary>
        public static readonly Guid IrMCSync = new Guid(0x00001104, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Used for sending binary objects between devices.[0x1105]
        /// </summary>
        public static readonly Guid ObexObjectPush = new Guid(0x00001105, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// OBEX version of an FTP server [0x1106]
        /// </summary>
        public static readonly Guid ObexFileTransfer = new Guid(0x00001106, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1107]
        /// </summary>
        public static readonly Guid IrMCSyncCommand = new Guid(0x00001107, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Supports Bluetooth headset devices.[0x1108]
        /// </summary>
        public static readonly Guid HSP = new Guid(0x00001108, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1109]
        /// </summary>
        public static readonly Guid CordlessTelephony = new Guid(0x00001109, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x110A]
        /// </summary>
        public static readonly Guid AudioSource = new Guid(0x0000110A, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x110B]
        /// </summary>
        public static readonly Guid AudioSink = new Guid(0x0000110B, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x110C]
        /// </summary>
        public static readonly Guid AVRemoteControlTarget = new Guid(0x0000110C, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x110D]
        /// </summary>
        public static readonly Guid AdvancedAudioDistribution = new Guid(0x0000110D, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x110E]
        /// </summary>
        public static readonly Guid AVRemoteControl = new Guid(0x0000110E, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x110F]
        /// </summary>
        public static readonly Guid VideoConferencing = new Guid(0x0000110F, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1110]
        /// </summary>
        public static readonly Guid Intercom = new Guid(0x00001110, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1111]
        /// </summary>
        public static readonly Guid Fax = new Guid(0x00001111, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1112]
        /// </summary>
        public static readonly Guid HeadsetAudioGateway = new Guid(0x00001112, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1113]
        /// </summary>
        public static readonly Guid Wap = new Guid(0x00001113, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1114]
        /// </summary>
        public static readonly Guid WapClient = new Guid(0x00001114, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1115]
        /// </summary>
        public static readonly Guid Panu = new Guid(0x00001115, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1116]
        /// </summary>
        public static readonly Guid Nap = new Guid(0x00001116, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1117]
        /// </summary>
        public static readonly Guid GN = new Guid(0x00001117, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1118]
        /// </summary>
        public static readonly Guid DirectPrinting = new Guid(0x00001118, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1119]
        /// </summary>
        public static readonly Guid ReferencePrinting = new Guid(0x00001119, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x111A]
        /// </summary>
        public static readonly Guid Imaging = new Guid(0x0000111A, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x111B]
        /// </summary>
        public static readonly Guid ImagingResponder = new Guid(0x0000111B, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x111C]
        /// </summary>
        public static readonly Guid ImagingAutomaticArchive = new Guid(0x0000111C, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x111D]
        /// </summary>
        public static readonly Guid ImagingReferenceObjects = new Guid(0x0000111D, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Supports hands free kits such as a car kits which provide audio and more advanced call control than the Headset profile. [0x111E]
        /// </summary>
        public static readonly Guid Handsfree = new Guid(0x0000111E, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x111F]
        /// </summary>
        public static readonly Guid HandsfreeAudioGateway = new Guid(0x0000111F, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1120]
        /// </summary>
        public static readonly Guid DirectPrintingReferenceObjects = new Guid(0x00001120, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// [0x1121]
        /// </summary>
        public static readonly Guid ReflectedUI = new Guid(0x00001121, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Used for printing simple text, HTML, vCard objects and similar. [0x1122]
        /// </summary>
        public static readonly Guid BasicPrinting = new Guid(0x00001122, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1123]
        /// </summary>
        public static readonly Guid PrintingStatus = new Guid(0x00001123, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Supports human interface devices such as keyboards and mice. [0x1124]
        /// </summary>
        public static readonly Guid HumanInterfaceDevice = new Guid(0x00001124, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1125]
        /// </summary>
        public static readonly Guid HardcopyCableReplacement = new Guid(0x00001125, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1126]
        /// </summary>
        public static readonly Guid HardcopyCableReplacementPrint = new Guid(0x00001126, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1127]
        /// </summary>
        public static readonly Guid HardcopyCableReplacementScan = new Guid(0x00001127, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Common_ISDN_Access [0x1128]
        /// </summary>
        public static readonly Guid CommonIsdnAccess = new Guid(0x00001128, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1129]
        /// </summary>
        public static readonly Guid VideoConferencingGW = new Guid(0x00001129, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// UDI_MT [0x112A]
        /// </summary>
        public static readonly Guid UdiMT = new Guid(0x0000112A, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// UDI_TA [0x112B]
        /// </summary>
        public static readonly Guid UdiTA = new Guid(0x0000112B, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x112C]
        /// </summary>
        public static readonly Guid AudioVideo = new Guid(0x0000112C, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// SIM_Access [0x112D]
        /// </summary>
        public static readonly Guid SimAccess = new Guid(0x0000112D, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Phonebook Access - PCE [0x112E]
        /// </summary>
        public static readonly Guid PhonebookAccessPce = new Guid(0x0000112E, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Phonebook Access - PSE [0x112F]
        /// </summary>
        public static readonly Guid PhonebookAccessPse = new Guid(0x0000112F, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Phonebook Access [0x1130]
        /// </summary>
        public static readonly Guid PhonebookAccess = new Guid(0x00001130, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Headset [0x1131]
        /// </summary>
        public static readonly Guid Headset = new Guid(0x00001131, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Message Access Server [0x1132]
        /// </summary>
        public static readonly Guid MessageAccessServer = new Guid(0x00001132, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Message Notification Server [0x1133]
        /// </summary>
        public static readonly Guid MessageNotificationServer = new Guid(0x00001133, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Message Access Profile [0x1134]
        /// </summary>
        public static readonly Guid MessageAccessProfile = new Guid(0x00001134, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);

        /// <summary>
        /// Bluetooth Device Identification. [0x1200]
        /// </summary>
        public static readonly Guid PnPInformation = new Guid(0x00001200, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1201]
        /// </summary>
        public static readonly Guid GenericNetworking = new Guid(0x00001201, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1202]
        /// </summary>
        public static readonly Guid GenericFileTransfer = new Guid(0x00001202, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1203]
        /// </summary>
        public static readonly Guid GenericAudio = new Guid(0x00001203, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1204]
        /// </summary>
        public static readonly Guid GenericTelephony = new Guid(0x00001204, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1205]
        /// </summary>
        public static readonly Guid UPnp = new Guid(0x00001205, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        ///  [0x1206]
        /// </summary>
        public static readonly Guid UPnpIP = new Guid(0x00001206, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// ESDP_UPNP_IP_PAN [0x1300]
        /// </summary>
        public static readonly Guid UPnpIPPan = new Guid(0x00001300, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// ESDP_UPNP_IP_LAP [0x1301]
        /// </summary>
        public static readonly Guid UPnpIPLap = new Guid(0x00001301, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// ESDP_UPNP_L2CAP [0x1302]
        /// </summary>
        public static readonly Guid UPnpIPL2Cap = new Guid(0x00001302, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Video Distribution Profile - Source [0x1303]
        /// </summary>
        public static readonly Guid VideoSource = new Guid(0x00001303, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Video Distribution Profile - Sink [0x1304]
        /// </summary>
        public static readonly Guid VideoSink = new Guid(0x00001304, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Video Distribution Profile [0x1305]
        /// </summary>
        public static readonly Guid VideoDistribution = new Guid(0x00001305, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);

        /// <summary>
        /// Health Device Profile (HDP) [0x1400]
        /// </summary>
        public static readonly Guid HealthDevice = new Guid(0x00001400, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Health Device Profile (HDP) - Source [0x1401]
        /// </summary>
        public static readonly Guid HealthDeviceSource = new Guid(0x00001401, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);
        /// <summary>
        /// Health Device Profile (HDP) - Sink [0x1402]
        /// </summary>
        public static readonly Guid HealthDeviceSink = new Guid(0x00001402, 0x0000, 0x1000, 0x80, 0x00, 0x00, 0x80, 0x5F, 0x9B, 0x34, 0xFB);

配对成功后的界面。

bt_pair4

可以在配对成功（connection()函数）后加入相应的通信处理代码。



源代码：http://files.cnblogs.com/procoder/BluetoothPairing.rar

运行环境：VS2008 + Windows Mobile 5 Pocket PC SDK  + CF.NET 2.0



蓝牙耳机无法连接到电脑，计算机蓝牙无法添加外设
weixin_44629284的博客
03-29 5831
蓝牙耳机无法连接到计算机怎么办，计算机无法添加外设怎么办，或许不是蓝牙插件坏了，仅仅是有个中文“蓝牙设备支持”没有启动。
单片机通过串口转蓝牙模块传输温度数据
12-10
通过单片机取得温度数据，通过串口转蓝牙模块将数据无线发送出去，可在手机等带有蓝牙的手持终端进行温度显示
WinCE下32feet.NET进行蓝牙开发
weixin_30722589的博客
03-16 287
32feet.NET是shared-source的项目，支持CF.net 2.0以及桌面版本.NET framework，提供短距离领域(personal area networking technologie)的通信功能，支持bluetooth，Infrared(IrDA)红外等，在这篇文章，主要介绍bluetooth部分的开发。 32feet.NET 项目主页http://inth...
wince下建立bluetooth连接的方法
if.q的博客（请转iwood.co.nr）
07-24 3091
To enable communication between two Bluetooth devices, you can create a connection by creating client and server sockets. The Bluetooth server socket must be configured to listen for incoming connec
使用.Net nanoFramework为ESP32进行蓝牙配网
桑榆肖物
01-05 2207
在实际的物联网环境中，我们往往需要使用更便捷的式来满足配网需求。这篇文章将带你了解一些常见的配网方案，并以 ESP32 为例，介绍如何使用 .NET nanoFramework 实现为 ESP32 蓝牙配网。
CE下蓝牙连接 虚拟串口 发送命令
lfqsy的专栏
02-27 5130
首先必须要几个文件：btdrt.dll,bthutil.dll,InTheHand.Net.Personal.dll,cecontrollib.dll;将,InTheHand.Net.Personal.dll文件添加到引用 蓝牙基本操作：搜索-连接-发送-接收 主要注意的地方就是串口连接再断开再连接的问题，要有个类似于注册表中注销串口的操作，才能下次继续申请串口。 namespace Blu
C# 连接蓝牙
最新发布
weixin_56830970的博客
06-18 1267
最近在学习蓝牙通讯，看了很多文章有位大佬的很有用，在此总结一下：大佬文章：C#连接蓝牙设备_c# 蓝牙-优快云博客32feet.NET 3.调用就行 然后就连接上啦，后续会更新一下通讯功能；
C#使用InTheHand.Net.Bluetooth连接蓝牙，接收数据
IFuWantMe的博客
12-04 1万+
最近有个工作需要在UWP项目里连接蓝牙，网上搜了好多都是几年前用的InTheHand.Net.Personal.dll，踩了好多坑。而且这个东西现在已经没有了，现在VS里有InTheHand.Net.Bluetooth的NuGet包，可以导入直接使用。一个简单的蓝牙搞了好久，在这做个记录。 using System; using InTheHand.Net.Sockets; using InTheHand; using InTheHand.Net.Bluetooth; using System.Thread
c#实现蓝牙发送、接收数据，给安卓发送文件
jianxue01的博客
02-24 1051
实现蓝牙发送 、接收数据，给安卓发送文件
.Net Compact Framework 基础篇（8）
weixin_33860528的博客
09-15 57
本文主要讲述如何打开，关闭蓝牙。在后续文章中会讲述如何利用蓝牙实现文件传输等。 由于WM模拟器不支持蓝牙的调试，所以，如果你要调试代码，请在实际真实的设备中调试。 打开/关闭蓝牙主要依赖1个API（BthUtil.dll中的BthSetMode，传入蓝牙模式） 蓝牙共3个模式： PowerOff关闭蓝牙/Connectable打开蓝牙/Discoverable打开蓝牙并可发现。 Conn...
java客户机连接不成功,客户端与32feet.NET的蓝牙连接始终失败
weixin_28935113的博客
03-15 240
我正在尝试启动并运行蓝牙套接字连接但由于某种原因我的客户端无法连接 .更确切地说，当我尝试连接到流时，我遇到异常：连接尝试失败，因为连接方在一段时间后没有正确响应，或者由于连接主机无法响应而 Build 连接失败 .我在网上找到的所有例子并没有真正解决我的问题，而且我目前还不确定问题的来源 . 扫描和配对工作正常 - 我看到有问题的蓝牙设备成功配对 .我尝试连接首先设置客户端，然后调用连接客户端蓝...
android 蓝牙各种UUID
热门推荐
spmno的专栏
11-03 4万+
ServiceDiscoveryServerServiceClassID_UUID = '{00001000-0000-1000-8000-00805F9B34FB}' BrowseGroupDescriptorServiceClassID_UUID = '{00001001-0000-1000-8000-00805F9B34FB}' PublicBrowseGroupServiceClass
蓝牙通信技术基础
bindebug的博客
10-24 1131
一种短距离无线通信技术爱立信公司创建，如今由蓝牙技术联盟（Bluetooth Special Interest Group，简称SIG）管理。现在用的都是低功耗蓝牙 Android 4.3（API Level 18）开始引入Bluetooth Low Energy（BLE，低功耗蓝牙）在 5.0 以后才支持外设模式，
手机蓝牙各类服务对应的UUID（常用的几个已通过验证）
toast_tips的博客
03-28 1529
转自：https://www.douban.com/group/topic/20009323/ ServiceDiscoveryServerServiceClassID_UUID = '{00001000-0000-1000-8000-00805F9B34FB}' BrowseGroupDescriptorServiceClassID_UUID = '{00001001-0000-1000-8...
蓝牙及蓝牙通讯Bluetooth概述
紫风幻雪的博客
08-26 4640
蓝牙及蓝牙通讯Bluetooth概述 一、蓝牙介绍： （一）、Bluetooth的由来及现状 蓝牙一词源于公元十世纪丹麦国王HaraldBlatand名字中的Blatand。Blatand的英文之意就是Blue tooth。这是因为这位让丹麦人引以为傲的国王酷爱吃蓝莓以至于牙龈都被染成蓝色。由于Blatand统一了丹麦和挪威，所以，作为无线通信技术的一种，蓝牙技术之所以取名Bluetoo
Wince 使用.NET Compact Framework的进行蓝牙(开发之蓝牙虚拟串口
张云勇
08-11 4050
.NET Compact Framework下的Bluetooth开发 之 Windows Embedded Source Tools for Bluetooth  .NET Compact Framework下的Bluetooth开发 之 32feet.NET  在这篇文章讲述Bluetooth Virtual Serial Port的开发，所谓Bluetooth Virtual S
使用 ASP.NET MVC 4 开发下一代移动应用程序
本书《ASP.NET MVC 4 Mobile App Development》介绍了如何使用 ASP.NET MVC 4 框架开发下一代移动应用程序，涵盖了智能手机、平板电脑和移动设备等多种平台。作者 Andy Meadows 通过实践经验和详细的代码示例，带领...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
