Python Tkinter canvas oval原理

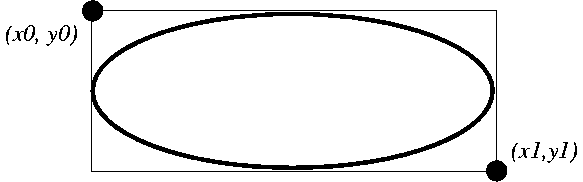

Ovals, mathematically, are ellipses, including circles as a special case. The ellipse is fit into a rectangle defined by the coordinates (x0, y0) of the top left corner and the coordinates (x1, y1) of the bottom right corner:



The oval will coincide with the top and left-hand lines of this box, but will fit just inside the bottom and right-hand sides.

To create an ellipse on a canvas C, use:

    id = C.create_oval ( x0, y0, x1, y1, option, ... )

which returns the object ID of the new oval object on canvas C.

Options for ovals:

fill	The default appearance of ellipse is transparent, and a value of fill="" will select this behavior. You can also set this option to any color and the interior of the ellipse will be filled with that color; see Section 4.3, “Colors”.
outline	The color of the border around the outside of the ellipse. Default is outline="black".
stipple	A bitmap indicating how the interior of the ellipse will be stippled. Default is stipple="", which means a solid color. A typical value would be stipple="gray25". Has no effect unless the fill has been set to some color. See Section 4.7, “Bitmaps”.
tags	The tags to be associated with the object, as a sequence of strings. See Section 6.1.4, “Canvas tags”.
width	Width of the border around the outside of the ellipse. Default is 1 pixel; see Section 4.1, “Dimensions” for possible values. If you set this to zero, the border will not appear. If you set this to zero and make the fill transparent, you can make the entire oval disappear.





其实，是刚知道画椭圆的主要原理，根据两点确定的矩形，然后画一个唯一的内切的椭圆。也就是实现了两点确定一个椭圆。
