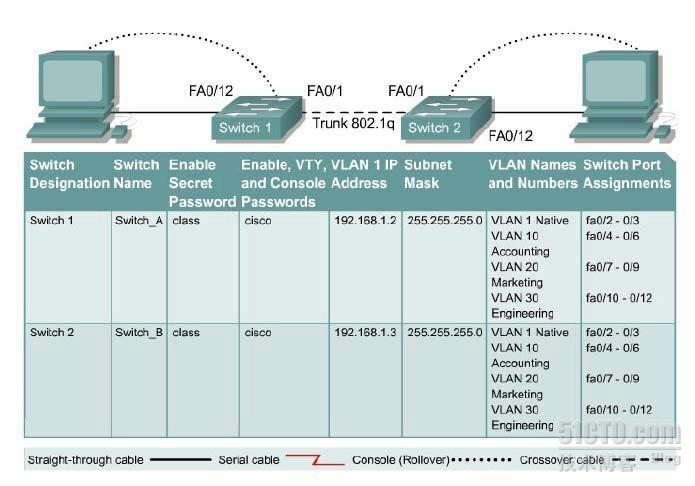

本实验需要2900交换机两台，PC机两台，console线一条





Step 1 配置交换机
参考上面的实验
Step 2 为PC配置正确的IP地址，子网掩码和缺省网关
Step 3 测试连接性
由switch ping两台PC机，检测连通性
Step 4 显示VLAN接口信息
Switch_A#show vlan
Step 5 配置VTP服务器端
Switch_A#vlan database
Switch_A(vlan)#vtp server
Switch_A(vlan)#vtp domain group1
Switch_A(vlan)#exit
Step 6 创建，命名VLANs
Switch_A#vlan database
Switch_A(vlan)#vlan 10 name Accounting
Switch_A(vlan)#vlan 20 name Marketing
Switch_A(vlan)#vlan 30 name Engineering
Switch_A(vlan)#exit
Step 7 安排端口4，5，6到VLAN 10
Switch_A#configure terminal
Switch_A(config)#interface fastethernet 0/4
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 10
Switch_A(config-if)#interface fastethernet 0/5
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 10
Switch_A(config-if)#interface fastethernet 0/6
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 10
Switch_A(config-if)#end
Step 8 安排端口7，8，9到VLAN 20
Switch_A#configure terminal
Switch_A(config)#interface fastethernet 0/7
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 20
Switch_A(config-if)#interface fastethernet 0/8
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 20
Switch_A(config-if)#interface fastethernet 0/9
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 20
Switch_A(config-if)#end
Step 9 安排端口10，11，12到VLAN 30
Switch_A#configure terminal
Switch_A(config)#interface fastethernet 0/10
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 30
Switch_A(config-if)#interface fastethernet 0/11
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 30
Switch_A(config-if)#interface fastethernet 0/12
Switch_A(config-if)#switchport mode access
Switch_A(config-if)#switchport access vlan 30
Switch_A(config-if)#end
Step 10 显示VLAN接口信息
Switch_A#show vlan
Step 11 配置VTP客户端
Enter the following commands to configure Switch_B to be a VTP client:
Switch_B#vlan database
Switch_B(vlan)#vtp client
Switch_B(vlan)#vtp domain group1
Switch_B(vlan)#exit
Step 12 创建trunk
Switch_A(config)#interface fastethernet 0/1
Switch_A(config-if)#switchport mode trunk
Switch_A(config-if)#end
Switch_B(config)#interface fastethernet 0/1
Switch_B(config-if)#switchport mode trunk
Switch_B(config-if)#end
2900:Note that it is necessary to specify the encapsulation on a 2924XL, since it supports 802.1Qand ISL.
Switch_A(config)#interface fastethernet0/1
Switch_A(config-if)#switchport mode trunk
Switch_A(config-if)#switchport trunk encapsulation dot1q
Switch_A(config-if)#end
Switch_B(config)#interface fastethernet0/1
Switch_B(config-if)#switchport mode trunk
Switch_B(config-if)#switchport trunk encapsulation dot1q
Switch_B(config-if)#end
Step 13 测试trunk
show interface fastethernet 0/1 switchport
Step 14 显示VLAN接口信息
Switch_B#show vlan
Step 15 安排端口4，5，6到VLAN 10
Switch_B#configure terminal
Switch_B(config)#interface fastethernet 0/4
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 10
Switch_B(config-if)#interface fastethernet 0/5
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 10
Switch_B(config-if)#interface fastethernet 0/6
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 10
Switch_B(config-if)#end
Step 16 Assign ports to VLAN 20
Switch_B#configure terminal
Switch_B(config)#interface fastethernet 0/7
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 20
Switch_B(config-if)#interface fastethernet 0/8
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 20
Switch_B(config-if)#interface fastethernet 0/9
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 20
Switch_B(config-if)#end
Step 17 Assign ports to VLAN 30
Switch_B#configure terminal
Switch_B(config)#interface fastethernet 0/10
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 30
Switch_B(config-if)#interface fastethernet 0/11
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 30
Switch_B(config-if)#interface fastethernet 0/12
Switch_B(config-if)#switchport mode access
Switch_B(config-if)#switchport access vlan 30
Switch_B(config-if)#end
Step 18 显示VLAN接口信息
