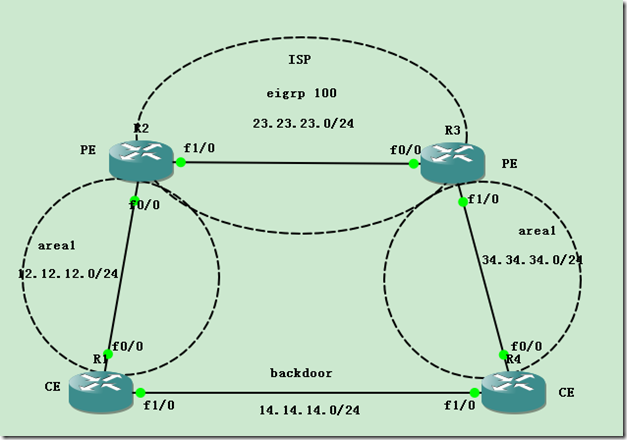

p_w_picpath

基础配置：

R1：

interface Loopback0
ip address 1.1.1.1 255.255.255.255
interface FastEthernet0/0
ip address 12.12.12.1 255.255.255.0
duplex auto
speed auto
interface FastEthernet1/0
ip address 14.14.14.1 255.255.255.0
duplex auto
speed auto

router ospf 1
router-id 1.1.1.1
log-adjacency-changes
network 1.1.1.1 0.0.0.0 area 1
network 12.12.12.1 0.0.0.0 area 1
network 14.14.14.1 0.0.0.0 area 1

R2:

interface Loopback0
ip address 2.2.2.2 255.255.255.255
interface FastEthernet0/0
ip address 12.12.12.2 255.255.255.0
duplex auto
speed auto
interface FastEthernet1/0
ip address 23.23.23.2 255.255.255.0
duplex auto
speed auto

router eigrp 100
network 2.2.2.2 0.0.0.0
network 23.23.23.2 0.0.0.0
no auto-summary
router ospf 1 vrf A
router-id 2.2.2.2
log-adjacency-changes
redistribute bgp 100 subnets
network 12.12.12.2 0.0.0.0 area 1
router bgp 100
bgp router-id 2.2.2.2
bgp log-neighbor-changes
neighbor 3.3.3.3 remote-as 100
neighbor 3.3.3.3 update-source Loopback0
!
address-family ipv4
  neighbor 3.3.3.3 activate
  no auto-summary
  no synchronization
exit-address-family
!
address-family ***v4
  neighbor 3.3.3.3 activate
  neighbor 3.3.3.3 send-community extended
exit-address-family
!
address-family ipv4 vrf A
  redistribute ospf 1 vrf A match internal external 1 external 2
  no synchronization
exit-address-family
mpls ldp router-id Loopback0 force

R3：

interface Loopback0
ip address 3.3.3.3 255.255.255.255
interface FastEthernet0/0
ip address 23.23.23.3 255.255.255.0
duplex auto
speed auto
interface FastEthernet1/0
ip address 34.34.34.3 255.255.255.0
duplex auto
speed auto


router eigrp 100
network 3.3.3.3 0.0.0.0
network 23.23.23.3 0.0.0.0
no auto-summary
router ospf 1 vrf A
router-id 3.3.3.3
log-adjacency-changes
redistribute bgp 100 subnets
network 34.34.34.3 0.0.0.0 area 1
router bgp 100
no synchronization
bgp router-id 3.3.3.3
bgp log-neighbor-changes
neighbor 2.2.2.2 remote-as 100
neighbor 2.2.2.2 update-source Loopback0
no auto-summary
!
address-family ***v4
  neighbor 2.2.2.2 activate
  neighbor 2.2.2.2 send-community extended
exit-address-family
!
address-family ipv4 vrf A
  redistribute ospf 1 vrf A match internal external 1 external 2
  no synchronization
exit-address-family
mpls ldp router-id Loopback0 force

R4：

interface Loopback0
ip address 4.4.4.4 255.255.255.255
interface FastEthernet0/0
ip address 34.34.34.4 255.255.255.0
duplex auto
speed auto
interface FastEthernet1/0
ip address 14.14.14.4 255.255.255.0
duplex auto
speed auto

router ospf 1
router-id 4.4.4.4
log-adjacency-changes
network 4.4.4.4 0.0.0.0 area 1
network 14.14.14.4 0.0.0.0 area 1
network 34.34.34.4 0.0.0.0 area 1

查看：

p_w_picpath

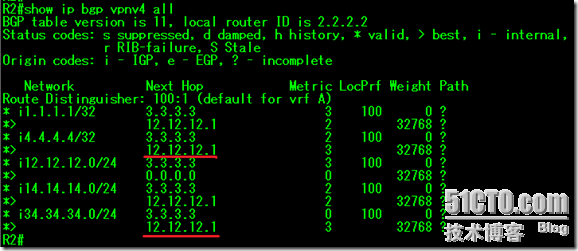

R2去往4.4.4.4和34.34.34.0/24走的是R1，路由选择走的是OSPF区域而不是MPLS ×××骨干

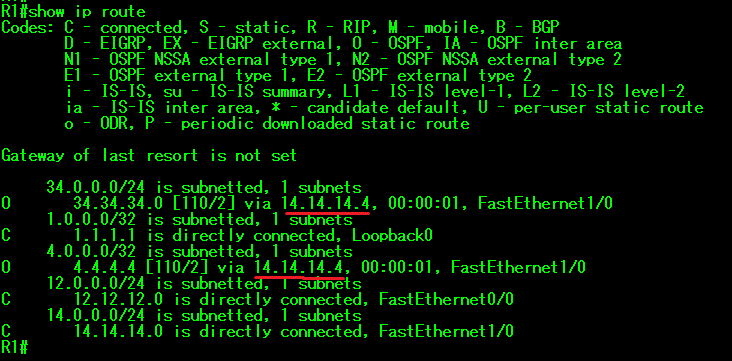

R1去往远程站点走的也是后门链路



创建Sham-link

R2:

interface Loopback1
ip vrf forwarding A
ip address 100.100.100.1 255.255.255.255                  //单独分配一个32位的地址给sham-link,并且放入VRF中

router bgp 100
  address-family ipv4 vrf A
  network 100.100.100.1 mask 255.255.255.255          //在BGP VRF中宣告


router ospf 1 vrf A
area 1 sham-link 100.100.100.1 100.100.100.2           //在PE之间创建区域一的sham-link



R3:

interface Loopback1
ip vrf forwarding A
ip address 100.100.100.2 255.255.255.255                  //单独分配一个32位的地址给sham-link,并且放入VRF中

router bgp 100
address-family ipv4 vrf A
  network 100.100.100.2 mask 255.255.255.255          //在BGP VRF中宣告


router ospf 1 vrf A
area 1 sham-link 100.100.100.2 100.100.100.1           //在PE之间创建区域一的sham-link



R1:

int f1/0

ip ospf cost 10000

R4:

int f1/0

ip ospf cost 10000



p_w_picpath

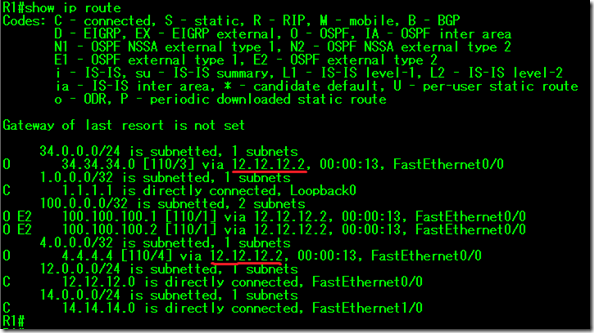

现在R1走的MPLS ×××骨干去往远程站点
