【原创】在sharepoint中使用FBA验证登录 MemberShip

最新推荐文章于 2016-07-14 14:04:57 发布

转载最新推荐文章于 2016-07-14 14:04:57 发布 · 293 阅读

0 ·

CC 4.0 BY-SA版权

原文链接：http://www.cnblogs.com/landun/archive/2012/12/03/2799246.html

文章标签：

#javascript #c# #ui #ViewUI

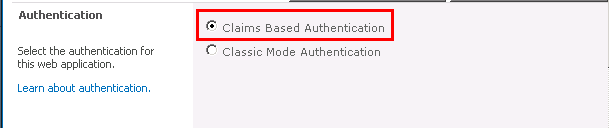

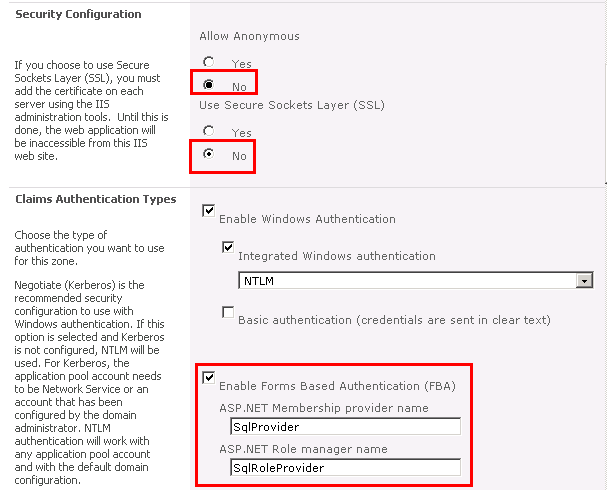

第一步：新建FBA验证的站点

第二步：配置Web Config

　　需要配置3处的web.config，分别为配置站点的web.config，管理中心网站，SecurityToken

　　1.SecurityToken (路径："C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\WebServices\SecurityToken\web.config")

　　　　可能需要手动添加<system.web>节，配置如下：

View Code

 1 <membership defaultProvider="i">
 2       <providers>
 3         <add name="SqlProvider" type="System.Web.Security.SqlMembershipProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" connectionStringName="SqlServices" enablePasswordRetrieval="true" enablePasswordReset="true" requiresQuestionAndAnswer="true" passwordFormat="Encrypted" applicationName="ParentPortal" requiresUniqueEmail="true" minRequiredPasswordLength="1" minRequiredNonalphanumericCharacters="0" />
 4       </providers>
 5     </membership>
 6     <roleManager defaultProvider="c">
 7       <providers>
 8         <add name="SqlRoleProvider" type="System.Web.Security.SqlRoleProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" connectionStringName="SqlServices" />
 9       </providers>
10     </roleManager>

　　　　添加<connectionStrings>：

1 <add name="SqlServices" connectionString="Server=your server;Database=your database;User ID=your user id;Password=your password" />

　　　　从当前站点的web.config处拷贝<machineKey>节，放置于<system.web>节下。

　　　　如果需在页面显示错误信息，在<system.serviceModel> --> <behaviors> --> <serviceBehaviors>下添加：

1 <serviceDebug includeExceptionDetailInFaults="True" httpHelpPageEnabled="True" />

　　2.配置站点的web.config

　　　　在<system.web>节，添加如下配置：

View Code

 1 <membership defaultProvider="i">
 2       <providers>
 3         <add name="i" type="Microsoft.SharePoint.Administration.Claims.SPClaimsAuthMembershipProvider, Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" />
 4         <add name="SqlProvider" type="System.Web.Security.SqlMembershipProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" connectionStringName="SqlServices" enablePasswordRetrieval="true" enablePasswordReset="true" requiresQuestionAndAnswer="true" passwordFormat="Encrypted" applicationName="ParentPortal" requiresUniqueEmail="true" minRequiredPasswordLength="1" minRequiredNonalphanumericCharacters="0" />
 5       </providers>
 6     </membership>
 7     <roleManager defaultProvider="c" enabled="true" cacheRolesInCookie="false">
 8       <providers>
 9         <add name="c" type="Microsoft.SharePoint.Administration.Claims.SPClaimsAuthRoleProvider, Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" />
10         <add name="SqlRoleProvider" type="System.Web.Security.SqlRoleProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" connectionStringName="SqlServices" />
11       </providers>
12     </roleManager>

　　　　添加<connectionStrings>，字符串与1中相同

　　3.配置管理中心的web.config

　　　　在<system.web>节，添加如下配置：

View Code

 1 <roleManager defaultProvider="AspNetWindowsTokenRoleProvider">
 2       <providers>
 3         <add name="SqlRoleProvider" type="System.Web.Security.SqlRoleProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" connectionStringName="SqlServices" />
 4       </providers>
 5     </roleManager>
 6     <membership defaultProvider="AspNetSqlMembershipProvider">
 7       <providers>
 8         <add name="SqlProvider" type="System.Web.Security.SqlMembershipProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" connectionStringName="SqlServices" enablePasswordRetrieval="true" enablePasswordReset="true" requiresQuestionAndAnswer="true" passwordFormat="Encrypted" applicationName="ParentPortal" minRequiredPasswordLength="1" minRequiredNonalphanumericCharacters="0" />
 9       </providers>
10     </membership>

　　　　添加<connectionStrings>，字符串与1中相同

　　membership配置说明参考：http://msdn.microsoft.com/zh-cn/library/vstudio/a28ctsa5.aspx

　　常见问题：

如果需要密码找回功能，需要设置enablePasswordRetrieval为true且passwordFormat设置为Encrypted或Clear
如果需要密码重置功能，需要设置enablePasswordReset为true
如果需要根据密码提示问题和答案找回密码，需要设置requiresQuestionAndAnswer为true且passwordFormat设置为Encrypted或Clear
minRequiredPasswordLength：最少密码长度，默认为7
minRequiredNonalphanumericCharacters:密码最少包含的特殊字符数，默认为1

第三步：创建登录页面

　　1.创建一个aspx页面（样式自行定义）

View Code

 1 <%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>
 2 <%@ Assembly Name="Microsoft.SharePoint.IdentityModel, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
 3 <%@ Assembly Name="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
 4 <%@ Import Namespace="Microsoft.SharePoint.WebControls" %>
 5 <%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"
 6     Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
 7 <%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
 8 <%@ Import Namespace="Microsoft.SharePoint" %>
 9 <%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
10
11 <%@ Page Language="C#" AutoEventWireup="true" Inherits="MemberShipLogon.FormsSignInPage"
12     MasterPageFile="~/_layouts/simple.master" %>
13
14 <asp:Content ID="Content1" ContentPlaceHolderID="PlaceHolderPageTitle" runat="server">
15     <SharePoint:EncodedLiteral runat="server" EncodeMethod="HtmlEncode" ID="ClaimsFormsPageTitle" />
16 </asp:Content>
17 <asp:Content ID="Content2" ContentPlaceHolderID="PlaceHolderPageTitleInTitleArea"
18     runat="server">
19     <SharePoint:EncodedLiteral runat="server" EncodeMethod="HtmlEncode" ID="ClaimsFormsPageTitleInTitleArea" />
20 </asp:Content>
21 <asp:Content ID="Content3" ContentPlaceHolderID="PlaceHolderSiteName" runat="server" />
22 <asp:Content ID="Content4" ContentPlaceHolderID="PlaceHolderMain" runat="server">
23     <div id="SslWarning" style="color: red; display: none">
24         <SharePoint:EncodedLiteral runat="server" EncodeMethod="HtmlEncode" ID="ClaimsFormsPageMessage" />
25     </div>
26     <script language="javascript" type="text/javascript">
27         // if (document.location.protocol != 'https:') {
28         var SslWarning = document.getElementById('SslWarning');
29         SslWarning.style.display = '';
30         // }
31     </script>
32     <asp:Login ID="loginControl" FailureText="<%$Resources:wss,login_pageFailureText%>"
33         runat="server" Width="100%" OnLoggingIn="signInControl_LoggingIn" OnAuthenticate="signInControl_Authenticate">
34         <LayoutTemplate>
35             <strong>*</strong>
36             <label>Username:</label>
37             <asp:TextBox ID="UserName" autocomplete="off" runat="server" />
38             <strong>*</strong>
39             <label>Password:</label>
40             <asp:TextBox ID="Password" TextMode="Password" autocomplete="off" runat="server"/>
41             <asp:CheckBox ID="RememberMe" runat="server" CssClass="checkBox" />
42             <span>Sign me in automatically</span>
43             <asp:Label ID="FailureText" class="ms-error" runat="server" />
44             <asp:Button ID="login" CommandName="Login" Text="Log In" runat="server" />
45             <asp:Button ID="btnCancel" Text="Cancel" runat="server" />
46         </LayoutTemplate>
47     </asp:Login>
48 </asp:Content>
49

　　2.代码

View Code

 1 using System;
 2 using System.Collections.Generic;
 3 using System.Linq;
 4 using System.Web;
 5 using System.Web.UI;
 6 using System.Web.UI.WebControls;
 7 using LoginControl = System.Web.UI.WebControls.Login;
 8 using System.Security;
 9 using Microsoft.SharePoint;
10 using Microsoft.SharePoint.WebControls;
11 using Microsoft.SharePoint.IdentityModel;
12 using Microsoft.SharePoint.IdentityModel.Pages;
13 using System.IdentityModel.Tokens;
14 using Microsoft.SharePoint.Administration;
15 using System.Web.Security;
16 using Microsoft.SharePoint.Utilities;
17
18 namespace MemberShipLogon
19 {
20     public partial class FormsSignInPage : IdentityModelSignInPageBase
21     {
22         protected void Page_Load(object sender, EventArgs e)
23         {
24             ClaimsFormsPageMessage.Text = "";
25             loginControl.Focus();
26         }
27
28         protected void signInControl_LoggingIn(object sender, LoginCancelEventArgs e)
29         {
30             LoginControl login = sender as LoginControl;
31             login.UserName = login.UserName.Trim();
32             if (string.IsNullOrEmpty(login.UserName))
33             {
34                 ClaimsFormsPageMessage.Text = "The server could not sign you in. The user name cannot be empty.";
35                 e.Cancel = true;
36             }
37         }
38
39         private void EstablishSessionWithToken(SecurityToken securityToken)
40         {
41             if (null == securityToken)
42             {
43                 throw new ArgumentNullException("securityToken");
44             }
45             SPFederationAuthenticationModule fam = SPFederationAuthenticationModule.Current;
46             if (null == fam)
47             {
48                 throw new ArgumentException(null, "FederationAuthenticationModule");
49             }
50             fam.SetPrincipalAndWriteSessionToken(securityToken);
51         }
52
53         protected void signInControl_Authenticate(object sender, AuthenticateEventArgs e)
54         {
55             SecurityToken token = null;
56             LoginControl formsLoginControl = sender as LoginControl;
57
58             if (null != (token = GetSecurityToken(formsLoginControl)))
59             {
60                 EstablishSessionWithToken(token);
61                 e.Authenticated = true;
62                 base.RedirectToSuccessUrl();
63             }
64         }
65
66         private SPIisSettings IisSettings
67         {
68             get
69             {
70                 SPWebApplication webApp = SPWebApplication.Lookup(new Uri(SPContext.Current.Web.Url));
71                 SPIisSettings settings = webApp.IisSettings[SPUrlZone.Default];
72                 return settings;
73             }
74         }
75
76         private SecurityToken GetSecurityToken(LoginControl formsLoginControl)
77         {
78             SecurityToken token = null;
79             SPIisSettings iisSettings = IisSettings;
80             Uri appliesTo = base.AppliesTo;
81
82             if (string.IsNullOrEmpty(formsLoginControl.UserName) ||
83                 string.IsNullOrEmpty(formsLoginControl.Password))
84                 return null;
85
86             SPFormsAuthenticationProvider authProvider = iisSettings.FormsClaimsAuthenticationProvider;
87             token = SPSecurityContext.SecurityTokenForFormsAuthentication(
88                 appliesTo,
89                 authProvider.MembershipProvider,
90                 authProvider.RoleProvider,
91                 formsLoginControl.UserName,
92                 formsLoginControl.Password);
93
94             return token;
95         }
96
97     }
98 }

补充：

　　1.注册　　

View Code

 1 MembershipCreateStatus status = new MembershipCreateStatus();
 2
 3 newUser = Membership.CreateUser(username, password, email, question, answer, true, out status);
 4
 5 if (newUser == null)
 6                     {
 7                         lblErrorMessage.Text = GetErrorMessage(status);
 8                         lblErrorMessage.Visible = true;
 9                     }
10 public string GetErrorMessage(MembershipCreateStatus status)
11         {
12             switch (status)
13             {
14                 case MembershipCreateStatus.DuplicateUserName:
15                     return "Username already exists. Please enter a different user name.";
16
17                 case MembershipCreateStatus.DuplicateEmail:
18                     return "A username for that e-mail address already exists. Please enter a different e-mail address.";
19
20                 case MembershipCreateStatus.InvalidPassword:
21                     return "The password provided is invalid. Please enter a valid password value.";
22
23                 case MembershipCreateStatus.InvalidEmail:
24                     return "The e-mail address provided is invalid. Please check the value and try again.";
25
26                 case MembershipCreateStatus.InvalidAnswer:
27                     return "The password retrieval answer provided is invalid. Please check the value and try again.";
28
29                 case MembershipCreateStatus.InvalidQuestion:
30                     return "The password retrieval question provided is invalid. Please check the value and try again.";
31
32                 case MembershipCreateStatus.InvalidUserName:
33                     return "The user name provided is invalid. Please check the value and try again.";
34
35                 case MembershipCreateStatus.ProviderError:
36                     return "The authentication provider returned an error. Please verify your entry and try again. If the problem persists, please contact your system administrator.";
37
38                 case MembershipCreateStatus.UserRejected:
39                     return "The user creation request has been canceled. Please verify your entry and try again. If the problem persists, please contact your system administrator.";
40
41                 default:
42                     return "An unknown error occurred. Please verify your entry and try again. If the problem persists, please contact your system administrator.";
43             }
44         }

　　2.找回密码

MembershipProvider provide = Membership.Providers["your membership provider"];
MembershipUser user = provide.GetUser(username, false);
password = user.GetPassword(answer);

　　3.修改密码

1 user.ChangePassword(oldPassword, newPassword)

　　4.生成passwordSalt

1 internal string GenerateSalt()
2         {
3             byte[] data = new byte[0x10];
4             new RNGCryptoServiceProvider().GetBytes(data);
5             return Convert.ToBase64String(data);
6         }
