elasticsearch性能优化笔记（2）—— 单点压力测试（粗略）

于 2017-09-03 01:10:00 发布
阅读量802 收藏 1
点赞数
文章标签： 大数据 运维 netty
原文链接：https://my.oschina.net/u/2247638/blog/1528050
版权

2019独角兽企业重金招聘Python工程师标准>>> hot3.png

本部分主要对ES的一套测试流程有一个熟悉，不断分析和学习各个指标和统计方法，找到性能瓶颈

一、装备

        Linux环境

        ElasticSearch单结点，无副本单分片

        Kibana + x-pack 监控集群

        jmeter压测

        nmon监测Linux性能



二、服务器环境：

# cat /proc/version
Linux version 3.10.0-514.2.2.el7.x86_64 (builder@kbuilder.dev.centos.org) (gcc version 4.8.5 20150623 (Red Hat 4.8.5-11) (GCC) ) #1 SMP Tue Dec 6 23:06:41 UTC 2016

----------------------------------------------------------------------------------------------------------------

# lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                8
On-line CPU(s) list:   0-7
Thread(s) per core:    1
Core(s) per socket:    1
座：                 8
NUMA 节点：         1
厂商 ID：           GenuineIntel
CPU 系列：          6
型号：              42
型号名称：        Intel(R) Xeon(R) CPU E5-2620 v3 @ 2.40GHz
步进：              1
CPU MHz：             2394.454
BogoMIPS：            4788.90
超管理器厂商：  KVM
虚拟化类型：     完全
L1d 缓存：          32K
L1i 缓存：          32K
L2 缓存：           4096K

----------------------------------------------------------------------------------------------------------------

# free -m
              total        used        free      shared  buff/cache   available
Mem:          32013       16583        1027         198       14402       14461
Swap:             0           0           0

----------------------------------------------------------------------------------------------------------------

# lsblk
NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
vda    253:0    0   20G  0 disk
└─vda1 253:1    0   20G  0 part /
vdb    253:16   0  200G  0 disk
└─vdb1 253:17   0  200G  0 part

# fdisk -l

磁盘 /dev/vda：21.5 GB, 21474836480 字节，41943040 个扇区
Units = 扇区 of 1 * 512 = 512 bytes
扇区大小(逻辑/物理)：512 字节 / 512 字节
I/O 大小(最小/最佳)：512 字节 / 512 字节
磁盘标签类型：dos
磁盘标识符：0x000a0566

  设备 Boot      Start         End      Blocks   Id  System
/dev/vda1   *        2048    41943039    20970496   83  Linux

磁盘 /dev/vdb：214.7 GB, 214748364800 字节，419430400 个扇区
Units = 扇区 of 1 * 512 = 512 bytes
扇区大小(逻辑/物理)：512 字节 / 512 字节
I/O 大小(最小/最佳)：512 字节 / 512 字节
磁盘标签类型：dos
磁盘标识符：0x739398fb

   设备 Boot      Start         End      Blocks   Id  System
/dev/vdb1            2048   419430399   209714176   83  Linux

----------------------------------------------------------------------------------------------------------------



三、准备过程

1、elasticsearch5.4.2，kibana，x-pack

elasticsearch即插即用，下下来改改配置就能用；

kibana类似，在配置文件里修改为本地的ES地址即可；

原本是打算用marvel监控，但貌似自5.0之后的ES的HEAD啊，marvel啊这些插件全没了，全集成到x-pack里面了

elasticsearch中运行 elasticsearch-plugin install x-pack

kibana中运行kibana-plugin install x-pack（时间稍有些慢）

即把ES相关的性能图添加到kibana中

2、jmeter

jmeter是java开发的一块集成测试的软件，通过它可以构建测试用例，保存jmx测试用例并交到服务器上执行。

jmeter支持远程启动，在服务器上启动jmeter-server(可能需要参数指定ip），在本机jmeter.properites中添加remote_server:远程ip:1099（1099为默认端口），即可在jmeter运行脚本时使用远程启动。

由于服务器不在局域网内，因此上传jmx文件给服务器使用

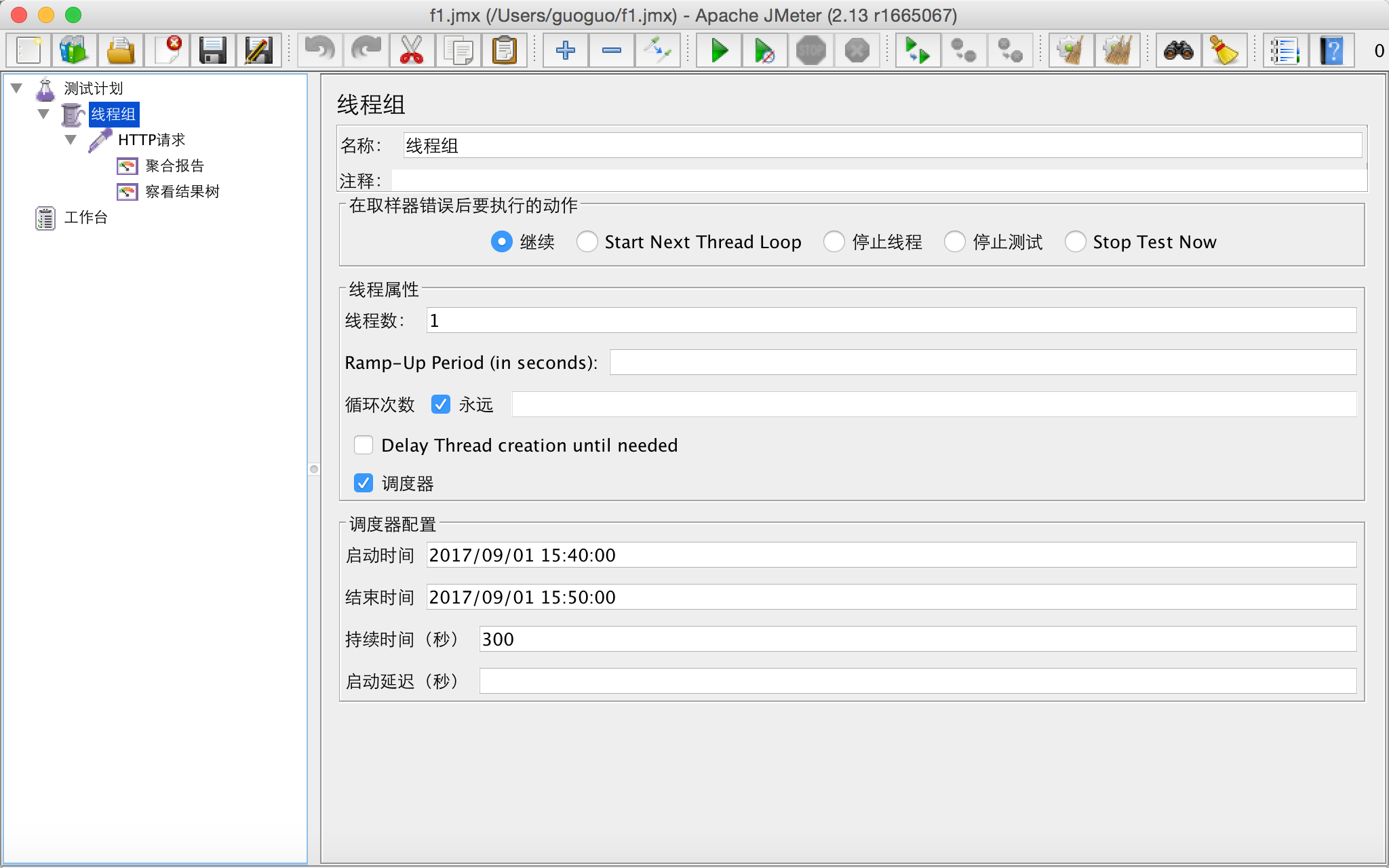

操作：

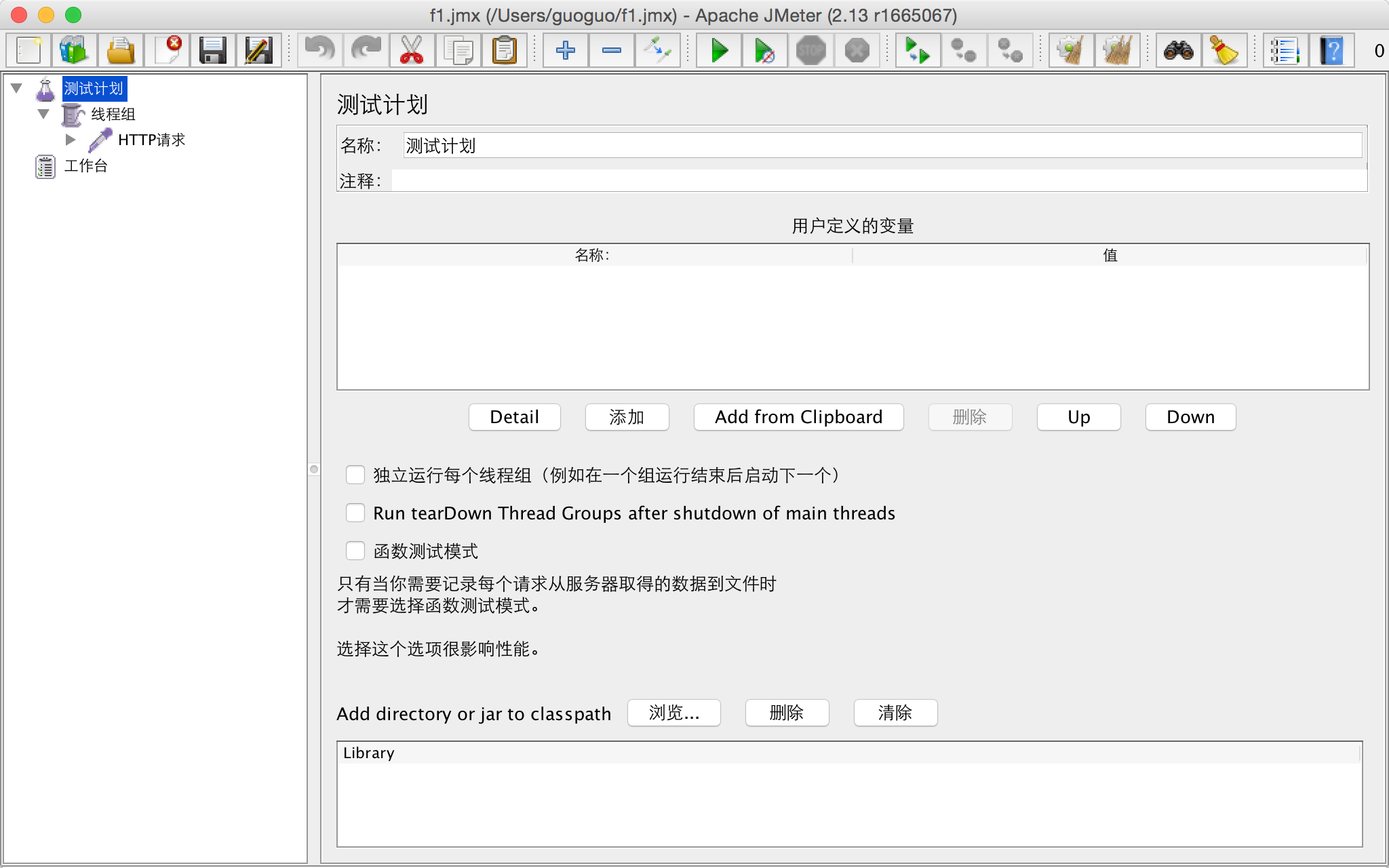

右键测试计划，添加线程组，修改线程数，循环次数，运行时间等关键参数


在线程组中添加Sampler，选择HTTP请求


在HTTP请求中添加聚合报告和结果树

在文件=>保存为测试计划 中保存jmx文件

3、nmon

nmon是一款linux下的系统性能指标工具，提供CPU，内存，磁盘IO，网络等多项指标的界面化展示。

安装：

wget http://sourceforge.net/projects/nmon/files/nmon16d_x86.tar.gz

tar xvzf  nmon16d_x86.tar.gz

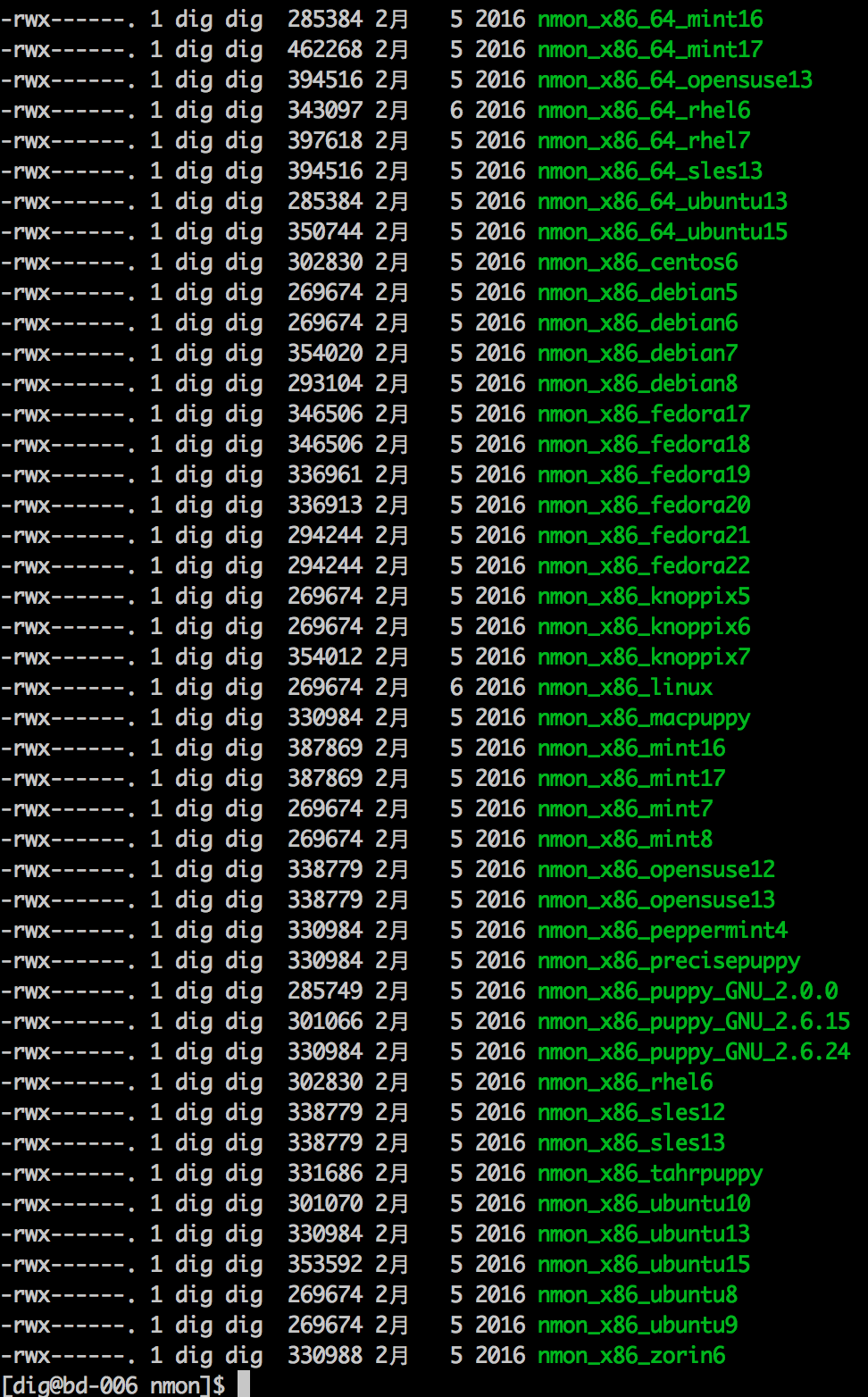

得到一系列nmon对应的各种版本的文件


找到相应的版本的nmon文件

chmod +x 赋予可执行权限

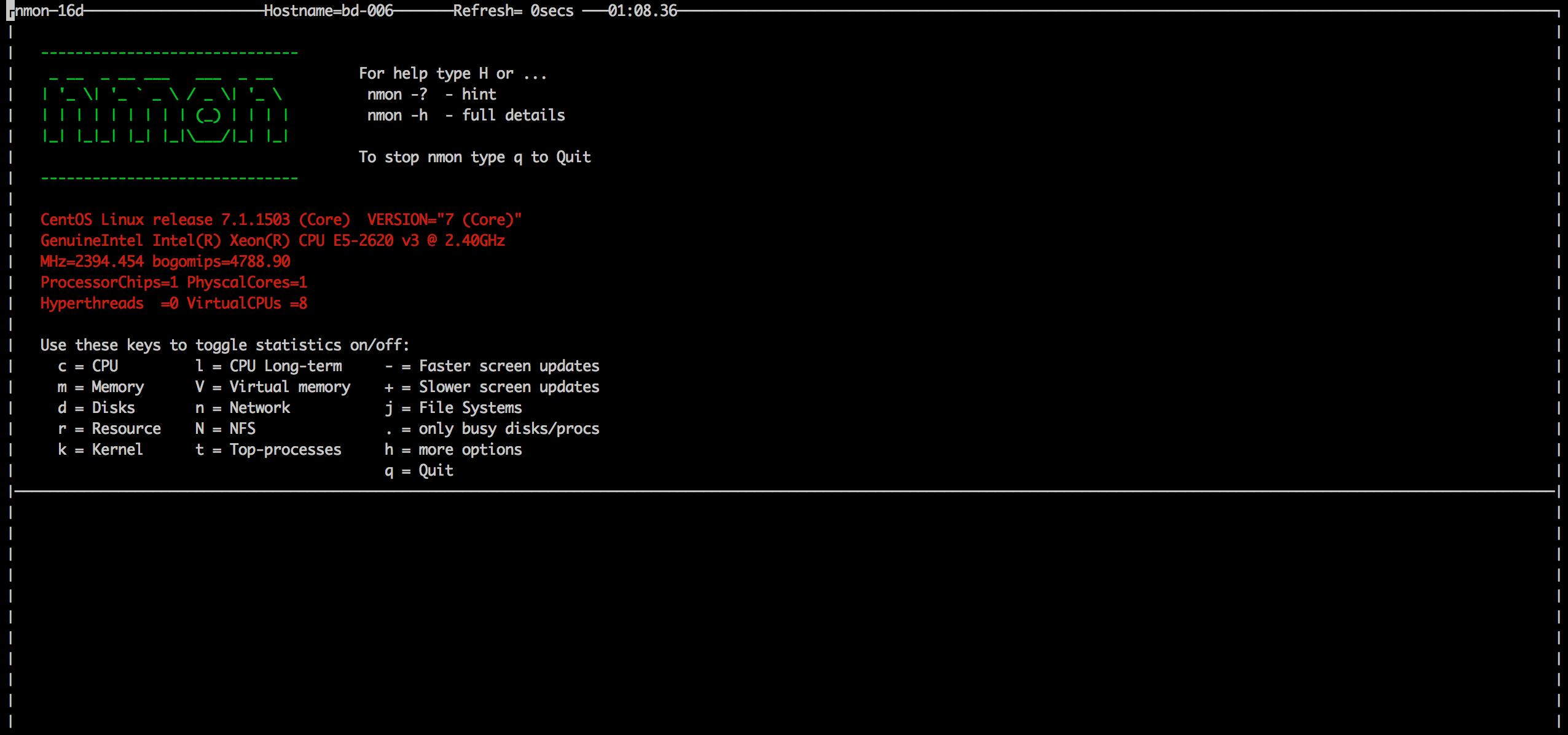

运行：

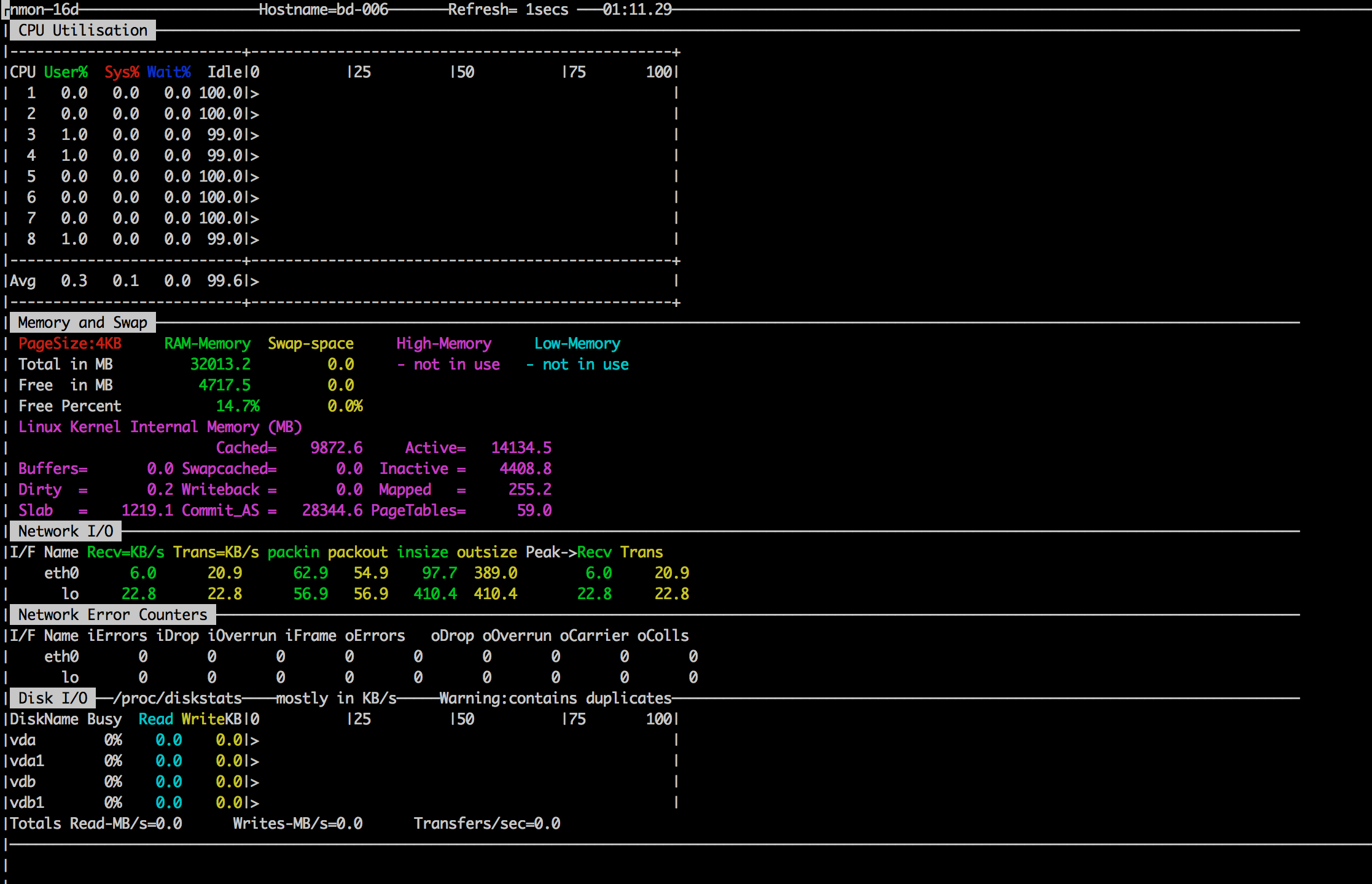

其中每个参数可控制展示的开关，按下c,m,d,n


即可监控系统性能

四、开始测试

 ES结点数分片数副本数ES配置  线程数ES数据索引settingJVM参数逐条insert写入速率范围(条/s)5分钟写入数据条数／数据量
Sample1110A1   A无A
Sample2110A200A无A
Sample3110A1000BAA
Sample4110A200BAA
Sample5110A200CAA
Sample6
Sample7





样本项目描述

——ES配置：

A：

http.cors.enabled: true
http.cors.allow-origin: "*"
xpack.security.enabled: false
indices.memory.index_buffer_size: "50%"
indices.memory.min_index_buffer_size: "1024mb"
http.max_initial_line_length: "64kb"
http.max_header_size: "64kb"
action.search.shard_count.limit: 50000
script.inline: true
script.stored: true
thread_pool.bulk.queue_size: 5000

——JVM参数：

A：

-Xms2g -Xmx2g -XX:+UseConcMarkSweepGC

-XX:CMSInitiatingOccupancyFraction=75 -XX:+UseCMSInitiatingOccupancyOnly -XX:+DisableExplicitGC -XX:+AlwaysPreTouch -server -Xss1m -Djava.awt.headless=true -Dfile.encoding=UTF-8

-Djna.nosys=true

-Djdk.io.permissionsUseCanonicalPath=true

-Dio.netty.noUnsafe=true

-Dio.netty.noKeySetOptimization=true

-Dio.netty.recycler.maxCapacityPerThread=0 -Dlog4j.shutdownHookEnabled=false

-Dlog4j2.disable.jmx=true -Dlog4j.skipJansi=true -XX:+HeapDumpOnOutOfMemoryError



——ES数据：

A：

{
    "_MCSJnlNo": "45139477"
}

B：

{
    "_MCSJnlNo": "45139477",
    "_raw": "2017-05-01 04:51:10.723 [[ACTIVE] ExecuteThread: '15' for queue: 'weblogic.kernel.Default (self-tuning)'] INFO  c.c.p.s.c.t.TransformTransport - recv:<?xml version=\"1.0\" encoding=\"UTF-8\"?>\r\n<Message>\r\n<Head>\r\n<_MCSJnlNo>45139477</_MCSJnlNo>\r\n<_ResponseSystemId>MCA</_ResponseSystemId>\r\n<_RejCode>000000</_RejCode>\r\n<_RejMsg></_RejMsg>\r\n<_MCHJnlNo>3973735</_MCHJnlNo>\r\n<_TransactionId>per.MCLoanInterestRateQuery</_TransactionId>\r\n<_MCHTimestamp>2017-05-01 04:51:10.61</_MCHTimestamp>\r\n</Head>\r\n<Body>\r\n<InterestRate>10.00</InterestRate>\r\n</Body>\r\n</Message>\r",
    "_context_id": 472,
    "_host": "192.168.0.34",
    "type": "recv",
    "_MCHTimestamp": "2017-05-01 04:51:10.61",
    "_MCHJnlNo": "3973735",
    "_RejCode": "000000",
    "_ResponseSystemId": "MCA",
    "InterestRate": "10.00",
    "_TransactionId": "per.MCLoanInterestRateQuery",
    "_ts": 1493585470000
}

C：

{
    "_raw": "[2017-07-23 22:09:49,435]  [elasticsearch]   [DEBUG]   [< {\"took\":12,\"timed_out\":false,\"_shards\":{\"total\":10,\"successful\":10,\"failed\":0},\"hits\":{\"total\":196699,\"max_score\":null,\"hits\":[{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3QT\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:35 test_longtime1/longtimetxt.0 three line log for one 296963 \",\"_context_id\":1088331,\"_host\":\"192.168.0.33\",\"_ts\":1500818975000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:35 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296963 \"]},\"sort\":[1500818975000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3QQ\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:34 test_longtime1/longtimetxt.0 three line log for one 296962 \",\"_context_id\":1088328,\"_host\":\"192.168.0.33\",\"_ts\":1500818974000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:34 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296962 \"]},\"sort\":[1500818974000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3QN\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:33 test_longtime1/longtimetxt.0 three line log for one 296961 \",\"_context_id\":1088325,\"_host\":\"192.168.0.33\",\"_ts\":1500818973000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:33 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296961 \"]},\"sort\":[1500818973000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3OF\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:32 test_longtime1/longtimetxt.0 three line log for one 296960 \",\"_context_id\":1088322,\"_host\":\"192.168.0.33\",\"_ts\":1500818972000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:32 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296960 \"]},\"sort\":[1500818972000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3OC\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:31 test_longtime1/longtimetxt.0 three line log for one 296959 \",\"_context_id\":1088319,\"_host\":\"192.168.0.33\",\"_ts\":1500818971000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:31 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296959 \"]},\"sort\":[1500818971000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3N_\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:30 test_longtime1/longtimetxt.0 three line log for one 296958 \",\"_context_id\":1088316,\"_host\":\"192.168.0.33\",\"_ts\":1500818970000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:30 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296958 \"]},\"sort\":[1500818970000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3Lx\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:29 test_longtime1/longtimetxt.0 three line log for one 296957 \",\"_context_id\":1088313,\"_host\":\"192.168.0.33\",\"_ts\":1500818969000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:29 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296957 \"]},\"sort\":[1500818969000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3Lu\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:28 test_longtime1/longtimetxt.0 three line log for one 296956 \",\"_context_id\":1088310,\"_host\":\"192.168.0.33\",\"_ts\":1500818968000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:28 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296956 \"]},\"sort\":[1500818968000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3Lr\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:27 test_longtime1/longtimetxt.0 three line log for one 296955 \",\"_context_id\":1088307,\"_host\":\"192.168.0.33\",\"_ts\":1500818967000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:27 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296955 \"]},\"sort\":[1500818967000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3Jr\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:26 test_longtime1/longtimetxt.0 three line log for one 296954 \",\"_context_id\":1088304,\"_host\":\"192.168.0.33\",\"_ts\":1500818966000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:26 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296954 \"]},\"sort\":[1500818966000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3Jo\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:25 test_longtime1/longtimetxt.0 three line log for one 296953 \",\"_context_id\":1088301,\"_host\":\"192.168.0.33\",\"_ts\":1500818965000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:25 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296953 \"]},\"sort\":[1500818965000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyDSJVct_8CDGz3Jl\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:24 test_longtime1/longtimetxt.0 three line log for one 296952 \",\"_context_id\":1088298,\"_host\":\"192.168.0.33\",\"_ts\":1500818964000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:24 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296952 \"]},\"sort\":[1500818964000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyAW0Vct_8CDGz3Hl\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:23 test_longtime1/longtimetxt.0 three line log for one 296951 \",\"_context_id\":1088295,\"_host\":\"192.168.0.33\",\"_ts\":1500818963000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:23 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296951 \"]},\"sort\":[1500818963000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyAW0Vct_8CDGz3Hi\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:22 test_longtime1/longtimetxt.0 three line log for one 296950 \",\"_context_id\":1088292,\"_host\":\"192.168.0.33\",\"_ts\":1500818962000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:22 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296950 \"]},\"sort\":[1500818962000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyAW0Vct_8CDGz3Hf\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:21 test_longtime1/longtimetxt.0 three line log for one 296949 \",\"_context_id\":1088289,\"_host\":\"192.168.0.33\",\"_ts\":1500818961000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:21 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296949 \"]},\"sort\":[1500818961000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyAW0Vct_8CDGz3FU\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:20 test_longtime1/longtimetxt.0 three line log for one 296948 \",\"_context_id\":1088286,\"_host\":\"192.168.0.33\",\"_ts\":1500818960000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:20 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296948 \"]},\"sort\":[1500818960000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyAW0Vct_8CDGz3FR\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:19 test_longtime1/longtimetxt.0 three line log for one 296947 \",\"_context_id\":1088283,\"_host\":\"192.168.0.33\",\"_ts\":1500818959000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:19 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296947 \"]},\"sort\":[1500818959000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyAW0Vct_8CDGz3FO\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:18 test_longtime1/longtimetxt.0 three line log for one 296946 \",\"_context_id\":1088280,\"_host\":\"192.168.0.33\",\"_ts\":1500818958000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:18 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296946 \"]},\"sort\":[1500818958000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyAW0Vct_8CDGz3Cr\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:17 test_longtime1/longtimetxt.0 three line log for one 296945 \",\"_context_id\":1088277,\"_host\":\"192.168.0.33\",\"_ts\":1500818957000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:17 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296945 \"]},\"sort\":[1500818957000]},{\"_index\":\"ls_749bc4e976f24f6f9fee21e4bc6c3e5b\",\"_type\":\"20170723\",\"_id\":\"AV1vyAW0Vct_8CDGz3Co\",\"_score\":null,\"_source\":{\"_raw\":\"2017-07-23 22:09:16 test_longtime1/longtimetxt.0 three line log for one 296944 \",\"_context_id\":1088274,\"_host\":\"192.168.0.33\",\"_ts\":1500818956000},\"highlight\":{\"_raw\":[\"2017-07-23 22:09:16 test_longtime1/longtimetxt.0 three line log for <em>one</em> 296944 \"]},\"sort\":[1500818956000]}]}}]",
    "_context_id": 1247368,
    "_host": "192.168.0.34",
    "_ts": 1500818989000,

    "data1": 重复raw,

    "data2": 重复raw,

    "data3": 重复raw,

    "data4": 重复raw,

    "data5": 重复raw,

    "data6": 重复raw,

    "data7": 重复raw,

    "data8": 重复raw,

    "data9": 重复raw,

    "data10": 重复raw,
  }

——索引settings：

A：

PUT index1


{
        "template": "*",
        "order": 1,
        "settings": {
            "number_of_shards": 1,
            "number_of_replicas": 0,
            "index.query.default_field": "_raw"
        },
        "mappings": {
            "_default_": {
                "date_detection": false,
                "numeric_detection": false,
                "_all": {
                    "enabled": false
                },
                "properties": {
                    "_host": {
                        "type": "keyword",
                        "norms": false
                    },
                    "_raw": {
                        "type": "text"
                    },
                    "_ts": {
                        "type": "long"
                    },
                    "_context_id": {
                        "type": "long"
                    }
                },
                "dynamic_templates": [
                    {
                        "strings_as_keywords": {
                            "match_mapping_type": "string",
                            "mapping": {
                                "type": "keyword"
                            }
                        }
                    }
                ]
            }
        }
    }

----------------------------------------------------------------------------------------------------------------

Sample 1:



16:53:07 —— 16:58:07

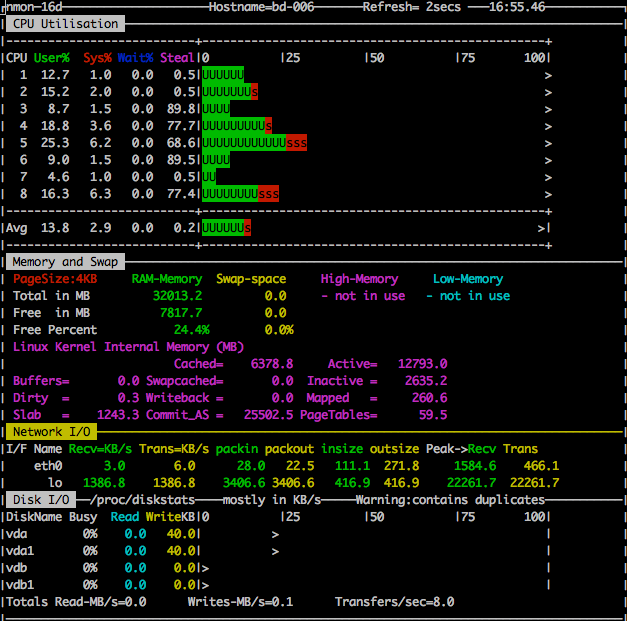

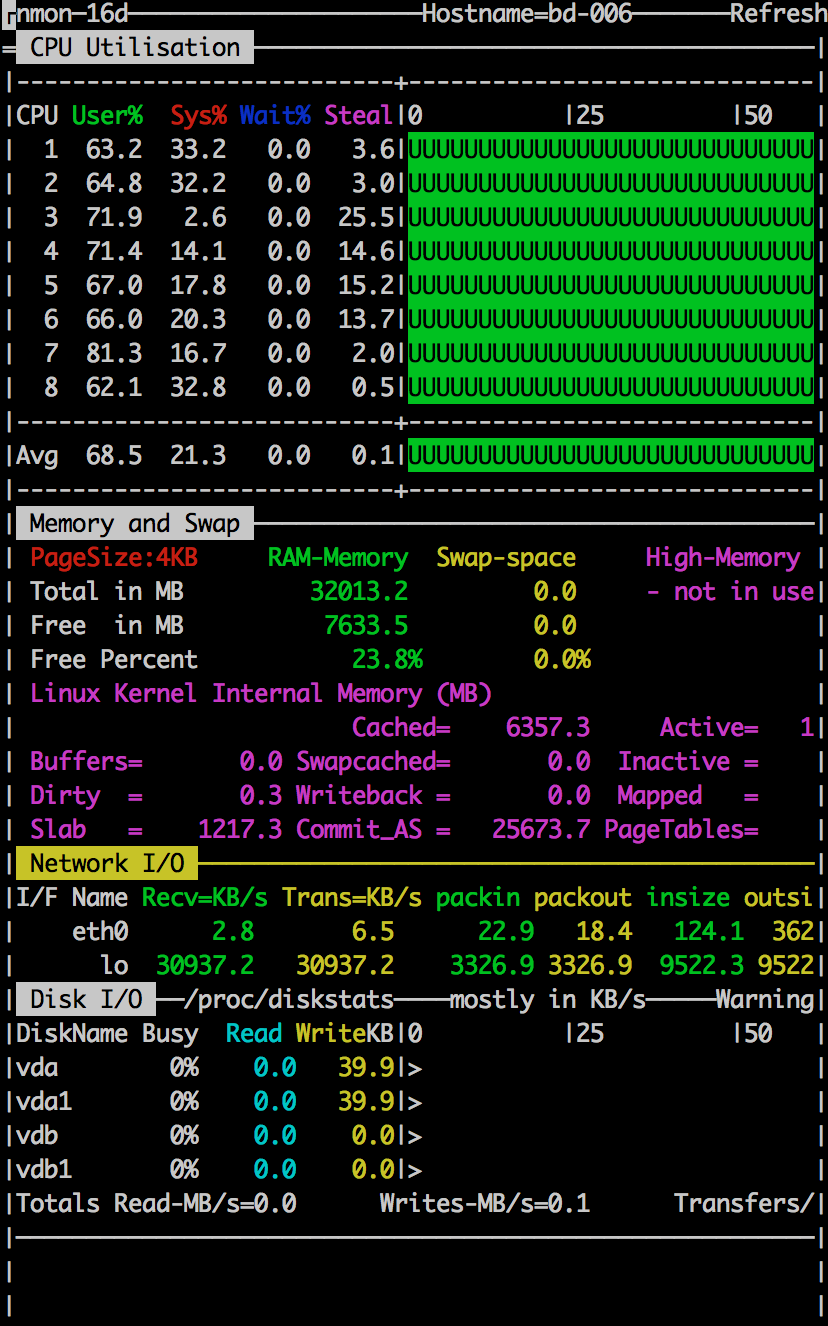

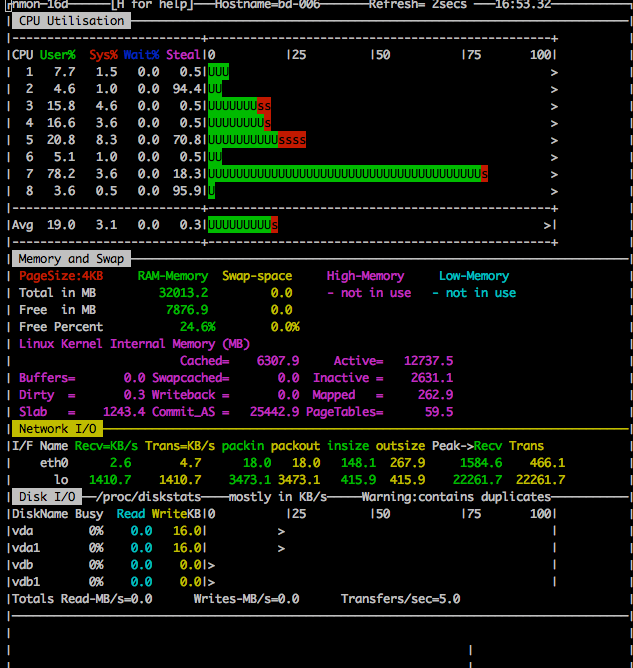

性能抽样：

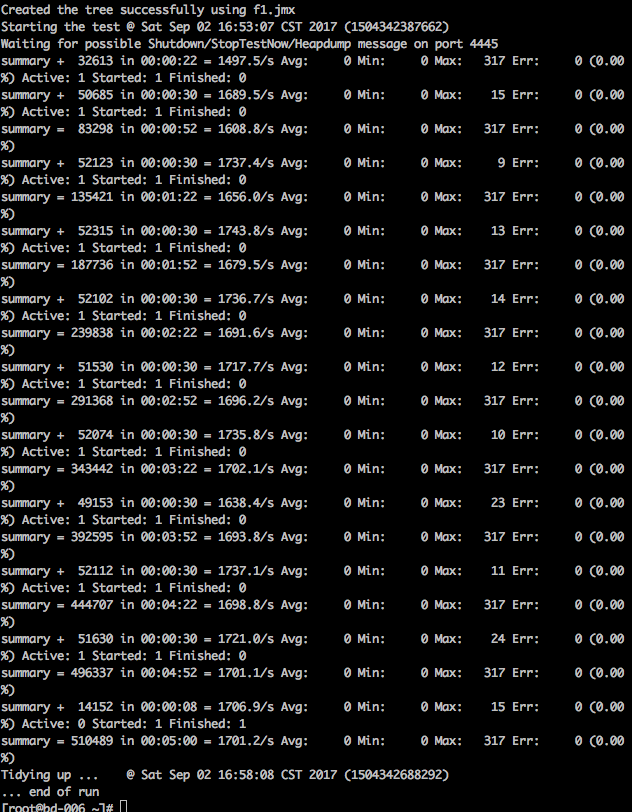

写入日志：


数据量：

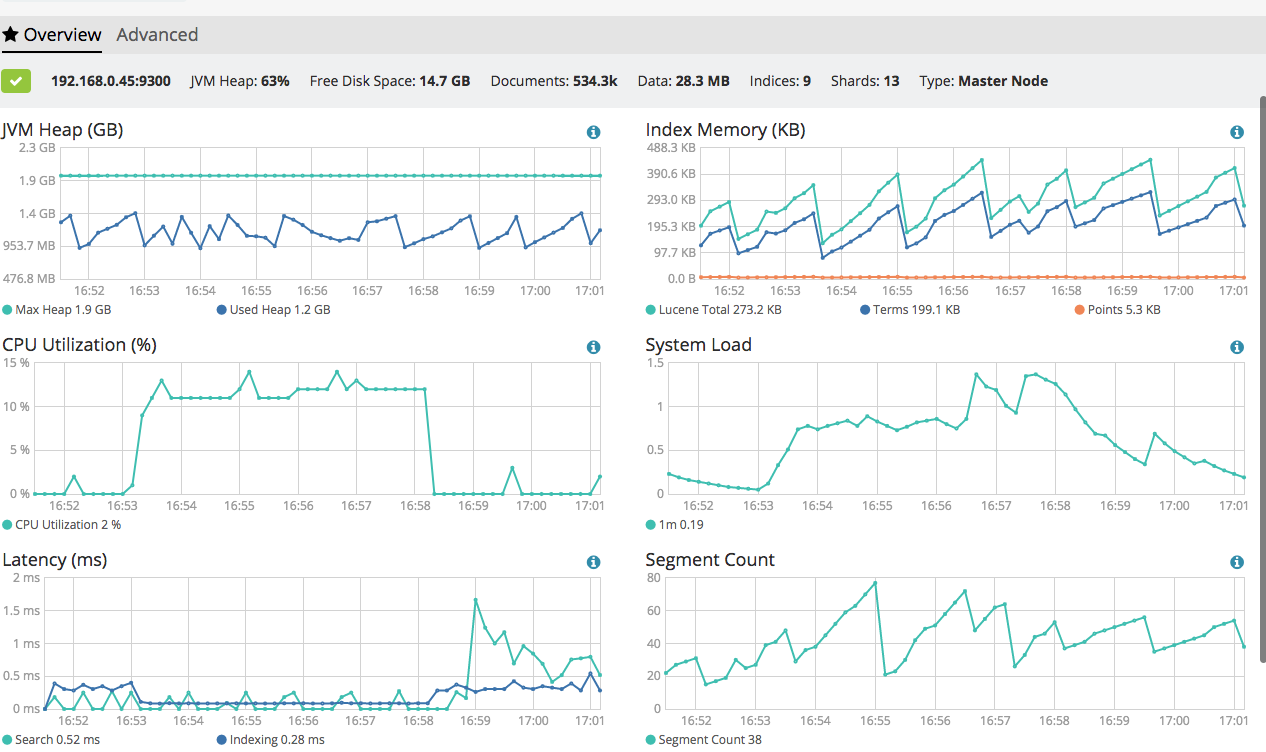

x-pack图：


----------------------------------------------------------------------------------------------------------------

Sample 2:

17:07:15 —— 17:12:15

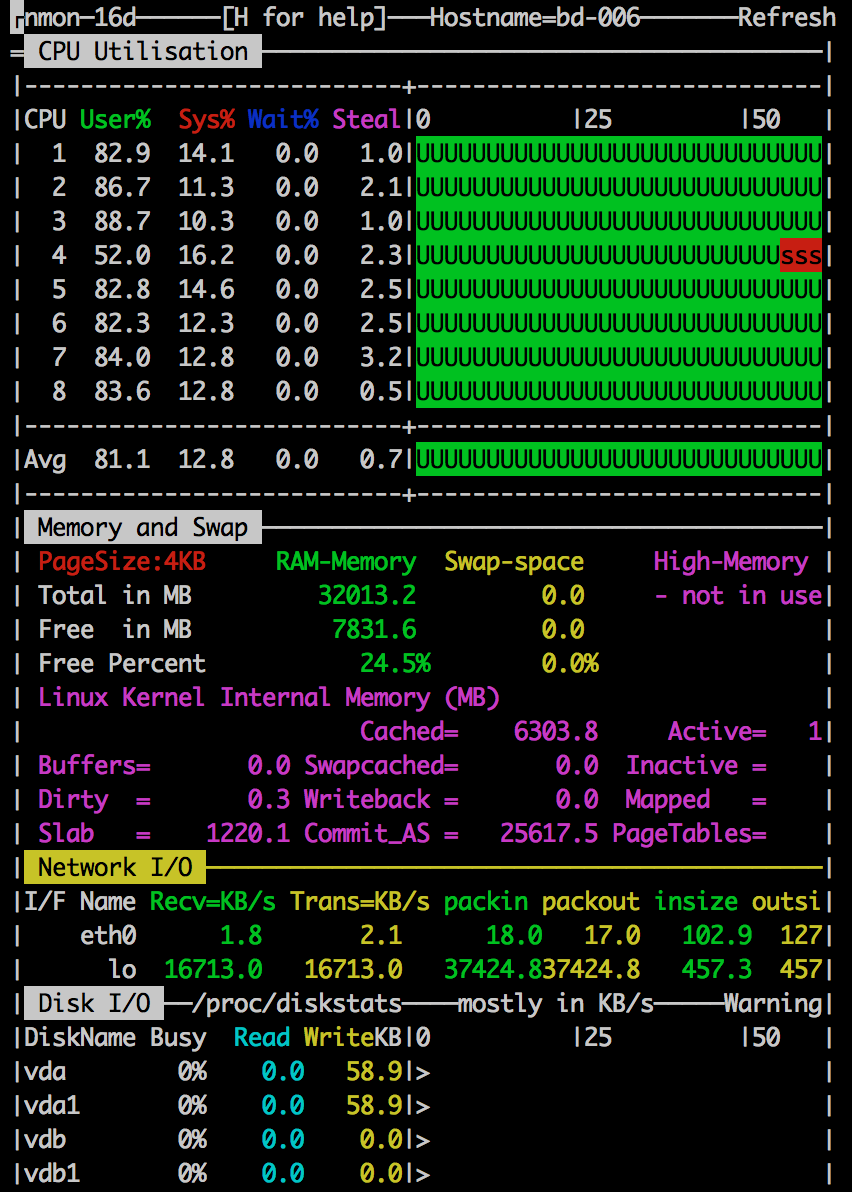

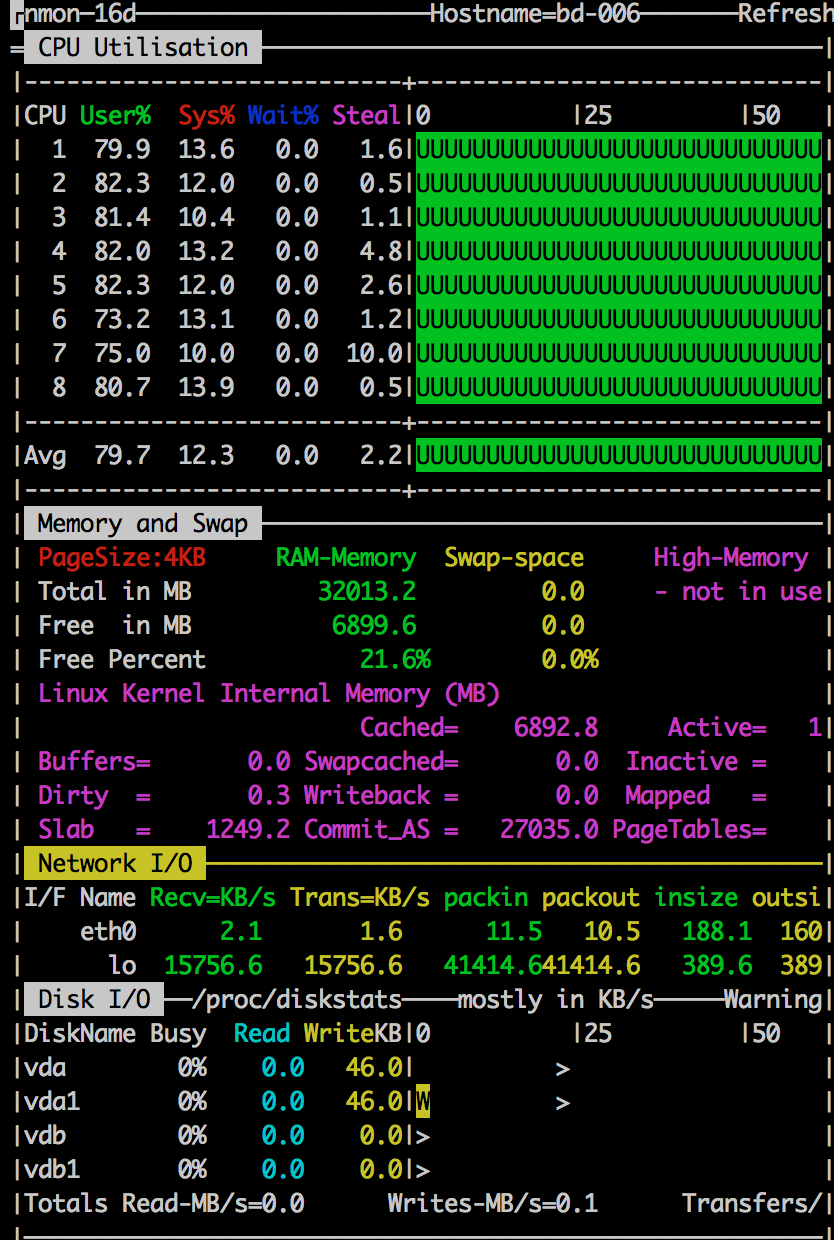

性能抽样：

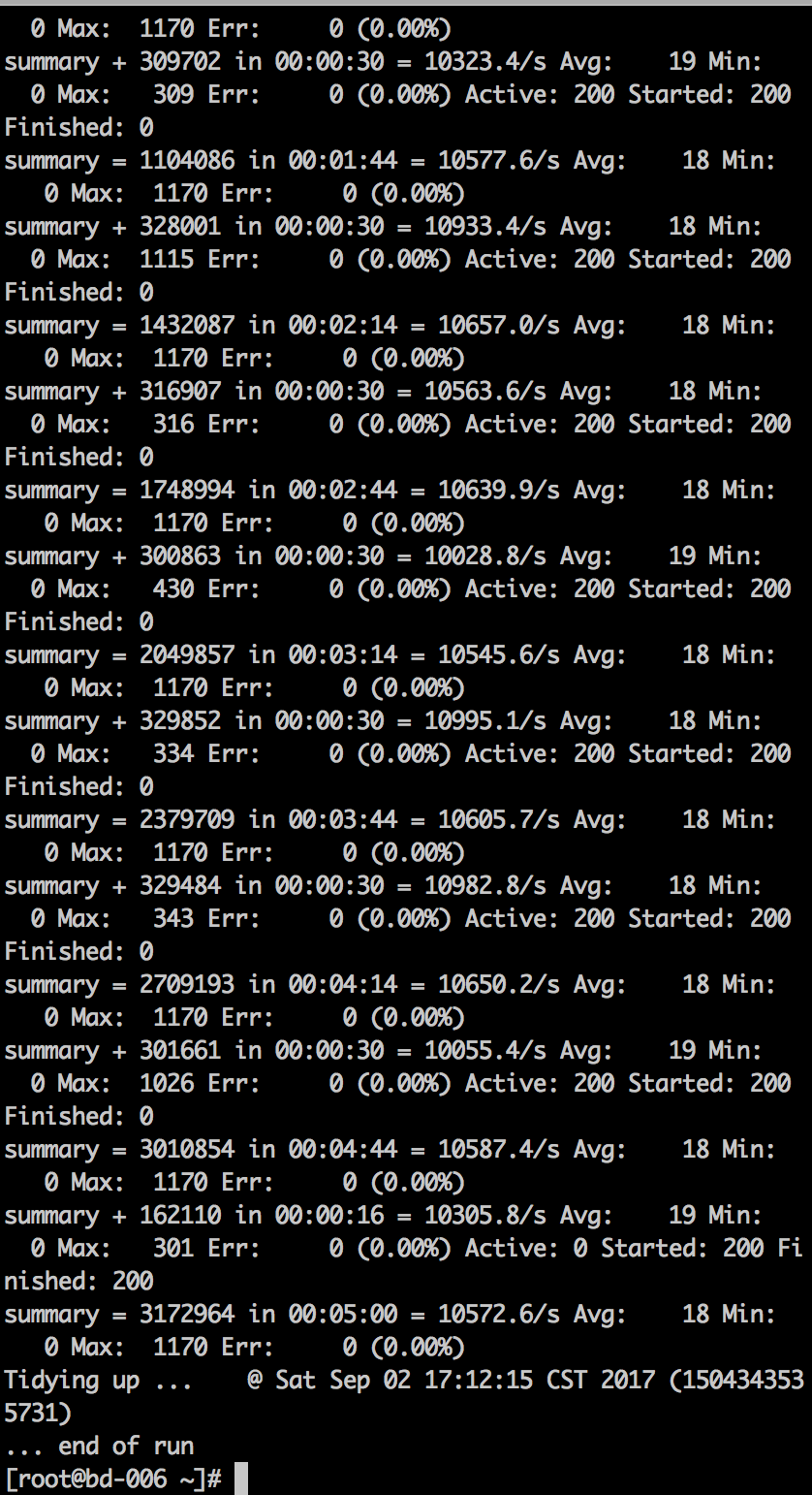

写入日志：


数据量：

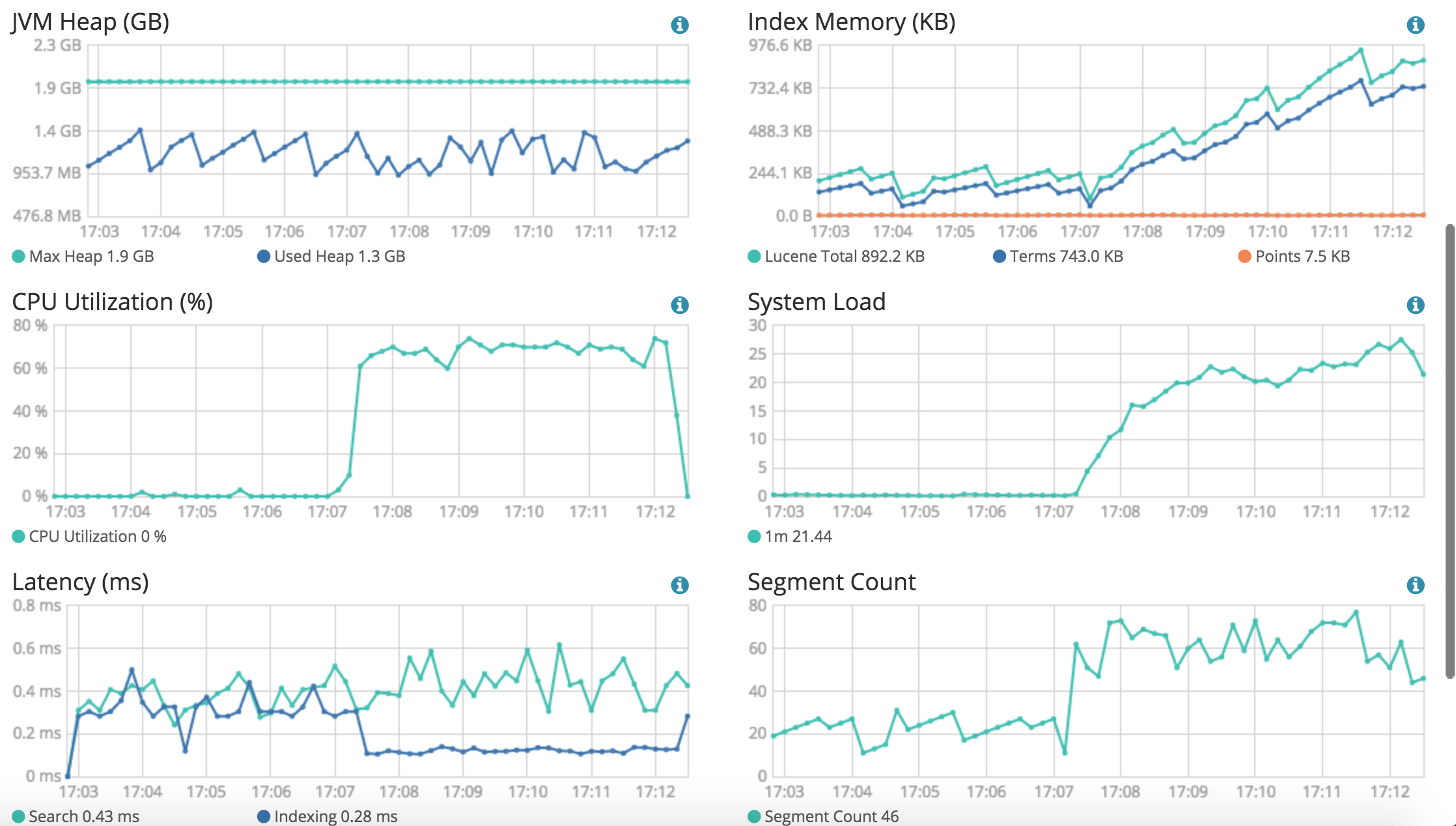

x-pack图：


----------------------------------------------------------------------------------------------------------

Sample 3:

17:24:03——17:29:03

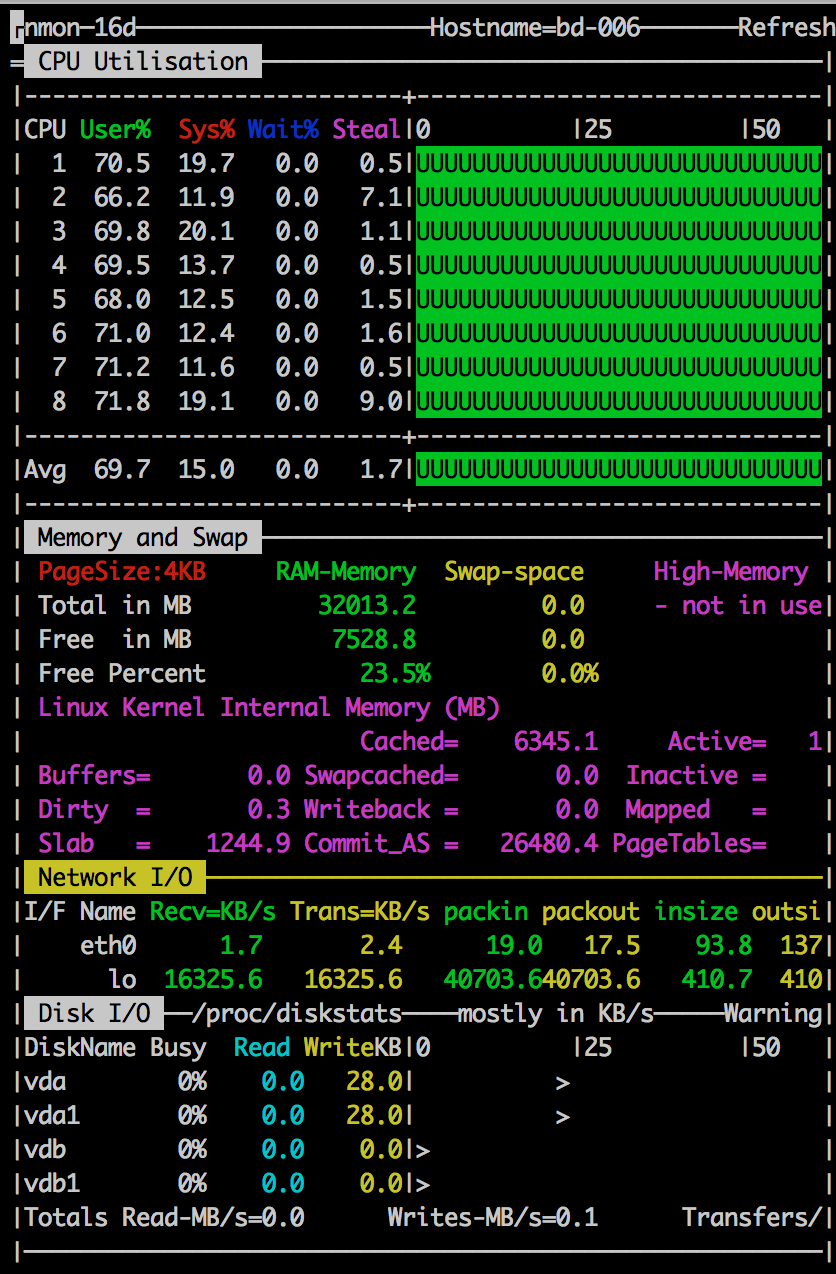

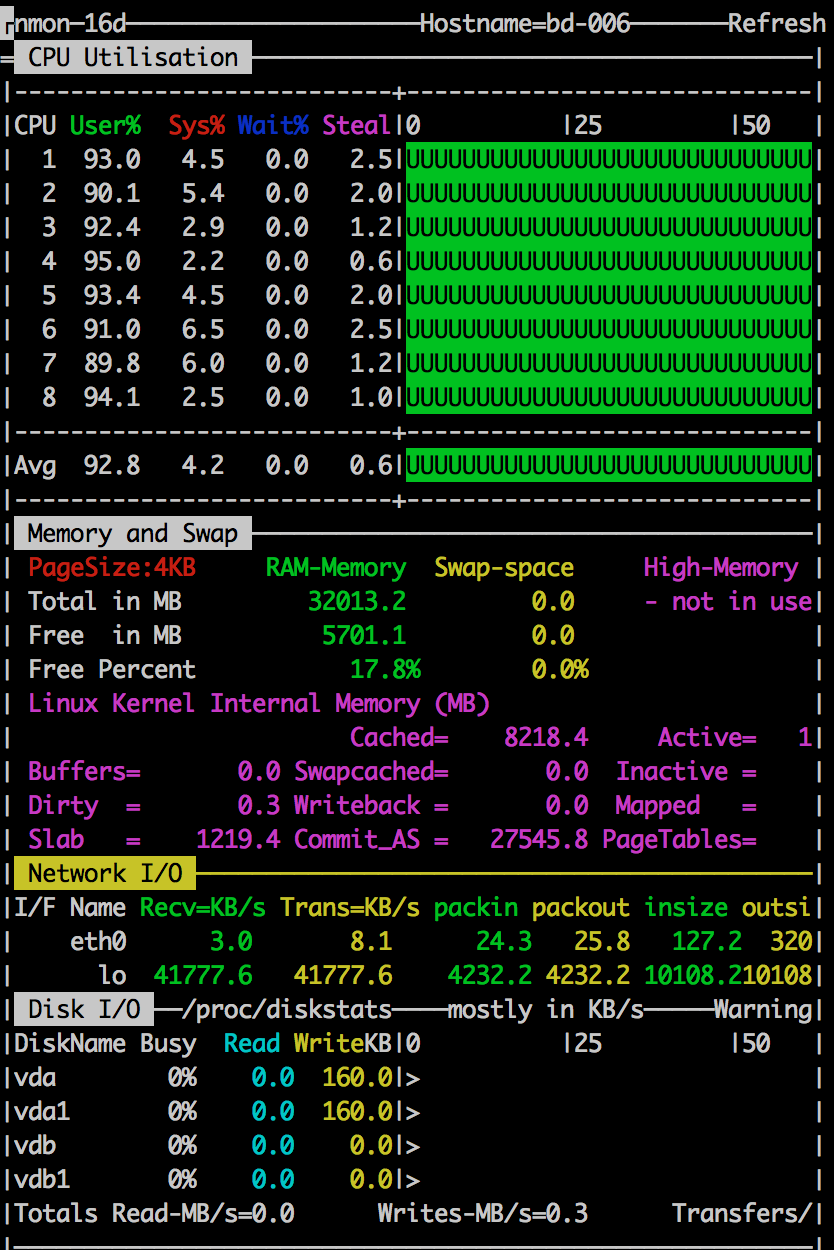

性能抽样：

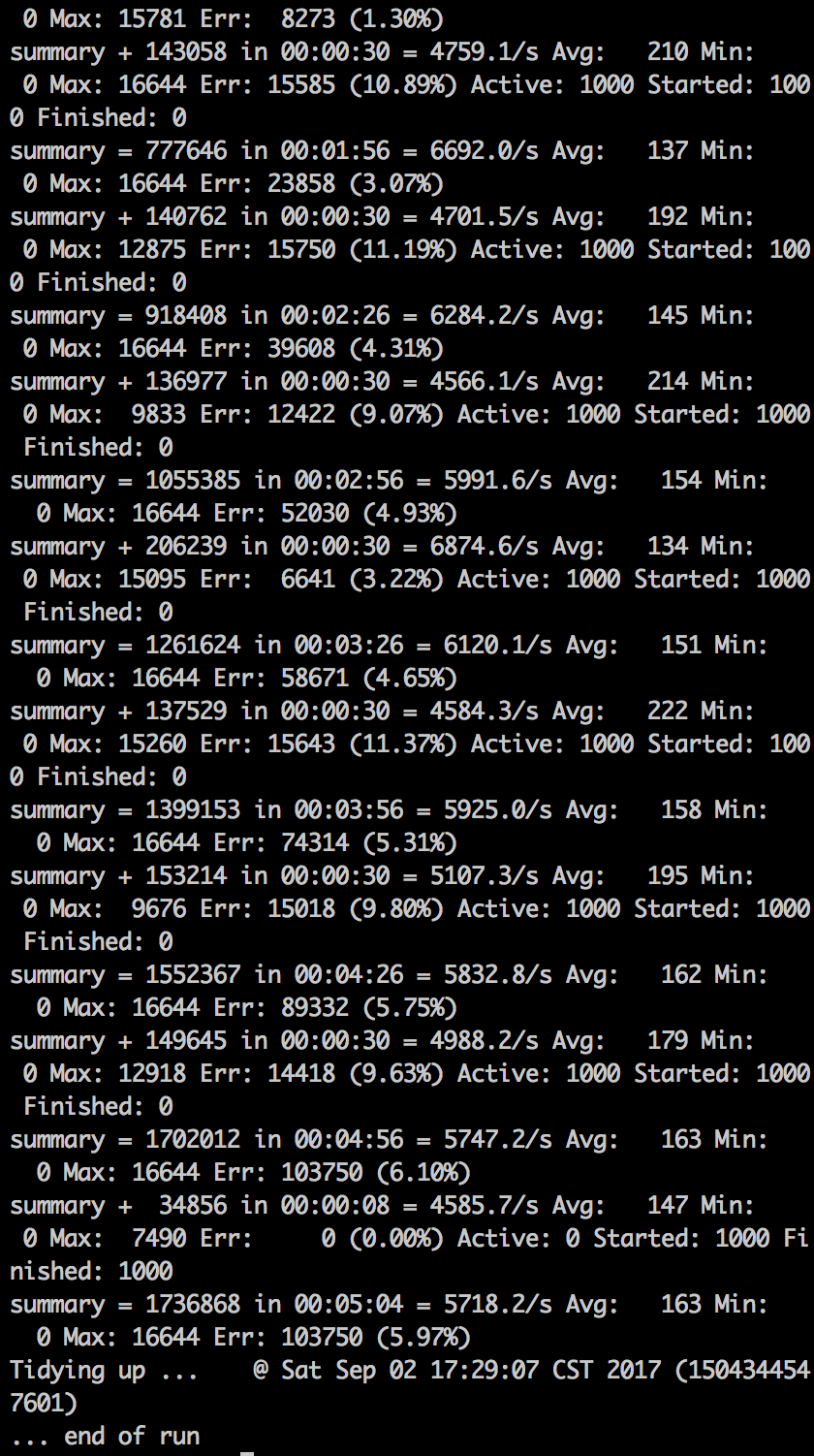

写入日志：


数据量：

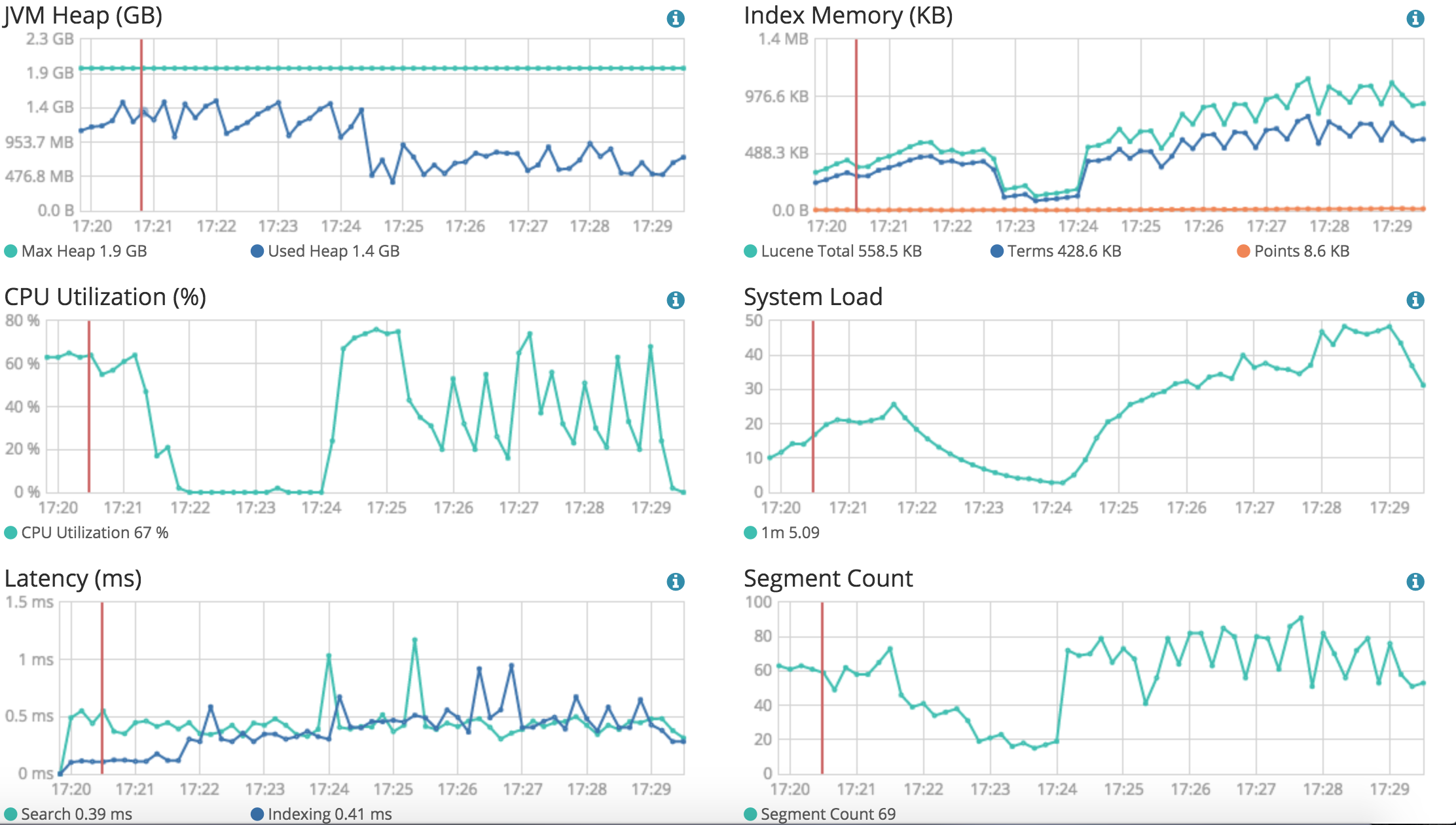

x-pack图：




----------------------------------------------------------------------------------------------------------

Sample 4:

23:07:04——23:12:04

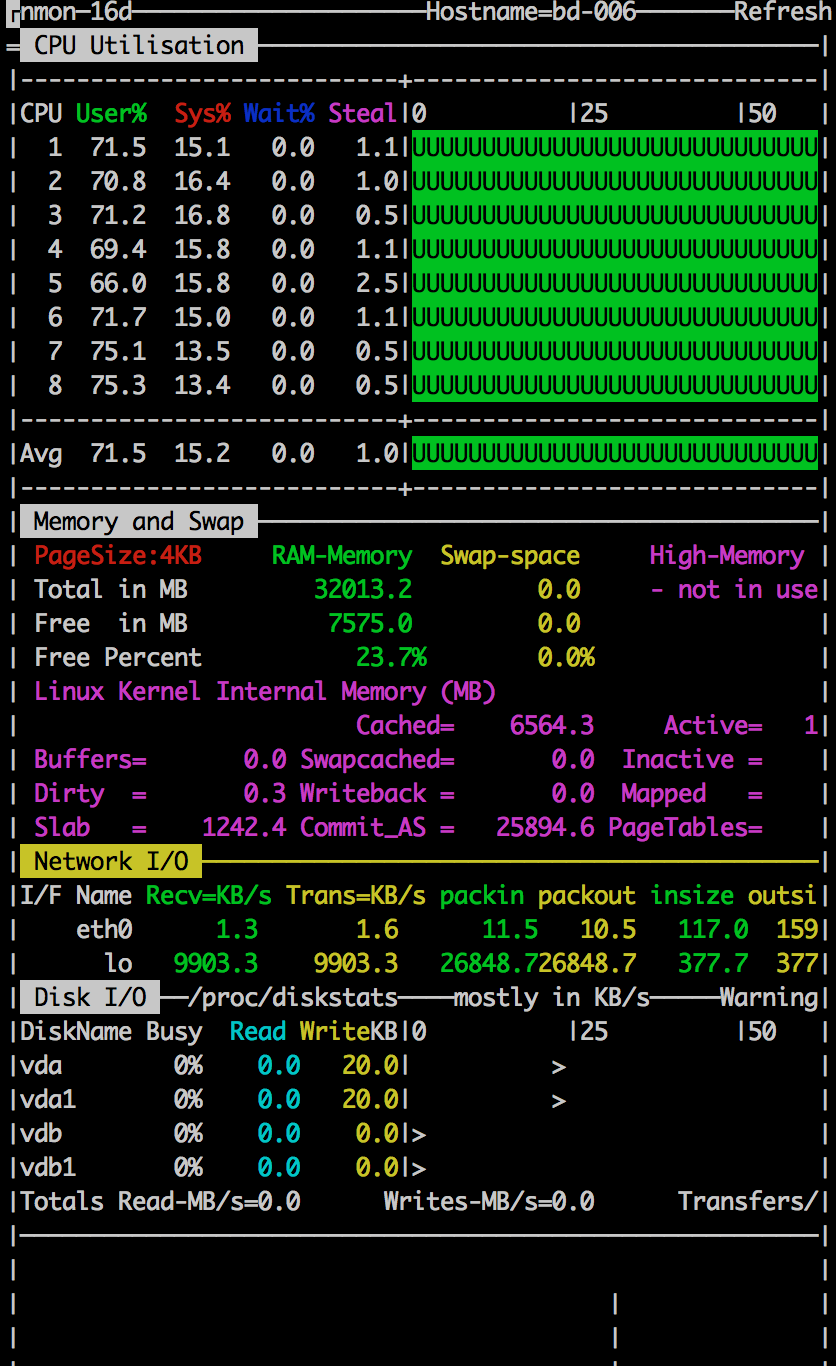

性能抽样：

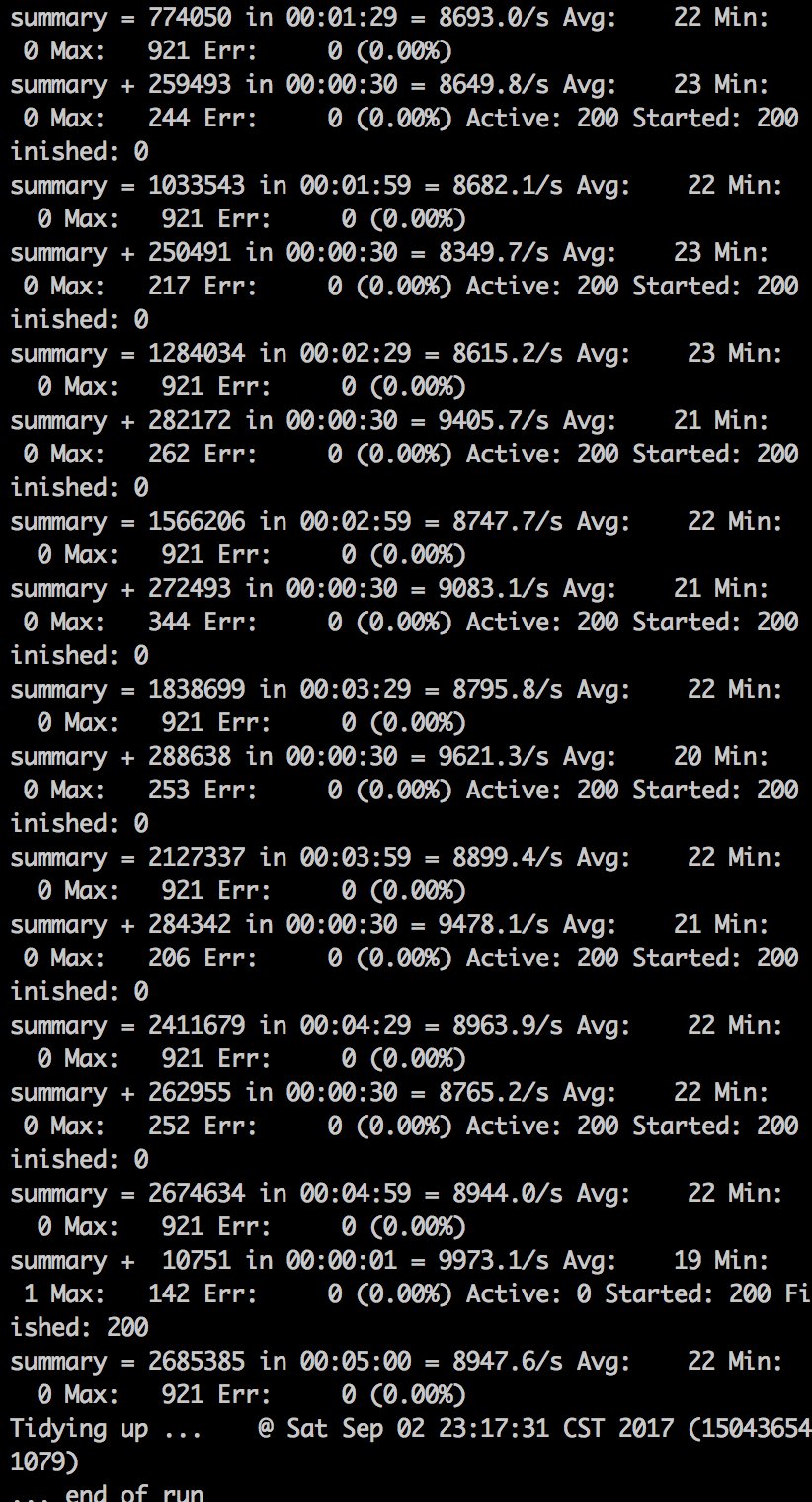

写入日志


数据量：


x-pack图：


----------------------------------------------------------------------------------------------------------

Sample 5:

23:35:06——23:40:06

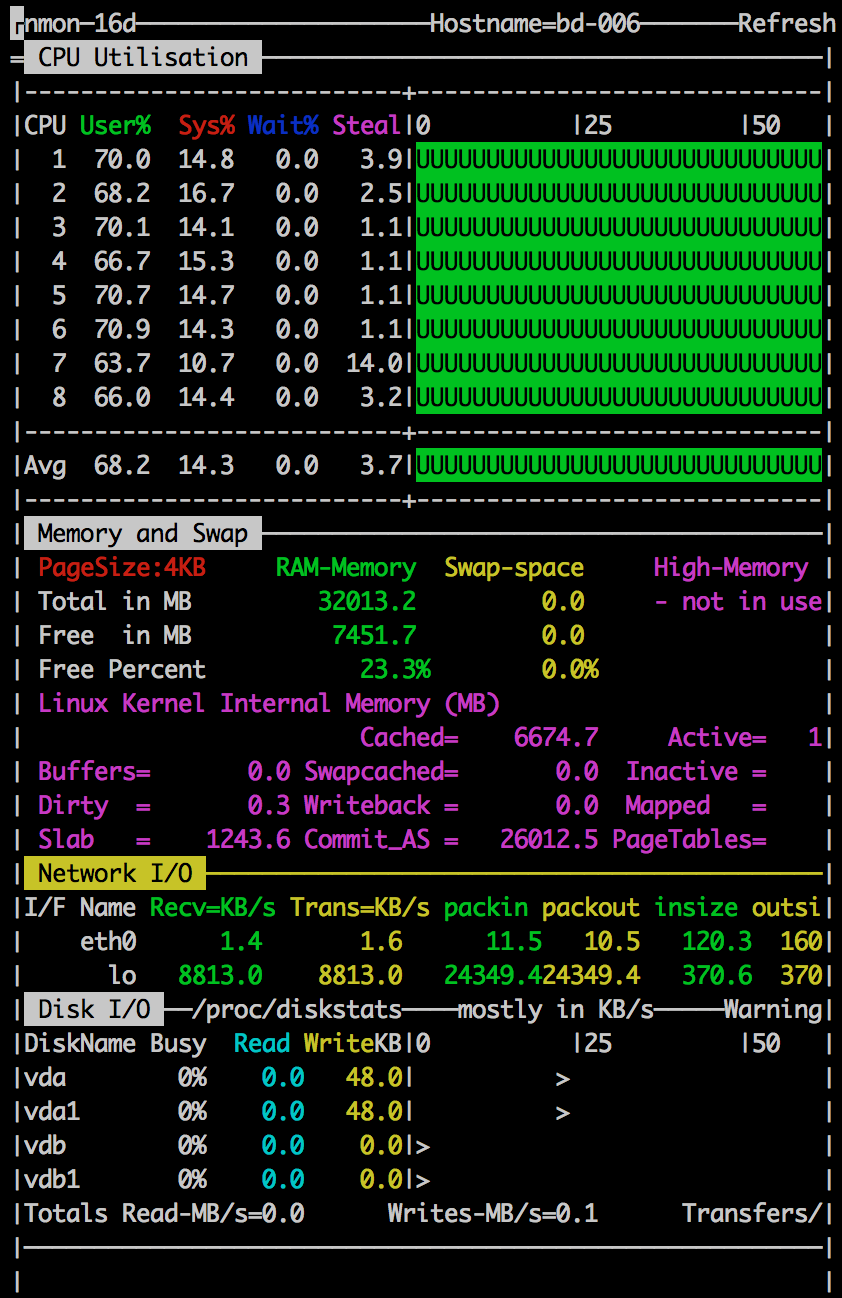

性能抽样：

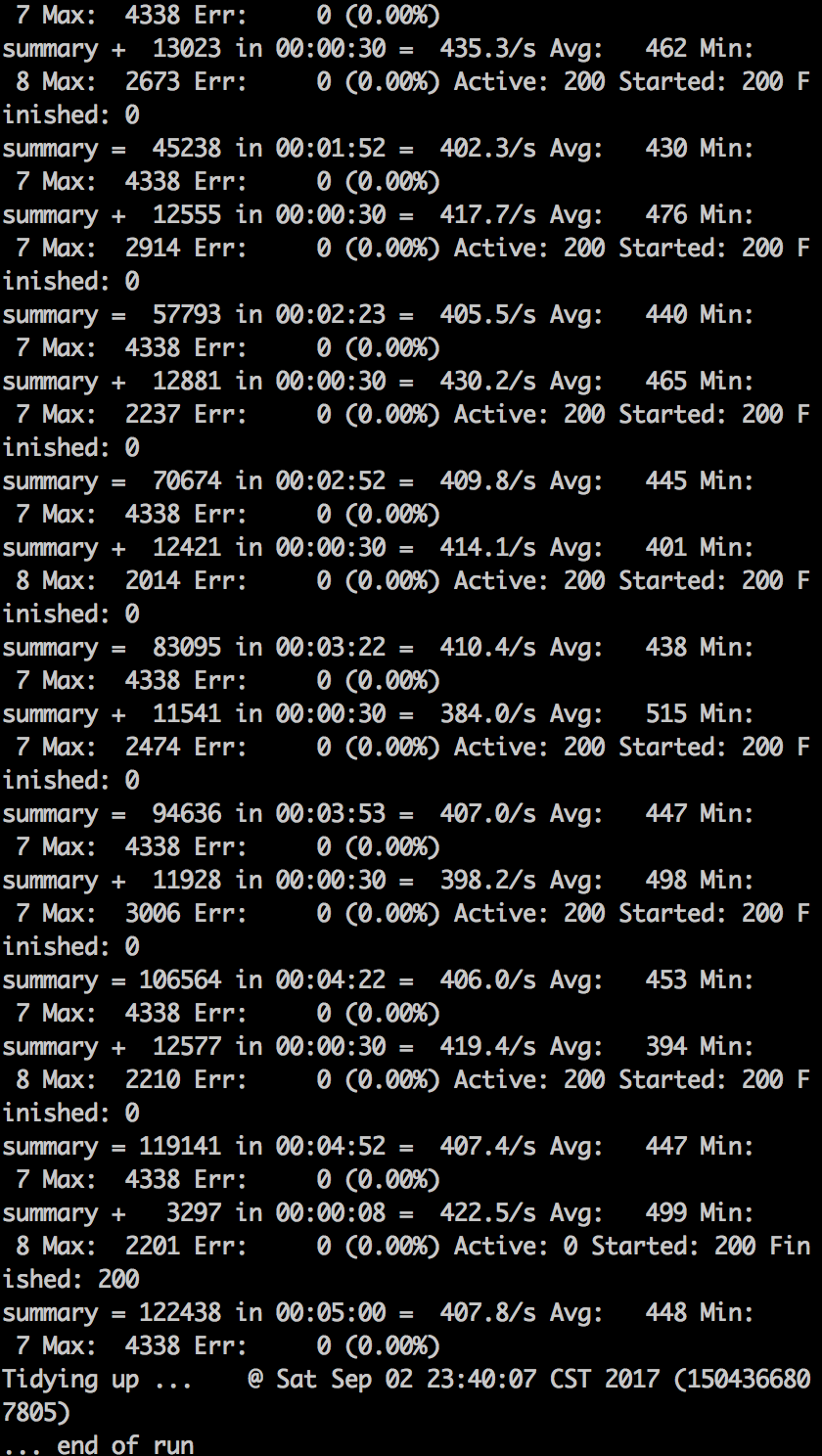

写入日志：


数据量

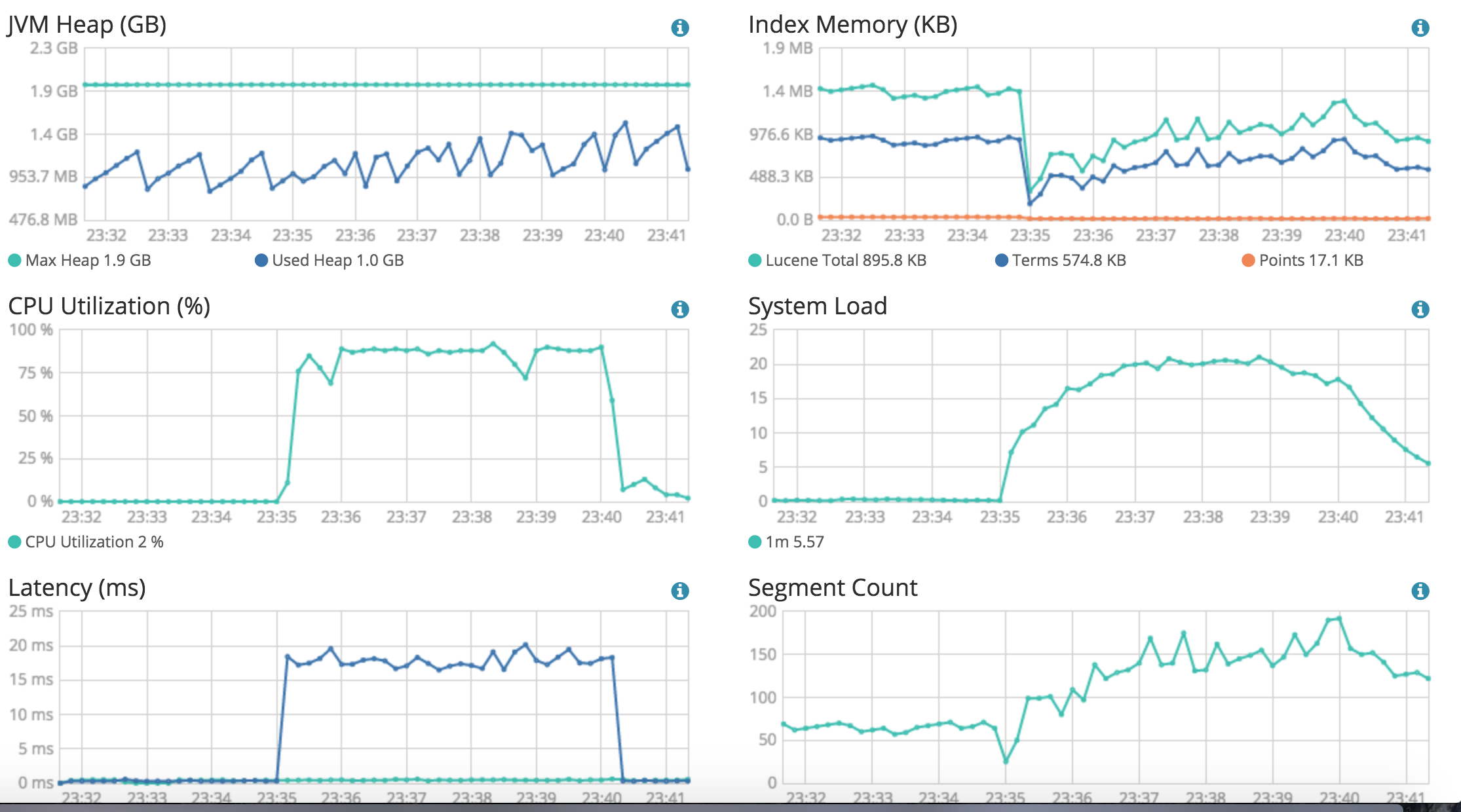

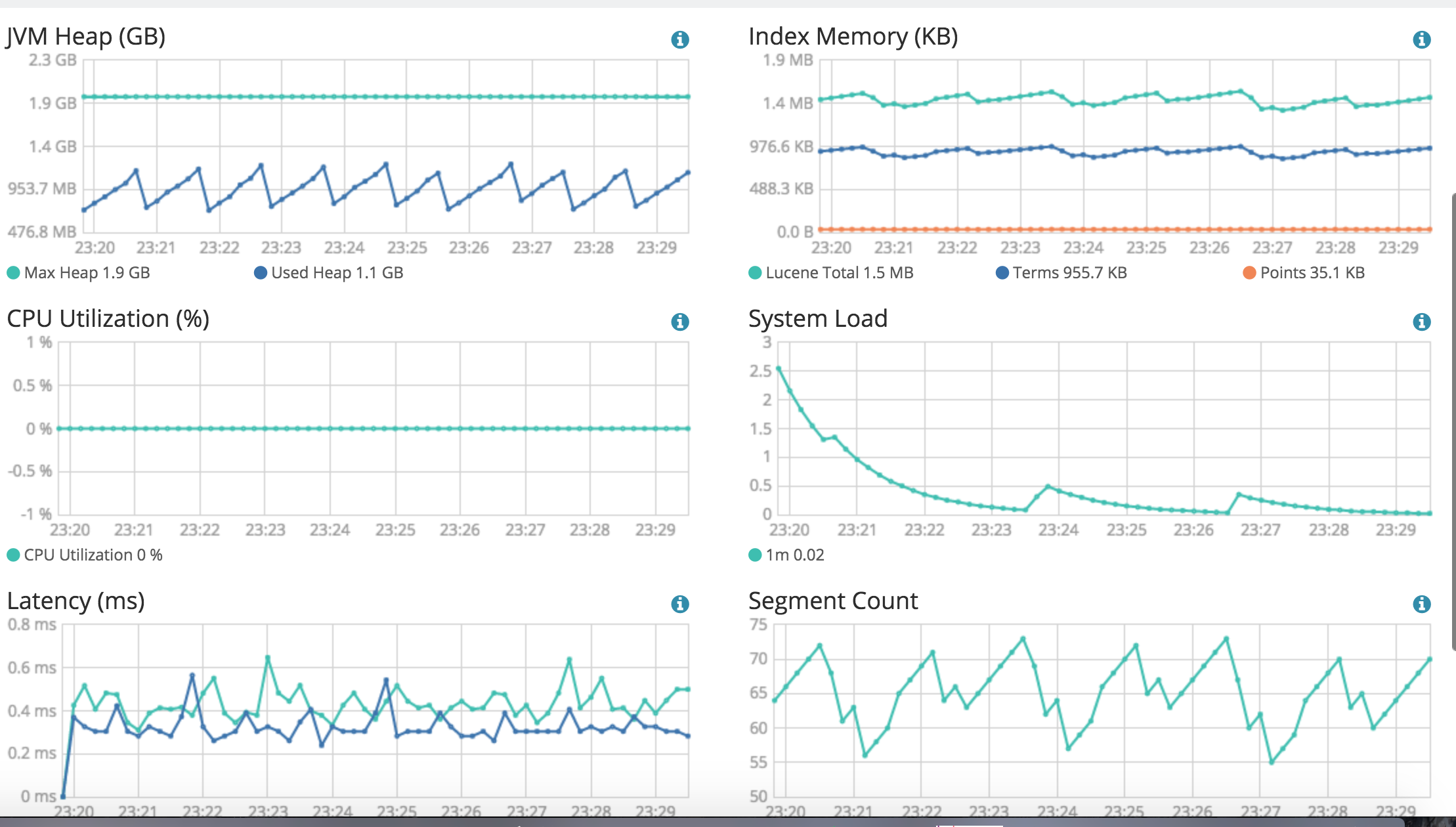

x-pack图：
