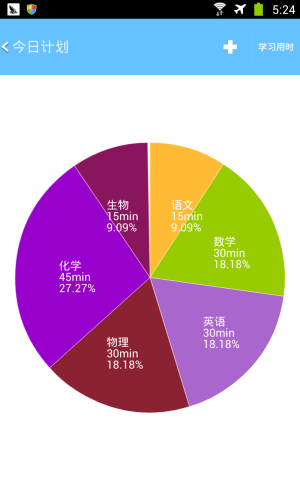

Android画饼状图代码,Android绘制简单饼状图

原项目地址：https://github.com/limccn/Android-Charts

因为在项目中需要用到绘制饼状图，所以对github下的android-charts库进行了精简和修改，貌似该库本身有些bug，例如文字绘制有时候会错位，我改了一些地方，有兴趣的可以将下面所有代码复制进自己项目中，使用方法如下：

mData[0] = new ArrayList();

for(int i=0; i<5; i++) {

mData[0].add(new TitleValueColorEntity(mTitle[i],

needTime[i],

this.getResources().getColor(mColorsId[i])));

}

mPieChart.setData(mData[2]);

源码：

/*

* BaseChart.java

* Android-Charts

*

* Created by limc on 2013.

*

* Copyright 2011 limc.cn All rights reserved.

*

* Licensed under the Apache License, Version 2.0 (the "License");

* you may not use this file except in compliance with the License.

* You may obtain a copy of the License at

*

* http://www.apache.org/licenses/LICENSE-2.0

*

* Unless required by applicable law or agreed to in writing, software

* distributed under the License is distributed on an "AS IS" BASIS,

* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

* See the License for the specific language governing permissions and

* limitations under the License.

*/

package com.nekocode.xuedao.piechart;

import android.content.Context;

import android.graphics.Rect;

import android.util.AttributeSet;

import android.view.View;

public class BaseChart extends View {

/*

* (non-Javadoc)

*

* @param context

*

* @see android.view.View#BaseChart(Context)

*/

public BaseChart(Context context) {

super(context);

}

/*

* (non-Javadoc)

*

* @param context

*

* @param attrs

*

* @see android.view.View#BaseChart(Context, AttributeSet)

*/

public BaseChart(Context context, AttributeSet attrs) {

super(context, attrs);

}

/*

* (non-Javadoc)

*

* @param context

*

* @param attrs

*

* @param defStyle

*

* @see android.view.View#BaseChart(Context, AttributeSet, int)

*/

public BaseChart(Context context, AttributeSet attrs, int defStyle) {

super(context, attrs, defStyle);

}

/*

* (non-Javadoc)

*

* @param widthMeasureSpec

*

* @param heightMeasureSpec

*

* @see android.view.View#onMeasure(int, int)

*/

@Override

protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {

super.onMeasure(widthMeasureSpec, heightMeasureSpec);

setMeasuredDimension(measureWidth(widthMeasureSpec),

measureHeight(heightMeasureSpec));

}

/*

* (non-Javadoc)

*

* @param gainFocus

*

* @param direction

*

* @param previouslyFocusedRect

*

* @see android.view.View#onFocusChanged(boolean, int,

* android.graphics.Rect)

*/

@Override

protected void onFocusChanged(boolean gainFocus, int direction,

Rect previouslyFocusedRect) {

super.onFocusChanged(gainFocus, direction, previouslyFocusedRect);

}

private int measureWidth(int measureSpec) {

int result = 0;

int specMode = MeasureSpec.getMode(measureSpec);

int specSize = MeasureSpec.getSize(measureSpec);

if (specMode == MeasureSpec.EXACTLY) {

result = specSize;

} else if (specMode == MeasureSpec.AT_MOST) {

result = Math.min(result, specSize);

}

return result;

}

private int measureHeight(int measureSpec) {

int result = 0;

int specMode = MeasureSpec.getMode(measureSpec);

int specSize = MeasureSpec.getSize(measureSpec);

if (specMode == MeasureSpec.EXACTLY) {

result = specSize;

} else if (specMode == MeasureSpec.AT_MOST) {

result = Math.min(result, specSize);

}

return result;

}

}

---------------------------------分割线---------------------------------

/*

* PieChart.java

* Android-Charts

*

* Created by limc on 2011/05/29.

*

* Copyright 2011 limc.cn All rights reserved.

*

* Licensed under the Apache License, Version 2.0 (the "License");

* you may not use this file except in compliance with the License.

* You may obtain a copy of the License at

*

* http://www.apache.org/licenses/LICENSE-2.0

*

* Unless required by applicable law or agreed to in writing, software

* distributed under the License is distributed on an "AS IS" BASIS,

* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

* See the License for the specific language governing permissions and

* limitations under the License.

*/

/**

*

*/

package com.nekocode.xuedao.piechart;

import java.util.List;

import com.nekocode.xuedao.utils.MyUtils;

import android.content.Context;

import android.graphics.Canvas;

import android.graphics.Color;

import android.graphics.Paint;

import android.graphics.Point;

import android.graphics.RectF;

import android.graphics.Paint.Style;

import android.util.AttributeSet;

public class PieChart extends BaseChart {

public static final String DEFAULT_TITLE = "Pie Chart";

public static final boolean DEFAULT_DISPLAY_RADIUS = true;

public static final int DEFAULT_RADIUS_LENGTH = 80;

public static final int DEFAULT_RADIUS_COLOR = Color.WHITE;

public static final int DEFAULT_CIRCLE_BORDER_COLOR = Color.WHITE;

public static final Point DEFAULT_POSITION = new Point(0, 0);

private List data;

private String title = DEFAULT_TITLE;

private Point position = DEFAULT_POSITION;

private int radiusLength = DEFAULT_RADIUS_LENGTH;

private int radiusColor = DEFAULT_RADIUS_COLOR;

private int circleBorderColor = DEFAULT_CIRCLE_BORDER_COLOR;

private boolean displayRadius = DEFAULT_DISPLAY_RADIUS;

/*

* (non-Javadoc)

*

* @param context

*

* @see cn.limc.androidcharts.view.BaseChart#BaseChart(Context)

*/

public PieChart(Context context) {

super(context);

}

/*

* (non-Javadoc)

*

* @param context

*

* @param attrs

*

* @param defStyle

*

* @see cn.limc.androidcharts.view.BaseChart#BaseChart(Context,

* AttributeSet, int)

*/

public PieChart(Context context, AttributeSet attrs, int defStyle) {

super(context, attrs, defStyle);

}

/*

* (non-Javadoc)

*

* @param context

*

* @param attrs

*

* @see cn.limc.androidcharts.view.BaseChart#BaseChart(Context,

* AttributeSet)

*/

public PieChart(Context context, AttributeSet attrs) {

super(context, attrs);

}

/*

* (non-Javadoc)

*

*

Called when is going to draw this chart

*

銉併儯銉笺儓銈掓浉銇忓墠銆併儭銈姐儍銉夈倰鍛笺伓

*

缁樺埗鍥捐〃鏃惰皟鐢/p>

*

* @param canvas

*

* @see android.view.View#onDraw(android.graphics.Canvas)

*/

@Override

protected void onDraw(Canvas canvas) {

super.onDraw(canvas);

// get safe rect

int rect = super.getWidth() > super.getHeight() ? super.getHeight()

: super.getWidth();

// calculate radius length

radiusLength = (int) ((rect / 2f) * 0.90);

// calculate position

position = new Point((int) (getWidth() / 2f), (int) (getHeight() / 2f));

// draw this chart

drawCircle(canvas);

// draw data on chart

drawData(canvas);

}

protected void drawCircle(Canvas canvas) {

Paint mPaintCircleBorder = new Paint();

mPaintCircleBorder.setColor(Color.WHITE);

mPaintCircleBorder.setStyle(Style.STROKE);

mPaintCircleBorder.setStrokeWidth(2);

mPaintCircleBorder.setAntiAlias(true);

// draw a circle

canvas.drawCircle(position.x, position.y, radiusLength,

mPaintCircleBorder);

}

protected void drawData(Canvas canvas) {

if (null != data) {

// sum all data's value

float sum = 0;

for (int i = 0; i < data.size(); i++) {

sum = sum + data.get(i).getValue();

}

Paint mPaintFill = new Paint();

mPaintFill.setStyle(Style.FILL);

mPaintFill.setAntiAlias(true);

Paint mPaintBorder = new Paint();

mPaintBorder.setStyle(Style.STROKE);

mPaintBorder.setColor(radiusColor);

mPaintBorder.setAntiAlias(true);

int offset = -90;

// draw arcs of every piece

for (int j = 0; j < data.size(); j++) {

TitleValueColorEntity e = data.get(j);

// get color

mPaintFill.setColor(e.getColor());

RectF oval = new RectF(position.x - radiusLength, position.y

- radiusLength, position.x + radiusLength, position.y

+ radiusLength);

int sweep = Math.round(e.getValue() / sum * 360f);

canvas.drawArc(oval, offset, sweep, true, mPaintFill);

canvas.drawArc(oval, offset, sweep, true, mPaintBorder);

offset = offset + sweep;

}

float sumvalue = 0f;

for (TitleValueColorEntity e : data) {

float value = e.getValue();

sumvalue = sumvalue + value;

float rate = (sumvalue - value / 2) / sum;

mPaintFill.setColor(Color.BLUE);

// percentage

float percentage = (int) (value / sum * 10000) / 100f;

float offsetX = (float) (position.x - radiusLength * 0.5

* Math.sin(rate * -2 * Math.PI));

float offsetY = (float) (position.y - radiusLength * 0.5

* Math.cos(rate * -2 * Math.PI));

Paint mPaintFont = new Paint();

mPaintFont.setColor(Color.WHITE);

mPaintFont.setTextSize(MyUtils.sp2px(getContext(), 15));

mPaintFont.setAntiAlias(true);

mPaintFont.setStrokeWidth(5);

// draw titles

String title = e.getTitle();

float realx = 0;

float realy = 0;

// TODO title position

if (offsetX < position.x) {

realx = offsetX - mPaintFont.measureText(title) - 5;

} else if (offsetX > position.x) {

realx = offsetX + 5;

} else if (offsetX == position.x) {

realx = offsetX - (mPaintFont.measureText(title)/2);

}

if (offsetY >= position.y) {

if (value / sum < 0.2f) {

realy = offsetY + 10;

} else {

realy = offsetY + 5;

}

} else if (offsetY < position.y) {

if (value / sum < 0.2f) {

realy = offsetY - 10;

} else {

realy = offsetY + 5;

}

}

if(percentage != 0.0f) {

canvas.drawText(title, realx, realy, mPaintFont);

canvas.drawText(String.valueOf((int)value) + "min", realx, realy + MyUtils.sp2px(getContext(), 15), mPaintFont);

canvas.drawText(String.valueOf(percentage) + "%", realx,

realy + MyUtils.sp2px(getContext(), 30), mPaintFont);

}

}

}

}

/**

* @return the data

*/

public List getData() {

return data;

}

/**

* @param data

*            the data to set

*/

public void setData(List data) {

this.data = data;

}

/**

* @return the title

*/

public String getTitle() {

return title;

}

/**

* @param title

*            the title to set

*/

public void setTitle(String title) {

this.title = title;

}

/**

* @return the position

*/

public Point getPosition() {

return position;

}

/**

* @param position

*            the position to set

*/

public void setPosition(Point position) {

this.position = position;

}

/**

* @return the radiusLength

*/

public int getRadiusLength() {

return radiusLength;

}

/**

* @param radiusLength

*            the radiusLength to set

*/

public void setRadiusLength(int radiusLength) {

this.radiusLength = radiusLength;

}

/**

* @return the radiusColor

*/

public int getRadiusColor() {

return radiusColor;

}

/**

* @param radiusColor

*            the radiusColor to set

*/

public void setRadiusColor(int radiusColor) {

this.radiusColor = radiusColor;

}

/**

* @return the circleBorderColor

*/

public int getCircleBorderColor() {

return circleBorderColor;

}

/**

* @param circleBorderColor

*            the circleBorderColor to set

*/

public void setCircleBorderColor(int circleBorderColor) {

this.circleBorderColor = circleBorderColor;

}

/**

* @return the displayRadius

*/

public boolean isDisplayRadius() {

return displayRadius;

}

/**

* @param displayRadius

*            the displayRadius to set

*/

public void setDisplayRadius(boolean displayRadius) {

this.displayRadius = displayRadius;

}

}

---------------------------------分割线---------------------------------

/*

* TitleValueEntity.java

* Android-Charts

*

* Created by limc on 2011/05/29.

*

* Copyright 2011 limc.cn All rights reserved.

*

* Licensed under the Apache License, Version 2.0 (the "License");

* you may not use this file except in compliance with the License.

* You may obtain a copy of the License at

*

* http://www.apache.org/licenses/LICENSE-2.0

*

* Unless required by applicable law or agreed to in writing, software

* distributed under the License is distributed on an "AS IS" BASIS,

* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

* See the License for the specific language governing permissions and

* limitations under the License.

*/

package com.nekocode.xuedao.piechart;

public class TitleValueEntity {

private String title;

private float value;

public TitleValueEntity(String title, float value) {

super();

this.title = title;

this.value = value;

}

public TitleValueEntity() {

super();

}

/**

* @return the title

*/

public String getTitle() {

return title;

}

/**

* @param title

*            the title to set

*/

public void setTitle(String title) {

this.title = title;

}

/**

* @return the value

*/

public float getValue() {

return value;

}

/**

* @param value

*            the value to set

*/

public void setValue(float value) {

this.value = value;

}

}
