本文介绍了一种在iOS应用中自定义加载动画的方法。通过创建一个名为BIDActivityNote的类，可以在UIViewController中轻松地添加和移除加载提示框。加载动画采用UIActivityIndicatorView组件，并通过UIView动画实现渐显渐隐的效果。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

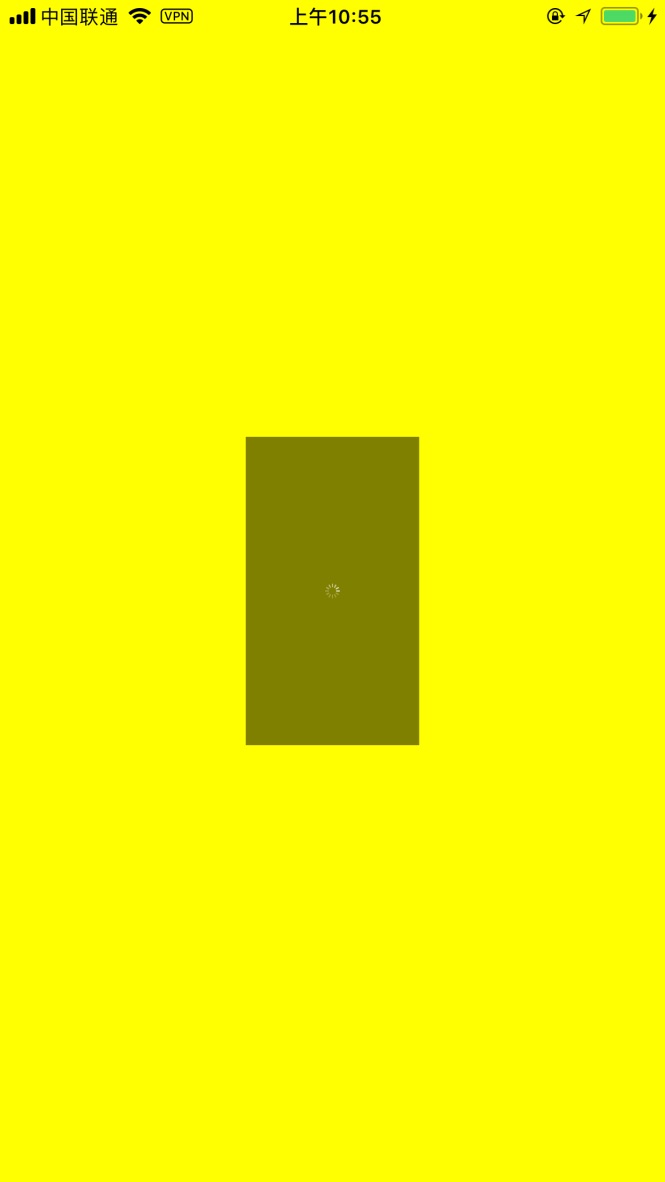

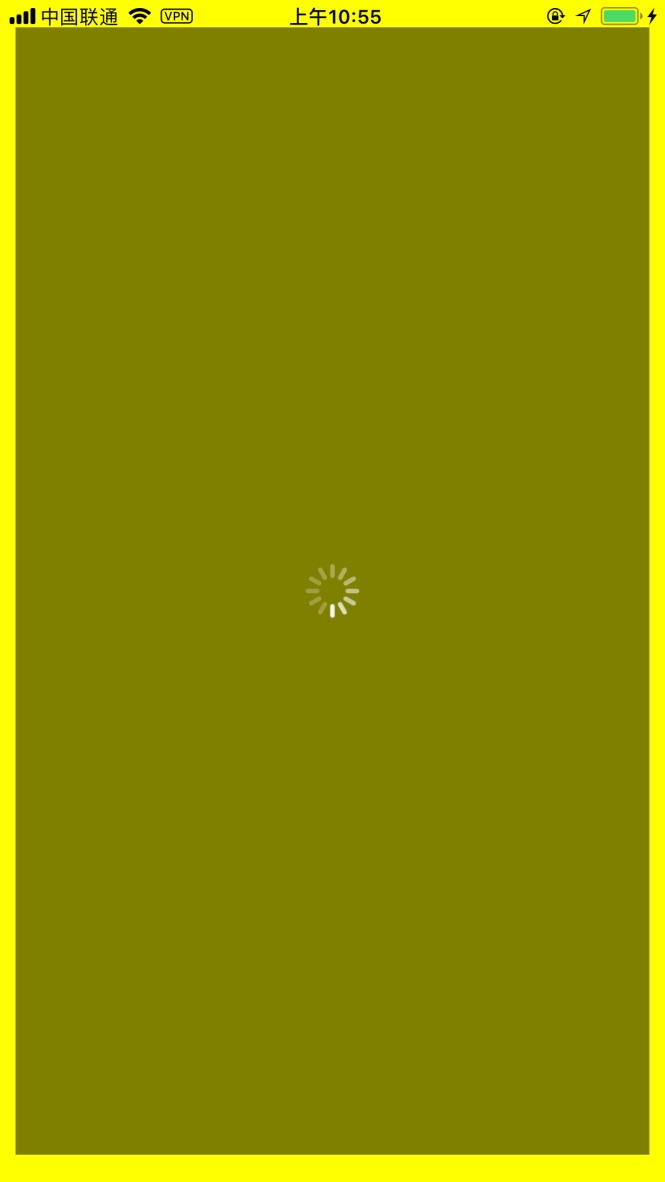

在开发过程中，可能会遇到各种不同的场景需要等待加载成功后才能显示数据。以下是自定义的一个动画加载view效果。

在UIViewController的中加载等到效果，如下

- (void)viewDidLoad {
    [super viewDidLoad];

    //将view背景颜色变更为黄色
    self.view.backgroundColor = [UIColor yellowColor];

    //在self.view上加载提示框
    [[BIDActivityNote sharedInstance] AddActivityView:self.view];

    //延时3分钟后移除提示框
    dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(3 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
        [[BIDActivityNote sharedInstance] RemoveActivityView];
    });
}

BIDActivityNote.h 实现代码

//
//  BIDActivityNote.h
//  MobileShop
//
//  Created by eJiupi on 15-7-23.
//  Copyright (c) 2014年 xujinzhong. All rights reserved.
//

#import <Foundation/Foundation.h>

@interface BIDActivityNote : NSObject

+ (BIDActivityNote*)sharedInstance;

- (void)AddActivityView:(UIView*)subView;

- (void)RemoveActivityView;

@end

BIDActivityNote.m 代码实现效果：

//
//  BIDActivityNote.m
//  MobileShop
//
//  Created by eJiupi on 15-7-23.
//  Copyright (c) 2014年 xujinzhong. All rights reserved.
//

#import "BIDActivityNote.h"

@interface BIDActivityNote ()

@property (strong, nonatomic) UIView *subView;
@property (strong, nonatomic) UIActivityIndicatorView *act;

@end

@implementation BIDActivityNote

+ (BIDActivityNote*)sharedInstance
{
    static BIDActivityNote* instance = nil;
    if (instance == nil)
    {
        instance = [[BIDActivityNote alloc] init];
    }
    return instance;
}

- (id)init
{
    self = [super init];
    if (self)
    {
        NSInteger w = [UIScreen mainScreen].bounds.size.width;
        NSInteger h = [UIScreen mainScreen].bounds.size.height;
        self.subView = [[UIView alloc] initWithFrame:CGRectMake(0, 0, w, h)];
        self.subView.backgroundColor = [UIColor colorWithRed:0 green:0 blue:0 alpha:0.5];

        self.act = [[UIActivityIndicatorView alloc] initWithActivityIndicatorStyle:UIActivityIndicatorViewStyleWhiteLarge];
        //只能设置中心，不能设置大小
        self.act.center = CGPointMake(w/2.f, h/2.f);
        //设置活动指示器的颜色
        self.act.color=[UIColor whiteColor];

        [self.act startAnimating]; // 开始旋转
        [self.act stopAnimating]; // 结束旋转
        //[self.act setHidesWhenStopped:YES]; //当旋转结束时隐藏

        [self.subView addSubview:self.act];
    }
    return self;
}

- (void)AddActivityView:(UIView*)subView
{
    //启动
    [self.act startAnimating];
    [subView addSubview:self.subView];

    //实现动画效果
    self.subView.transform = CGAffineTransformScale(self.subView.transform, 0, 0);
    [UIView animateWithDuration:2 animations:^{
        self.subView.transform = CGAffineTransformIdentity;
    }];
}

- (void)RemoveActivityView
{
    [UIView animateWithDuration:0.7 animations:^{
        self.subView.transform = CGAffineTransformScale(self.subView.transform, 0, 0);
    } completion:^(BOOL bfinished){
        if (bfinished) {
            //停止
            [self.act stopAnimating];
            [self.subView removeFromSuperview];
        }
    }];
}

@end
