centos6.4 ceph安装部署之ceph block device

centos6.4 ceph安装部署之ceph block device

1,prelight/preface

ceph storage cluster
ceph block device
ceph filesystem
ceph object storage

此篇记录ceph block device,ceph storage cluster见上一篇

()

Realiable Autonomic Distributed Object Store(可扩展自主分布式对象存储)

long term supported

[ruiy tips Notes]

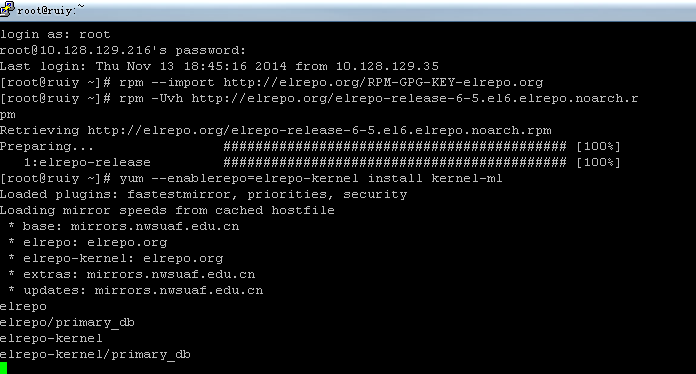

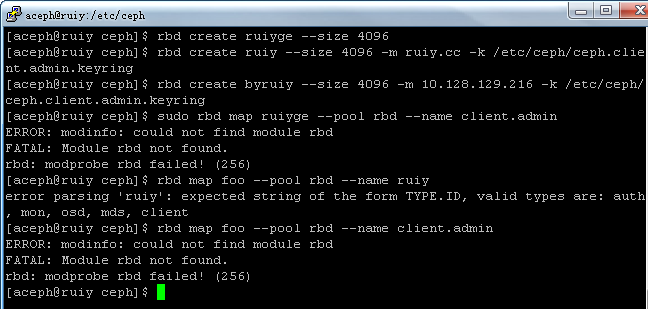

ERROR: modinfo: could not find module rbd (centos6.4 vm 跑ceph block device 报错actal解决方案)

ceph block
1,install ceph
ceph-deploy install ceph-client_Node_FQDN
2,copy ceph configuration file and the ceph.client.admin.keysting to the ceph-client
一般ceph.client.admin.keystring在你的ceph-deploy 主机上,是你在 ceph-deploy new ceph_Node 时在你执行上面命令的当前路径下生成的一个key
ceph-deploy admin ruiy.cc

configure a block device

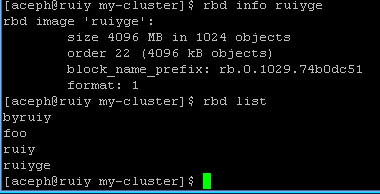

1,on the ceph-client node,create a block device image(创建块设备镜像)
rbd create {block device image_Name} --size 4096 (默认单位MB) [-m {mon-IP}] [-k /path/to/ceph.client.admin.keystring]

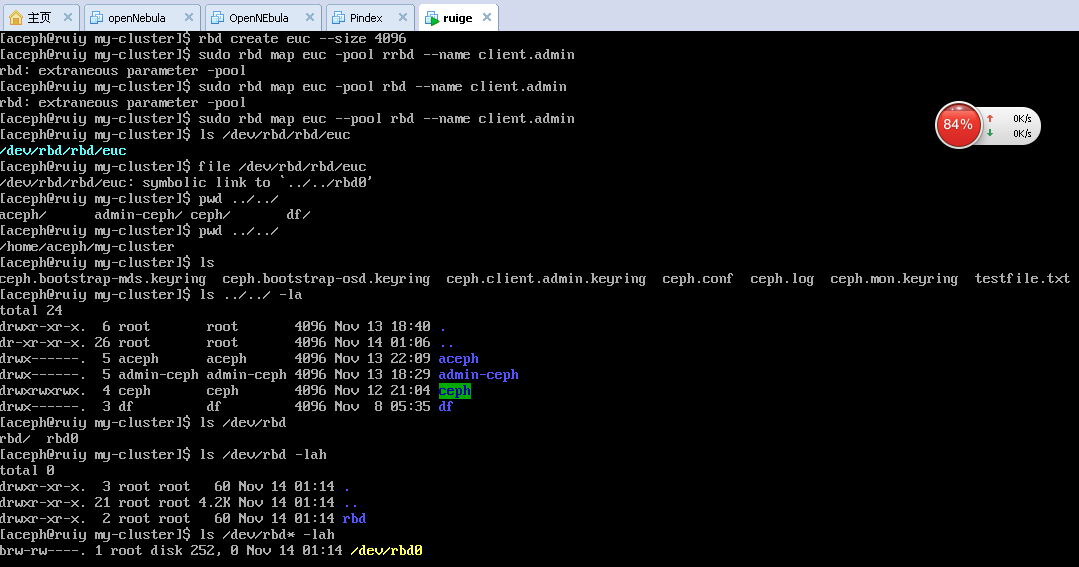

2,on the ceph-client node,map the image to a block device (映射块设备镜像到块设备)
sudo rbd map {block device image_Name} --pool rbd -name client.admin [-m {mon-IP}] [-k /path/to/ceph.client.admin.keystring]

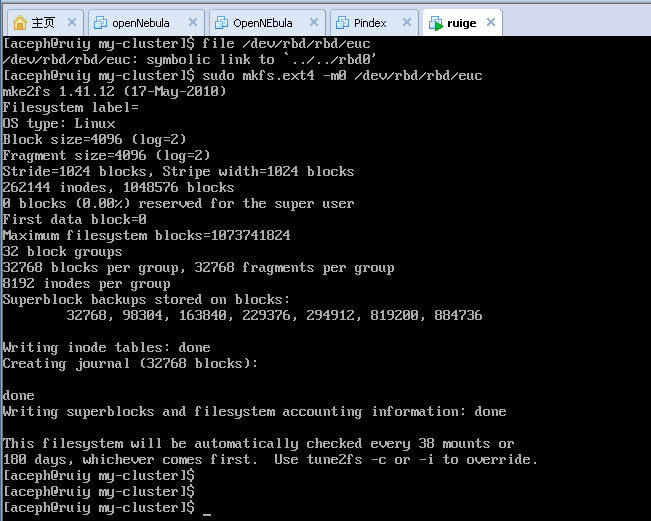

3,use the block device by creating a file system on the ceph-client node
sudo mkfs.ext4 -m0 /dev/rbd/rbd/foo

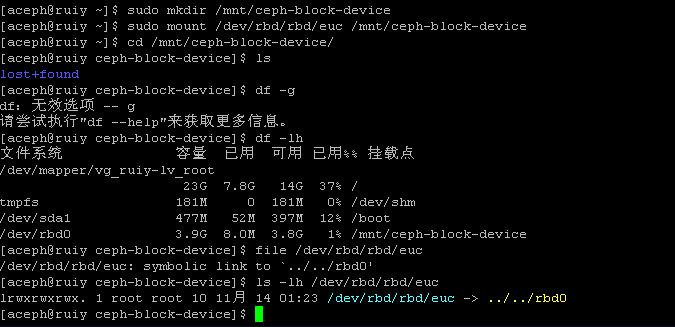

4,mount the file system on the ceph-client node

sudo mkdir /mnt/ceph-block-device
sudo mount /dev/rbd/rbd/foo /mnt/ceph-block-device

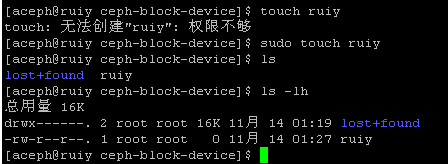

cd /mnt/ceph-block-device

到此ceph block device 简单体验 一把 搞定,Tech diss联系ruiy
