本文详细介绍了SharePoint2010客户端模型的使用方法及其实现原理，包括三种客户端模型JavaScript、SilverLight、.NETManaged，并通过代码示例展示了如何在客户端模型中访问SharePoint服务器对象。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1.介绍

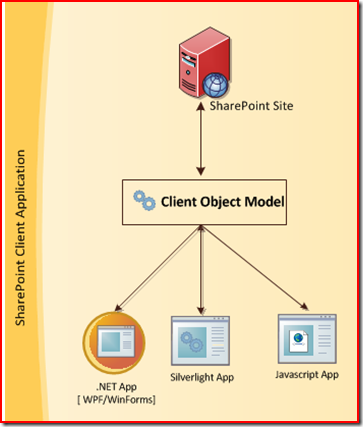

客户端模型是SharePoint 2010才提供的，可以更灵活的在任何客户端设备中操作SharePoint对象，在2007版本中没有客户端模型，2010中有三种客户端模型JavaScript，SilverLight，.NET Managed。下面是对比情况：

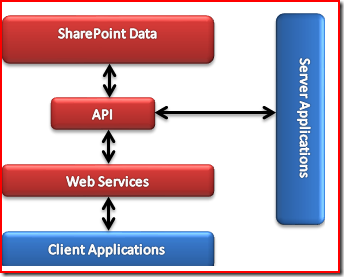

2.原理

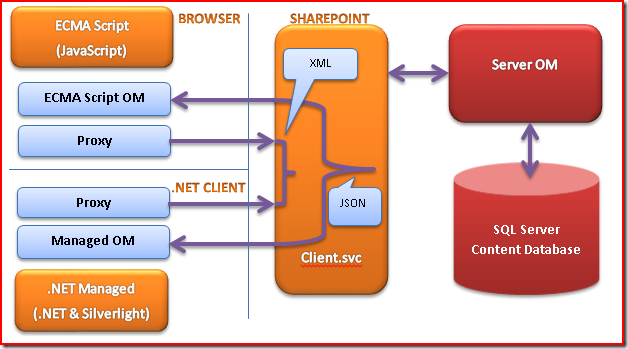

当我们使用客户端模型访问SharePoint 2010服务器对象的时候，请求首先会被打包成XML格式的SharePoint对象模型，然后在由客户端发送到服务器端，在服务器端调用服务器端的对象模型，。然后得到反应结果以JSON

格式发给客户端对象模型，客户端模型在解析得到的结果，展现给前端，如下图：

3.客户端模型对象

服务器端	客户端	Javascript
Microsoft.SharePoint.SPContext	Microsoft.SharePoint.Client.ClientContext	SP.ClientContext
Microsoft.SharePoint.SPSite	Microsoft.SharePoint.Client.Site	SP.Site
Microsoft.SharePoint.SPWeb	Microsoft.SharePoint.Client.Web	SP.Web
Microsoft.SharePoint.SPList	Microsoft.SharePoint.Client.List	SP.List
Microsoft.SharePoint.SPListItem	Microsoft.SharePoint.Client.ListItem	SP.ListItem
Microsoft.SharePoint.SPField	Microsoft.SharePoint.Client.Field	SP.Field

4.一些例子代码

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Net;

namespace OM
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        private void button1_Click(object sender, EventArgs e)
        {
            Cursor old = this.Cursor;
            this.Cursor = Cursors.WaitCursor;

            Microsoft.SharePoint.Client.ClientContext clientContext = new Microsoft.SharePoint.Client.ClientContext("http://moss2010/sites/test");
            NetworkCredential nwc = CredentialCache.DefaultNetworkCredentials;
            clientContext.Credentials = nwc;
            Microsoft.SharePoint.Client.Web web = clientContext.Web;

            clientContext.Load(web);
            clientContext.ExecuteQuery();

            this.lblSiteTitle.Text = web.Title;

            this.Cursor = old;

        }

        private void button2_Click(object sender, EventArgs e)
        {
            Cursor old = this.Cursor;
            this.Cursor = Cursors.WaitCursor;

            Microsoft.SharePoint.Client.ClientContext clientContext = new Microsoft.SharePoint.Client.ClientContext("http://moss2010/sites/test");
            NetworkCredential nwc = CredentialCache.DefaultNetworkCredentials;
            clientContext.Credentials = nwc;
            Microsoft.SharePoint.Client.Web web = clientContext.Web;

            var query = from list
                        in clientContext.Web.Lists
                        where list.Title == "SharePoint Team Members"
                        select list;

            var result = clientContext.LoadQuery(query);
            clientContext.ExecuteQuery();

            Microsoft.SharePoint.Client.List listMember = result.SingleOrDefault<Microsoft.SharePoint.Client.List>();

            Microsoft.SharePoint.Client.CamlQuery caml = new Microsoft.SharePoint.Client.CamlQuery();
            caml.ViewXml = @"<View><Query></Query></View>";

            Microsoft.SharePoint.Client.ListItemCollection listItems = listMember.GetItems(caml);
            clientContext.Load(listItems);
            clientContext.ExecuteQuery();

            List<Employee> allDatas = new List<Employee>();
            foreach (Microsoft.SharePoint.Client.ListItem item in listItems)
            {
                allDatas.Add(new Employee(item["Title"], item["Age"], item["Sex"]));
            }
            dataGridView1.DataSource = allDatas;

            this.Cursor = old;
        }

        private void button3_Click(object sender, EventArgs e)
        {
            Microsoft.SharePoint.Client.ClientContext clientContext = new Microsoft.SharePoint.Client.ClientContext("http://moss2010/sites/test");
            NetworkCredential nwc = CredentialCache.DefaultNetworkCredentials;
            clientContext.Credentials = nwc;
            Microsoft.SharePoint.Client.Web web = clientContext.Web;

            var query = from list
                        in clientContext.Web.Lists
                        where list.Title == "SharePoint Team Members"
                        select list;

            var result = clientContext.LoadQuery(query);
            clientContext.ExecuteQuery();

            Microsoft.SharePoint.Client.List listMember = result.SingleOrDefault<Microsoft.SharePoint.Client.List>();

            Microsoft.SharePoint.Client.CamlQuery caml = new Microsoft.SharePoint.Client.CamlQuery();
            caml.ViewXml = @"<View><Query><Where><Eq><FieldRef Name='Employee_x0020_Name' /><Value Type='Text'>" + tbxInput.Text + "</Value></Eq></Where></Query></View>";

            Microsoft.SharePoint.Client.ListItemCollection listItems = listMember.GetItems(caml);
            clientContext.Load(listItems);
            clientContext.ExecuteQuery();

            this.lblOutput.Text = listItems[0].FieldValues["Title"].ToString();

            this.Cursor = old;
        }
    }

    public class Employee
    {
        public Employee(object title, object age, object sex)
        {
            this.Age = age;
            this.Sex = sex;
            this.Title = title;
        }
        public object Title { get; set; }
        public object Age { get; set; }
        public object Sex { get; set; }
    }
}

ClientContext clientContext = new ClientContext("http://servername/");
clientContext.ExecutingWebRequest += new EventHandler<WebRequestEventArgs>(clientContext_ExecutingWebRequest);
Web site = clientContext.Web;
clientContext.Load(site);
clientContext.ExecuteQuery();
static void clientContext_ExecutingWebRequest(object sender, WebRequestEventArgs e)
{
    e.WebRequestExecutor.WebRequest.Headers.Add("X-FORMS_BASED_AUTH_ACCEPTED", "f");
}

Uri uri = new Uri("http://tempuri.org/");
ICredentials credentials = CredentialCache.DefaultCredentials;
NetworkCredential credential = credentials.GetCredential(uri, "Basic");

转载于:https://www.cnblogs.com/MarchThree/p/3728872.html
