使用FLEX进行多文件上传和自定义上传信息

于 2009-01-18 15:14:00 发布
阅读量130 收藏
点赞数
文章标签： c#

在Web应用中上传文件是比较常见的需求，在这里通过一个实际应用向大家介绍一下在Flex下如何进行多文件上传，并在上传文件的同时提供一些自定义描述信息以便数据逻辑处理。

功能需求　　

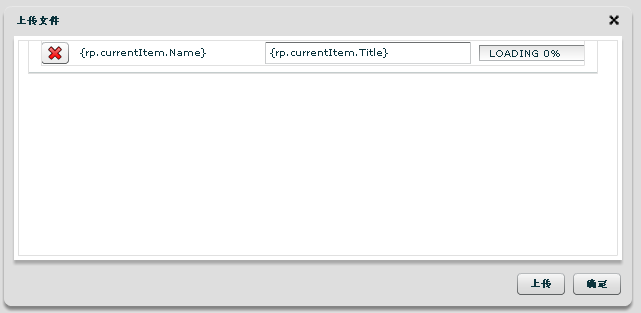

首先通过以下界面了解一下需求：



主要功能包括：

　　1）允许添加多个上传的文件

　　2）自定义文件标题

　　3）可以对没上传的或正在上传的文件删除

　　4）上传过程把窗体隐藏在后台，不影响用户的其他的操作（这个就很简单，把窗体隐藏起来在主界面显示个上进工作按钮就可以了，需要的时候再点击一下查看进度）



定义文件上下传类

ContractedBlock.gifExpandedBlockStart.gifCode
package Codes
{
    import HFSoftFx.HFSoftCoreFun;

    import flash.events.DataEvent;
    import flash.events.ProgressEvent;
    import flash.net.FileReference;
    import flash.net.URLRequest;

    public dynamic class UploadFile
    {
        public static var DEFAULT:int=0;
        public static var LOADING:int=1;
        public static var COMPLETE:int=2;
        public function UploadFile()
        {
        }
        private var mState:int = DEFAULT;
        public function get State():int
        {
            return mState;
        }
        private var mName:String;
        public function get Name():String
        {
            return mName;
        }
        public function  set Name(value:String):void
        {
            mName=value;
        }

        private var mSize:int;
        public function get Size():int
        {
            return mSize;
        }
        public function set Size(value:int):void
        {
            mSize = value;
        }
        private var mLoadSize:int;
        public function get LoadSize():int
        {
            return mLoadSize;
        }
        public function set LoadSize(value:int):void{
            mLoadSize =value;
        }

        private var mFileRef:FileReference;
        public function get FileRef():FileReference
        {
            return mFileRef;
        }
        public function set FileRef(value:FileReference):void
        {
            mFileRef=value;
        }
        public function Upload(request:URLRequest,complete:Function=null,
        progress:Function=null):void{
            FileRef.addEventListener(DataEvent.UPLOAD_COMPLETE_DATA,
            function(event:DataEvent){
                var str:String =  event.data.substr(1,event.data.length-1);
                var x:XML=new XML(str);
                if(x.Exception !='' && x.Exception !=null )
                {
                    HFSoftCoreFun.AlertError(x.Exception);
                }
                else
                {
                    mState = COMPLETE;
                    if(complete!=null)
                        complete();
                }

            });
            FileRef.addEventListener(ProgressEvent.PROGRESS
                ,function(event:ProgressEvent){
                    LoadSize=event.bytesLoaded;
                    Size =event.bytesTotal;
                    if(progress!=null)
                        progress();

                });
            mState= LOADING;
            FileRef.upload(request);

        }
    }
}

类并不复杂只是定义了一些简单的成员，为什么要把类定义成动态呢，主要是为了方便扩展一些属性成员。

这个类的主要方法就是



ContractedBlock.gifExpandedBlockStart.gifCode
        public function Upload(request:URLRequest,complete:Function=null,
        progress:Function=null):void{
            FileRef.addEventListener(DataEvent.UPLOAD_COMPLETE_DATA,
            function(event:DataEvent){
                var str:String =  event.data.substr(1,event.data.length-1);
                var x:XML=new XML(str);
                if(x.Exception !='' && x.Exception !=null )
                {
                    HFSoftCoreFun.AlertError(x.Exception);
                }
                else
                {
                    mState = COMPLETE;
                    if(complete!=null)
                        complete();
                }

            });
            FileRef.addEventListener(ProgressEvent.PROGRESS
                ,function(event:ProgressEvent){
                    LoadSize=event.bytesLoaded;
                    Size =event.bytesTotal;
                    if(progress!=null)
                        progress();

                });
            mState= LOADING;
            FileRef.upload(request);

        }



参数request是定义接收文件的URLRequest

参数complete和progress分别是上传成功和上传进度回调方法。

 窗体代码

ContractedBlock.gifExpandedBlockStart.gifCode
<?xml version="1.0" encoding="utf-8"?>
<mx:TitleWindow xmlns:mx="http://www.adobe.com/2006/mxml" layout="vertical" width="628" height="300" title="上传文件" showCloseButton="true" xmlns:net="flash.net.*">
    <mx:close>
        <![CDATA[
        OnWorkingChange();
            PopUpManager.removePopUp(this);

        ]]>
    </mx:close>
    <mx:Canvas width="100%" height="100%">
    <mx:VBox left="10" right="20" verticalAlign="middle" horizontalAlign="center">
    <mx:Repeater    dataProvider="{mUploadFiles}" id="rp" width="100%" height="100%">
        <mx:HBox data="{rp.currentItem}"  verticalAlign="middle" height="26" horizontalAlign="center">
        <mx:render>
            <![CDATA[
                var hb:HBox=HBox(event.target);
                var pb:ProgressBar= ProgressBar(hb.getChildByName("pb1"));
                var uf:UploadFile=UploadFile(hb.data);
                pb.setProgress(uf.LoadSize,uf.Size);
            ]]>
        </mx:render>
        <mx:Button   visible="{rp.currentItem.State!=UploadFile.COMPLETE}" data="{rp.currentIndex}" icon="@Embed(source='http://www.cnblogs.com/Imanges/delete16.png')" width="28">
                <mx:click>
                    <![CDATA[
                        DeleteUploadItem(int(event.target.data));
                    ]]>
                </mx:click>
            </mx:Button>
            <mx:Label  width="180" text="{rp.currentItem.Name}"/>
            <mx:TextInput data="{rp.currentItem}" text="{rp.currentItem.Title}" width="206">
                <mx:change>
                    <![CDATA[
                        event.target.data.Title = event.target.text;
                    ]]>
                </mx:change>
            </mx:TextInput>
            <mx:ProgressBar  id="pb1"   labelPlacement="center"   mode="manual"   width="106" fontWeight="normal"/>
        </mx:HBox>
        <mx:HRule width="100%"/>
    </mx:Repeater>
    </mx:VBox>
    </mx:Canvas>
    <mx:ControlBar horizontalAlign="right" verticalAlign="middle">
        <mx:Button label="上传">
            <mx:click>
                <![CDATA[
                    Upload_File();
                ]]>
            </mx:click>
        </mx:Button>
        <mx:Button label="确定">
            <mx:click>
                <![CDATA[
                OnWorkingChange();
                    PopUpManager.removePopUp(this);
                ]]>
            </mx:click>
        </mx:Button>
    </mx:ControlBar>
    <mx:initialize>
        <![CDATA[
            My=this;
        ]]>
    </mx:initialize>
        <mx:Script>
        <![CDATA[
            import Codes.PopUpEffect;
            import mx.core.IFlexDisplayObject;
            import mx.managers.PopUpManager;
            import mx.controls.ProgressBar;
            import Codes.UploadFile;
            import Codes.SysConfig;
            import flash.net.URLRequest;
            import Codes.Untity;
            import flash.net.URLVariables;
            import flash.net.FileReference;
            import HFSoftFx.HFSoftCoreFun;

            private var My:IFlexDisplayObject;
            [Bindable]
            private var mUploadFiles:Array=new Array();
            private var intervalId:uint;
            public var WorkingChange:Function;
            private function OnWorkingChange():void{
                if(WorkingChange!=null)
                    WorkingChange();
            }
            public function get UploadFiles():Array
            {
                return mUploadFiles;
            }
            private function DeleteUploadItem(index:int)
            {
                var item:UploadFile  = UploadFile(mUploadFiles[index]);
                item.FileRef.cancel();
                mUploadFiles.splice(index,1);
                OnWorkingChange();
                rp.executeBindings(true);
                if(mUploadFiles.length==0)
                    PopUpEffect.Hide(My);

            }
            public function Upload_File():void{

                var item:UploadFile  = UploadFile(mUploadFiles[0]);
                var request:URLRequest = Untity.GetUploadFileRequest();
                var variables:URLVariables=new  URLVariables();
                variables.Title = item.Title;
                variables.FolderID = item.FolderID;
                request.data=variables;
                item.Upload(request,function(){

                    DeleteUploadItem(0);
                    if(mUploadFiles.length>0)
                    intervalId=flash.utils.setInterval(function(){
                            flash.utils.clearInterval(intervalId);

                            Upload_File();
                        },500,null);
                },function(){
                    rp.executeBindings(true);
                });
            }
            public function AddItem(files:FileReferenceList,folderid:int):void{
                var item:UploadFile;
                var  fr:FileReference;
                for (var i:uint = 0; i < files.fileList.length; i++) {
                    fr = FileReference(files.fileList[i]);
                       if(fr.size>SysConfig.ImageMaxSize)
                       {
                           HFSoftCoreFun.AlertError(fr.name+"文件大于"+(SysConfig.ResourceFileMaxSize/1024)+"(KB)");
                           break;
                       }
                       item =new UploadFile();
                    item.FileRef = fr;
                    item.FolderID=folderid;
                    item.Title = fr.name;
                    item.Name= fr.name;
                    item.Size = fr.size;
                    mUploadFiles.push(item);

                }
                rp.executeBindings(true);
            }

        ]]>
    </mx:Script>

</mx:TitleWindow>

窗体有两个主要方法：

通过FileReferenceList把选择的文件添加到窗体列中

ContractedBlock.gifExpandedBlockStart.gifCode
            public function AddItem(files:FileReferenceList,folderid:int):void{
                var item:UploadFile;
                var  fr:FileReference;
                for (var i:uint = 0; i < files.fileList.length; i++) {
                    fr = FileReference(files.fileList[i]);
                       if(fr.size>SysConfig.ImageMaxSize)
                       {
                           HFSoftCoreFun.AlertError(fr.name+"文件大于"+(SysConfig.ResourceFileMaxSize/1024)+"(KB)");
                           break;
                       }
                       item =new UploadFile();
                    item.FileRef = fr;
                    item.FolderID=folderid;
                    item.Title = fr.name;
                    item.Name= fr.name;
                    item.Size = fr.size;
                    mUploadFiles.push(item);

                }
                rp.executeBindings(true);
            }

对列表文件进行上传，更新窗体内容。

ContractedBlock.gifExpandedBlockStart.gifCode
            public function Upload_File():void{

                var item:UploadFile  = UploadFile(mUploadFiles[0]);
                var request:URLRequest = Untity.GetUploadFileRequest();
                var variables:URLVariables=new  URLVariables();
                variables.Title = item.Title;
                variables.FolderID = item.FolderID;
                request.data=variables;
                item.Upload(request,function(){

                    DeleteUploadItem(0);
                    if(mUploadFiles.length>0)
                    intervalId=flash.utils.setInterval(function(){
                            flash.utils.clearInterval(intervalId);

                            Upload_File();
                        },500,null);
                },function(){
                    rp.executeBindings(true);
                });
            }

 上传的方法很简单就是从0索引开始上传，把上传完成的文件移走继续上传下一个直到列表上传完成，如果现在继添加上传文件也会排到队列后等待上传。

不过实际情况你可以同时上传多个的，只要对不同UploadFile调用Upload即可。

服务端代码

 对于采用什么样的服务端来完成文件处理就根据自己的喜好了，我用的是自己基于C#编写的http xml服务。

ContractedBlock.gifExpandedBlockStart.gifCode
    [ActionMapper]
    public class FileUpload:Users.WebService.ActionBase
    {
        public string Title
        {
            get;
            set;
        }
        public NClay.File File
        {
            get;
            set;
        }
        public int FolderID
        {
            get;
            set;
        }
        protected override void OnExecute()
        {
            base.OnExecute();
            Expression exp = Folder.folderID == FolderID & Folder.owner != Loginer.UserID;
            if (Folder.Count(exp) > 0)
                throw new Exception("无权在其他人的文件夹中添加文件!");
            string filename = Guid.NewGuid().ToString() + System.IO.Path.GetExtension(File.Name);
            Files.File f = new File();
            f.Owner = Loginer.UserID;
            f.OwnerName = Loginer.UserName;
            f.FileName = filename;
            f.CreateDate = DateTime.Now;
            f.Title = Title;
            f.FolderID = FolderID;
            f.DownloadName = System.IO.Path.GetFileNameWithoutExtension(Title) + System.IO.Path.GetExtension(File.Name);
            f.Save();
            FileHandler.SaveFile(Loginer.UserName, f.FileName, File);
        }
        protected override bool SigninAccess
        {
            get
            {
                return true;
            }
        }
    }

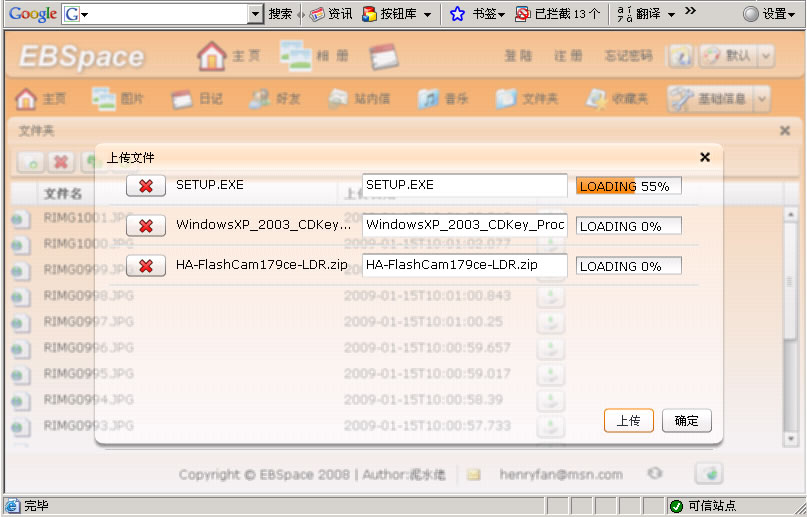

 实际应用效果图
