pdm怎么导入oracle,Oracle数据反向导入到pdm

一、前置条件

已存在oracle数据库

已安装PowerDesigner数据库建模工具

二、在PowerDesigner中创建jdbc数据库连接

点击 “File>Reverse Engineer>Database”

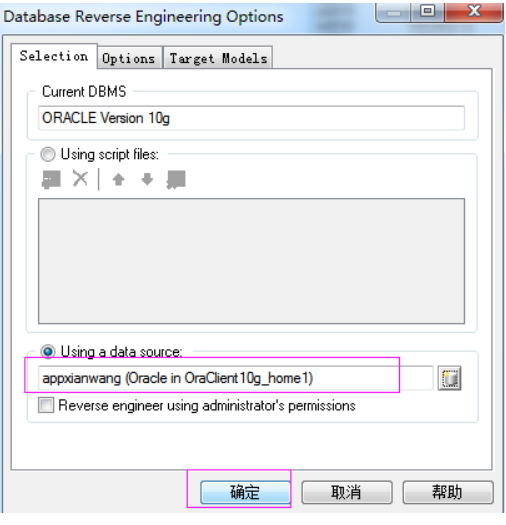

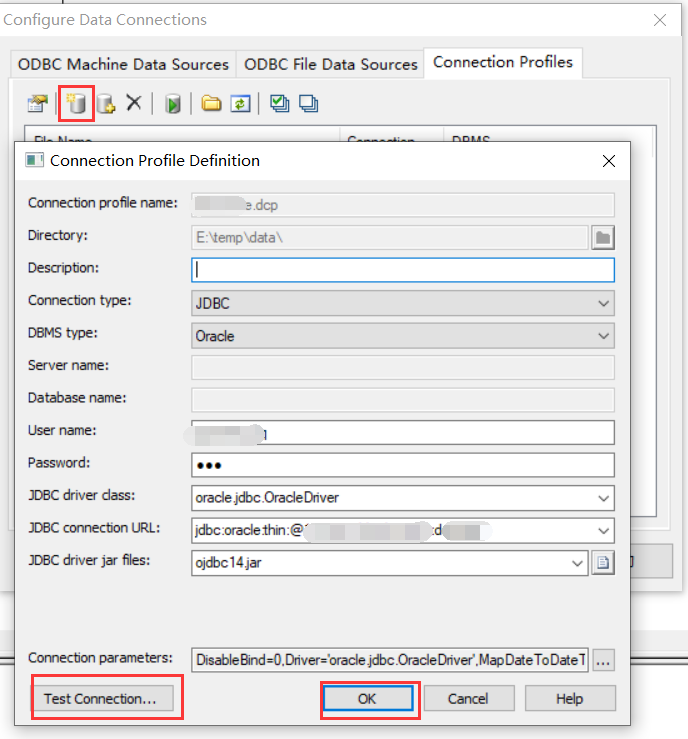

选择数据源，如果之前没有创建则点击"Configure"进行配置

三、开始导入

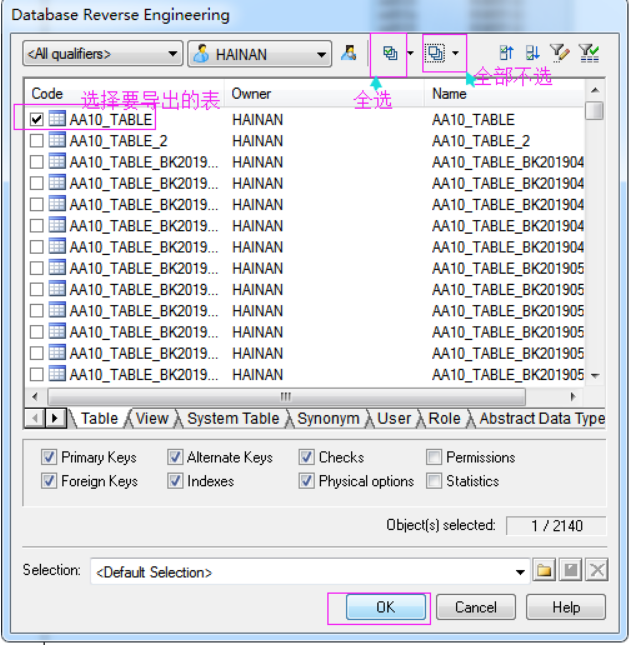

选择要导入的表

四、设置

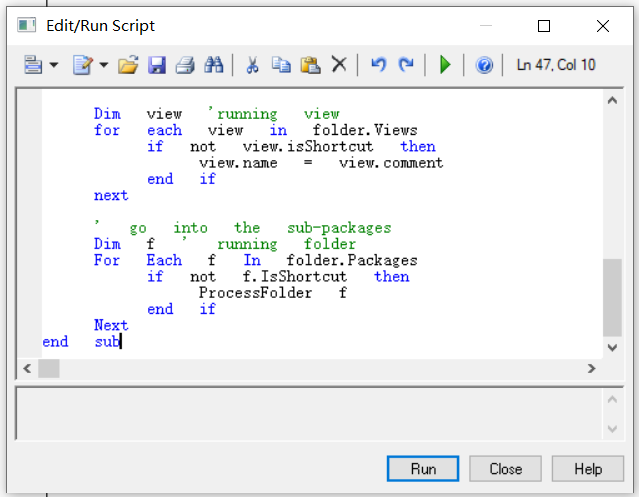

使name显示中文名称，点击 "Tools>Excute Commands>Edit/Run Scripts "，执行以下脚本

Option Explicit

ValidationMode = True

InteractiveMode = im_Batch

Dim mdl ' the current model

' get the current active model

Set mdl = ActiveModel

If (mdl Is Nothing) Then

MsgBox "There is no current Model "

ElseIf Not mdl.IsKindOf(PdPDM.cls_Model) Then

MsgBox "The current model is not an Physical Data model. "

Else

ProcessFolder mdl

End If

Private sub ProcessFolder(folder)

On Error Resume Next

Dim Tab 'running table

for each Tab in folder.tables

if not tab.isShortcut then

tab.name = tab.comment

Dim col ' running column

for each col in tab.columns

if col.comment="" then

else

col.name= col.comment

end if

next

end if

next

Dim view 'running view

for each view in folder.Views

if not view.isShortcut then

view.name = view.comment

end if

next

' go into the sub-packages

Dim f ' running folder

For Each f In folder.Packages

if not f.IsShortcut then

ProcessFolder f

end if

Next

end sub

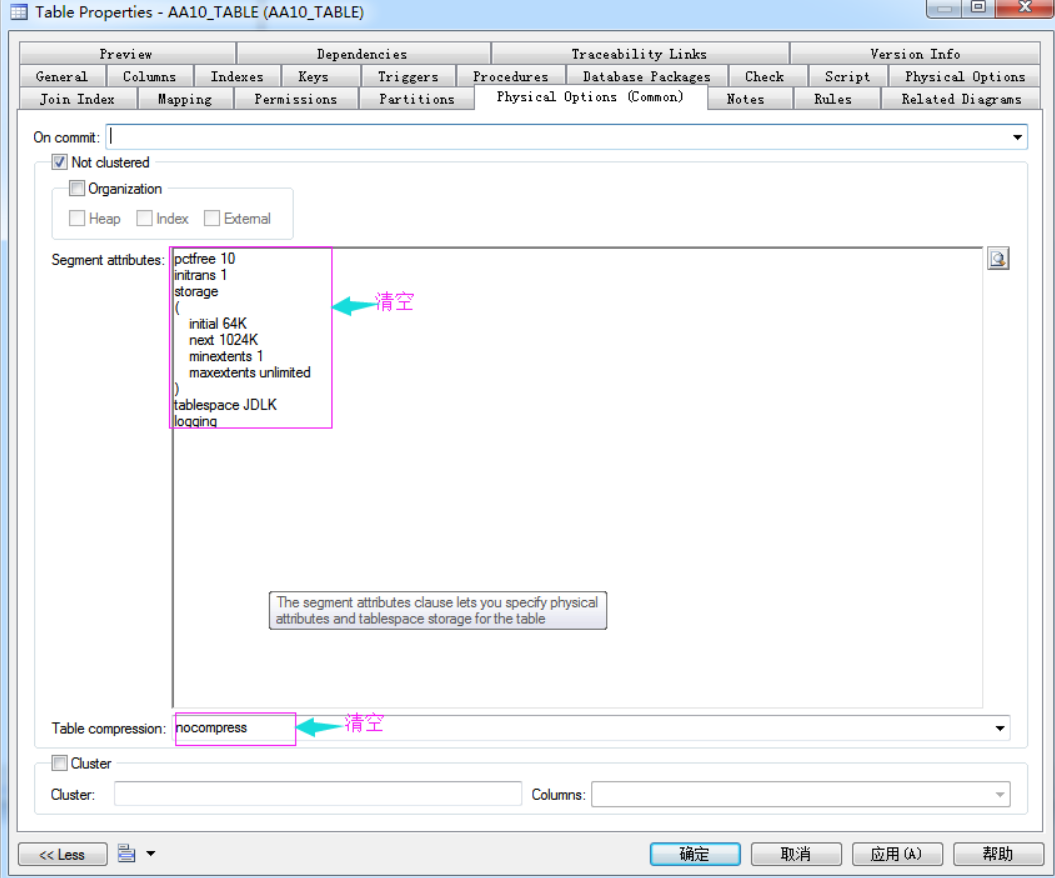

Physical Options(Common)设置，使Preview标签页没有表空间语句
