算法原理

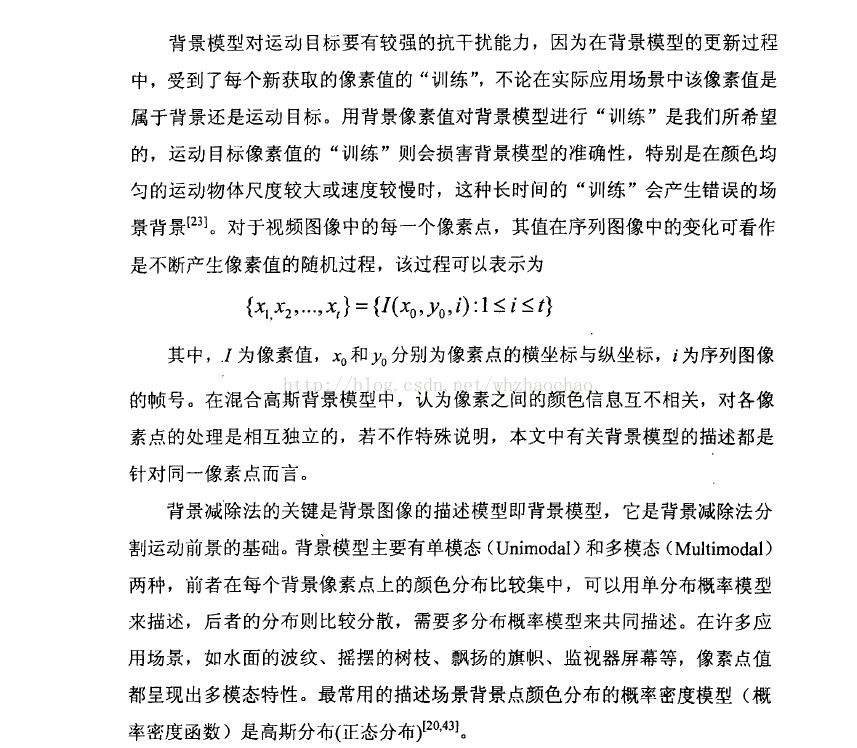

单高斯背景建模_单高斯背景建模

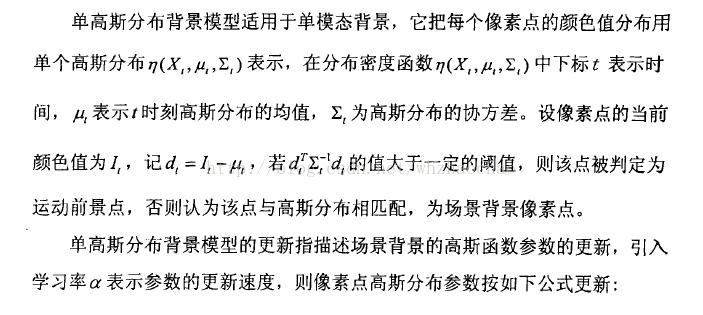

单高斯背景建模_#include_02

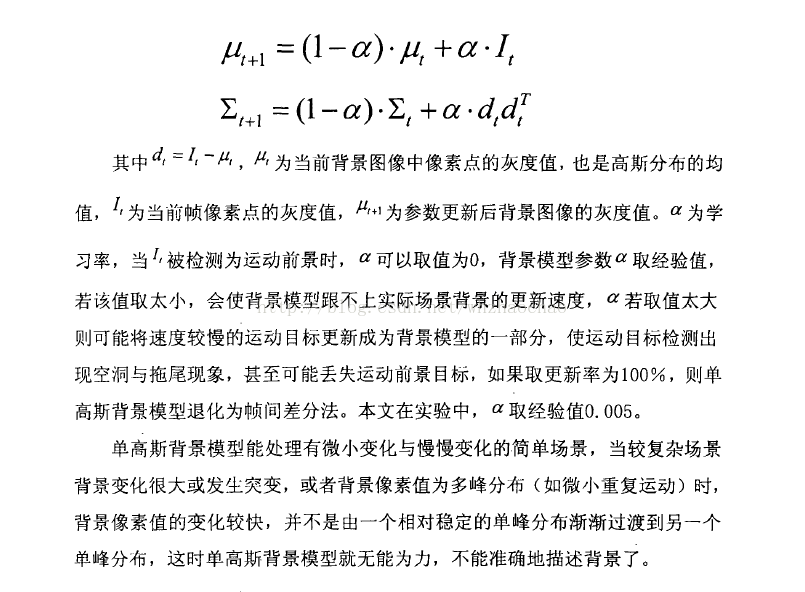

单高斯背景建模_matlab_03

Opencv实现

/*******************单高斯背景建模v1.0*************************
************************2010.01.22****************************/

#include <highgui.h>
#include <cv.h>
#include <math.h>
#include <stdio.h>
#include <stdlib.h>

int main(int argc, char **argv)
{
    //新建窗口
    cvNamedWindow("origin", CV_WINDOW_AUTOSIZE);
    cvNamedWindow("processing", CV_WINDOW_AUTOSIZE);

    double alpha = 0.05;    //背景建模alpha值
    double std_init = 20;    //初始标准差
    double var_init = std_init * std_init;    //初始方差
    double lamda = 2.5 * 1.2;    //背景更新参数

	char* fileName="E:\\研二上\\video\\highway.AVI";

    //视频文件
    CvCapture *capture = NULL;

//     //读取视频文件
//     if (argc == 1)
//     {
//         //从摄像头读入
//         capture = cvCreateCameraCapture(0);
//     }
//     else if (argc == 2)
//     {
//         //从文件读入
//         capture = cvCreateFileCapture(argv[1]);
//     }
//     else
//     {
//         //读入错误
//         printf("input error\n");
//         return -1;
//     }

	capture = cvCreateFileCapture(fileName);


    IplImage *frame = NULL;        //原始图像
    IplImage *frame_u = NULL;    //期望图像
    IplImage *frame_var = NULL;    //方差图像
    IplImage *frame_std = NULL;    //标准差

    CvScalar pixel = {0};        //像素原始值
    CvScalar pixel_u = {0};        //像素期望
    CvScalar pixel_var = {0};    //像素方差
    CvScalar pixel_std = {0};    //像素标准差

    //初始化frame_u, frame_var, frame_std
    frame = cvQueryFrame(capture);
    frame_u = cvCreateImage(cvSize(frame->width, frame->height), IPL_DEPTH_8U, 3);
    frame_var = cvCreateImage(cvSize(frame->width, frame->height), IPL_DEPTH_8U, 3);
    frame_std = cvCreateImage(cvSize(frame->width, frame->height), IPL_DEPTH_8U, 3);

    for (int y = 0; y < frame->height; ++y)
    {
        for (int x = 0; x < frame->width; ++x)
        {
            pixel = cvGet2D(frame, y, x);

            pixel_u.val[0] = pixel.val[0];
            pixel_u.val[1] = pixel.val[1];
            pixel_u.val[2] = pixel.val[2];

            pixel_std.val[0] = std_init;
            pixel_std.val[1] = std_init;
            pixel_std.val[2] = std_init;

            pixel_var.val[0] = var_init;
            pixel_var.val[1] = var_init;
            pixel_var.val[2] = var_init;

            cvSet2D(frame_u, y, x, pixel_u);
            cvSet2D(frame_var, y, x, pixel_var);
            cvSet2D(frame_std, y, x, pixel_std);
        }
    }

    while (cvWaitKey(33) != 27)        //按ESC键退出, 帧率33ms
    {
        frame = cvQueryFrame(capture);

        //视频结束退出
        if (!frame)
        {
            break;
        }

        //单高斯背景更新
        for (int y = 0; y < frame->height; ++y)
        {
            for (int x = 0; x < frame->width; ++x)
            {
                pixel = cvGet2D(frame, y, x);
                pixel_u = cvGet2D(frame_u, y, x);
                pixel_std = cvGet2D(frame_std, y, x);
                pixel_var = cvGet2D(frame_var, y, x);

                //|I-u| < lamda*std 时认为是背景, 进行更新
                if (fabs(pixel.val[0] - pixel_u.val[0]) < lamda * pixel_std.val[0] &&
                    fabs(pixel.val[1] - pixel_u.val[1]) < lamda * pixel_std.val[1] &&
                    fabs(pixel.val[2] - pixel_u.val[2]) < lamda * pixel_std.val[2])
                {
                    //更新期望 u = (1-alpha)*u + alpha*I
                    pixel_u.val[0] = (1 - alpha) * pixel_u.val[0] + alpha * pixel.val[0];
                    pixel_u.val[1] = (1 - alpha) * pixel_u.val[1] + alpha * pixel.val[1];
                    pixel_u.val[2] = (1 - alpha) * pixel_u.val[2] + alpha * pixel.val[2];

                    //更新方差 var = (1-alpha)*var + alpha*(I-u)^2
                    pixel_var.val[0] = (1 - alpha) * pixel_var.val[0] +
                                    (pixel.val[0] - pixel_u.val[0]) * (pixel.val[0] - pixel_u.val[0]);
                    pixel_var.val[1] = (1 - alpha) * pixel_var.val[1] +
                                    (pixel.val[1] - pixel_u.val[1]) * (pixel.val[1] - pixel_u.val[1]);
                    pixel_var.val[2] = (1 - alpha) * pixel_var.val[2] +
                                    (pixel.val[2] - pixel_u.val[2]) * (pixel.val[2] - pixel_u.val[2]);

                    //更新标准差
                    pixel_std.val[0] = sqrt(pixel_var.val[0]);
                    pixel_std.val[1] = sqrt(pixel_var.val[1]);
                    pixel_std.val[2] = sqrt(pixel_var.val[2]);

                    //写入矩阵
                    cvSet2D(frame_u, y, x, pixel_u);
                    cvSet2D(frame_var, y, x, pixel_var);
                    cvSet2D(frame_std, y, x, pixel_std);
                }
            }
        }

        //显示结果
        cvShowImage("origin", frame);
        cvShowImage("processing", frame_u);
    }

    //释放内存
    cvReleaseCapture(&capture);
    cvReleaseImage(&frame);
    cvReleaseImage(&frame_u);
    cvReleaseImage(&frame_var);
    cvReleaseImage(&frame_std);
    cvDestroyWindow("origin");
    cvDestroyWindow("processing");

    return 0;
}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.

matlab实现

close all;
clear all;

mov=aviread('E:\研二上\video\highway.AVI'); %读入
fnum=size(mov,2); %读取电影的祯数，mov为1*temp

alpah=0.005;
std_init=20;
var_init=std_init*std_init;
lamda=2.5*2.5;

frame=uint8(ones(304,400,3));
frame_u=frame;
frame_var=frame;
frame_std=frame;


% frame=imread('D:\Code\Data\00011\1.bmp');
frame=mov(1).cdata(:,:,:);
frame_u=frame;
frame_var=var_init*frame_var;
frame_std=std_init*frame_std;


for index=2:fnum
%     fileName=strcat('D:\Code\Data\00011\',int2str(index),'.','bmp'); %将每祯转成jpg的图片
%     frame=imread(fileName);
    frame=mov(index).cdata(:,:,:);
    [x,y,z]=size(frame);
    for i=1:x
        for j=1:y
            frame_rgb=frame(i,j,:);
            frame_u_rgb=frame_u(i,j,:);
            frame_std_rgb=frame_std(i,j,:);
            frame_var_rgb=frame_var(i,j,:);
            if company_rgb(frame_rgb,frame_u_rgb,lamda,frame_std_rgb)
                   frame_u_rgb=(1-alpah).*frame_u_rgb+alpah.*frame_var_rgb;
                   frame_var_rgb=(1-alpah).*frame_var_rgb+alpah.*(frame_rgb-frame_u_rgb).^2;

                   frame_std_rgb=sqrt(double(frame_var_rgb));

                   frame_u(i,j,:)= frame_u_rgb;
                   frame_std(i,j,:)=frame_std_rgb;
                   frame_var(i,j,:)=frame_var_rgb;

            end
        end
    end

    subplot(2,1,1);
    imshow(frame);
    title('src');
    subplot(2,1,2);
    imshow(frame_u);
    title('result');

    pause(0.01);
end

function [ output_args ] = company_rgb( frame_rgb,frame_u_rgb,lamda,frame_std_rgb )
%UNTITLED2 Summary of this function goes here
%   Detailed explanation goes here
    var_r=abs(frame_rgb(1)-frame_u_rgb(1));
    var_g=abs(frame_rgb(2)-frame_u_rgb(2));
    var_b=abs(frame_rgb(3)-frame_u_rgb(3));
    if var_r<lamda*frame_std_rgb(1) && var_g<lamda*frame_std_rgb(2) && var_b<lamda*frame_std_rgb(3)
        output_args=1;
    else
        output_args=0;
    end
end
