　　有天在想工作上的事的时候，看着.net原有的DataGridView，想起以前我写过的一篇文章，总结了一个好的Gird控件应该具备哪些功能，在那里我提及到了分组功能，就像jqGrid那样，

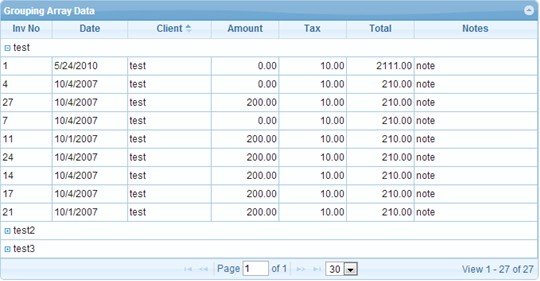

　　其实这样的显示型式很常见，就在平时邮箱的邮件列表就是按这种分组型式显示的，按今天、昨天、上周之类，在购物网站的历史订单处也可以看见这种Grid表的身影。但是原有的DataGridView并不支持这种分组功能。那只能扩展一下了。

　　之前写了一个多维表头的GirdView，有经验了，知道搞这种图形化的东西无非都是用GDI+，上网找了一些文章后有点愣住了，之前画表头的是在DataGridView的OnPaint方法里把表头描绘出来，但是这里画分组的话就不同了，不是在DataGridViewRow的Paint方法里面处理。

　　因此要完成这个可分组DataGridView需要对两个类进行拓展，一个是DataGridView，另一个是DataGirdViewRow。而实现这个分组DataGridView的效果大体步骤就是先把分组的标题行添加到GirdView里面，然后逐个把该组的数据行添加到GridView里面并控制它的显示状态，在分组的标题行进行相关的操作来改变数据行显示状态达到分组显示的效果。

下面则逐个类来介绍吧！

　　GroupGridView继承DataGridView，以下是它的一些字段和属性的定义

成员名称	数据类型	修饰符	描述
GroupFieldName	String	public	要分组的字段的名称，只能是类的属性名或者是DataTable的列名
objDataSource	Object	Protected	使用分组时暂时记录数据源
GroupRowTemplate	GroupGridViewRow	Public	分组行实例的模板
isGroupping	Bool	Private	是否使用分组显示

　　如果要使用这个GroupGridView的话，还要默认地对原本的DataGridView进行一些设置，这些设置我都塞到了构造函数里面，大体上分三类，分别是操作设置，样式设置和部分属性或字段的赋值，代码如下

 1         public GroupGridView()
 2         {
 3             //对GridView的操作的设置
 4             this.AllowUserToAddRows = false;
 5             this.AllowUserToDeleteRows = false;
 6             this.SelectionMode = DataGridViewSelectionMode.FullRowSelect;
 7
 8             //对GridView的样式设置
 9             this.EditMode = DataGridViewEditMode.EditProgrammatically;
10             this.RowHeadersVisible = false;
11             this.CellBorderStyle = DataGridViewCellBorderStyle.RaisedHorizontal;
12
13             //对实例的部分成员赋值
14             isGroupping = false;
15             GroupRowTemplate = new GroupGridViewRow();
16         }

　　其实GroupGridView要做的事就是能增加分组，在单击和双击分组行时作处理，还有就是数据绑定时把数据分组添加到GirdView里。那么就逐个方法来介绍

第一个是增加分组的

 1         public GroupGridViewRow CreateGroupGridViewRow(string title)
 2         {
 3             GroupGridViewRow group = this.GroupRowTemplate.Clone() as GroupGridViewRow;
 4             if (group == null)
 5                 throw new NullReferenceException("组模板为空或者组模板类型不是GroupGridViewRow");
 6             group.Title = title;
 7             group.ParentGridView = this;
 8             group.CreateCells(this, group.Title);
 9             this.Rows.Add(group);
10             group.CollapseGroup();
11             return group;
12         }

主要是按照模板拷贝一个GroupGridViewRow的实例，设置相应的属性后就把它添加到GirdView里面。

然后到鼠标对分组行的点击事件，单击展开/折叠图标就展示或隐藏该组的数据。双击分组行同样也达到这种显示状态切换的效果。

 1         protected override void OnCellMouseDown(DataGridViewCellMouseEventArgs e)
 2         {
 3             if (e.RowIndex == -1 ||e.ColumnIndex==-1|| e.Button != System.Windows.Forms.MouseButtons.Left || e.Clicks != 1)
 4                 return;
 5             GroupGridViewRow group = this.Rows[e.RowIndex] as GroupGridViewRow;
 6             if (group != null && group.IsIconHit(e))
 7                 group.Toggle();
 8             base.OnCellMouseDown(e);
 9         }
10
11         protected override void OnCellDoubleClick(DataGridViewCellEventArgs e)
12         {
13             if (e.RowIndex == -1||e.ColumnIndex==-1)
14                 return;
15             GroupGridViewRow group = this.Rows[e.RowIndex] as GroupGridViewRow;
16             if (group != null )
17                 group.Toggle();
18             base.OnCellDoubleClick(e);
19         }

Toggle和IsIconHit方法在GroupGridViewRow里会定义，在介绍GroupGridViewRow会列出该方法的定义，在单击时就要通过IsIconHit判断鼠标是否点击到了图片，当然是点击中图标才会经行状态切换，而双击则不需要了。无论是双击和单击都要判断当前鼠标所在的行是分组行，如果是数据行的话就不会作任何操作了。

为了方便点绑定到数据，我重新定义了控件的DataSource属性。当分组字段信息（GroupFieldName属性）不存在时就会使用GridView默认的绑定数据，如果存在就会分组筛选出数据，然后逐个组去把行添加进去。

 1         public new object DataSource
 2         {
 3             get
 4             {
 5                 if (isGroupping) return objDataSource;
 6                 return base.DataSource;
 7             }
 8             set
 9             {
10                 if (string.IsNullOrEmpty(GroupFieldName)
11                     || string.IsNullOrWhiteSpace(GroupFieldName))
12                 {
13
14                     foreach (DataGridViewColumn col in this.Columns)
15                         col.SortMode = DataGridViewColumnSortMode.Automatic;
16                     base.DataSource = value;
17                     isGroupping = false;
18                 }
19                 else
20                 {
21
22                     foreach (DataGridViewColumn col in this.Columns)
23                         col.SortMode = DataGridViewColumnSortMode.NotSortable;
24                     if (value is IEnumerable)
25                         BindIEnumerableDataSource(value as IEnumerable);
26                     else if (value is DataTable)
27                         BindDataTableDataSouce(value as DataTable);
28                     else if (value is DataSet)
29                         BindDataSetDataSource(value as DataSet);
30                     else
31                     {
32                         throw new NotImplementedException("不支持此类型作数据源");
33                     }
34                     objDataSource = value;
35                     isGroupping = true;
36
37                 }
38             }
39         }

现在能自动绑定的数据源只能是可枚举的或DataTable，DataSet其实是把里面第一个DataTable作为数据源而已。不同类型的数据有相应的处理方法

 1         private void BindIEnumerableDataSource(IEnumerable enumerable)
 2         {
 3             IEnumerable iends = enumerable;
 4             if (iends == null) return;
 5             Type dsItemType = null;
 6             foreach (object item in iends)
 7                 dsItemType = item.GetType();
 8             if (iends == null) return;
 9
10             PropertyInfo proInfo = dsItemType.GetProperty(GroupFieldName);
11
12             Dictionary<string, List<object>> groupDataSource = new Dictionary<string, List<object>>();
13             foreach (object item in iends)
14             {
15                 string tempStr = proInfo.GetValue(item, null).ToString();
16                 if (!groupDataSource.ContainsKey(tempStr))
17                     groupDataSource[tempStr] = new List<object>();
18                 groupDataSource[tempStr].Add(item);
19             }
20
21             List<string> colFildNames = new List<string>(this.Columns.Count);
22             foreach (DataGridViewColumn col in this.Columns)
23                 colFildNames.Add(col.DataPropertyName);
24             GroupGridViewRow group = null;
25             List<object> datas = new List<object>(colFildNames.Count);
26             foreach (KeyValuePair<string, List<object>> gi in groupDataSource)
27             {
28                 group = CreateGroupGridViewRow(gi.Key);
29                 foreach (object celli in gi.Value)
30                 {
31                     foreach (string colName in colFildNames)
32                     {
33                         datas.Add(dsItemType.GetProperty(colName).GetValue(celli, null));
34                     }
35                     group.AddRowToGroup(datas.ToArray());
36                     datas.Clear();
37                 }
38                 group.CollapseGroup();
39             }
40         }

对于可枚举的数据源，我就通过反射把相应的属性的值都拿出来填到DataGridViewRow里面。

 1         private void BindDataTableDataSouce(DataTable table)
 2         {
 3             Dictionary<string, List<DataRow>> groupDataSource = new Dictionary<string, List<DataRow>>();
 4             foreach (DataRow row in table.Rows)
 5             {
 6                 string tempStr = row[GroupFieldName].ToString();
 7                 if (!groupDataSource.ContainsKey(tempStr))
 8                     groupDataSource[tempStr] = new List<DataRow>();
 9                 groupDataSource[tempStr].Add(row);
10             }
11
12             List<string> colFildNames = new List<string>(this.Columns.Count);
13             foreach (DataGridViewColumn col in this.Columns)
14                 colFildNames.Add(col.DataPropertyName);
15             GroupGridViewRow group = null;
16             List<object> datas = new List<object>(colFildNames.Count);
17             foreach (KeyValuePair<string, List<DataRow>> gi in groupDataSource)
18             {
19                 group = CreateGroupGridViewRow(gi.Key);
20                 foreach (DataRow celli in gi.Value)
21                 {
22                     foreach (string colName in colFildNames)
23                     {
24                         datas.Add(celli[colName]);
25                     }
26                     group.AddRowToGroup(datas.ToArray());
27                     datas.Clear();
28                 }
29                 group.CollapseGroup();
30             }
31         }

DataTable的绑定也类似，更方便的是DataTable不需要用反射了，直接通过行列的访问就可以了。

GruopGridView介绍就到此结束，下面则介绍另一个类GroupGridViewRow，它是继承DataGridViewRow。而GDI+的描绘都是在这个方法里面。也是先看看里面的成员

成员名称	数据类型	修饰符	描述
IsExpanded	bool	public	分组的状态，是展开还是折叠
Title	string	public	分组的标题，通常是分组的数据
ParentGridView	GroupGridView	public	分组行所在的GridView
groupRows	List<DataGridViewRow>	private	此分组包含的数据行

　　那么一个GroupGridViewRow的要处理的事就有以下几个，对分组下的数据行的状态控制，判断鼠标单击是否命中图标，增加一行数据到该分组下，还有最重要的就是描绘出分组行的外观。

先列举数据行的状态控制方法，ExpandGroup()展开分组，CollapseGroup()折叠分组，还有Toggle()切换

 1         public void ExpandGroup()
 2         {
 3             IsExpanded = true;
 4             foreach (DataGridViewRow row in groupRows)
 5                 row.Visible = true;
 6         }
 7
 8         public void CollapseGroup()
 9         {
10             IsExpanded = false;
11             foreach (DataGridViewRow row in groupRows)
12                 row.Visible = false;
13         }
14
15         public void Toggle()
16         {
17             if (IsExpanded)
18                 CollapseGroup();
19             else
20                 ExpandGroup();
21         }

实际上就是通过遍历groupRows集合，改变其显示状态而已。

判断单击图标的方法如下

 1         public bool IsIconHit(DataGridViewCellMouseEventArgs e)
 2         {
 3             Rectangle groupBound = this.ParentGridView.GetRowDisplayRectangle(e.RowIndex, false);
 4
 5             if (
 6                     e.X > groupBound.Left + 5 &&
 7                     e.X < groupBound.Left + 15 &&
 8                     e.Y > ((groupBound.Height - 1) - 5) / 2-2 &&
 9                     e.Y <  ((groupBound.Height - 1) - 5) / 2 + 10-2
10                 )
11                 return true;
12
13             return false;
14         }

主要是通过鼠标指针当前所在的坐标是不是在图标的范围以内，那个范围有点不好把握，要通过DataGridView的GetRowDisplayRectangle方法得到分组行的矩形，Left，X这两个属性有点分不清了。

增加数据行的方法如下

 1         public DataGridViewRow AddRowToGroup(params object[] values)
 2         {
 3             DataGridViewRow row = this.ParentGridView.RowTemplate.Clone() as DataGridViewRow;
 4             if (row == null) throw new NullReferenceException("行模板为空或者组模板类型不是DataGridViewRow");
 5
 6             row.CreateCells(this.ParentGridView, values);
 7             this.ParentGridView.Rows.Add(row);
 8             this.groupRows.Add(row);
 9             return row;
10         }

也复杂，通过DataGridView的普通数据行（不是分组行）的目标拷贝，填上数据，然后分别添加到这个分组的数据行集合中和GridView中。

最后到描绘分组行的方法，重写Paint方法，这个基本上是参考园友老虎哥的代码的，也作了一些小的调整，解决了水平滚动之后文字和图标有重影的问题，所以老虎哥看见了不要怪哈！

 1         protected override void Paint(System.Drawing.Graphics graphics, System.Drawing.Rectangle clipBounds, System.Drawing.Rectangle rowBounds, int rowIndex, DataGridViewElementStates rowState, bool isFirstDisplayedRow, bool isLastVisibleRow)
 2         {
 3
 4             int holdWidth = this.ParentGridView.Columns.GetColumnsWidth(DataGridViewElementStates.Visible);
 5             Color backgroudColor;
 6             if (this.Selected)
 7                 backgroudColor = this.ParentGridView.DefaultCellStyle.SelectionBackColor;
 8             else
 9                 backgroudColor = this.ParentGridView.DefaultCellStyle.BackColor;
10             using (Brush backgroudBrush = new SolidBrush(backgroudColor))
11             {
12                 graphics.FillRectangle(backgroudBrush, rowBounds.X,rowBounds.Y,holdWidth,rowBounds.Height);
13             }
14             using (Brush bottomLineBrush=new SolidBrush(Color.FromKnownColor( KnownColor.GradientActiveCaption)))
15             {
16                 graphics.FillRectangle(bottomLineBrush, rowBounds.Left, rowBounds.Top + rowBounds.Height-2, holdWidth, 2);
17             }
18
19             StringFormat sf = new StringFormat();
20             sf.LineAlignment = StringAlignment.Center;
21             Font font = new Font(this.ParentGridView.Font, FontStyle.Bold);
22             graphics.DrawString(this.Title, font, Brushes.Black,
23             rowBounds.Left - this.ParentGridView.HorizontalScrollingOffset + 20, rowBounds.Top + rowBounds.Height / 2, sf);
24
25
26             int symbolX = rowBounds.Left - this.ParentGridView.HorizontalScrollingOffset + 5;
27             int symbolY =rowBounds.Y+ ((rowBounds.Height - 1) - 5) / 2-2;
28             if (Application.RenderWithVisualStyles)
29             {
30
31                 VisualStyleRenderer glyphRenderer;
32                 if (this.IsExpanded)
33                     glyphRenderer = new VisualStyleRenderer(VisualStyleElement.TreeView.Glyph.Opened);
34                 else
35                     glyphRenderer = new VisualStyleRenderer(VisualStyleElement.TreeView.Glyph.Closed);
36
37                 Rectangle glyphRectangle =new Rectangle(symbolX, symbolY, 10, 10);
38
39                 glyphRenderer.DrawBackground(graphics, glyphRectangle);
40
41             }
42             else
43             {
44                 int h = 8;
45                 int w = 8;
46                 int x = symbolX;
47                 int y = symbolY;
48                 graphics.DrawRectangle(new Pen(SystemBrushes.ControlDark), x, y, w, h);
49                 graphics.FillRectangle(new SolidBrush(Color.White),
50                     x + 1, y + 1, w - 1, h - 1);
51
52                 //画横线
53                 graphics.DrawLine(new Pen(new SolidBrush(Color.Black)),
54                     x + 2, y + 4, x + w - 2, y + 4);
55
56                 //画竖线
57                 if (!this.IsExpanded)
58                     graphics.DrawLine(new Pen(new SolidBrush(Color.Black)),
59                         x + 4, y + 2, x + 4, y + h - 2);
60             }
61         }

我自己写出来的话还是有点棘手的，绘制对于我自己而言就分了三部分，分组栏的背景边线描绘，文字的填写，还有图标的描绘，而图标在这里很好的考虑那个显示效果，分了渐变效果和单色效果。我也该多学习学习。

最后列一下控件的使用，列的设置分组设置，数据绑定如下，CreateColumn是我定义的方法，主要是构造一个新的列，对其进行设置之后就添加到GridView里面。

 1             groupGridView21.GroupFieldName = "name";
 2
 3             CreateColumn("id", "id", groupGridView21);
 4             CreateColumn("invdate", "invdate", groupGridView21);
 5             CreateColumn("note", "note", groupGridView21);
 6             CreateColumn("amount", "amount", groupGridView21);
 7             CreateColumn("tax", "tax", groupGridView21);
 8             CreateColumn("total", "total", groupGridView21);
 9             CreateColumn("name", "name", groupGridView21);
10
11             groupGridView21.DataSource = datasource;

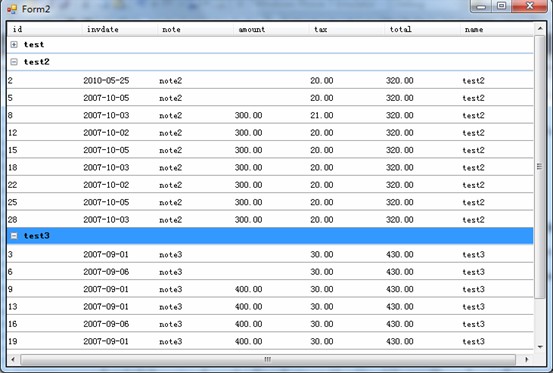

效果就这样，数据我完全拿了那个jqGrid的Demo里面的数据

控件的缺点还是跟老虎哥的控件类似，要把显示的列逐个添加，不支持自动添加列，并且分组显示的时候不能对列经行排序。最后附上控件的完整源码，介绍完毕，谢谢！

  1     public class GroupGridView:DataGridView
  2     {
  3         public string GroupFieldName { get; set; }
  4
  5         protected object objDataSource;
  6
  7         public GroupGridViewRow GroupRowTemplate { get;protected set; }
  8
  9         private bool isGroupping;
 10
 11         public GroupGridView()
 12         {
 13             //对GridView的操作的设置
 14             this.AllowUserToAddRows = false;
 15             this.AllowUserToDeleteRows = false;
 16             this.SelectionMode = DataGridViewSelectionMode.FullRowSelect;
 17
 18             //对GridView的样式设置
 19             this.EditMode = DataGridViewEditMode.EditProgrammatically;
 20             this.RowHeadersVisible = false;
 21             this.CellBorderStyle = DataGridViewCellBorderStyle.RaisedHorizontal;
 22
 23             //对实例的部分成员赋值
 24             isGroupping = false;
 25             GroupRowTemplate = new GroupGridViewRow();
 26         }
 27
 28         public GroupGridViewRow CreateGroupGridViewRow(string title)
 29         {
 30             GroupGridViewRow group = this.GroupRowTemplate.Clone() as GroupGridViewRow;
 31             if (group == null)
 32                 throw new NullReferenceException("组模板为空或者组模板类型不是GroupGridViewRow");
 33             group.Title = title;
 34             group.ParentGridView = this;
 35             group.CreateCells(this, group.Title);
 36             this.Rows.Add(group);
 37             //do
 38             //{
 39             //    group.Toggle();
 40             //} while (group.IsExpanded);
 41             group.CollapseGroup();
 42             return group;
 43         }
 44
 45         public new object DataSource
 46         {
 47             get
 48             {
 49                 if (isGroupping) return objDataSource;
 50                 return base.DataSource;
 51             }
 52             set
 53             {
 54                 if (string.IsNullOrEmpty(GroupFieldName)
 55                     || string.IsNullOrWhiteSpace(GroupFieldName))
 56                 {
 57
 58                     foreach (DataGridViewColumn col in this.Columns)
 59                         col.SortMode = DataGridViewColumnSortMode.Automatic;
 60                     base.DataSource = value;
 61                     isGroupping = false;
 62                 }
 63                 else
 64                 {
 65
 66                     foreach (DataGridViewColumn col in this.Columns)
 67                         col.SortMode = DataGridViewColumnSortMode.NotSortable;
 68                     if (value is IEnumerable)
 69                         BindIEnumerableDataSource(value as IEnumerable);
 70                     else if (value is DataTable)
 71                         BindDataTableDataSouce(value as DataTable);
 72                     else if (value is DataSet)
 73                         BindDataSetDataSource(value as DataSet);
 74                     else
 75                     {
 76                         throw new NotImplementedException("不支持此类型作数据源");
 77                     }
 78                     objDataSource = value;
 79                     isGroupping = true;
 80
 81                 }
 82             }
 83         }
 84
 85         protected override void OnCellMouseDown(DataGridViewCellMouseEventArgs e)
 86         {
 87             if (e.RowIndex == -1 ||e.ColumnIndex==-1|| e.Button != System.Windows.Forms.MouseButtons.Left || e.Clicks != 1)
 88                 return;
 89             GroupGridViewRow group = this.Rows[e.RowIndex] as GroupGridViewRow;
 90             if (group != null && group.IsIconHit(e))
 91                 group.Toggle();
 92             base.OnCellMouseDown(e);
 93         }
 94
 95         protected override void OnCellDoubleClick(DataGridViewCellEventArgs e)
 96         {
 97             if (e.RowIndex == -1||e.ColumnIndex==-1)
 98                 return;
 99             GroupGridViewRow group = this.Rows[e.RowIndex] as GroupGridViewRow;
100             if (group != null )
101                 group.Toggle();
102             base.OnCellDoubleClick(e);
103         }
104
105         private void BindIEnumerableDataSource(IEnumerable enumerable)
106         {
107             IEnumerable iends = enumerable;
108             if (iends == null) return;
109             Type dsItemType = null;
110             foreach (object item in iends)
111                 dsItemType = item.GetType();
112             if (iends == null) return;
113
114             PropertyInfo proInfo = dsItemType.GetProperty(GroupFieldName);
115
116             Dictionary<string, List<object>> groupDataSource = new Dictionary<string, List<object>>();
117             foreach (object item in iends)
118             {
119                 string tempStr = proInfo.GetValue(item, null).ToString();
120                 if (!groupDataSource.ContainsKey(tempStr))
121                     groupDataSource[tempStr] = new List<object>();
122                 groupDataSource[tempStr].Add(item);
123             }
124
125             List<string> colFildNames = new List<string>(this.Columns.Count);
126             foreach (DataGridViewColumn col in this.Columns)
127                 colFildNames.Add(col.DataPropertyName);
128             GroupGridViewRow group = null;
129             List<object> datas = new List<object>(colFildNames.Count);
130             foreach (KeyValuePair<string, List<object>> gi in groupDataSource)
131             {
132                 group = CreateGroupGridViewRow(gi.Key);
133                 foreach (object celli in gi.Value)
134                 {
135                     foreach (string colName in colFildNames)
136                     {
137                         datas.Add(dsItemType.GetProperty(colName).GetValue(celli, null));
138                     }
139                     group.AddRowToGroup(datas.ToArray());
140                     datas.Clear();
141                 }
142                 //do
143                 //{
144                 //    group.Toggle();
145                 //} while (group.IsExpanded);
146                 group.CollapseGroup();
147             }
148         }
149
150         private void BindDataTableDataSouce(DataTable table)
151         {
152             Dictionary<string, List<DataRow>> groupDataSource = new Dictionary<string, List<DataRow>>();
153             foreach (DataRow row in table.Rows)
154             {
155                 string tempStr = row[GroupFieldName].ToString();
156                 if (!groupDataSource.ContainsKey(tempStr))
157                     groupDataSource[tempStr] = new List<DataRow>();
158                 groupDataSource[tempStr].Add(row);
159             }
160
161             List<string> colFildNames = new List<string>(this.Columns.Count);
162             foreach (DataGridViewColumn col in this.Columns)
163                 colFildNames.Add(col.DataPropertyName);
164             GroupGridViewRow group = null;
165             List<object> datas = new List<object>(colFildNames.Count);
166             foreach (KeyValuePair<string, List<DataRow>> gi in groupDataSource)
167             {
168                 group = CreateGroupGridViewRow(gi.Key);
169                 foreach (DataRow celli in gi.Value)
170                 {
171                     foreach (string colName in colFildNames)
172                     {
173                         datas.Add(celli[colName]);
174                     }
175                     group.AddRowToGroup(datas.ToArray());
176                     datas.Clear();
177                 }
178                 //do
179                 //{
180                 //    group.Toggle();
181                 //} while (group.IsExpanded);
182                 group.CollapseGroup();
183             }
184         }
185
186         private void BindDataSetDataSource(DataSet dataset)
187         {
188             if (dataset == null || dataset.Tables.Count == null) return;
189             BindDataTableDataSouce(dataset.Tables[0]);
190         }
191     }
192
193     public class GroupGridViewRow:DataGridViewRow
194     {
195         public bool IsExpanded { get;private set; }
196
197         public string Title { get; set; }
198
199         public GroupGridView ParentGridView { get; set; }
200
201         private List<DataGridViewRow> groupRows { get; set; }
202
203         public GroupGridViewRow()
204         {
205             IsExpanded = false;
206             groupRows = new List<DataGridViewRow>();
207         }
208
209         public void ExpandGroup()
210         {
211             IsExpanded = true;
212             foreach (DataGridViewRow row in groupRows)
213                 row.Visible = true;
214         }
215
216         public void CollapseGroup()
217         {
218             IsExpanded = false;
219             foreach (DataGridViewRow row in groupRows)
220                 row.Visible = false;
221         }
222
223         public void Toggle()
224         {
225             if (IsExpanded)
226                 CollapseGroup();
227             else
228                 ExpandGroup();
229         }
230
231         public bool IsIconHit(DataGridViewCellMouseEventArgs e)
232         {
233             Rectangle groupBound = this.ParentGridView.GetRowDisplayRectangle(e.RowIndex, false);
234
235             if (
236                     e.X > groupBound.Left + 5 &&
237                     e.X < groupBound.Left + 15 &&
238                     e.Y > ((groupBound.Height - 1) - 5) / 2-2 &&
239                     e.Y <  ((groupBound.Height - 1) - 5) / 2 + 10-2
240                 )
241                 return true;
242
243             return false;
244         }
245
246         public DataGridViewRow AddRowToGroup(params object[] values)
247         {
248             DataGridViewRow row = this.ParentGridView.RowTemplate.Clone() as DataGridViewRow;
249             if (row == null) throw new NullReferenceException("行模板为空或者组模板类型不是DataGridViewRow");
250
251             row.CreateCells(this.ParentGridView, values);
252             this.ParentGridView.Rows.Add(row);
253             this.groupRows.Add(row);
254             return row;
255         }
256
257         protected override void Paint(System.Drawing.Graphics graphics, System.Drawing.Rectangle clipBounds, System.Drawing.Rectangle rowBounds, int rowIndex, DataGridViewElementStates rowState, bool isFirstDisplayedRow, bool isLastVisibleRow)
258         {
259
260             int holdWidth = this.ParentGridView.Columns.GetColumnsWidth(DataGridViewElementStates.Visible);
261             Color backgroudColor;
262             if (this.Selected)
263                 backgroudColor = this.ParentGridView.DefaultCellStyle.SelectionBackColor;
264             else
265                 backgroudColor = this.ParentGridView.DefaultCellStyle.BackColor;
266             using (Brush backgroudBrush = new SolidBrush(backgroudColor))
267             {
268                 graphics.FillRectangle(backgroudBrush, rowBounds.X,rowBounds.Y,holdWidth,rowBounds.Height);
269             }
270             using (Brush bottomLineBrush=new SolidBrush(Color.FromKnownColor( KnownColor.GradientActiveCaption)))
271             {
272                 graphics.FillRectangle(bottomLineBrush, rowBounds.Left, rowBounds.Top + rowBounds.Height-2, holdWidth, 2);
273             }
274
275             StringFormat sf = new StringFormat();
276             sf.LineAlignment = StringAlignment.Center;
277             Font font = new Font(this.ParentGridView.Font, FontStyle.Bold);
278             graphics.DrawString(this.Title, font, Brushes.Black,
279                 //rowBounds.Left+20,rowBounds.Top+rowBounds.Height/2,sf);
280             rowBounds.Left - this.ParentGridView.HorizontalScrollingOffset + 20, rowBounds.Top + rowBounds.Height / 2, sf);
281
282
283             int symbolX = rowBounds.Left - this.ParentGridView.HorizontalScrollingOffset + 5;//rowBounds.X + 5;
284             int symbolY =rowBounds.Y+ ((rowBounds.Height - 1) - 5) / 2-2;
285             if (Application.RenderWithVisualStyles)
286             {
287
288                 VisualStyleRenderer glyphRenderer;
289                 if (this.IsExpanded)
290                     glyphRenderer = new VisualStyleRenderer(VisualStyleElement.TreeView.Glyph.Opened);
291                 else
292                     glyphRenderer = new VisualStyleRenderer(VisualStyleElement.TreeView.Glyph.Closed);
293
294                 Rectangle glyphRectangle =new Rectangle(symbolX, symbolY, 10, 10);
295
296                 glyphRenderer.DrawBackground(graphics, glyphRectangle);
297
298             }
299             else
300             {
301                 int h = 8;
302                 int w = 8;
303                 int x = symbolX;
304                 int y = symbolY;
305                 graphics.DrawRectangle(new Pen(SystemBrushes.ControlDark), x, y, w, h);
306                 graphics.FillRectangle(new SolidBrush(Color.White),
307                     x + 1, y + 1, w - 1, h - 1);
308
309                 //画横线
310                 graphics.DrawLine(new Pen(new SolidBrush(Color.Black)),
311                     x + 2, y + 4, x + w - 2, y + 4);
312
313                 //画竖线
314                 if (!this.IsExpanded)
315                     graphics.DrawLine(new Pen(new SolidBrush(Color.Black)),
316                         x + 4, y + 2, x + 4, y + h - 2);
317             }
318         }
319     }

GroupGridView和GroupGridViewRow

补充部分

　　上面说的那个可分组GroupGridView有一个缺憾比较致命的，就是不能排序，刚好最近工作用上了，那有工作的压力逼着就把那个排序的功能都加了上去了。

　　要加这排序的，GroupGridView和GroupGridVIewRow两个类都要改，先介绍大概的思想，再分别介绍两个类。

　　排序的时候不能按照往常那样比较排序，因为在GridView里面含有显示组名的，不包含数据，用它来排序会导致整个GridView会乱的。因此排序的时候需要让各个组各自排列。

　　这时GroupGirdView最好就收集一下各个分组行，在排序的时候让各个分组排列

多增加两个字段

        protected List<GroupGridViewRow> groupCollection;

        private SortOrder mySortOrder;

在绑定数据源的时候取消对各列的排列限制

        //foreach (DataGridViewColumn col in this.Columns)
        //    col.SortMode = DataGridViewColumnSortMode.NotSortable;

单击单元格时也要开放一下，否则控件会忽略对行号为-1，就是列标题的处理

        protected override void OnCellMouseDown(DataGridViewCellMouseEventArgs e)
        {
            if (e.RowIndex == -1 || e.ColumnIndex == -1 || e.Button != System.Windows.Forms.MouseButtons.Left || e.Clicks != 1)
            {
                base.OnCellMouseDown(e);
                return;
            }
            //………

        }

跟排序比较相关的就是重写这个方法

        public override void Sort(DataGridViewColumn dataGridViewColumn, System.ComponentModel.ListSortDirection direction)
        {
            //base.Sort(dataGridViewColumn, direction);
            foreach (GroupGridViewRow row in groupCollection)
                row.SortByProtery(dataGridViewColumn, mySortOrder);
            mySortOrder = mySortOrder == System.Windows.Forms.SortOrder.Ascending ?
                System.Windows.Forms.SortOrder.Descending :
                 System.Windows.Forms.SortOrder.Ascending;
        }

到GroupGirdViewRow类了，这个类的改动就是按照上面的代码那样外放了一个方法，那方法就是对组内各行按升序或降序排序。

 1         public void SortByProtery(DataGridViewColumn proteryName, SortOrder order)
 2         {
 3             int colIndex = this.ParentGridView.Columns.IndexOf(proteryName);
 4             groupRows.Sort(new Comparison<DataGridViewRow>((r1, r2) =>
 5             {
 6
 7                 object value1 = r1.Cells[proteryName.Name].Value;
 8                 object value2 = r2.Cells[proteryName.Name].Value;
 9
10                 if (order == SortOrder.Descending) return CompareDESC(value1, value2);
11                 else return CompareASC(value1, value2);
12
13             }));
14             int groupIndex = this.ParentGridView.Rows.IndexOf(this);
15             foreach (DataGridViewRow row in groupRows)
16             {
17                 this.ParentGridView.Rows.Remove(row);
18                 this.ParentGridView.Rows.Insert(groupIndex + 1, row);
19             }
20         }
21
22         private int CompareASC(object obj1, object obj2)
23         {
24             decimal decTmep;
25             if (decimal.TryParse(obj1.ToString(), out decTmep) && decimal.TryParse(obj2.ToString(), out decTmep))
26                 return decimal.Compare(Convert.ToDecimal(obj1), Convert.ToDecimal(obj2));
27             if (obj1 is DateTime && obj2 is DateTime)
28                 return DateTime.Compare(Convert.ToDateTime(obj1), Convert.ToDateTime(obj2));
29             return string.Compare(obj1.ToString(), obj2.ToString());
30         }
31
32         private int CompareDESC(object obj1, object obj2)
33         {
34             decimal decTmep;
35             if (decimal.TryParse(obj1.ToString(), out decTmep) && decimal.TryParse(obj2.ToString(), out decTmep))
36                 return decimal.Compare(Convert.ToDecimal(obj1), Convert.ToDecimal(obj2)) * -1;
37             if (obj1 is DateTime && obj2 is DateTime)
38                 return DateTime.Compare(Convert.ToDateTime(obj1), Convert.ToDateTime(obj2)) * -1;
39             return string.Compare(obj1.ToString(), obj2.ToString()) * -1;
40         }

　　其实还比较笨拙的，按自定义的排序方法对各个列在List里面拍完序之后就按照List里的新顺序重新插入到GroupGridView里面。好了，排序的功能在这里草草介绍完了，下面则是新的控件代码，除了增加了这个功能之外，还修复了一些小错误。

  1     public class GroupGridView:DataGridView
  2     {
  3         public string GroupFieldName { get; set; }
  4
  5         protected object objDataSource;
  6
  7         public GroupGridViewRow GroupRowTemplate { get;protected set; }
  8
  9         private bool isGroupping;
 10
 11         protected List<GroupGridViewRow> groupCollection;
 12
 13         private SortOrder mySortOrder;
 14
 15         public GroupGridView()
 16         {
 17             //对GridView的操作的设置
 18             this.AllowUserToAddRows = false;
 19             this.AllowUserToDeleteRows = false;
 20             this.SelectionMode = DataGridViewSelectionMode.FullRowSelect;
 21
 22             //对GridView的样式设置
 23             this.EditMode = DataGridViewEditMode.EditProgrammatically;
 24             this.RowHeadersVisible = false;
 25             this.CellBorderStyle = DataGridViewCellBorderStyle.RaisedHorizontal;
 26
 27             //对实例的部分成员赋值
 28             isGroupping = false;
 29             GroupRowTemplate = new GroupGridViewRow();
 30             groupCollection = new List<GroupGridViewRow>();
 31         }
 32
 33         public GroupGridViewRow CreateGroupGridViewRow(string title)
 34         {
 35             GroupGridViewRow group = this.GroupRowTemplate.Clone() as GroupGridViewRow;
 36             if (group == null)
 37                 throw new NullReferenceException("组模板为空或者组模板类型不是GroupGridViewRow");
 38             group.Title = title;
 39             group.ParentGridView = this;
 40             group.CreateCells(this, group.Title);
 41             this.Rows.Add(group);
 42             //do
 43             //{
 44             //    group.Toggle();
 45             //} while (group.IsExpanded);
 46             group.CollapseGroup();
 47             return group;
 48         }
 49
 50         public new object DataSource
 51         {
 52             get
 53             {
 54                 if (isGroupping) return objDataSource;
 55                 return base.DataSource;
 56             }
 57             set
 58             {
 59                 if (string.IsNullOrEmpty(GroupFieldName)
 60                     || string.IsNullOrWhiteSpace(GroupFieldName))
 61                 {
 62
 63                     foreach (DataGridViewColumn col in this.Columns)
 64                         col.SortMode = DataGridViewColumnSortMode.Automatic;
 65                     base.DataSource = value;
 66                     isGroupping = false;
 67                 }
 68                 else
 69                 {
 70                     //2013-10-13增加排序功能所注释
 71                     //foreach (DataGridViewColumn col in this.Columns)
 72                     //    col.SortMode = DataGridViewColumnSortMode.NotSortable;
 73                     this.Rows.Clear();
 74                     this.groupCollection.Clear();
 75                     if (value is IEnumerable)
 76                         BindIEnumerableDataSource(value as IEnumerable);
 77                     else if (value is DataTable)
 78                         BindDataTableDataSouce(value as DataTable);
 79                     else if (value is DataSet)
 80                         BindDataSetDataSource(value as DataSet);
 81                     else
 82                     {
 83                         throw new NotImplementedException("不支持此类型作数据源");
 84                     }
 85                     objDataSource = value;
 86                     isGroupping = true;
 87
 88                 }
 89             }
 90         }
 91
 92         protected override void OnCellMouseDown(DataGridViewCellMouseEventArgs e)
 93         {
 94             if (e.RowIndex == -1 || e.ColumnIndex == -1 || e.Button != System.Windows.Forms.MouseButtons.Left || e.Clicks != 1)
 95             {
 96                 base.OnCellMouseDown(e);
 97                 return;
 98             }
 99             GroupGridViewRow group = this.Rows[e.RowIndex] as GroupGridViewRow;
100             if (group != null && group.IsIconHit(e))
101                 group.Toggle();
102             base.OnCellMouseDown(e);
103         }
104
105         protected override void OnCellDoubleClick(DataGridViewCellEventArgs e)
106         {
107             if (e.RowIndex == -1||e.ColumnIndex==-1)
108                 return;
109             GroupGridViewRow group = this.Rows[e.RowIndex] as GroupGridViewRow;
110             if (group != null )
111                 group.Toggle();
112             base.OnCellDoubleClick(e);
113         }
114
115         public override void Sort(DataGridViewColumn dataGridViewColumn, System.ComponentModel.ListSortDirection direction)
116         {
117             //base.Sort(dataGridViewColumn, direction);
118             foreach (GroupGridViewRow row in groupCollection)
119                 row.SortByProtery(dataGridViewColumn, mySortOrder);
120             mySortOrder = mySortOrder == System.Windows.Forms.SortOrder.Ascending ?
121                 System.Windows.Forms.SortOrder.Descending :
122                  System.Windows.Forms.SortOrder.Ascending;
123         }
124
125         private void BindIEnumerableDataSource(IEnumerable enumerable)
126         {
127             IEnumerable iends = enumerable;
128             if (iends == null) return;
129             Type dsItemType = null;
130             foreach (object item in iends)
131                 dsItemType = item.GetType();
132             if (iends == null) return;
133
134             PropertyInfo proInfo = dsItemType.GetProperty(GroupFieldName);
135
136             Dictionary<string, List<object>> groupDataSource = new Dictionary<string, List<object>>();
137             foreach (object item in iends)
138             {
139                 string tempStr = proInfo.GetValue(item, null).ToString();
140                 if (!groupDataSource.ContainsKey(tempStr))
141                     groupDataSource[tempStr] = new List<object>();
142                 groupDataSource[tempStr].Add(item);
143             }
144
145             List<string> colFildNames = new List<string>(this.Columns.Count);
146             foreach (DataGridViewColumn col in this.Columns)
147                 colFildNames.Add(col.DataPropertyName);
148             GroupGridViewRow group = null;
149             List<object> datas = new List<object>(colFildNames.Count);
150             foreach (KeyValuePair<string, List<object>> gi in groupDataSource)
151             {
152                 group = CreateGroupGridViewRow(gi.Key);
153                 foreach (object celli in gi.Value)
154                 {
155                     foreach (string colName in colFildNames)
156                     {
157                         datas.Add(dsItemType.GetProperty(colName).GetValue(celli, null));
158                     }
159                     group.AddRowToGroup(datas.ToArray());
160                     datas.Clear();
161                 }
162                 //do
163                 //{
164                 //    group.Toggle();
165                 //} while (group.IsExpanded);
166                 group.CollapseGroup();
167             }
168         }
169
170         private void BindDataTableDataSouce(DataTable table)
171         {
172             Dictionary<string, List<DataRow>> groupDataSource = new Dictionary<string, List<DataRow>>();
173             foreach (DataRow row in table.Rows)
174             {
175                 string tempStr = row[GroupFieldName].ToString();
176                 if (!groupDataSource.ContainsKey(tempStr))
177                     groupDataSource[tempStr] = new List<DataRow>();
178                 groupDataSource[tempStr].Add(row);
179             }
180
181             List<string> colFildNames = new List<string>(this.Columns.Count);
182             foreach (DataGridViewColumn col in this.Columns)
183                 colFildNames.Add(col.DataPropertyName);
184             GroupGridViewRow group = null;
185             List<object> datas = new List<object>(colFildNames.Count);
186             foreach (KeyValuePair<string, List<DataRow>> gi in groupDataSource)
187             {
188                 group = CreateGroupGridViewRow(gi.Key);
189                 foreach (DataRow celli in gi.Value)
190                 {
191                     foreach (string colName in colFildNames)
192                     {
193                         datas.Add(celli[colName]);
194                     }
195                     group.AddRowToGroup(datas.ToArray());
196                     datas.Clear();
197                 }
198                 //do
199                 //{
200                 //    group.Toggle();
201                 //} while (group.IsExpanded);
202                 group.CollapseGroup();
203             }
204         }
205
206         private void BindDataSetDataSource(DataSet dataset)
207         {
208             if (dataset == null || dataset.Tables.Count == null) return;
209             BindDataTableDataSouce(dataset.Tables[0]);
210         }
211     }
212
213     public class GroupGridViewRow:DataGridViewRow
214     {
215         public bool IsExpanded { get;private set; }
216
217         public string Title { get; set; }
218
219         public GroupGridView ParentGridView { get; set; }
220
221         private List<DataGridViewRow> groupRows { get; set; }
222
223         public GroupGridViewRow()
224         {
225             IsExpanded = false;
226             groupRows = new List<DataGridViewRow>();
227         }
228
229         public void ExpandGroup()
230         {
231             IsExpanded = true;
232             foreach (DataGridViewRow row in groupRows)
233                 row.Visible = true;
234         }
235
236         public void CollapseGroup()
237         {
238             IsExpanded = false;
239             foreach (DataGridViewRow row in groupRows)
240                 row.Visible = false;
241         }
242
243         public void Toggle()
244         {
245             if (IsExpanded)
246                 CollapseGroup();
247             else
248                 ExpandGroup();
249         }
250
251         public bool IsIconHit(DataGridViewCellMouseEventArgs e)
252         {
253             Rectangle groupBound = this.ParentGridView.GetRowDisplayRectangle(e.RowIndex, false);
254
255             if (
256                     e.X > groupBound.Left + 5 &&
257                     e.X < groupBound.Left + 15 &&
258                     e.Y > ((groupBound.Height - 1) - 5) / 2-2 &&
259                     e.Y <  ((groupBound.Height - 1) - 5) / 2 + 10-2
260                 )
261                 return true;
262
263             return false;
264         }
265
266         public void SortByProtery(DataGridViewColumn proteryName, SortOrder order)
267         {
268             int colIndex = this.ParentGridView.Columns.IndexOf(proteryName);
269             groupRows.Sort(new Comparison<DataGridViewRow>((r1, r2) =>
270             {
271
272                 object value1 = r1.Cells[proteryName.Name].Value;
273                 object value2 = r2.Cells[proteryName.Name].Value;
274                 //object value1 = r1.Cells[colIndex].Value;
275                 //object value2 = r2.Cells[colIndex].Value;
276
277                 if (order == SortOrder.Descending) return CompareDESC(value1, value2);
278                 else return CompareASC(value1, value2);
279
280             }));
281             int groupIndex = this.ParentGridView.Rows.IndexOf(this);
282             foreach (DataGridViewRow row in groupRows)
283             {
284                 this.ParentGridView.Rows.Remove(row);
285                 this.ParentGridView.Rows.Insert(groupIndex + 1, row);
286             }
287         }
288
289         private int CompareASC(object obj1, object obj2)
290         {
291             //if (obj1 is decimal && obj2 is decimal)//2013-10-14 正确判断数值类型
292             decimal decTmep;
293             if (decimal.TryParse(obj1.ToString(), out decTmep) && decimal.TryParse(obj2.ToString(), out decTmep))
294                 return decimal.Compare(Convert.ToDecimal(obj1), Convert.ToDecimal(obj2));
295             if (obj1 is DateTime && obj2 is DateTime)
296                 return DateTime.Compare(Convert.ToDateTime(obj1), Convert.ToDateTime(obj2));
297             return string.Compare(obj1.ToString(), obj2.ToString());
298         }
299
300         private int CompareDESC(object obj1, object obj2)
301         {
302             //if (obj1 is decimal && obj2 is decimal)//2013-10-14 正确判断数值类型
303             decimal decTmep;
304             if (decimal.TryParse(obj1.ToString(), out decTmep) && decimal.TryParse(obj2.ToString(), out decTmep))
305                 return decimal.Compare(Convert.ToDecimal(obj1), Convert.ToDecimal(obj2)) * -1;
306             if (obj1 is DateTime && obj2 is DateTime)
307                 return DateTime.Compare(Convert.ToDateTime(obj1), Convert.ToDateTime(obj2)) * -1;
308             return string.Compare(obj1.ToString(), obj2.ToString()) * -1;
309         }
310
311         public DataGridViewRow AddRowToGroup(params object[] values)
312         {
313             DataGridViewRow row = this.ParentGridView.RowTemplate.Clone() as DataGridViewRow;
314             if (row == null) throw new NullReferenceException("行模板为空或者组模板类型不是DataGridViewRow");
315
316             row.CreateCells(this.ParentGridView, values);
317             this.ParentGridView.Rows.Add(row);
318             this.groupRows.Add(row);
319             return row;
320         }
321
322         protected override void Paint(System.Drawing.Graphics graphics, System.Drawing.Rectangle clipBounds, System.Drawing.Rectangle rowBounds, int rowIndex, DataGridViewElementStates rowState, bool isFirstDisplayedRow, bool isLastVisibleRow)
323         {
324
325             int holdWidth = this.ParentGridView.Columns.GetColumnsWidth(DataGridViewElementStates.Visible);
326             Color backgroudColor;
327             if (this.Selected)
328                 backgroudColor = this.ParentGridView.DefaultCellStyle.SelectionBackColor;
329             else
330                 backgroudColor = this.ParentGridView.DefaultCellStyle.BackColor;
331             using (Brush backgroudBrush = new SolidBrush(backgroudColor))
332             {
333                 graphics.FillRectangle(backgroudBrush, rowBounds.X,rowBounds.Y,holdWidth,rowBounds.Height);
334             }
335             using (Brush bottomLineBrush=new SolidBrush(Color.FromKnownColor( KnownColor.GradientActiveCaption)))
336             {
337                 graphics.FillRectangle(bottomLineBrush, rowBounds.Left, rowBounds.Top + rowBounds.Height-2, holdWidth, 2);
338             }
339
340             StringFormat sf = new StringFormat();
341             sf.LineAlignment = StringAlignment.Center;
342             Font font = new Font(this.ParentGridView.Font, FontStyle.Bold);
343             graphics.DrawString(this.Title, font, Brushes.Black,
344                 //rowBounds.Left+20,rowBounds.Top+rowBounds.Height/2,sf);
345             rowBounds.Left - this.ParentGridView.HorizontalScrollingOffset + 20, rowBounds.Top + rowBounds.Height / 2, sf);
346
347
348             int symbolX = rowBounds.Left - this.ParentGridView.HorizontalScrollingOffset + 5;//rowBounds.X + 5;
349             int symbolY =rowBounds.Y+ ((rowBounds.Height - 1) - 5) / 2-2;
350             if (Application.RenderWithVisualStyles)
351             {
352
353                 VisualStyleRenderer glyphRenderer;
354                 if (this.IsExpanded)
355                     glyphRenderer = new VisualStyleRenderer(VisualStyleElement.TreeView.Glyph.Opened);
356                 else
357                     glyphRenderer = new VisualStyleRenderer(VisualStyleElement.TreeView.Glyph.Closed);
358
359                 Rectangle glyphRectangle =new Rectangle(symbolX, symbolY, 10, 10);
360
361                 glyphRenderer.DrawBackground(graphics, glyphRectangle);
362
363             }
364             else
365             {
366                 int h = 8;
367                 int w = 8;
368                 int x = symbolX;
369                 int y = symbolY;
370                 graphics.DrawRectangle(new Pen(SystemBrushes.ControlDark), x, y, w, h);
371                 graphics.FillRectangle(new SolidBrush(Color.White),
372                     x + 1, y + 1, w - 1, h - 1);
373
374                 //画横线
375                 graphics.DrawLine(new Pen(new SolidBrush(Color.Black)),
376                     x + 2, y + 4, x + w - 2, y + 4);
377
378                 //画竖线
379                 if (!this.IsExpanded)
380                     graphics.DrawLine(new Pen(new SolidBrush(Color.Black)),
381                         x + 4, y + 2, x + 4, y + h - 2);
382             }
383         }
384     }

GroupGridView和GroupGridViewRow
