How to share files from Ubuntu to Macclients（Draft）


1.InstallUbuntu 12.04 LTS （quick start）

Download ISO p_w_picpath and install aVM on Vsphere.  The installation procedureis very straight forward.  Few thingsneed to notice:

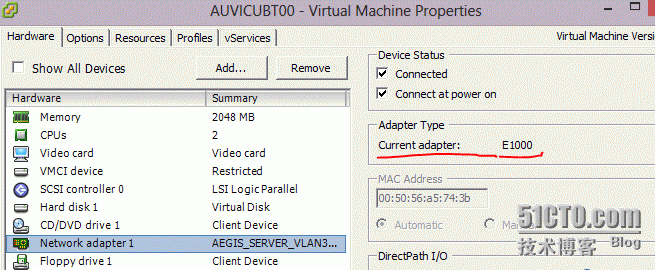

1)NIC type must be E1000, otherwise *IX system can’trecognize the NIC



2)If IP address and Proxy didn’t configureproperly during installation, we can manually change them after installation

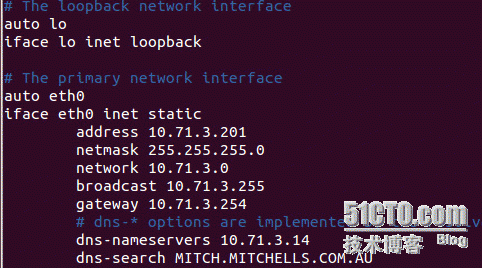

StaticIP    /etc/network/interfaces

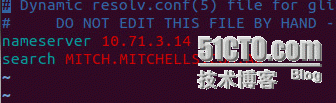

DNS /etc/resolv.conf

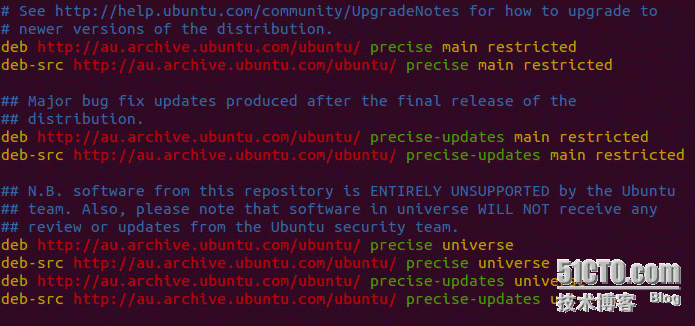

Apt-get FTP source list

/etc/apt/source.list



Apt-get proxy setting

/etc/apt/apt.conf


Install GUI

Sudoapt-get update

               Sudo apt-getupgrade

               Sudo apt-getinstall Ubuntu-desktop

               Startx

Add a newdisk


1)Adda new disk in Vsphere Client

2)ls /dev/sd* (Login as root, check current disk, sda means 1st disk, sdb is2nd , sdc is 3rd )

3)fdisk /dev/sdb （setup disk info..）

4)mkfs -t ext3 /dev/sdb1 (format disk)

5)fdisk –l (verify disk)

mkdir -p /opt

mount /dev/sdb1 /opt -orw

(create a directory andmount the disk to the directory)


6)/dev/sdb1 /opt ext3defaults 1 2 (modify/etc/fstab)


2.BindUbuntu to Active Directory


open / install likewise

Sudo apt-get update
 sudo apt-get install likewise-open
 sudo domainjoin-cli join mitch.mitchells.com.au mcu-admin





open defautls

sudo update-rc.d likewise defaults
 sudo /etc/init.d/likewise start


Enable ‘other user’  login option in Ubuntu 12.04 LTS

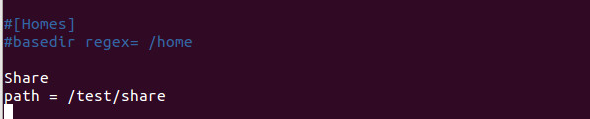

/etc/lightdm/lightdm.conf



Login as domain account

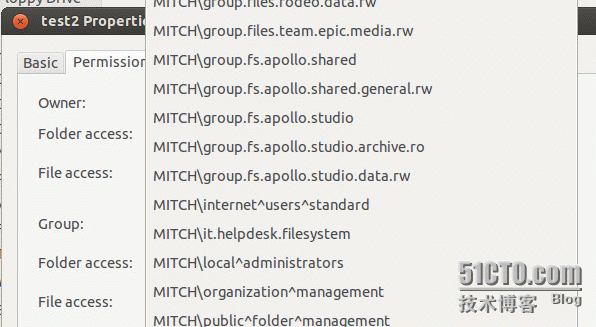

Setup folder  permissions









3.Installand Configure Netatalk

Installation

$ sudo apt-get installbuild-essential pkg-config checkinstall git-core avahi-daemonlibavahi-client-dev


$ ./configure–with-init-style=debian


$ make


$ sudo make install


$ sudo apt-get install netatalk


BasicConfiguration

Modify /etc/netatalk/afpd.conf to setup Share Computer name

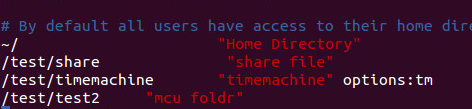

Modify /etc/netatak/AppleVolumes.default

Setup share path and their names (options:tm will simulate a timecapsule device for Time machine backup)


Restart service

Sudo service netatalk restart

Sudo service avahi-daemon restart



4.Accessfrom Mac OSX

If the Mac is on the samevlan of the Linux server, it will automatically detect in the Finder

Otherwise we can manuallyconnect to it

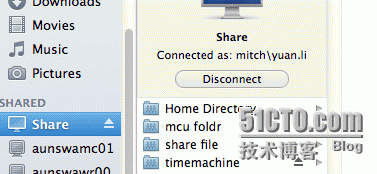

You will see the share folders

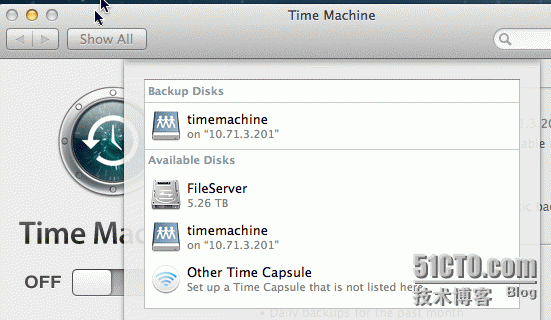

We can also use time machine to back up files to the virtualTime Capsule device
