【2014-11-23】《The Hardware/Software Interface》– Section 8 (continue)

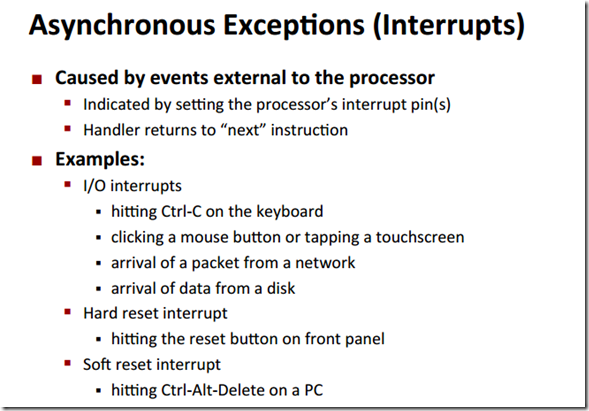

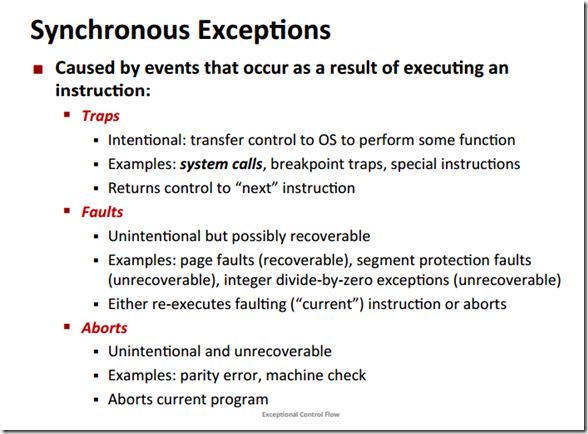

  • Exceptions:
    • An exception is transfer of control to the operating system in response to some event.

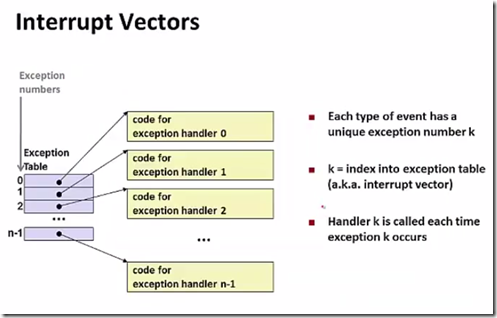

    • exception processing by exception handler
    • image



  1. Process(进程)
  • Process abstraction provides an interface between the program and the underlying CPU + Memory.
  • Definition: A process is an instance of a running program
  • Process provides each program with two key abstractions:
    • Logical control flow
      • Each process seems to have exclusive use of the CPU
    • Private virtual address space
      • Each process seems to have exclusive use of main memory
Context Switching
  • Processes are managed by a shared chunk of OS code called the kernel

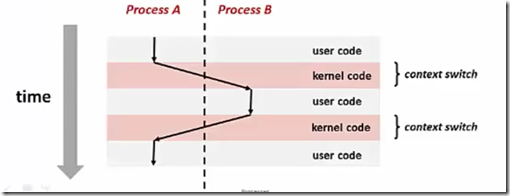

  • Control flow passes from one process to another via a context switch
  • image

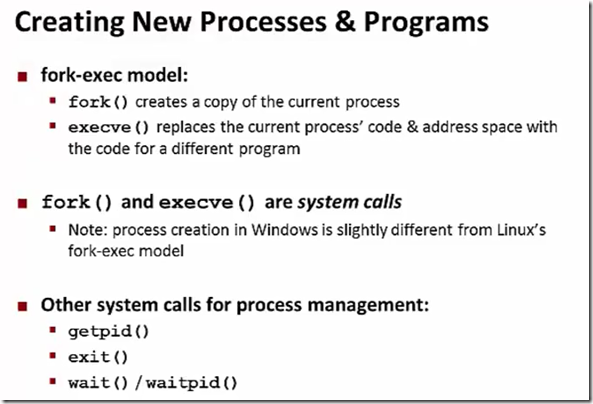

Creating New Processes & Programs


转载于:https://www.cnblogs.com/sjtujoe/p/4116541.html
