实验三
VTP

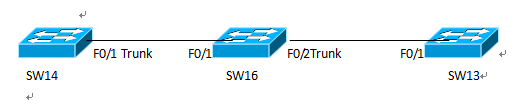

一、 拓扑图
F0/1 Trunk F0/1 F0/2Trunk F0/1
SW14
SW16 SW13
二、实验原理
Sw14 sw16 sw13 vtp运行模式分别为 client server client，在这种模式下，sw16作为服务器，它的功能是向sw14和sw16发送汇总通告，通知它们交换机目前的vtp域名和配置修订号，两台client交换机收到了配置修订号大的汇总通告，则向sw16发送通告请求，sw16将含有vlan详细信息的子集通告发送给client。
另外一种情况，如果client中的修订号比server大，则server如果向client发送汇总通告，client则发送回sever汇总通告，通知它自己的修订号更大，这时server交换机就会发送请求通告请求client交换机它的vlan信息，client将含有vlan信息的子集通告回送给server交换机，当server交换机收到后更新vtp status信息 ，当它再次对vlan进行修改的时候修订号就会增加，而client的修订号不会再增加，所以client还是会向server学习。
三、实验步骤
1、基本配置
Switch>en
Switch#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#hostname sw1
sw14(config)#no ip domain
sw14(config)#no ip domain-lookup
sw14(config)#line con 0
sw14(config-line)#logging s
sw14(config-line)#logging synchronous
sw14(config-line)#no login
sw14(config-line)#line vty 0 4
sw14(config-line)#no login
sw14(config-line)#end
2、创建vtp域，域名为cisco
Sw1：
sw1#vlan database
sw1(vlan)#vty domain cisco
sw1 (vlan)#vtp domain cisco
Domain name already set to cisco .
sw1 (vlan)#vtp client
Setting device to VTP CLIENT mode.
sw1 (vlan)#exit
Sw16：
Switch>en
Switch#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#hostname sw2
Sw2(config)#no ip do
Sw2(config)#no ip domain-lookup
Sw2config)#line con 0
Sw2(config-line)#logging s
Sw2config-line)#logging synchronous
Sw2(config-line)#no login
Sw2(config-line)#line vty 0 4
Sw2(config-line)#no login
sw16(config-line)#end
sw2#
00:23:24: %SYS-5-CONFIG_I: Configured from console by console
Sw2#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Sw2(config)#hostname sw2
sw2(config)#vlan database
sw2(config)#exit
sw2#vlan database
sw2(vlan)#vtp domain cisco
Domain name already set to cisco .
sw2(vlan)#vtp server
Device mode already VTP SERVER.
sw2(vlan)#exit
APPLY completed.
Exiting....
Sw13：
Switch#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#hostname sw
sw3(config)#no ip domain
sw3(config)#no ip domain-lookup
sw3(config)#line con 0
sw3(config-line)#logging s
sw3(config-line)#logging synchronous
sw3(config-line)#no login
sw3(config-line)#line vty 0 4
sw3(config-line)#no login
sw3(config-line)#end
00:02:34: %SYS-5-CONFIG_I: Configured from console by console
sw3#conf t
Enter configuration commands, one per line. End with CNTL/Z.
sw3(config)#hostname sw3
sw3(config)#exit
sw3#vlan
00:13:27: %SYS-5-CONFIG_I: Configured from console by console
sw3#vlan database
sw3(vlan)#vtp domain cisco
Domain name already set to cisco .
sw3(vlan)#vtp cl
sw3(vlan)#vtp client
Setting device to VTP CLIENT mode.
sw3(vlan)#vtp server
Setting device to VTP SERVER mode.
sw3(vlan)#end
sw3(vlan)#exit
APPLY completed.
Exiting....
sw3#conf t
Enter configuration commands, one per line. End with CNTL/Z.
sw3(config)#exit
3、设置trunk
查看version
sw1#show version
Cisco Internetwork Operating System Software
IOS (tm) C2950 Software (C2950-I6K2L2Q4-M), Version 12.1(22)EA8a, RELEASE SOFTWARE (fc1)
Copyright (c) 1986-2006 by cisco Systems, Inc.
Compiled Fri 28-Jul-06 17:00 by weiliu
版本号c2950,所以不用封装协议
Sw14
sw1(config)#int f0/1
sw1(config-if)#switchport mode trunk
sw1(config-if)#no shutdown
sw1(config-if)#exit
sw1(config)#exit
sw16
sw2(config)#int rang f0/1 -2
sw2(config-if-range)#switchport mode trunk
sw2(config-if-range)#no shutdown
sw2(config-if-range)#exit
sw13
sw3(config)#INterface F0/1
sw3(config-if)#SWItchport mode trunk
查看trunk链路是否配置成功
sw14
sw1#show interface trunk
|
Explain：接口fa0/1的模式是on 封装协议是802.1q ， 接口连接状态为trunk，本地vlan是vlan1.
该接口允许vlan1-4094
|
Fa0/1
on 802.1q trunking 1
Port
Vlans allowed on trunk
Fa0/1
1-4094
Port
Vlans allowed and active in management domain
Fa0/1
1-2,10
Port
Vlans in spanning tree forwarding state and not pruned
Fa0/1
1-2,10
sw1#
sw16
sw2#show interfaces trunk
Port Mode Encapsulation Status Native vlan
Fa0/1 on 802.1q trunking 1
Fa0/2 on 802.1q trunking 1
Port Vlans allowed on trunk
Fa0/1 1-4094
Fa0/2 1-4094
Port Vlans allowed and active in management domain
Fa0/1 1
Fa0/2 1
Port Vlans in spanning tree forwarding state and not pruned
Fa0/1 1
Fa0/2 1
Sw13
sw3#show interfaces trunk
Port Mode Encapsulation Status Native vlan
Fa0/1 on 802.1q trunking 1
Port Vlans allowed on trunk
Fa0/1 1-1005
Port Vlans allowed and active in management domain
Fa0/1 1
Port Vlans in spanning tree forwarding state and not pruned
Fa0/1 1
查看后发现
trunk
数据链路已经配置成功
4
、查看有没有改变
vlan
之前的
vtp
参数
Sw13
：
sw3#show vtp s
sw3#show vtp status
VTP Version : 2 //vtp
的版本号为
2
Configuration Revision : 73 //
修订号为
73
Maximum VLANs supported locally : 64 //
本地支持最大
vlan
数目
Number of existing VLANs : 5 //
目前存在的
vlan
数目是
5
VTP Operating Mode : Server //vtp
的操作类型是
server
VTP Domain Name : cisco //vtp
的域名是
cisco
VTP Pruning Mode : Disabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0xFE 0xB0 0xD1 0xBD 0x61 0x1B 0x8C 0x8B
Configuration last modified by 0.0.0.0 at 3-1-93 00:37:25
Local updater ID is 0.0.0.0 (no valid interface found)
Sw16
：
sw2#show vtp s
sw2#show vtp status
VTP Version : 2
Configuration Revision : 73
Maximum VLANs supported locally : 128
Number of existing VLANs : 5
VTP Operating Mode : Server
VTP Domain Name : cisco
VTP Pruning Mode : Disabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0xFE 0xB0 0xD1 0xBD 0x61 0x1B 0x8C 0x8B
Configuration last modified by 0.0.0.0 at 3-1-93 00:37:25
Local updater ID is 0.0.0.0 (no valid interface found)
sw2#vlan d
sw2#vlan database
% Warning: It is recommended to configure VLAN from config mode,
as VLAN database mode is being deprecated. Please consult user
documentation for configuring VTP/VLAN in config mode.
Sw14
：
sw1#show vtp status
VTP Version : 2
Configuration Revision : 73
Maximum VLANs supported locally : 128
Number of existing VLANs : 5
VTP Operating Mode : Client
VTP Domain Name : cisco
VTP Pruning Mode : Disabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0xFE 0xB0 0xD1 0xBD 0x61 0x1B 0x8C 0x8B
Configuration last modified by 0.0.0.0 at 3-1-93 00:37:25
sw1#show vtp stat
VTP Version : 2
Configuration Revision : 74
Maximum VLANs supported locally : 128
Number of existing VLANs : 6
VTP Operating Mode : Client
VTP Domain Name : cisco
VTP Pruning Mode : Disabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0x54 0x32 0xC6 0x30 0x6F 0x45 0xD4 0x49
Configuration last modified by 0.0.0.0 at 3-1-93 00:56:02
Client
的
vlan
数目与修订号和
server
相同
5
、
sw16
上创建
vlan2
sw2(vlan)#vlan 2
VLAN 2 added:
Name: VLAN0002
sw2(vlan)#name server
sw2(vlan)#exit
APPLY completed.
Exiting....
6
、查看增加
vlan
后的
vtp
参数
Sw16
：
sw2#show vtp s
VTP Version : 2
Configuration Revision : 74
Maximum VLANs supported locally : 128
Number of existing VLANs : 6
VTP Operating Mode : Server
VTP Domain Name : cisco
VTP Pruning Mode : Disabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0x54 0x32 0xC6 0x30 0x6F 0x45 0xD4 0x49
Configuration last modified by 0.0.0.0 at 3-1-93 00:56:02
Local updater ID is 0.0.0.0 (no valid interface found)
增加
vlan
后的
vtp
参数中修订号变为
73+1=74
，
vlan
为
5+1=6
Sw14
：
sw1#show vtp stat
VTP Version : 2
Configuration Revision : 74
Maximum VLANs supported locally : 128
Number of existing VLANs : 6
VTP Operating Mode : Client
VTP Domain Name : cisco
VTP Pruning Mode : Disabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0x54 0x32 0xC6 0x30 0x6F 0x45 0xD4 0x49
Configuration last modified by 0.0.0.0 at 3-1-93 00:56:02
增加
vlan
后的参数同
server
一样
Sw13
：
sw1#show vtp stat
VTP Version : 2
Configuration Revision : 74
Maximum VLANs supported locally : 128
Number of existing VLANs : 6
VTP Operating Mode : Client
VTP Domain Name : cisco
VTP Pruning Mode : Disabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0x54 0x32 0xC6 0x30 0x6F 0x45 0xD4 0x49
Configuration last modified by 0.0.0.0 at 3-1-93 00:56:02
增加
vlan
后的参数同
server
一样
7
、查看其它交换机的
vlan
是否更改
sw3#show vlan
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/2, Fa0/3, Fa0/4, Fa0/5
Fa0/6, Fa0/7, Fa0/8, Fa0/9
Fa0/10, Fa0/11, Fa0/12
2 VLAN0002 active
10 shengchan active
1002 fddi-default active
1003 token-ring-default active
1004 fddinet-default active
1005 trnet-default active
VLAN Type SAID MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 Trans2
---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
1 enet 100001 1500 - - - - - 1002 1003
2 enet 100002 1500 - - - - - 0 0
10 enet 100010 1500 - - - - - 0 0
1002 fddi 101002 1500 - 0 - - - 1 1003
1003 tr 101003 1500 1005 0 - - srb 1 1002
1004 fdnet 101004 1500 - - 1 ibm - 0 0
1005 trnet 101005 1500 - - 1 ibm - 0 0
扩展实验
一、
拓扑图
二、实验原理
透明模式：
S-T-C
首先，
sw16
作为透明模式，它自身可以创建、添加和删除
vlan
，但只在本地生效
其次，它不学习不提供
VTP
消息
再次，它可以转发相同域名的
VTP
消息
当
server
发送汇总通告时，
sw16
并不接受，而是将汇总通告转发给
client
，
client
收到后将请求通告通过
sw16
转发给
server
，
server
再通过
sw16
将子集通告转发给
client
当
sw16
修改
vlan
时，修订号不变，总是最小的，所以它不会对
server
跟
client
造成影响
二、
实验步骤
1
、将
sw14
改为
server
，
sw16
改为
transparent
sw1(vlan)#vtp server
Setting device to VTP SERVER mode.
sw1(vlan)#exit
APPLY completed.
Exiting....
sw2(vlan)#vtp transparent
Setting device to VTP TRANSPARENT mode.
sw2(vlan)#exit
APPLY completed.
Exiting....
2、验证透明模式修订号对server mode和client mode 的影响
①查看sw16的vtp数据
sw2#show vtp status
VTP Version
: 2
Configuration Revision
: 0
Maximum VLANs supported locally : 128
Number of existing VLANs
: 6
VTP Operating Mode
: Transparent
VTP Domain Name
: cisco
VTP Pruning Mode
: Disabled
VTP V2 Mode
: Disabled
VTP Traps Generation
: Disabled
MD5 digest
: 0x01 0x83 0x7E 0xF0 0xDC 0x2A 0xF4 0x94
Configuration last modified by 0.0.0.0 at 3-1-93 00:56:02
此时的修订号为0
②增加一个vlan
sw2#conf t
Enter configuration commands, one per line. End with CNTL/Z.
sw2(config)#vlan 20
sw2(config-vlan)#name lala
sw2(config-vlan)#exit
sw2(config)#exit
③查看增加vlan之后的修订号
sw2#show vtp status
VTP Version
: 2
Configuration Revision
: 0
Maximum VLANs supported locally : 128
Number of existing VLANs
: 7
VTP Operating Mode
: Transparent
VTP Domain Name
: cisco
VTP Pruning Mode
: Disabled
VTP V2 Mode
: Disabled
VTP Traps Generation
: Disabled
MD5 digest
: 0xEE 0xC4 0xC5 0x08 0xFE 0xD3 0xD7 0xAA
Configuration last modified by 0.0.0.0 at 3-1-93 00:56:02
修订号仍然为0，说明：无论transparent mode 怎样增删vlan，只要修订号不变则不会对server 和client造成影响
④查看transparent的vlan表
sw2#show vlan
VLAN Name
Status Ports
---- -------------------------------- --------- -------------------------------
1
default active Fa0/3, Fa0/4, Fa0/5, Fa0/6
Fa0/7, Fa0/8, Fa0/9, Fa0/10
Fa0/11, Fa0/12
11
wode active
20
lala active
1002 fddi-default
act/unsup
1003 token-ring-default
act/unsup
1004 fddinet-default
act/unsup
1005 trnet-default
act/unsup
⑤查看server跟client的vlan表
Server ：
sw1#show vlan
VLAN Name
Status Ports
---- -------------------------------- --------- -------------------------------
1
default active Fa0/2, Fa0/3, Fa0/4, Fa0/5
Fa0/6, Fa0/7, Fa0/8, Fa0/9
Fa0/10, Fa0/11, Fa0/12, Fa0/13
Fa0/14, Fa0/15, Fa0/16, Fa0/17
Fa0/18, Fa0/19, Fa0/20, Fa0/21
Fa0/22, Fa0/23, Fa0/24
2
VLAN0002 active
10
shengchan active
1002 fddi-default
act/unsup
1003 token-ring-default
act/unsup
1004 fddinet-default
act/unsup
1005 trnet-default
act/unsup
Client：
sw3#show vlan
VLAN Name
Status Ports
---- -------------------------------- --------- -------------------------------
1
default active Fa0/2, Fa0/3, Fa0/4, Fa0/5
Fa0/6, Fa0/7, Fa0/8, Fa0/9
Fa0/10, Fa0/11, Fa0/12
2
VLAN0002 active
10
shengchan active
1002 fddi-default
active
1003 token-ring-default
active
1004 fddinet-default
active
1005 trnet-default
active
结论：在transparent mode中添加的名为lala 的vlan并未出现在server mode 和 client mode中 证明了它不会对它们造成影响。
转载于:https://blog.51cto.com/dongchunli/1040902
扫一扫
1786
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
